Camshaft and VTC Actuator Removal, Installation, and Inspection (1.5 L Engine): Installation
- VTC Actuator A/B - Install

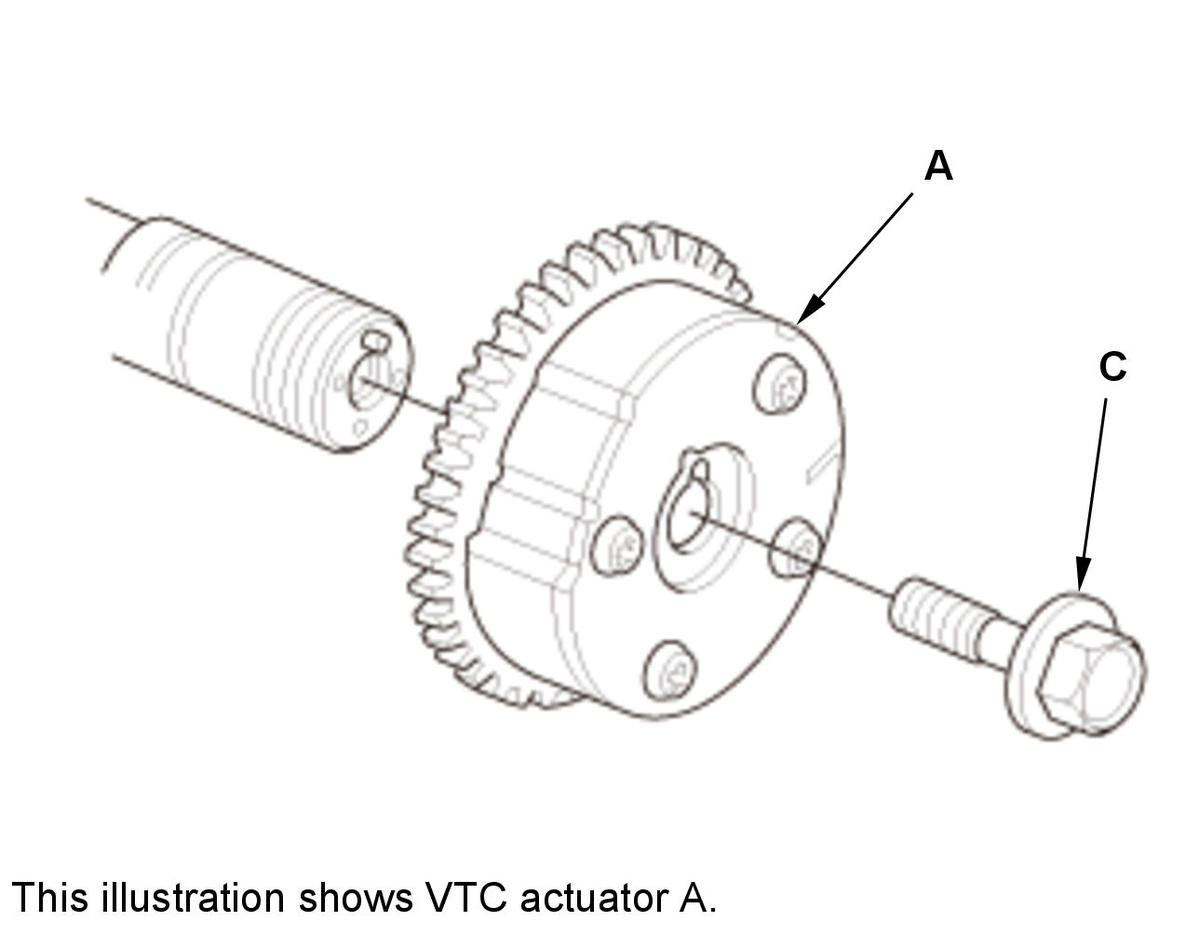

NOTE: If VTC actuator A/B is removed, do this procedure. 1. Install VTC actuator A/B.
2. Apply new engine oil to the threads of the VTC actuator A/B mounting bolt (C), then loosely install it.
- Camshaft - Install

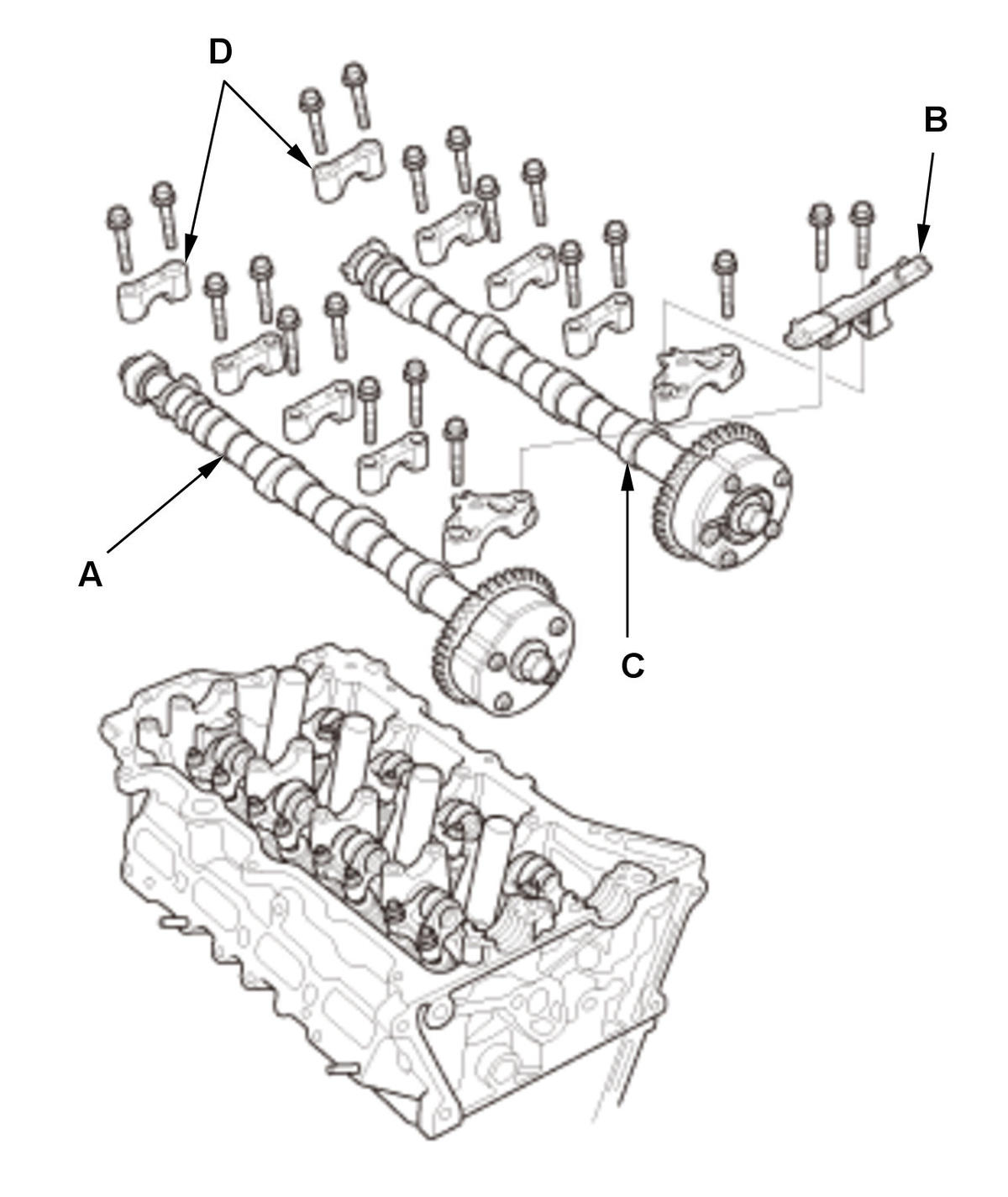

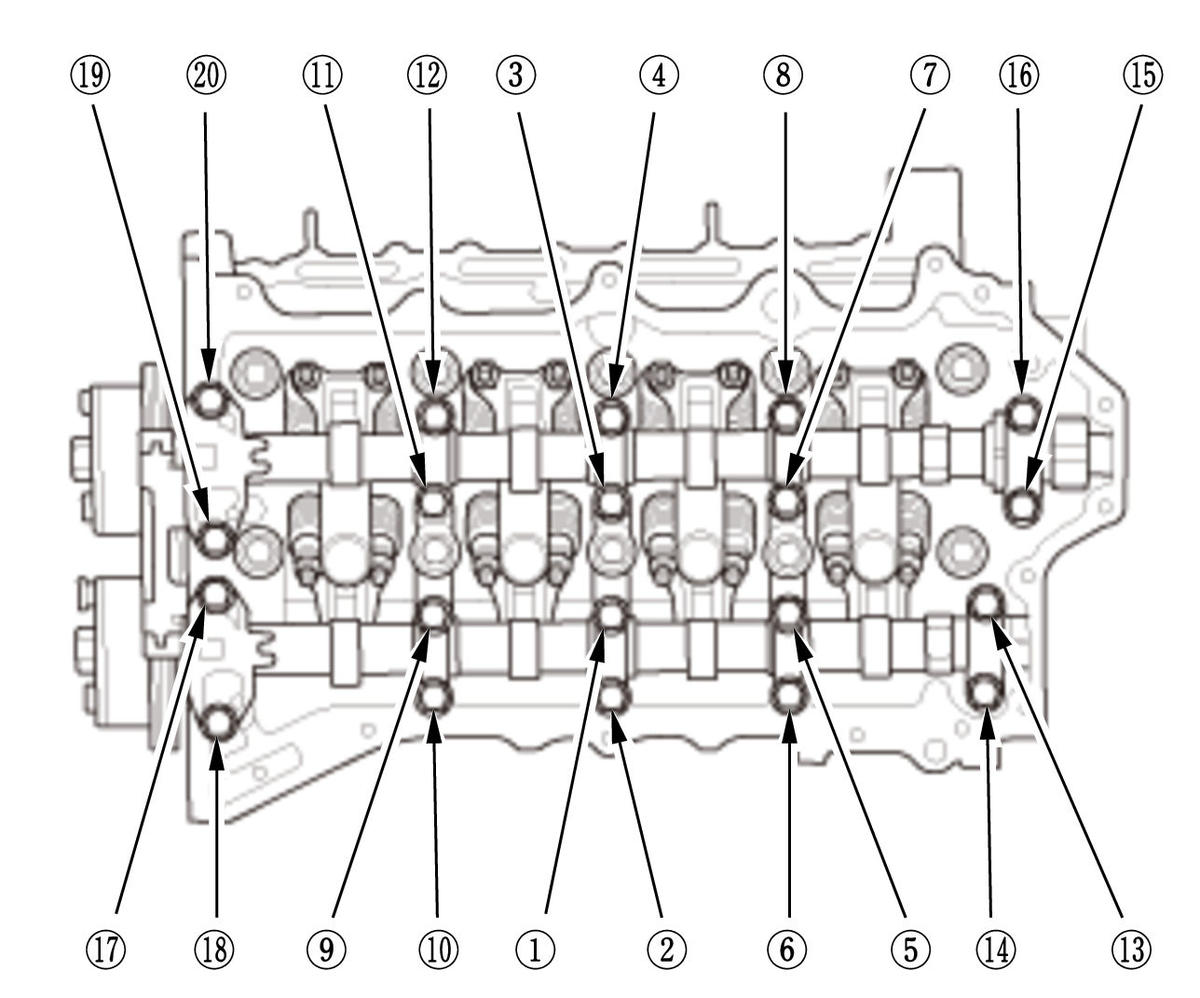

1. Install the intake camshaft (A), the exhaust camshaft (C), the camshaft holders (D), and cam chain guide B. 2. Install the camshaft holder bolts, in sequence, to 5.0 N.m (0.51 kgf.m, 3.7 lbf.ft). 3. Tighten the camshaft holder bolts, in sequence, to the specified torque.
Specified Torque: 18 N.m (1.8 kgf.m, 13 lbf.ft) - VTC Actuator A/B Mounting Bolt - Tighten

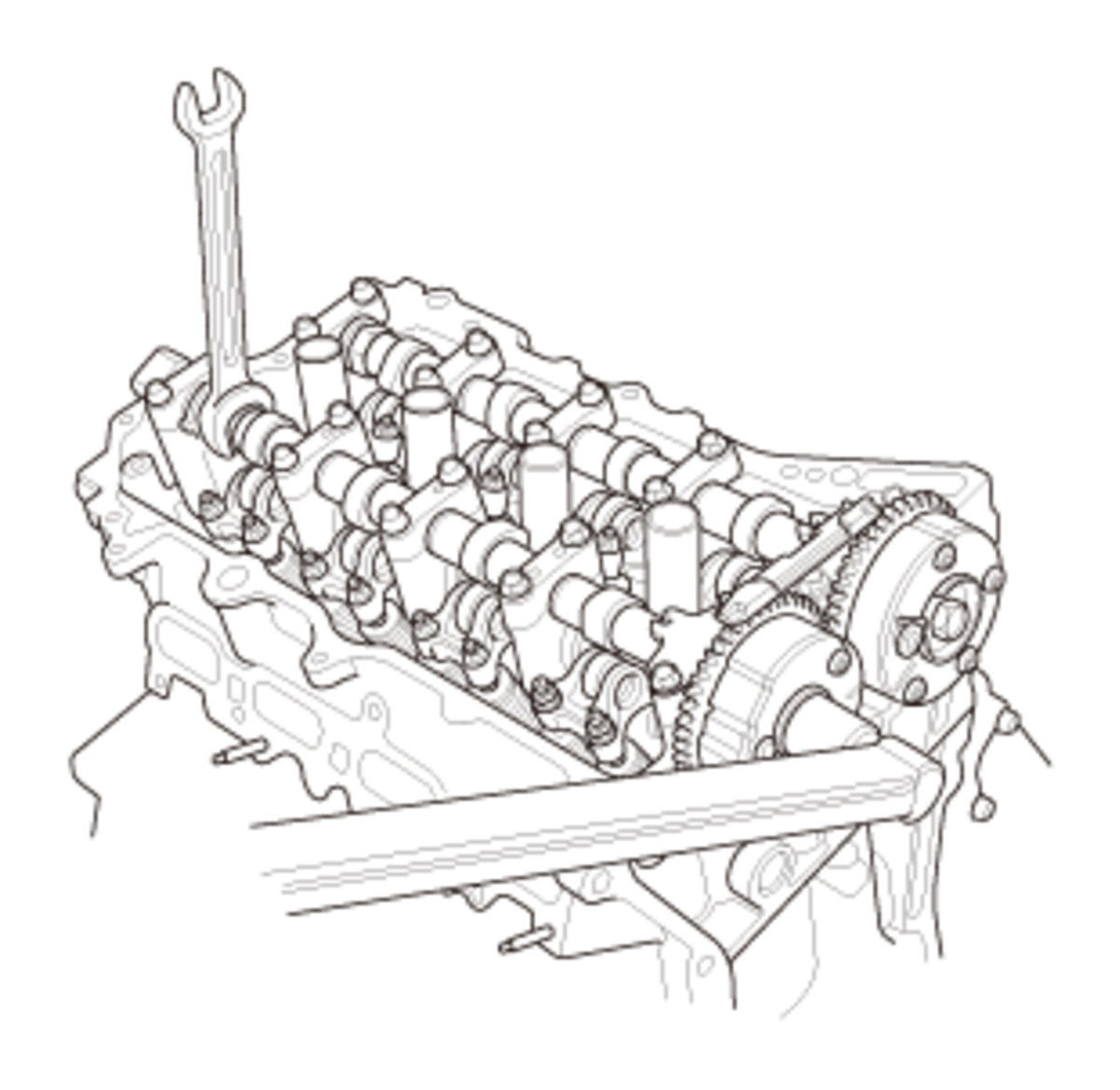

NOTE: If VTC actuator A/B is removed, do this procedure. 1. Hold the intake camshaft with an open-end wrench, then tighten the VTC actuator A mounting bolt to the specified torque.

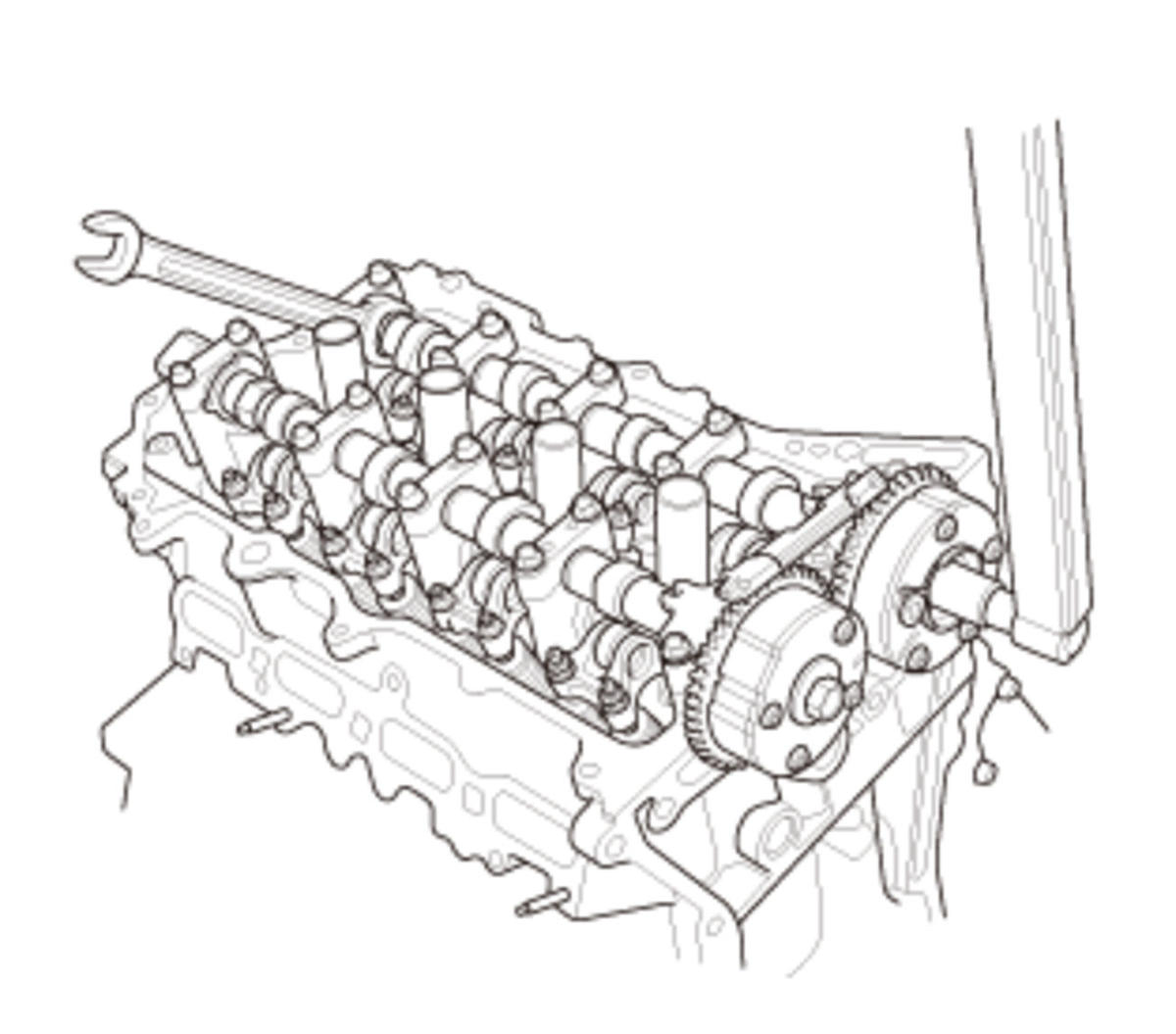

115 N.m (11.7 kgf.m, 85 lbf.ft) Specified Torque: 2. Hold the exhaust camshaft with an open-end wrench, then tighten the VTC actuator B mounting bolt to the specified torque. Specified Torque: 115 N.m (11.7 kgf.m, 85 lbf.ft) - Cam Chain - Install
- Valve Clearance - Adjust
- High Pressure Fuel Pump Base - Install
- CMP Sensor A/B - Install
- EVAP Canister Purge Valve - Install
- Cylinder Head Cover - Install
- High Pressure Fuel Pump - Install
- Air Cleaner - Install
- Fuel Leak (Low Pressure Side) - Check
1. Turn the vehicle to the ON mode, but do not start the engine. After the fuel pump runs for about 2 seconds, the fuel line will be pressurized. Repeat this two or three time, then check for fuel leakage. - Fuel Leak (High Pressure Side) - Check
- Ignition Timing - Inspect
