Cam Chain Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019): Removal

NOTE:  Keep the cam chain away from magnetic fields.

1. Right Front Wheel - Remove
2. Engine Undercover - Remove
3. Cylinder Head Cover - Remove
4. Camshaft Timing - Inspect
5. VTC Oil Control Solenoid Valve - Remove
6. Rocker Arm Oil Control Valve - Remove
7. Crankshaft Pulley - Remove
8. Side Engine Mount - Remove
9. Cam Chain Case - Remove

   Courtesy of HONDA, U.S.A., INC.

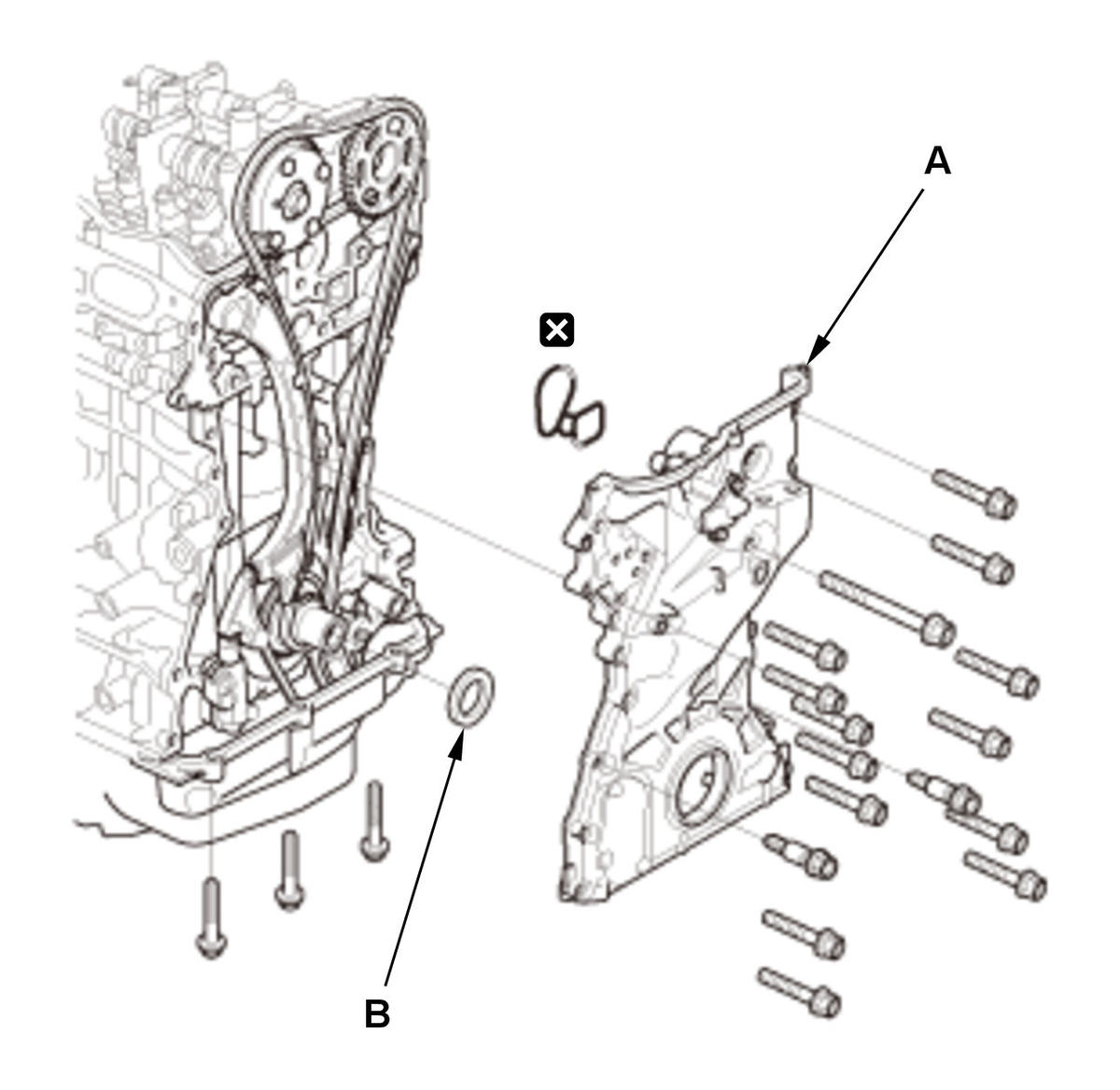

   1. Remove the cam chain case (A) and the spacer (B).

10. Cam Chain Auto-Tensioner - Remove

    Courtesy of HONDA, U.S.A., INC.

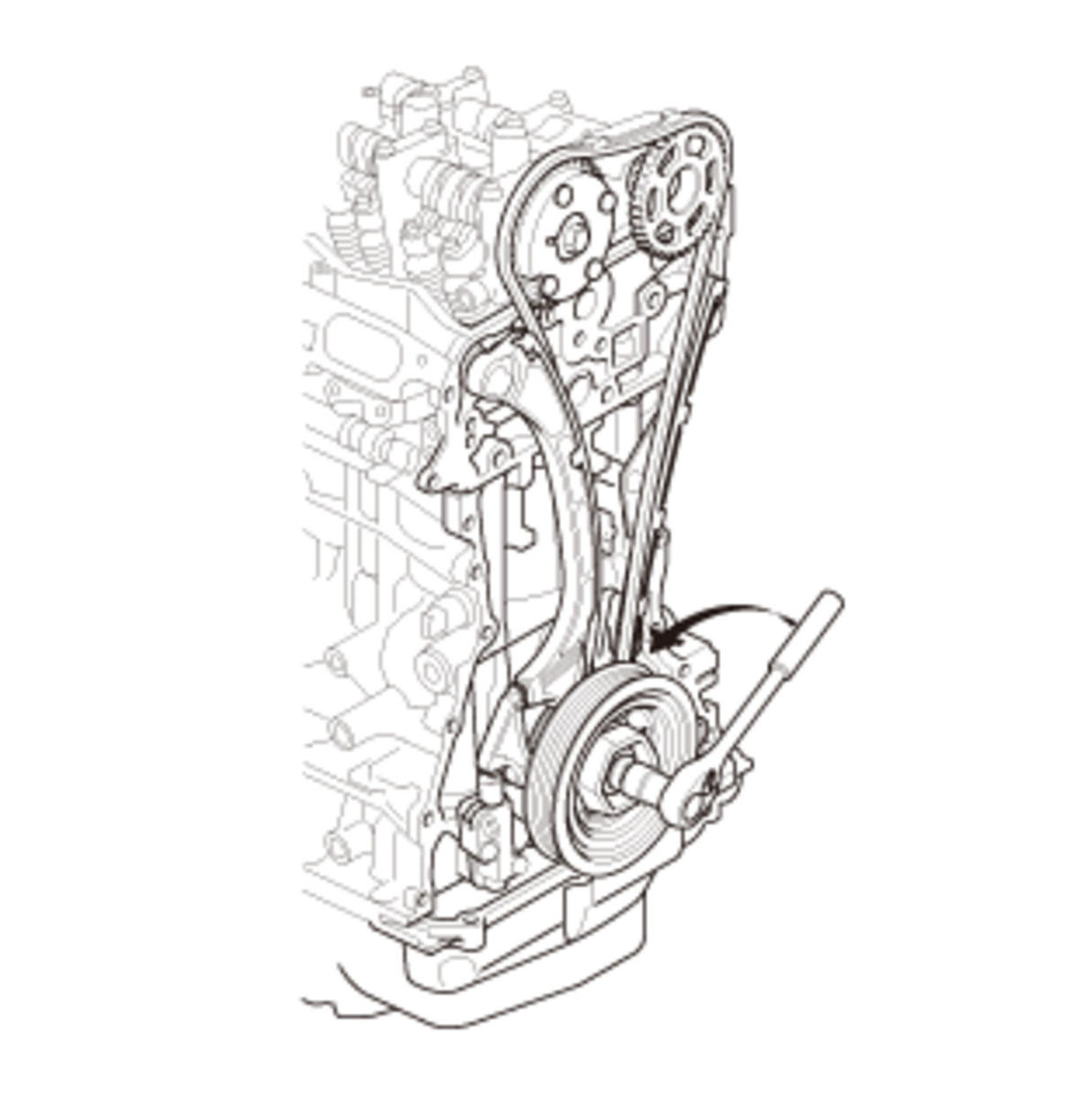

    1. Loosely install the crankshaft pulley. 2. Turn the crankshaft counterclockwise to compress the cam chain auto-tensioner.

    Courtesy of HONDA, U.S.A., INC.

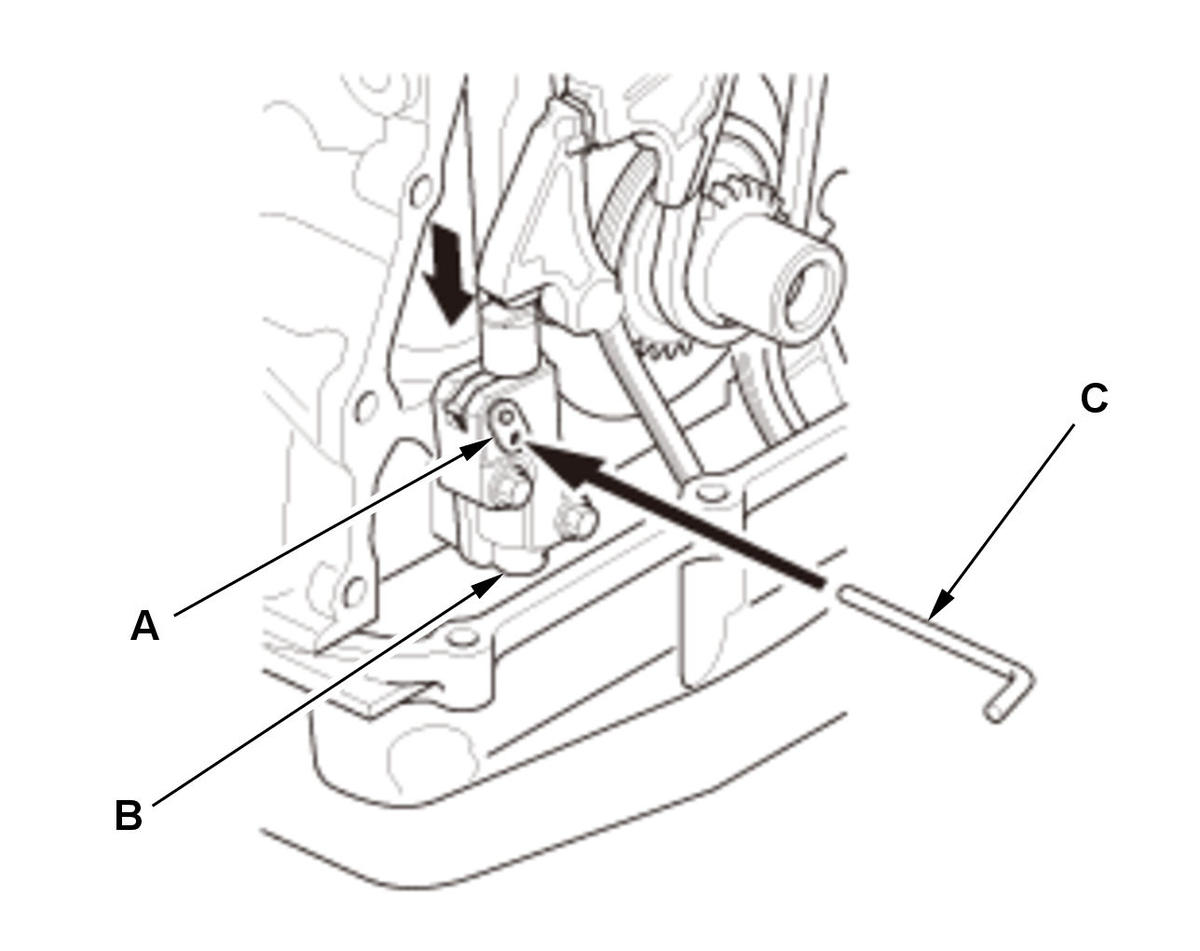

    3. Rotate the crankshaft counterclockwise to align the holes on the lock (A) and the cam chain auto-tensioner (B), then insert a 1.2 mm (3/64 in) diameter pin (C) into the holes. Turn the crankshaft clockwise to secure the pin.NOTE:  If the holes in the lock and the cam chain auto-tensioner do not align, continue to rotating the crankshaft counterclockwise until the holes align, then install the pin.

    Courtesy of HONDA, U.S.A., INC.

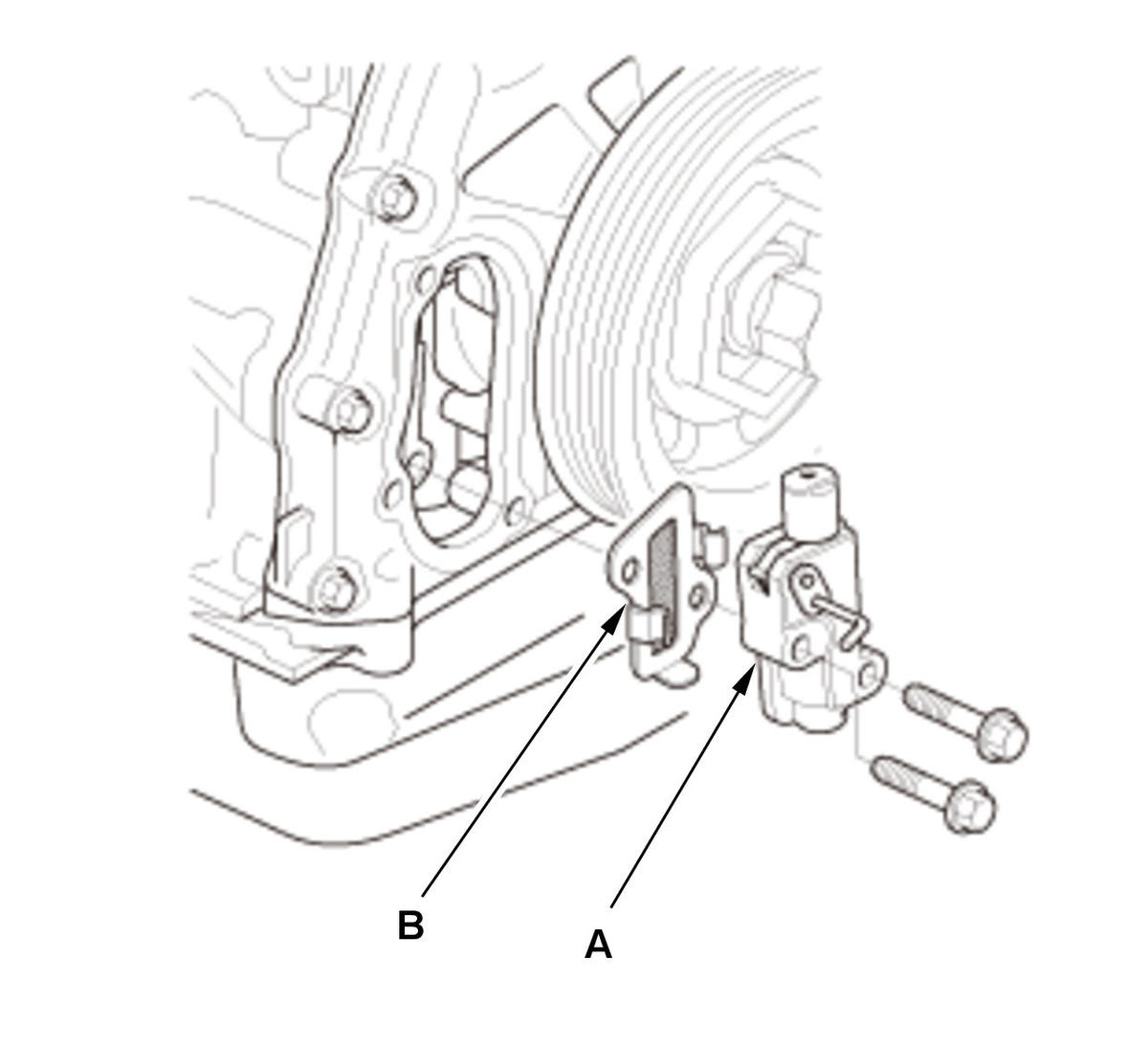

    4. Remove the cam chain auto-tensioner (A) and the cam chain auto-tensioner filter (B).NOTE:  Check the cam chain auto-tensioner filter for damage. If filter is damaged, replace it.

11. Cam Chain Guide B - Remove

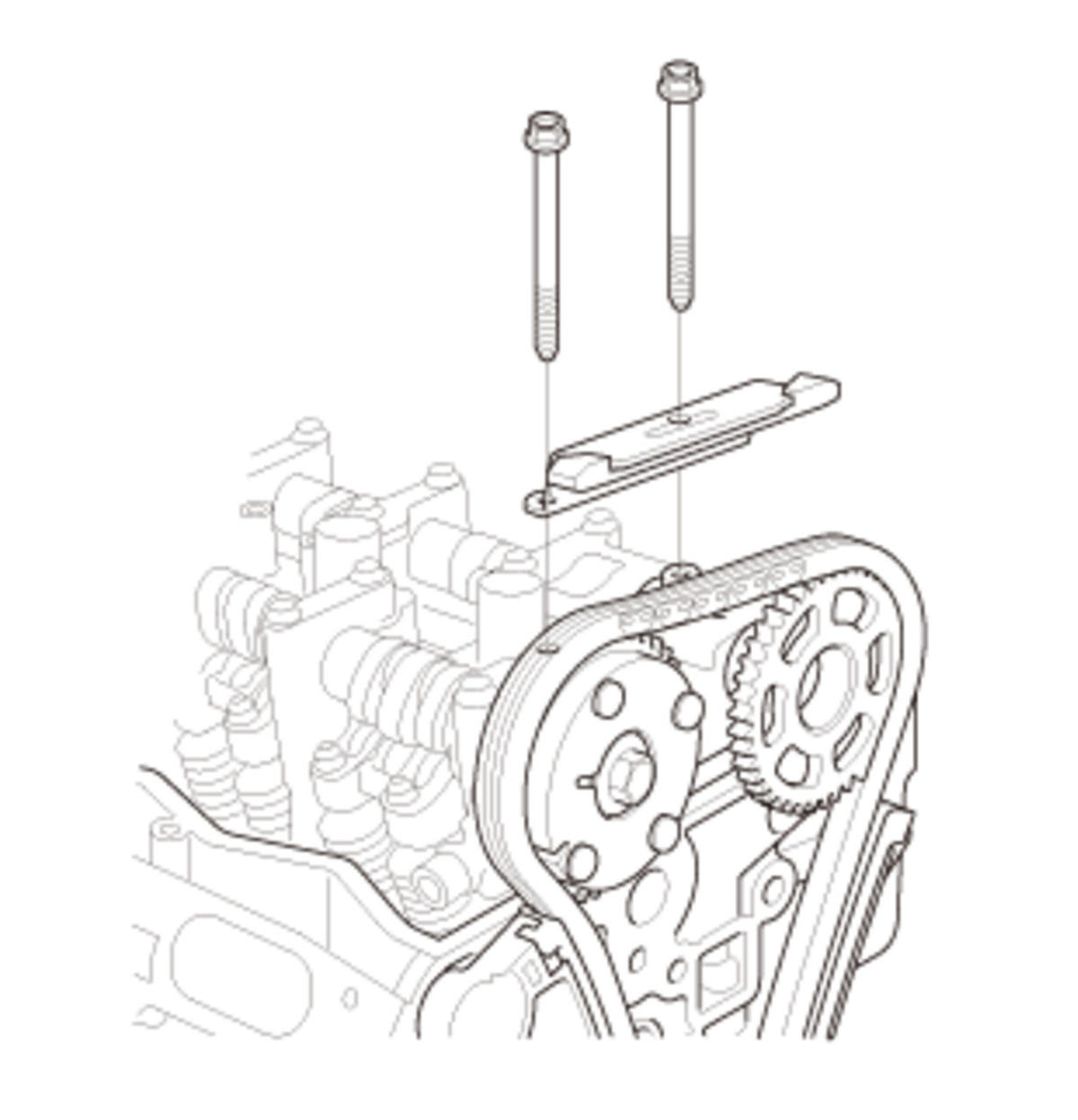

    Courtesy of HONDA, U.S.A., INC.

12. Cam Chain - Remove

    Courtesy of HONDA, U.S.A., INC.

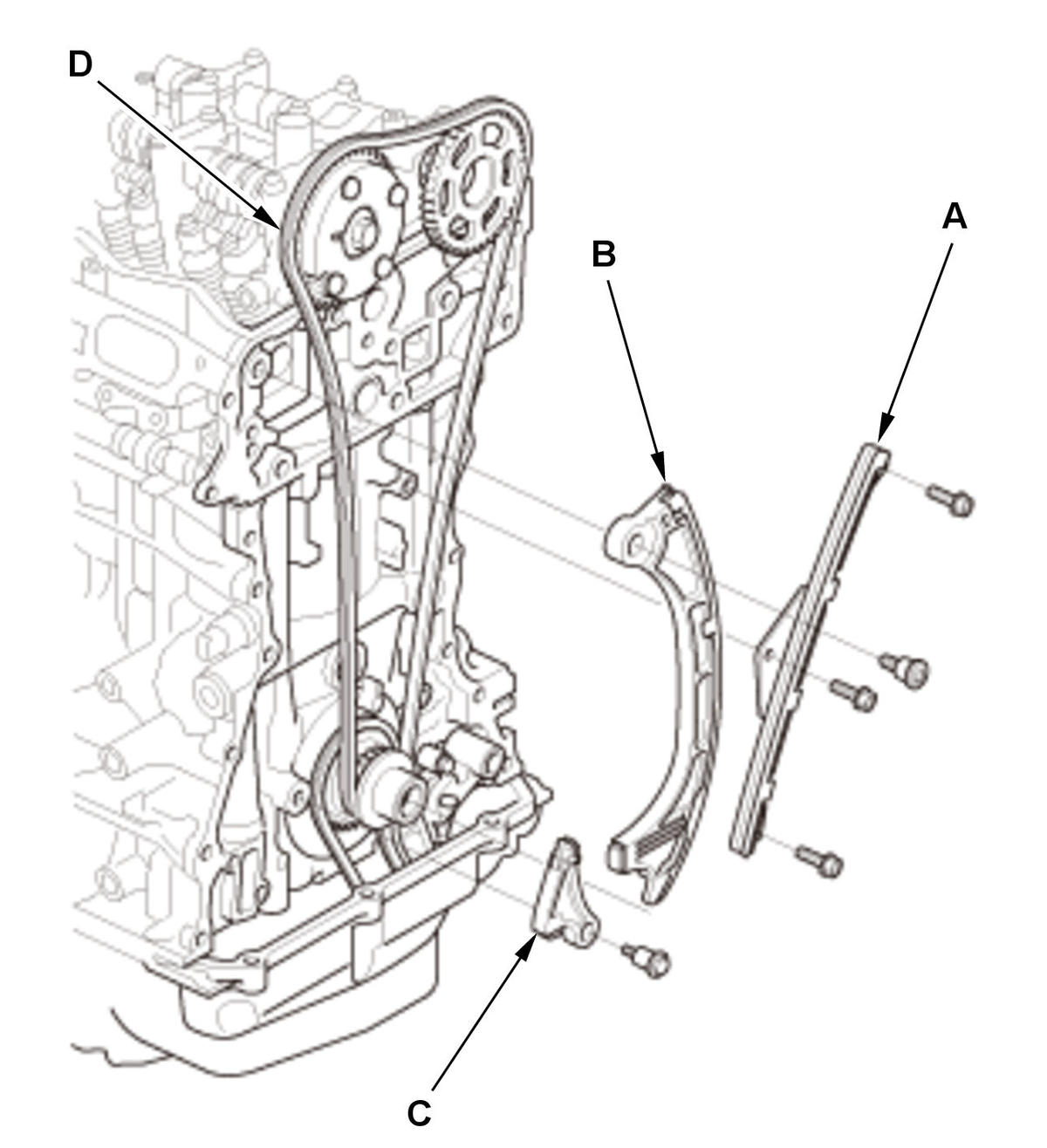

    1. Remove cam chain guide A, the cam chain tensioner arm (B), and the cam chain tensioner sub arm (C). 2. Remove the cam chain (D).
