Cam Chain Removal, Installation, and Inspection (1.5 L Engine): Removal

NOTE: Keep the cam chain away from magnetic fields.

Right Front Wheel - Remove
Engine Undercover - Remove
Drive Belt - Remove
Camshaft Timing - Inspect
Crankshaft Pulley - Remove
Drive Belt Auto-Tensioner - Remove
Dipstick - Remove
Side Engine Mount - Remove

Connector (VTC Oil Control Solenoid Valve A) - Disconnect

Courtesy of HONDA, U.S.A., INC.

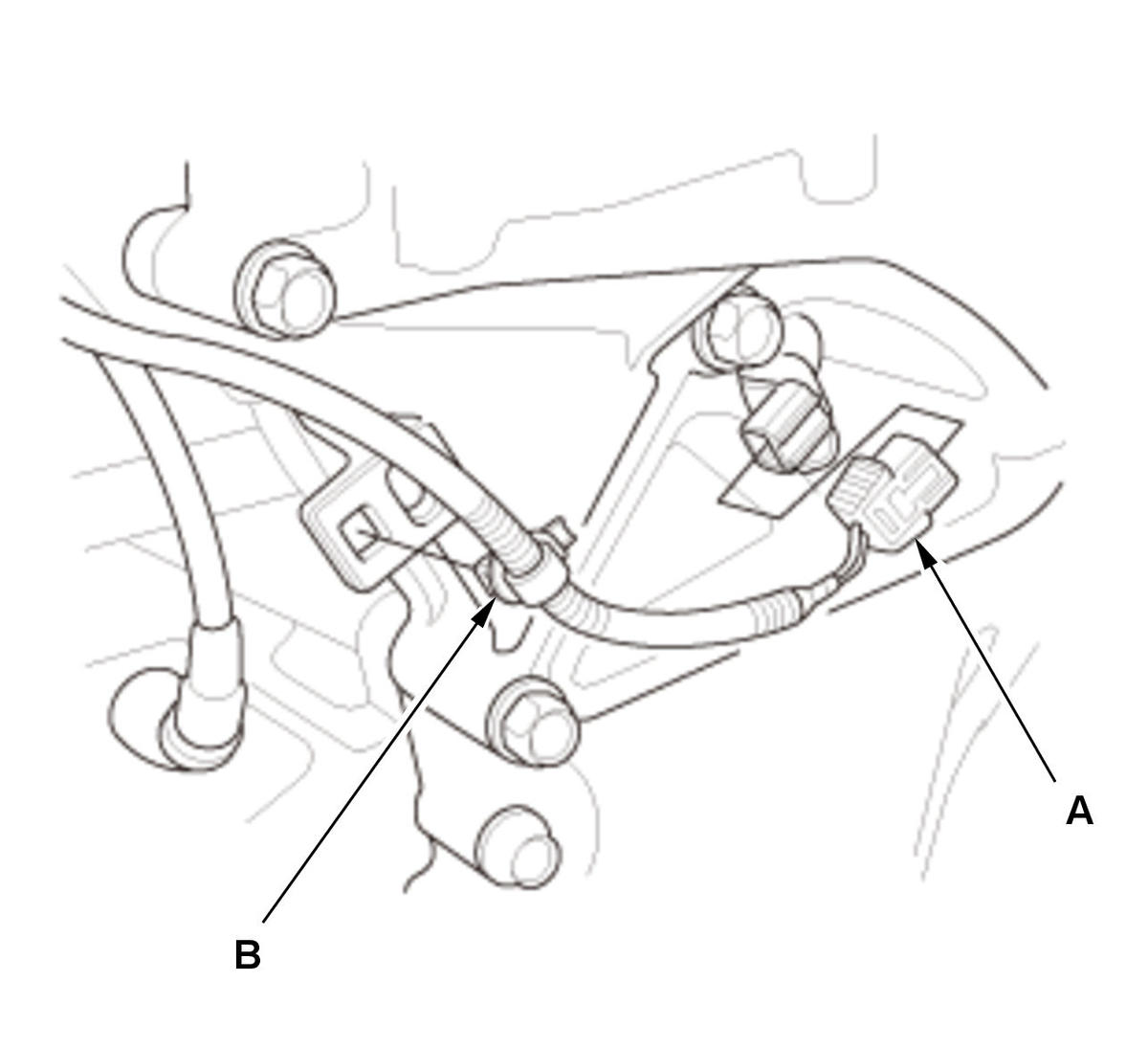

1. Disconnect the connector (A).

2. Remove the harness clip (B).

VTC Oil Control Solenoid Valve A - Remove

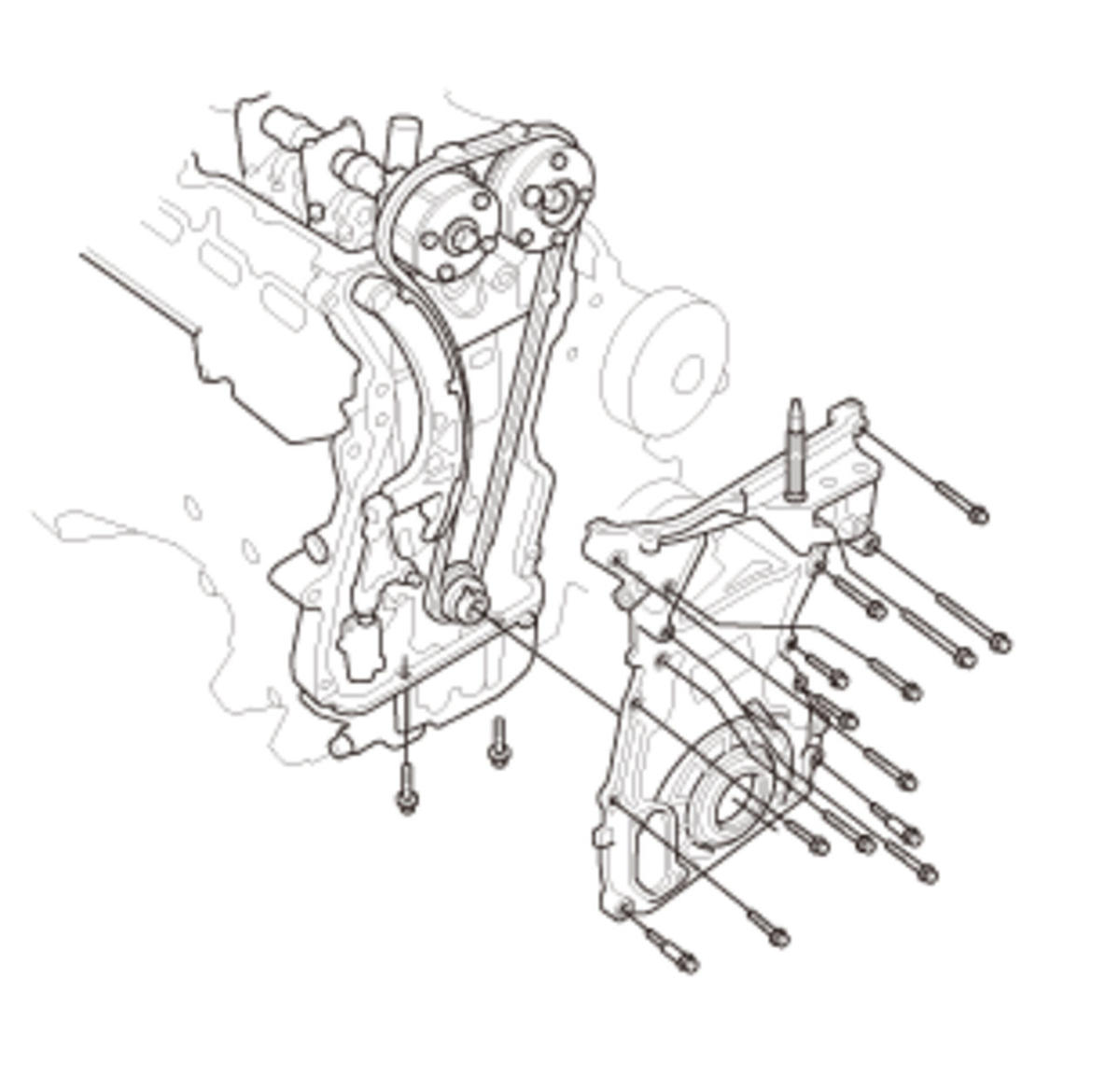

Cam Chain Case - Remove

Courtesy of HONDA, U.S.A., INC.

Cam Chain Auto-Tensioner - Remove

Courtesy of HONDA, U.S.A., INC.

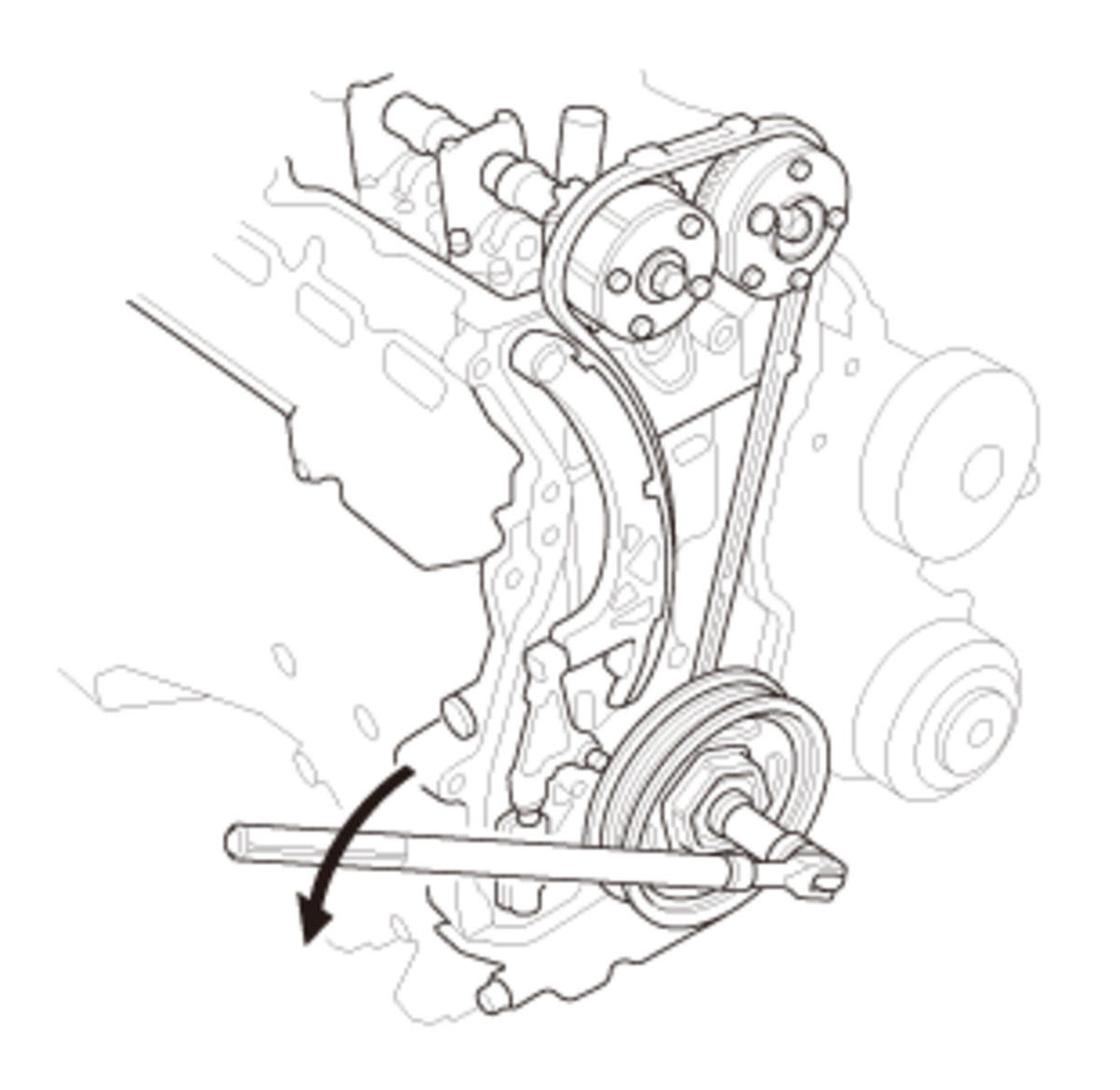

1. Loosely install the crankshaft pulley.

2. Turn the crankshaft counterclockwise to compress the cam chain auto-tensioner.

Courtesy of HONDA, U.S.A., INC.

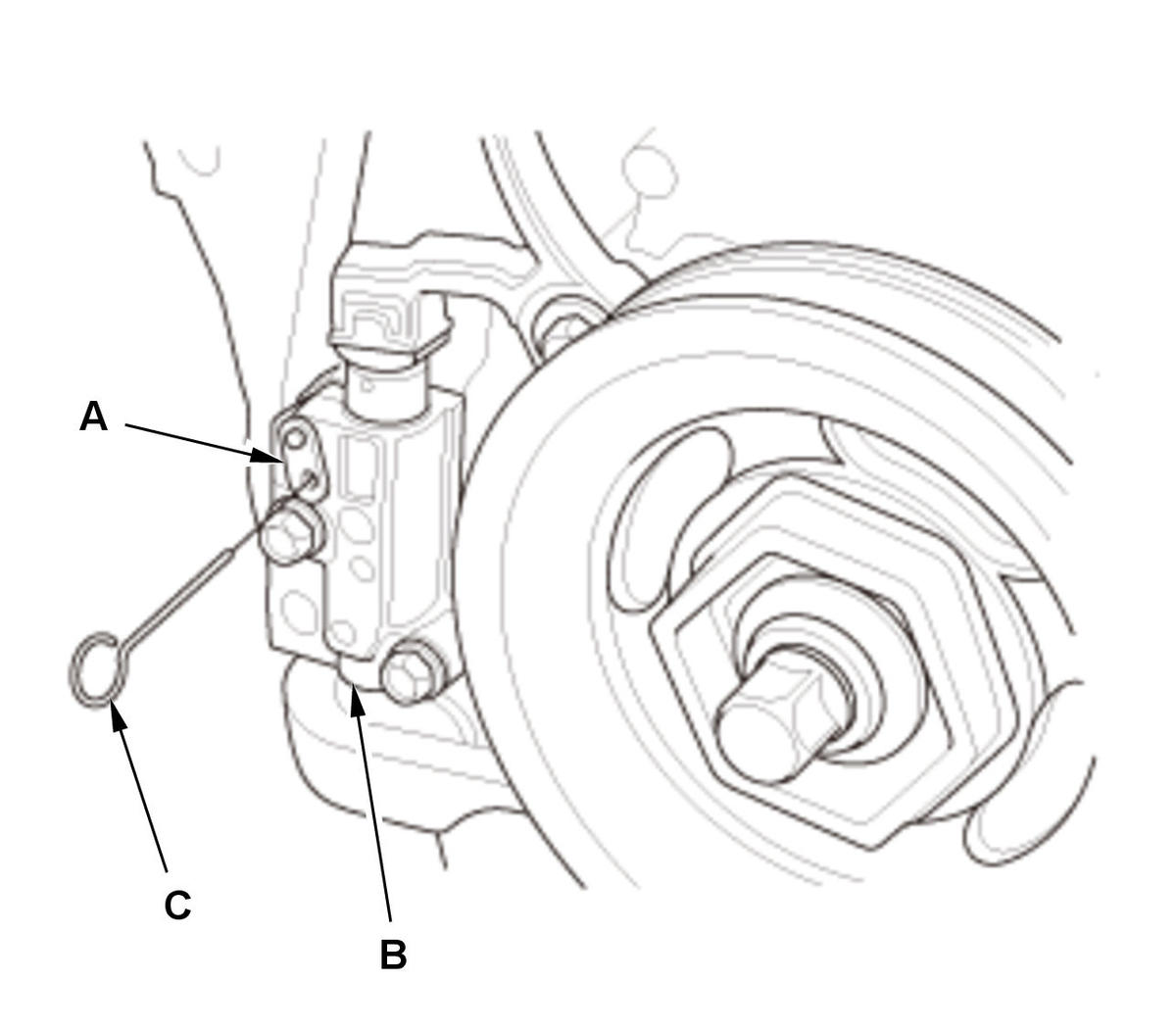

3. Rotate the crankshaft counterclockwise to align the holes on the lock (A) and the cam chain auto-tensioner (B).

4. Insert a 1.2 mm (3/64 in) diameter pin (C) into the holes.

5. Turn the crankshaft clockwise to secure the pin.

NOTE:

If the holes in the lock and the cam chain auto-tensioner do not align, continue to rotating the crankshaft counterclockwise until the holes align, then install the pin.

Courtesy of HONDA, U.S.A., INC.

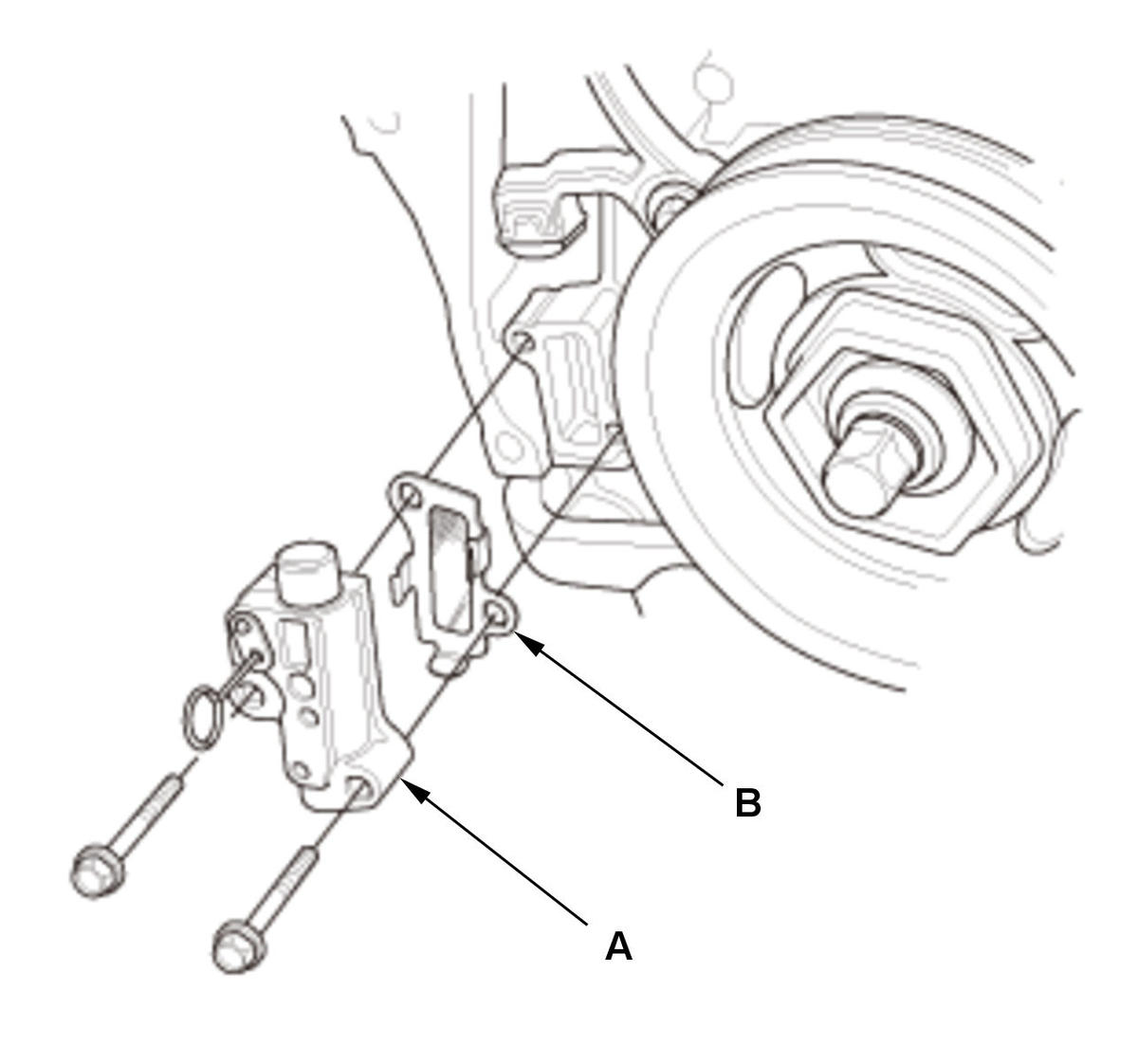

6. Remove the cam chain auto-tensioner (A) and the cam chain auto-tensioner filter (B).
NOTE:

Check the cam chain auto-tensioner filter for damage. If filter is damaged, replace it.

7. Remove the crankshaft pulley.

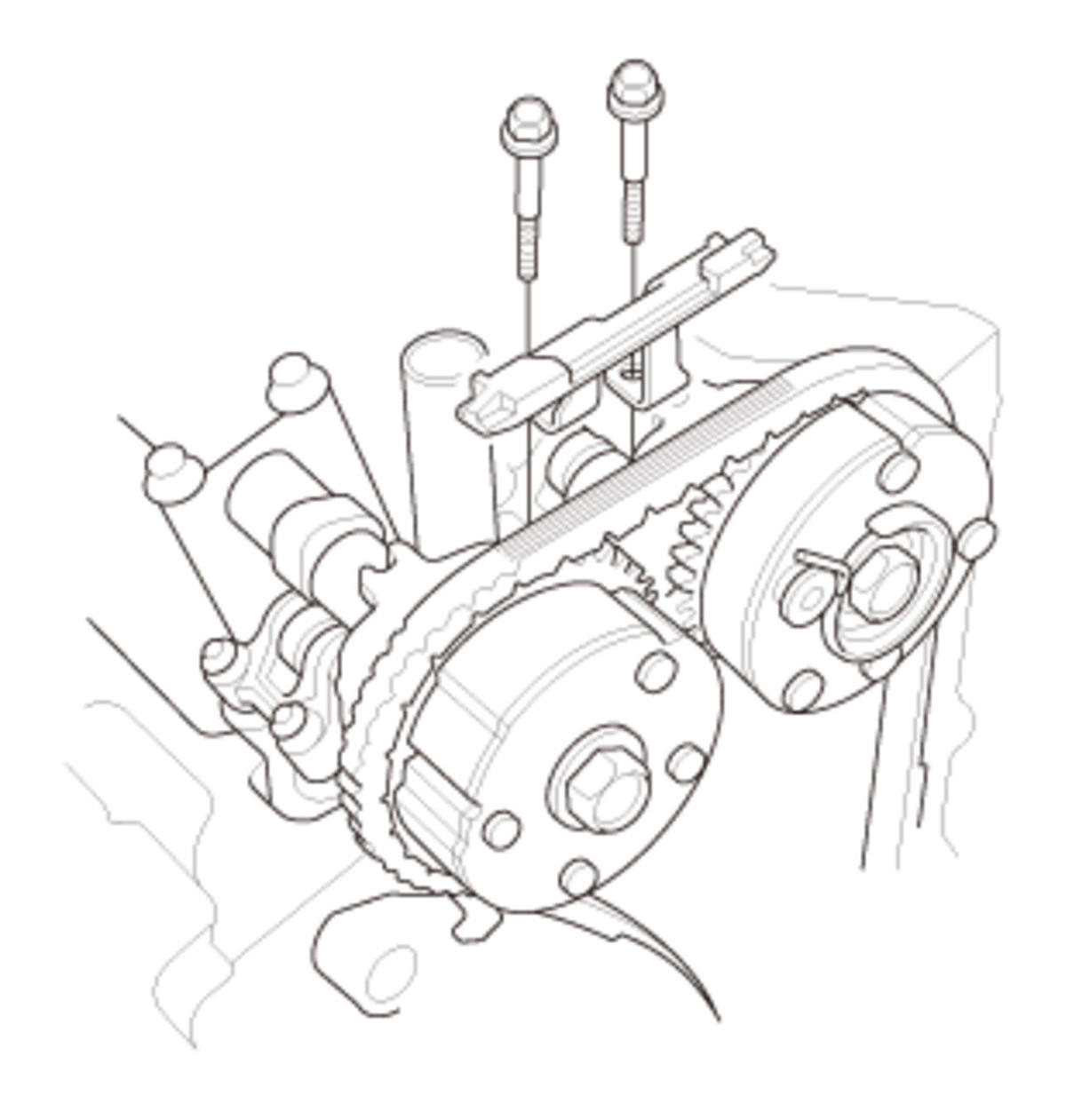

Cam Chain Guide B - Remove

Courtesy of HONDA, U.S.A., INC.

Cam Chain - Remove

Courtesy of HONDA, U.S.A., INC.

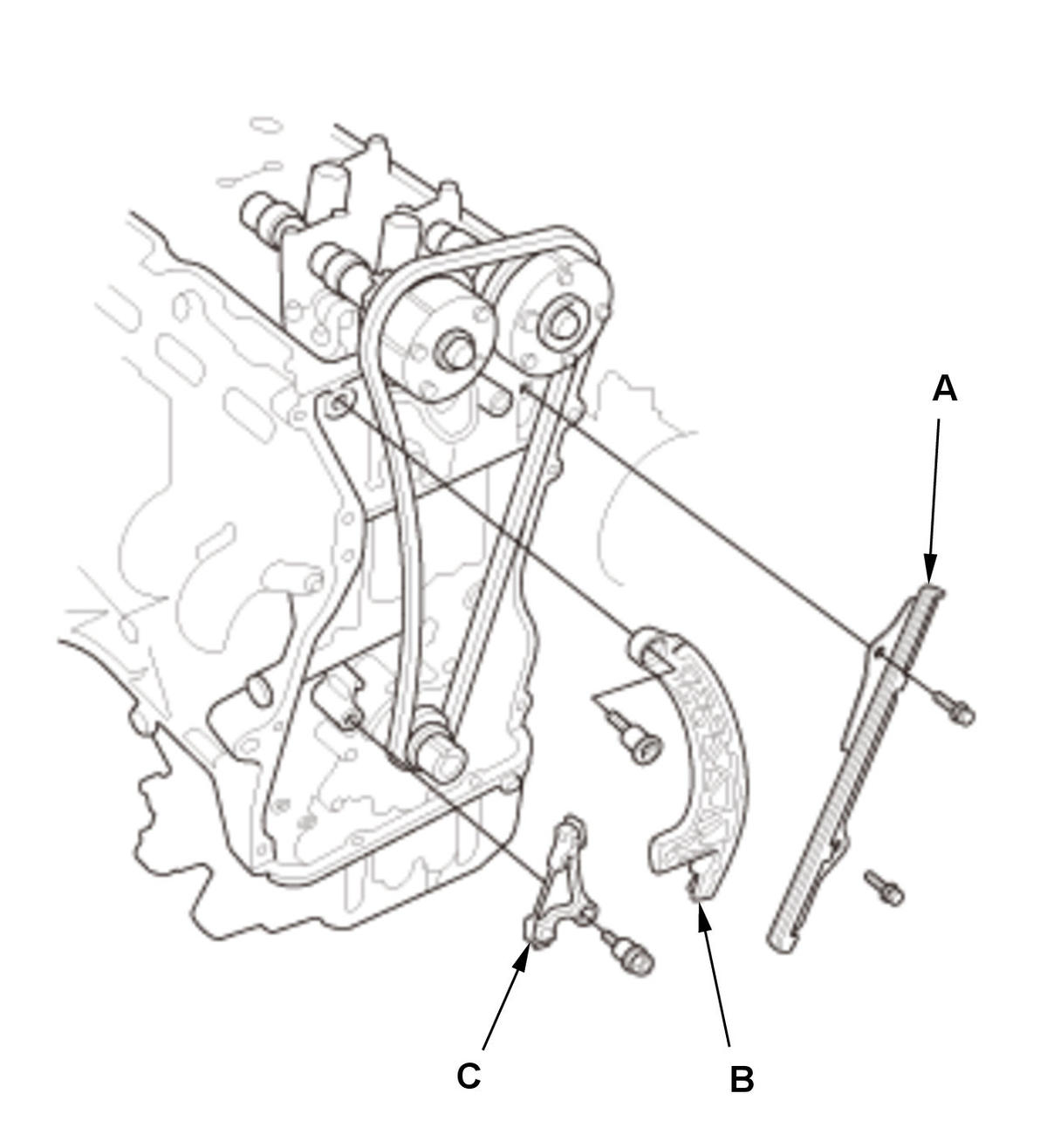

1. Remove the cam chain guide (A), the cam chain tensioner arm (B), and the cam chain tensioner sub arm (C).

2. Remove the cam chain.
