Cam Chain Removal, Installation, and Inspection (1.5 L Engine): Inspection

Right Front Wheel - Remove
Engine Undercover - Remove
Chain Case Cover - Remove

Cam Chain - Inspect

Courtesy of HONDA, U.S.A., INC.

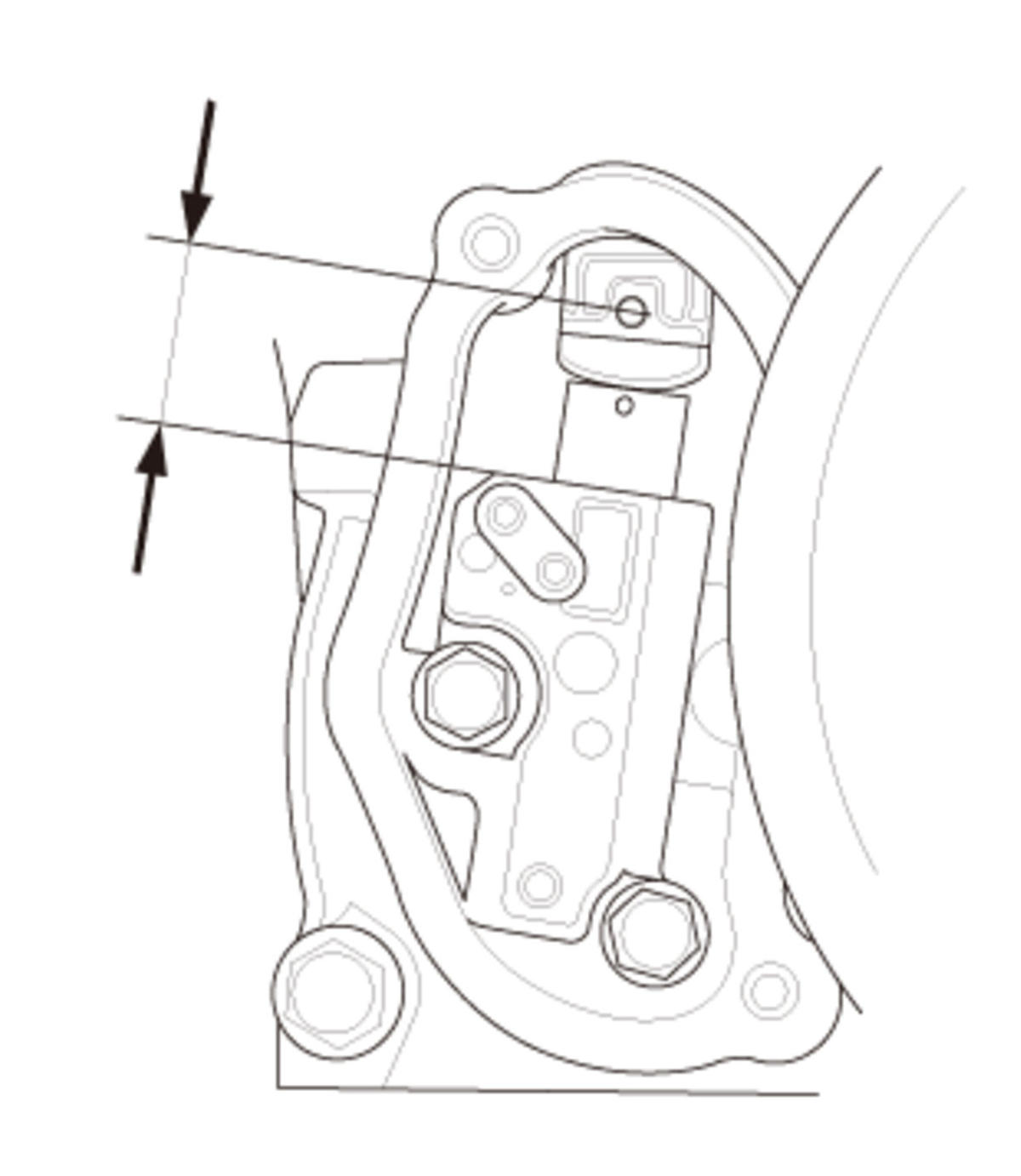

1. Measure the length of the cam chain auto-tensioner rod.

2. If the length is over the service limit, replace the cam chain. When replacing, check the teeth on the cam chain drive sprocket, VTC actuator A, and VTC actuator B for wear and damage. If any of them are worn or damaged, replace if necessary.

3. Check the oil passage on the cam chain auto-tensioner for clogs. If the cam chain auto-tensioner is clogged, replace it.

Cam Chain Auto-Tensioner Rod Length
Standard (New):	20.0 mm (0.787 in)
Service Limit:	23.9 mm (0.941 in)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
