VTC Oil Control Solenoid Valve Removal, Installation, and Test (2.4 L Engine) (2017 2018 2019): Test

VTC Oil Control Solenoid Valve - Test

Courtesy of HONDA, U.S.A., INC.

1. Check for any blockage in the ports of the VTC oil control solenoid valve.

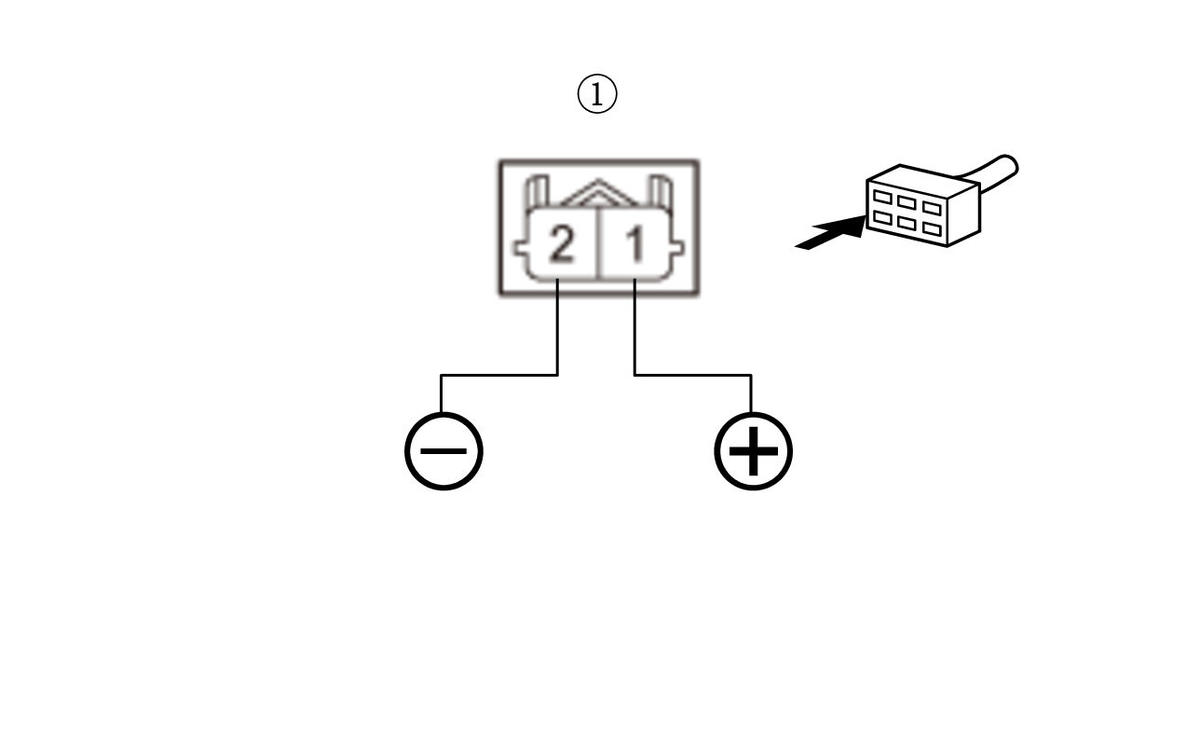

2. Connect VTC oil control solenoid valve 2P connector (male terminals) No. 1 to the 12 volt battery positive terminal with a jumper wire:

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Connect VTC oil control solenoid valve 2P connector (male terminals) No. 2 to the 12 volt battery negative terminal with a jumper wire:

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

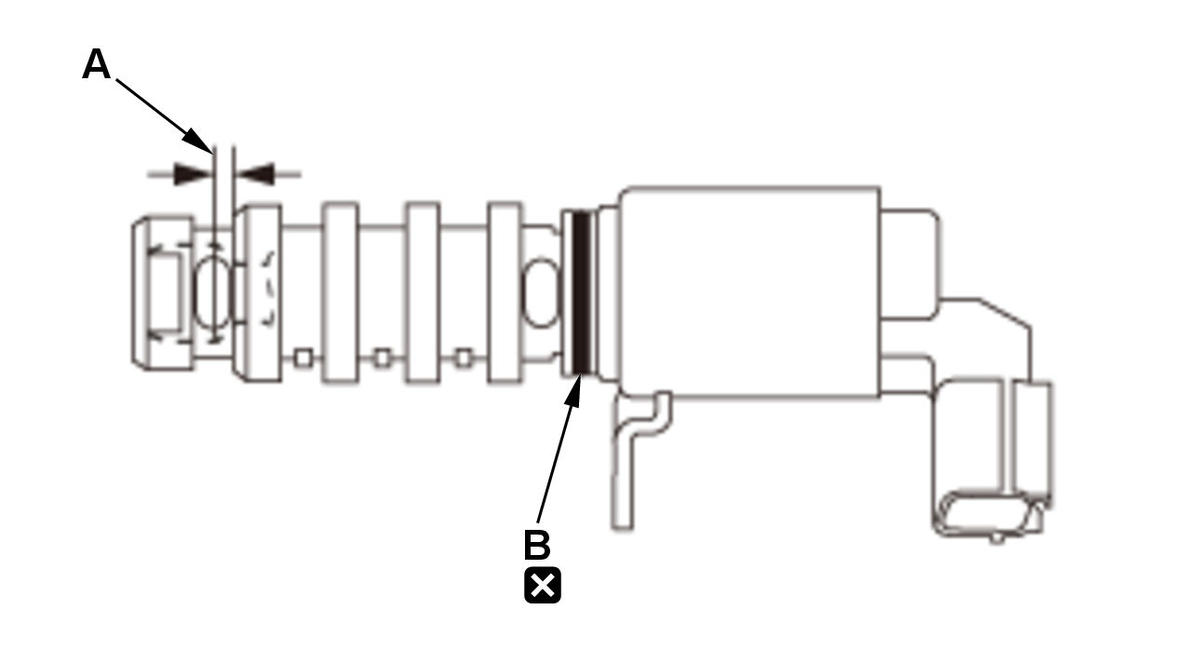

3. Measure the clearance of the valve (A). The clearance should be at least 1.2 mm (0.047 in).

If the clearance is as specified, the valve is OK; reinstall it with a new O-ring (B).
If the clearance is not as specified, install a new valve and O-ring.
