Removal and Installation

NOTE:  Although a numbered sequence is shown, these "*1" indicated parts are separate components. If removal or replacement of one of the components is needed, it is not necessary to remove the other.

1

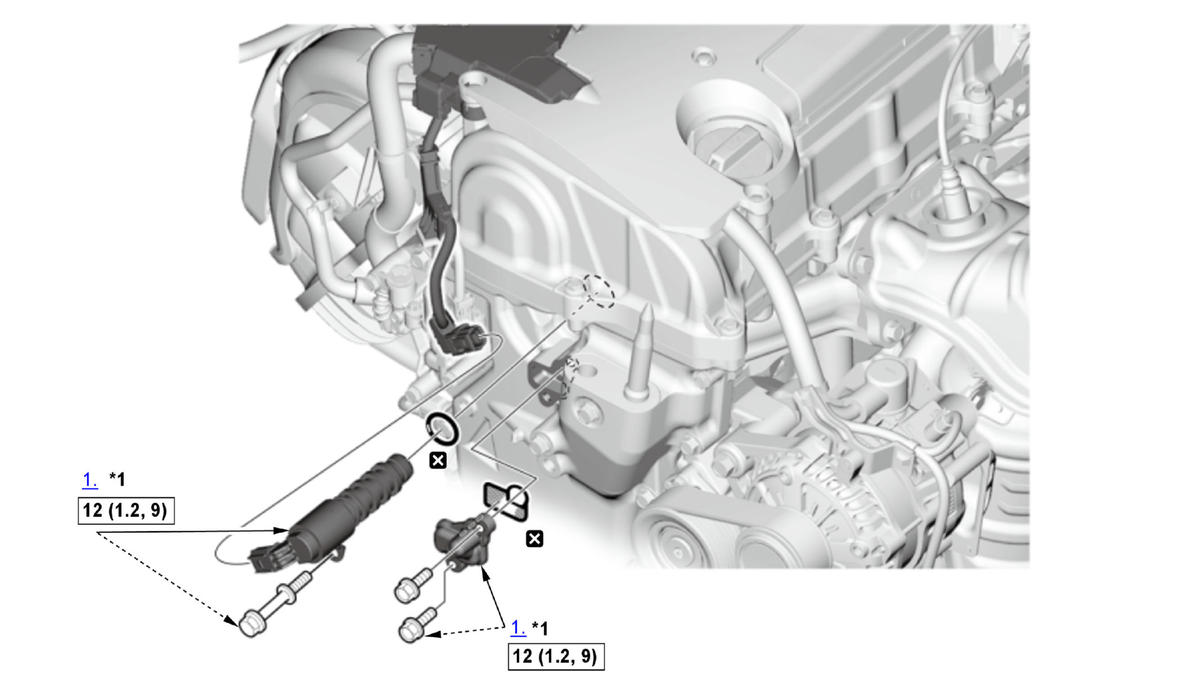

Fig 1: VTC Oil Control Solenoid Valve Replacement Components With Torque Specifications 2.4 L Engine (2017 2018 2019)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

VTC Oil Control Solenoid Valve

1. VTC Oil Control Solenoid Valve - Remove
2. All Removed Parts - Install

   1. Install the parts in the reverse order of removal with a new O-ring. Coat the new O-ring with clean engine oil. Clean and dry the mating surface of the valve.

   VTC Strainer

3. VTC Strainer - Remove
4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal with a new filter.
