Removal and Installation

NOTE:  Although a numbered sequence is shown, these "*1" indicated parts are separate components. If removal or replacement of one of the components is needed, it is not necessary to remove the other.

1

Intake Side (VTC Oil Control Solenoid Valve A)*1

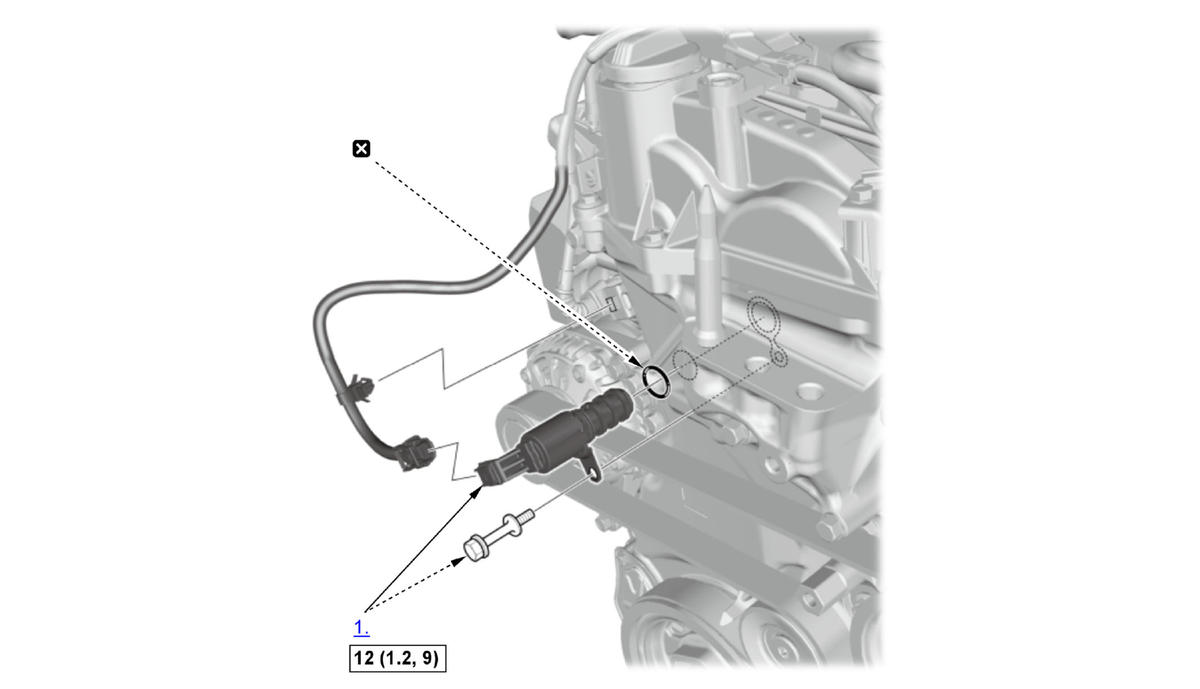

Fig 1: Intake Side VTC Oil Control Solenoid Valve A Replacement Components With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

2

Exhaust Side (VTC Oil Control Solenoid Valve B)*1

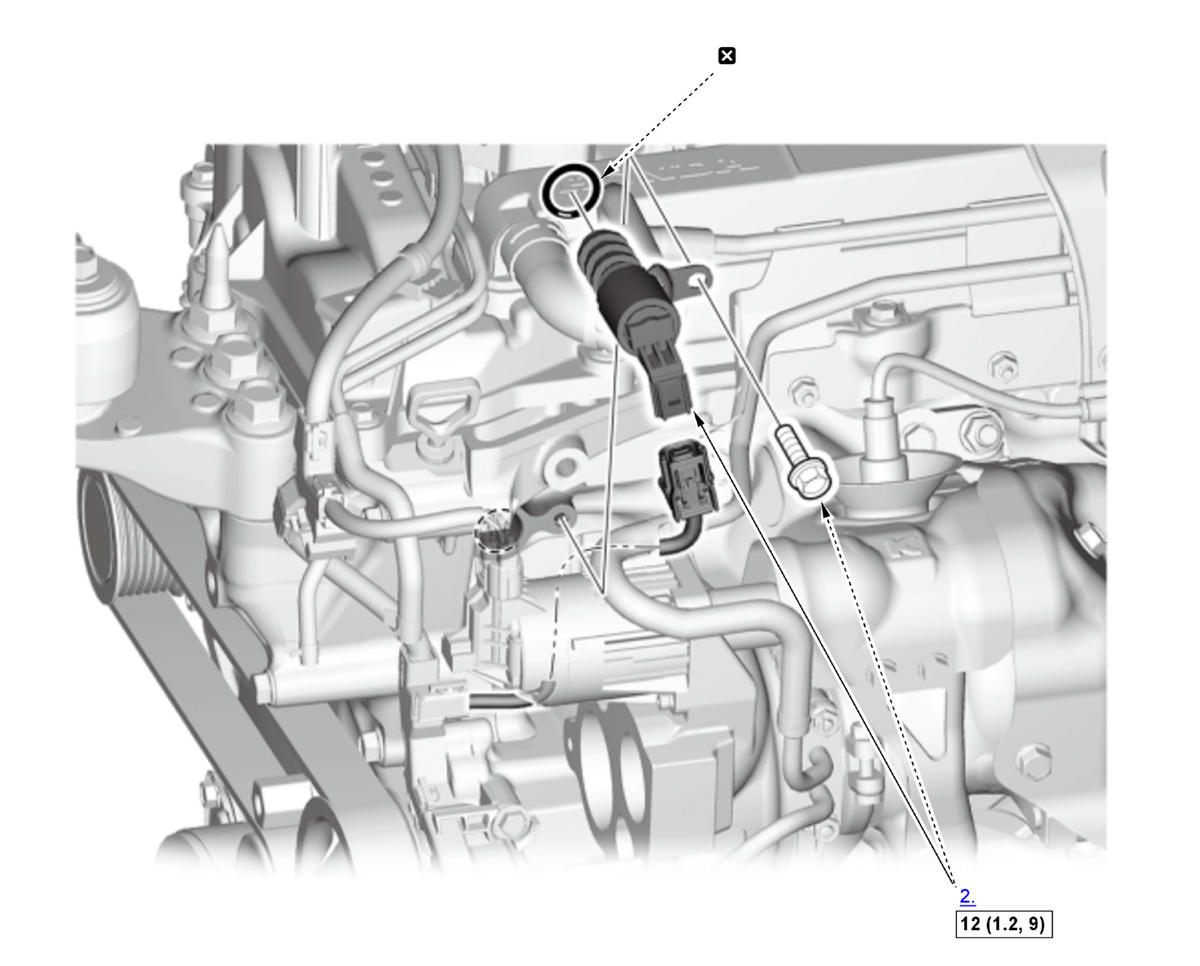

Fig 2: Exhaust Side VTC Oil Control Solenoid Valve B Replacement Components With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

Intake Side (VTC Oil Control Solenoid Valve A)

1. VTC Oil Control Solenoid Valve A - Remove
2. All Removed Parts - Install

   1. Install the parts in the reverse order of removal with a new O-ring. Coat the new O-ring with clean engine oil. Clean and dry the mating surface of the valve.

   Exhaust Side (VTC Oil Control Solenoid Valve B)

3. Turbocharger Joint - Remove
4. VTC Oil Control Solenoid Valve B - Remove
5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal with a new O-ring. Coat the new O-ring with clean engine oil. Clean and dry the mating surface of the valve.
