Removal and Installation
WARNING:
Flammable - Keep Fire Away
NOTE:
- Refer to the Fuel and Emissions Systems Service Precautions before disconnecting the fuel line.
- Fuel may cause flammable gas leaks and may result in fire. Keep sparks, flame and cigarettes away.
- Although a numbered sequence is shown, these "*1" indicated parts are separate components. If removal or replacement of one of the components is needed, it is not necessary to remove the other.

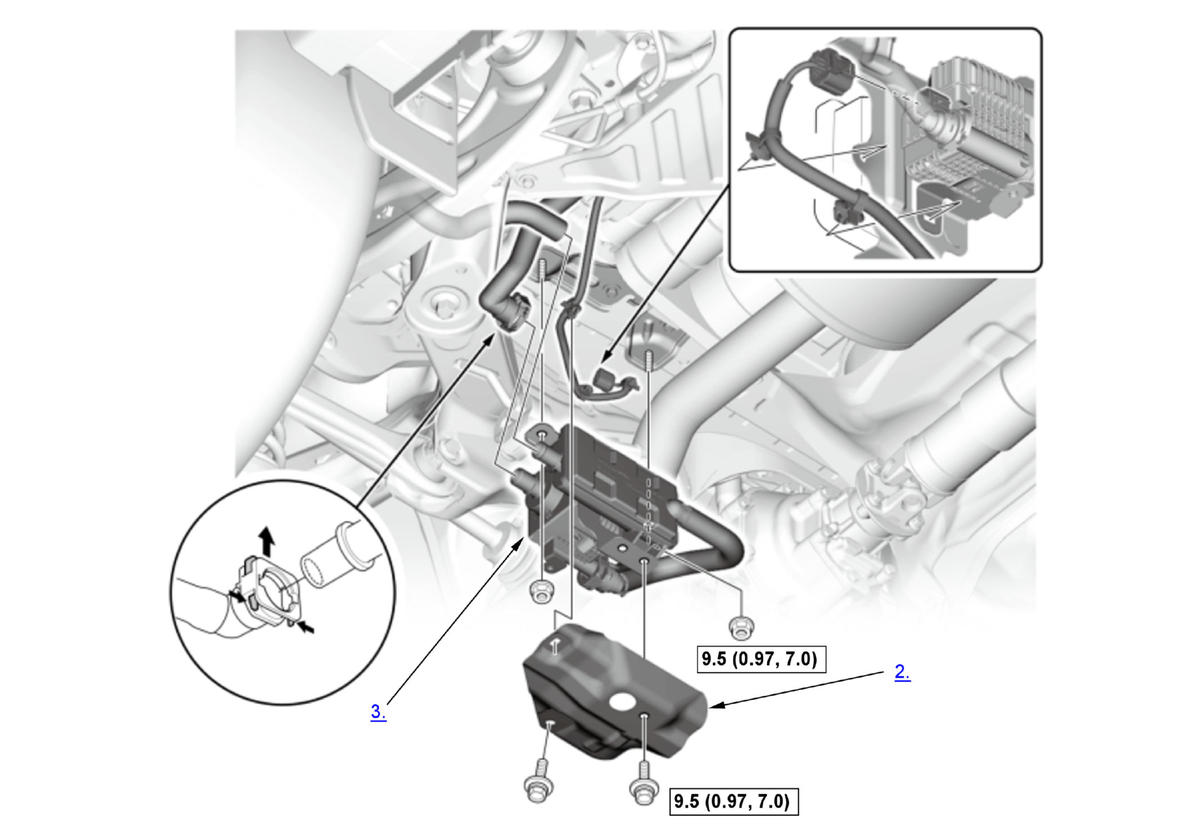

1
EVAP Canister/EVAP Leak Check Module*1
Fig 1: EVAP Canister/EVAP Leak Check Module Replacement Components With Torque Specifications (1 Of 3)
| Torque: N.m (kgf.m, lbf.ft) |

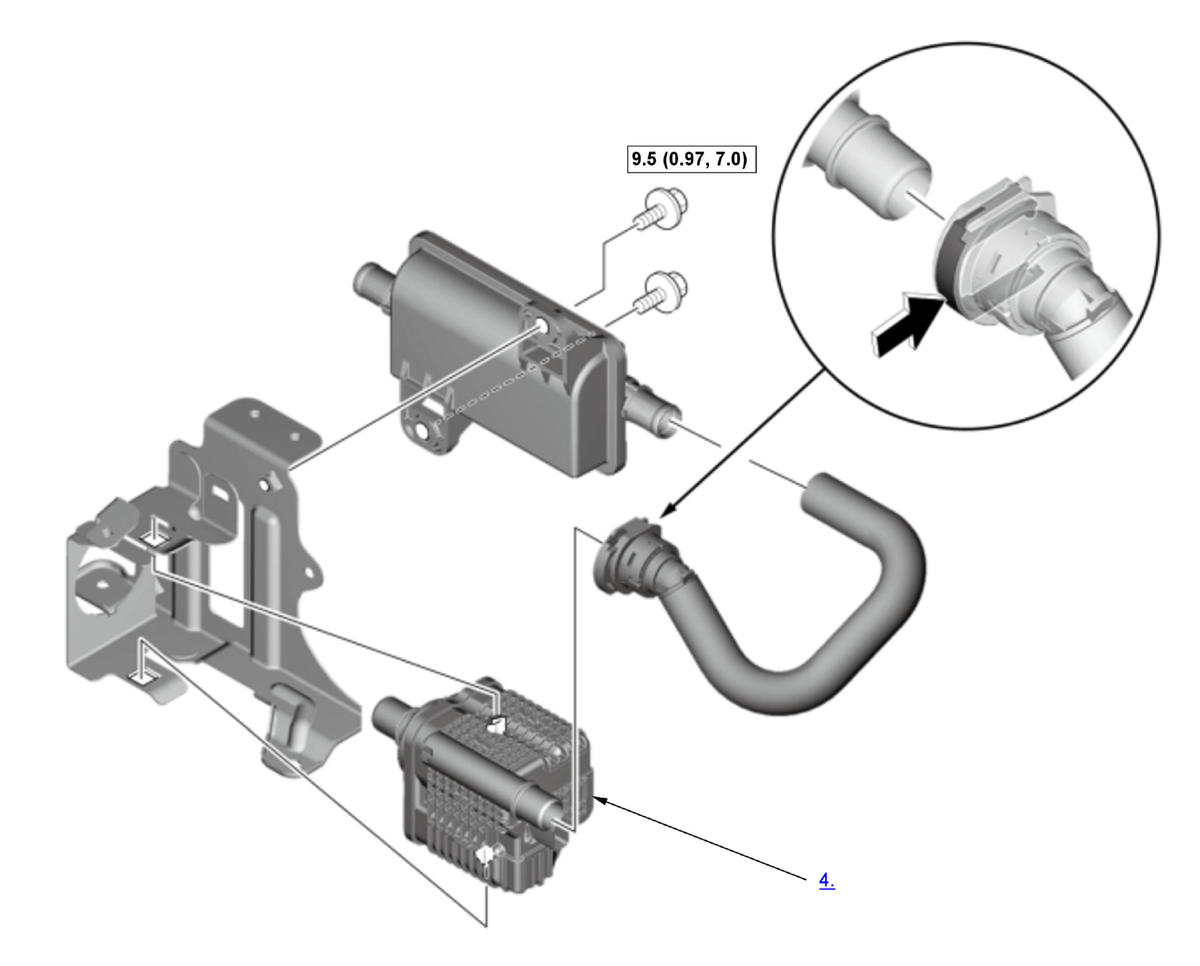

2
EVAP Canister/EVAP Leak Check Module*1
Fig 2: EVAP Canister/EVAP Leak Check Module Replacement Components With Torque Specifications (2 Of 3)
| Torque: N.m (kgf.m, lbf.ft) |

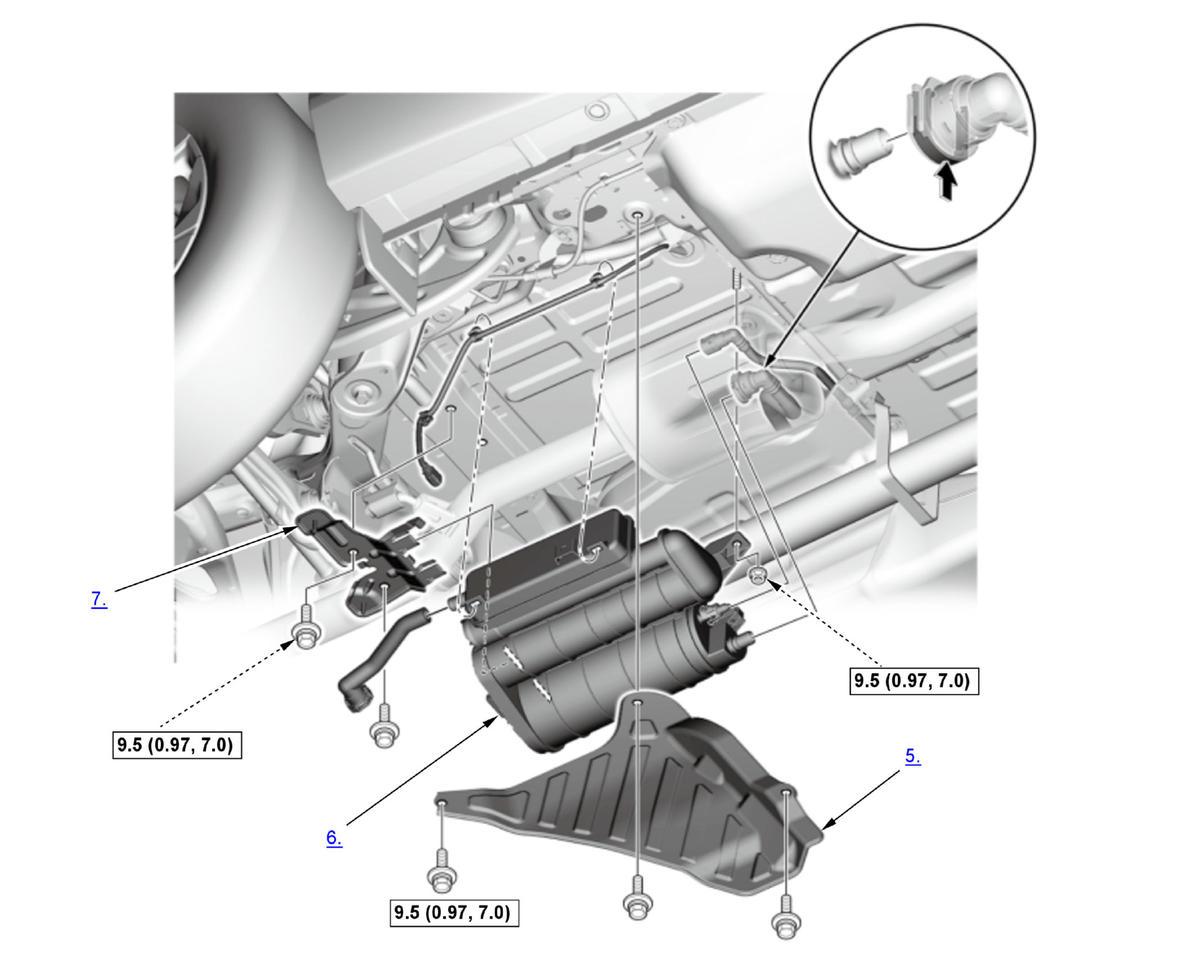

3
EVAP Canister/EVAP Leak Check Module*1
Fig 3: EVAP Canister/EVAP Leak Check Module Replacement Components With Torque Specifications (3 Of 3)
| Torque: N.m (kgf.m, lbf.ft) |

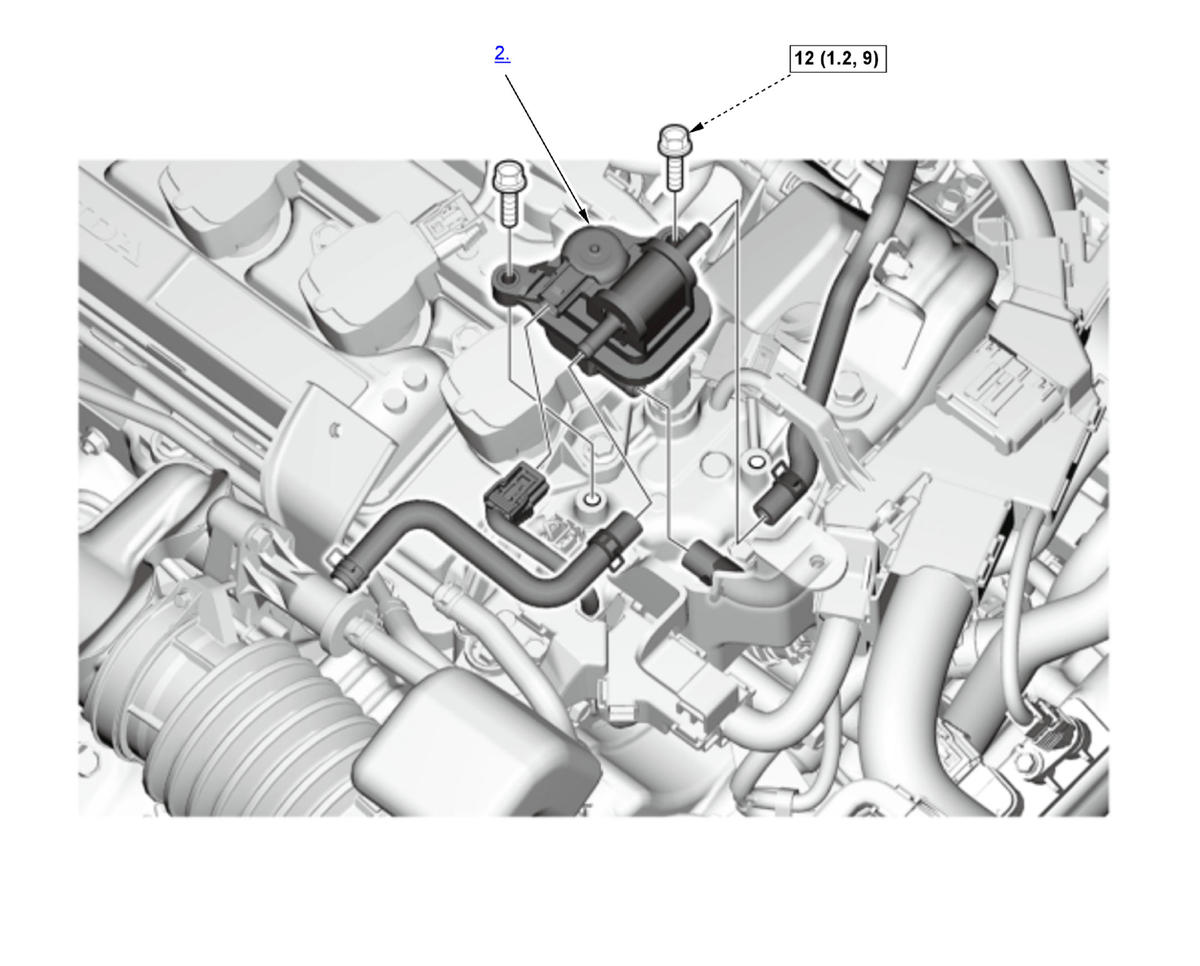

4
EVAP Canister Purge Valve*1
| Torque: N.m (kgf.m, lbf.ft) |

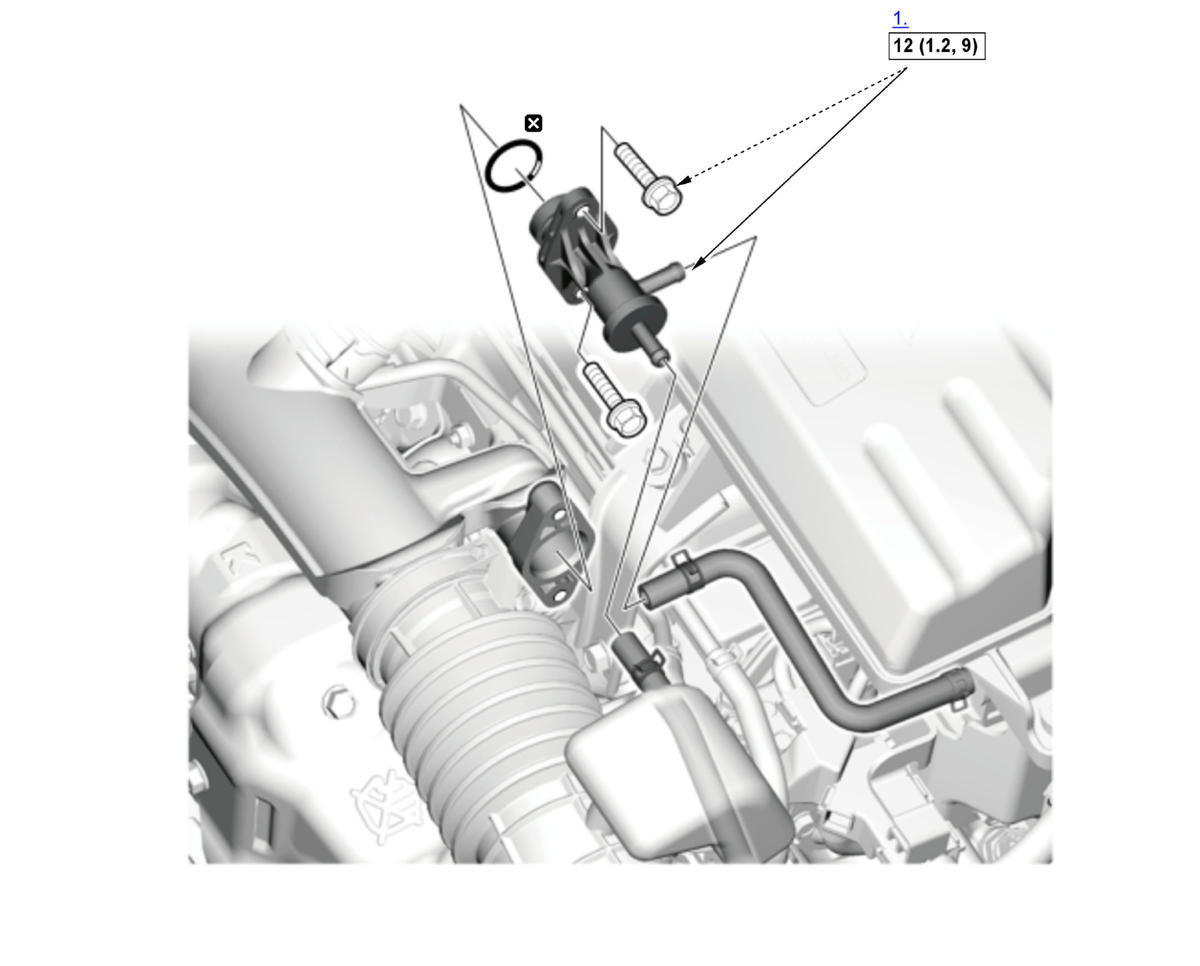

5
EVAP Canister Purge Nozzle*1
| Torque: N.m (kgf.m, lbf.ft) | |
| Replace |

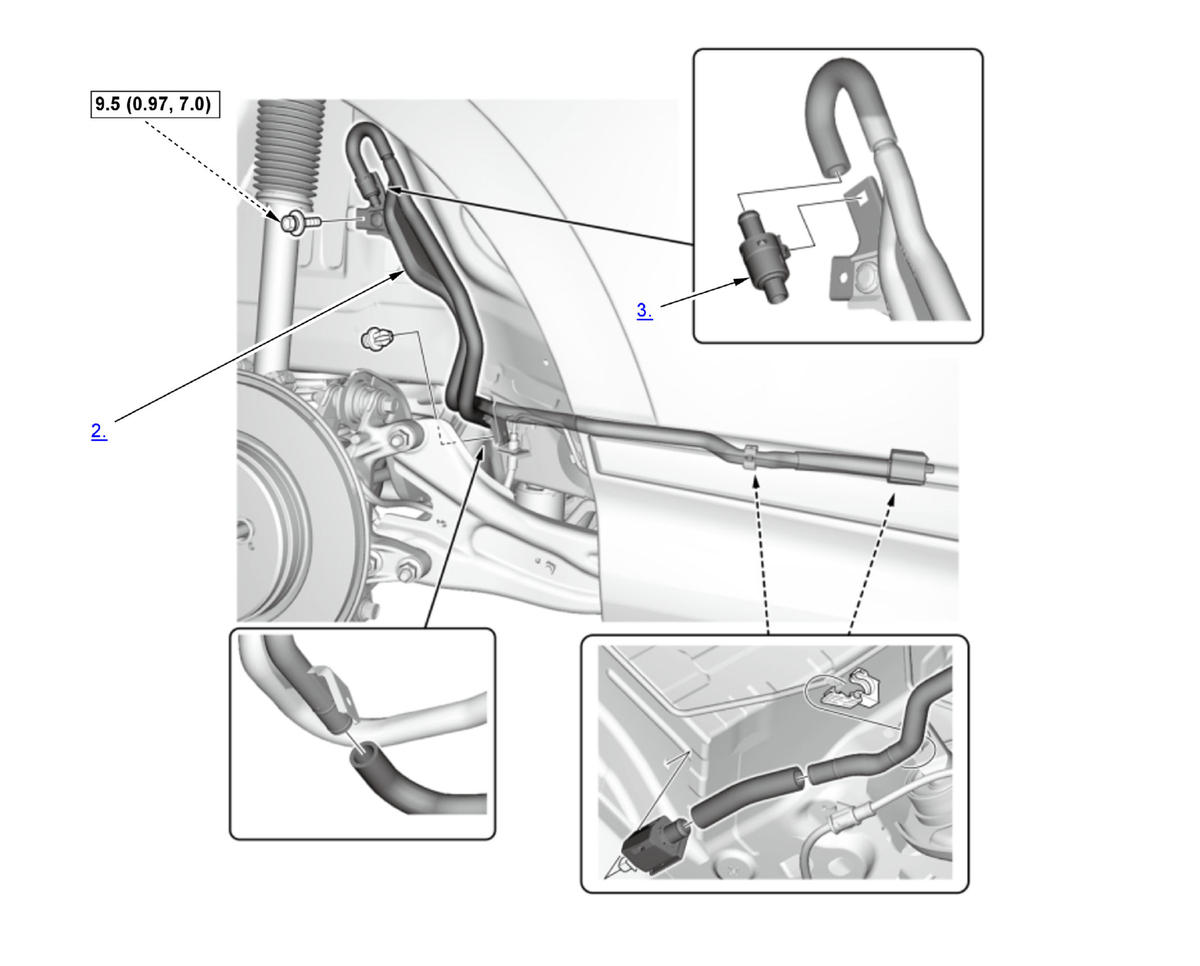

6
EVAP Canister Drain Pipe/EVAP Canister One Way Valve*1
Fig 6: EVAP Canister Drain Pipe/EVAP Canister One Way Valve Replacement Components With Torque Specifications
| Torque: N.m (kgf.m, lbf.ft) |
EVAP Canister/EVAP Leak Check Module
- Vehicle - Lift
- Heat Shield - Remove
- EVAP Leak Check Module Assembly - Remove
- EVAP Leak Check Module - Remove
- Heat Shield - Remove
- EVAP Canister - Remove
- Bracket - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal. EVAP Canister Purge Valve
- Intake Air Resonator - Remove
- EVAP Canister Purge Valve - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal. EVAP Canister Purge Nozzle
- EVAP Canister Purge Nozzle - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal. EVAP Canister Drain Pipe/EVAP Canister One Way Valve
- Rear Inner Fender (Right Side) - Remove
- EVAP Canister Drain Pipe - Remove
- EVAP Canister One Way Valve - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal.
