Valve, Spring, and Valve Seal Removal and Installation (2.4 L Engine) (2017 2018 2019): Removal

NOTE:  Identify the valves and the valve springs as they are removed so that each item can be reinstalled in its original position.

1. Cylinder Head - Remove
2. Valve and Valve Spring - Remove

   Courtesy of HONDA, U.S.A., INC.

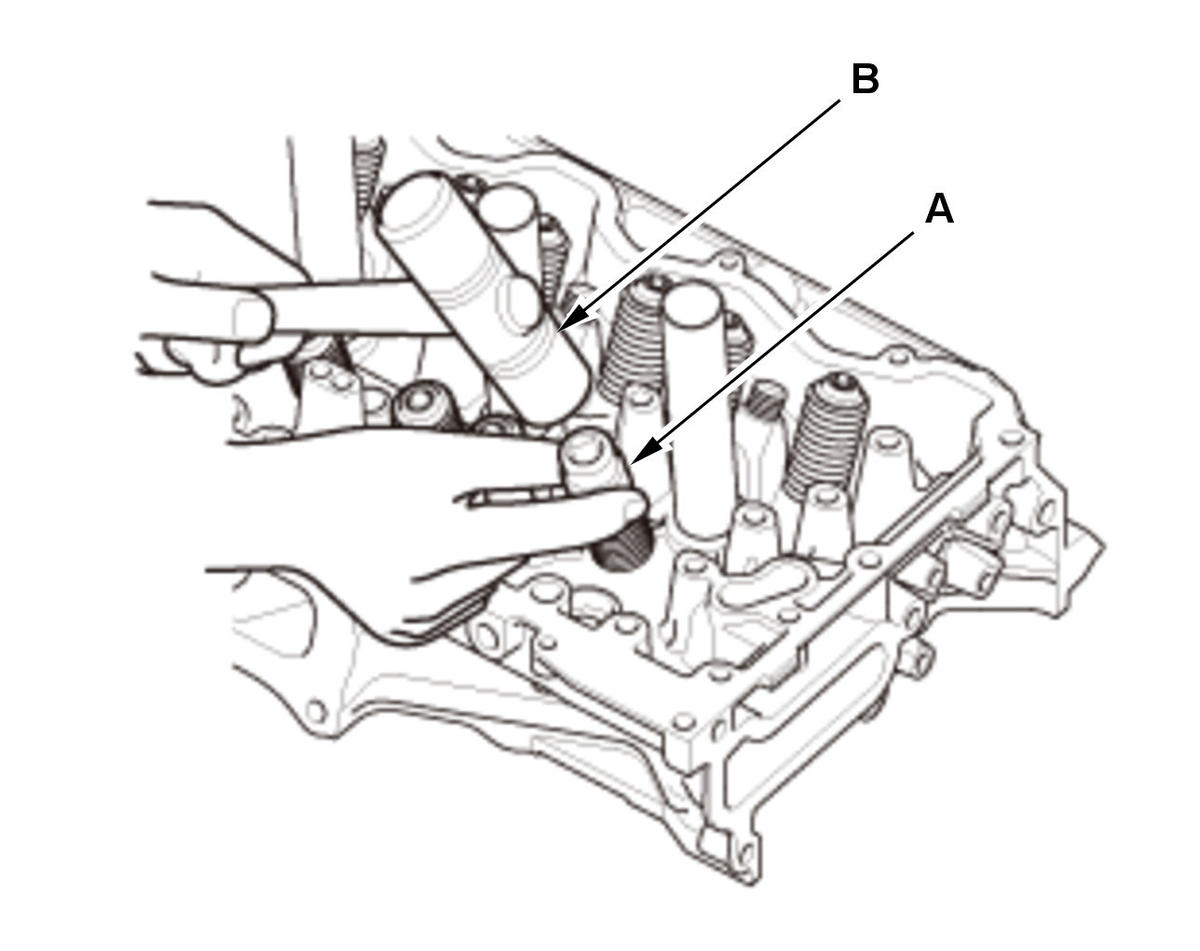

   1. Using an appropriate-sized socket (A) and a plastic mallet (B), lightly tap the spring retainer to loosen the valve cotters.

   Courtesy of HONDA, U.S.A., INC.

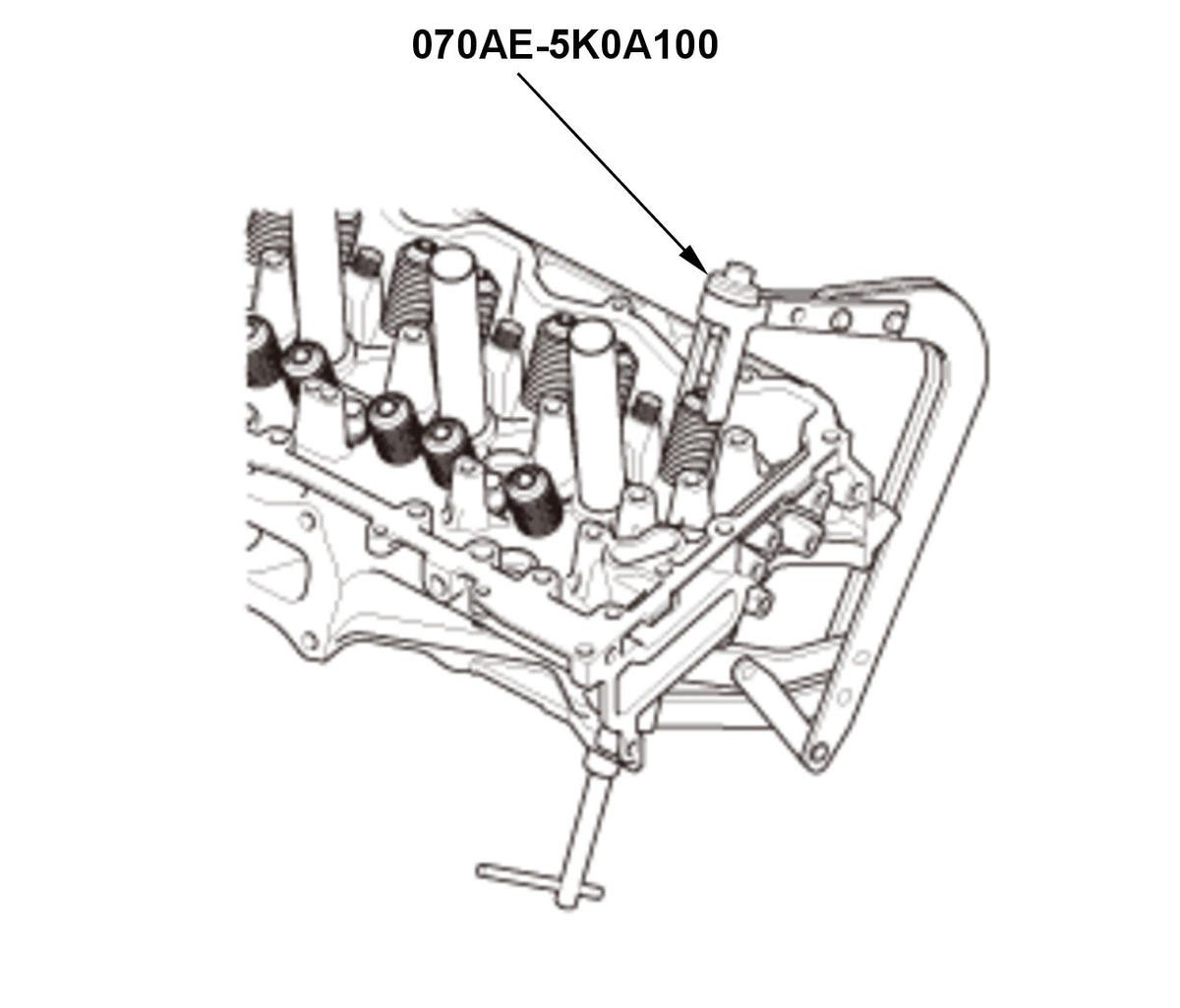

   2. Install the valve spring compressor and the valve spring compressor attachment. 3. Compress the valve spring and remove the valve cotters. 4. Remove the valve spring compressor and the valve spring compressor attachment. 5. Remove the spring retainer, the valve spring, and the valve.

3. Valve Seal - Remove

   Courtesy of HONDA, U.S.A., INC.

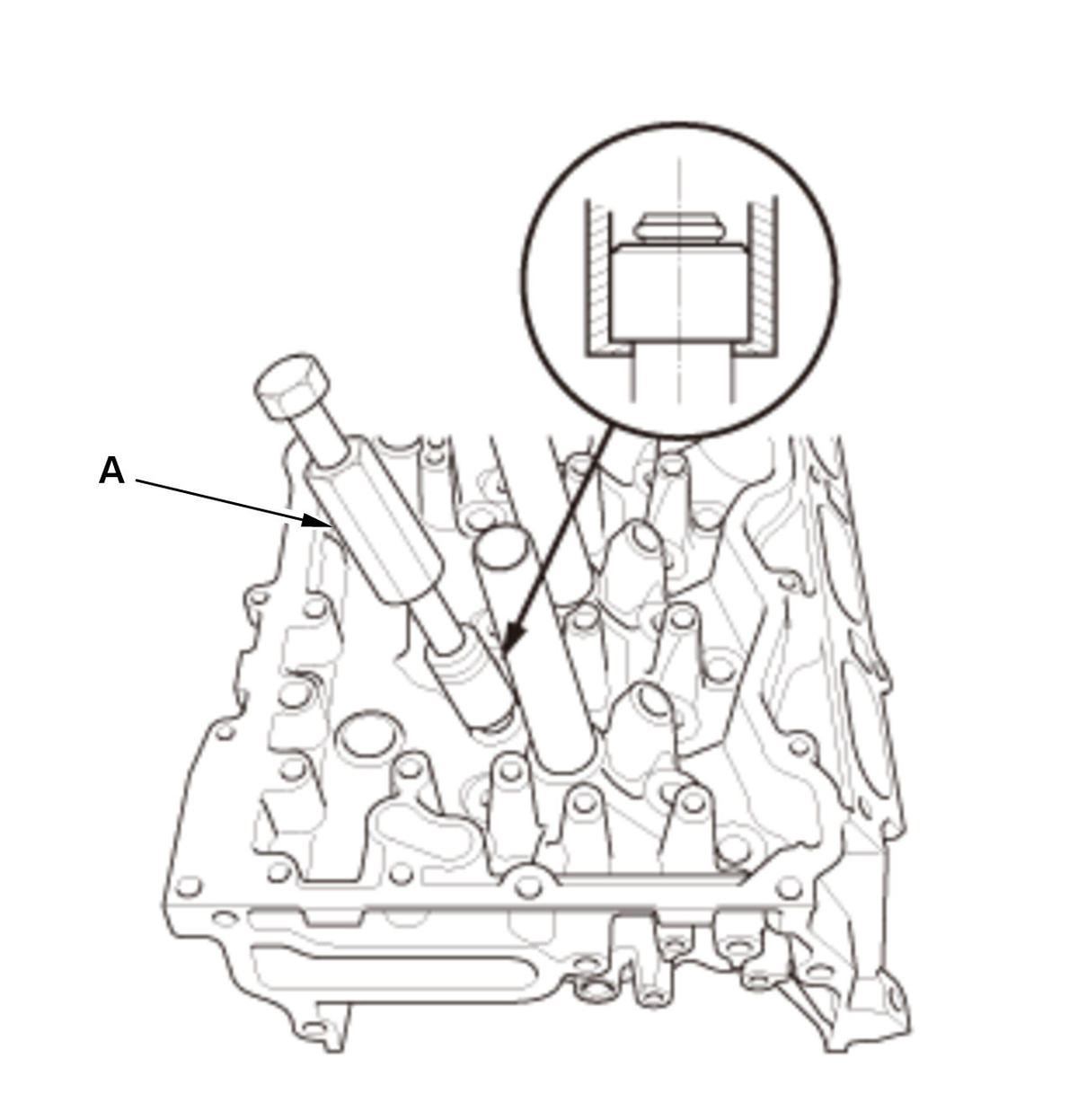

   1. Install the valve guide seal remover (A).

   Courtesy of HONDA, U.S.A., INC.

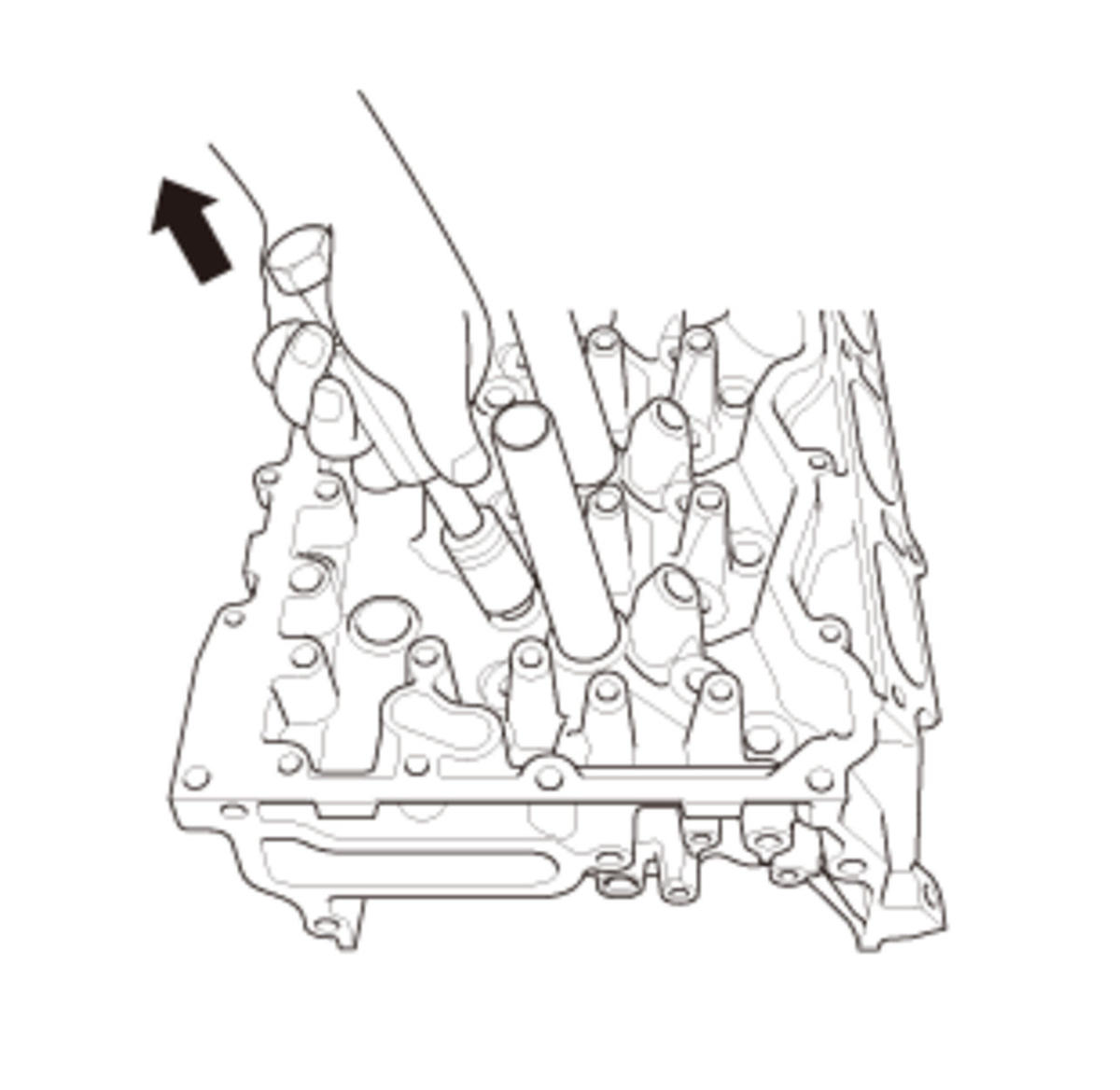

   2. Remove the valve seal.

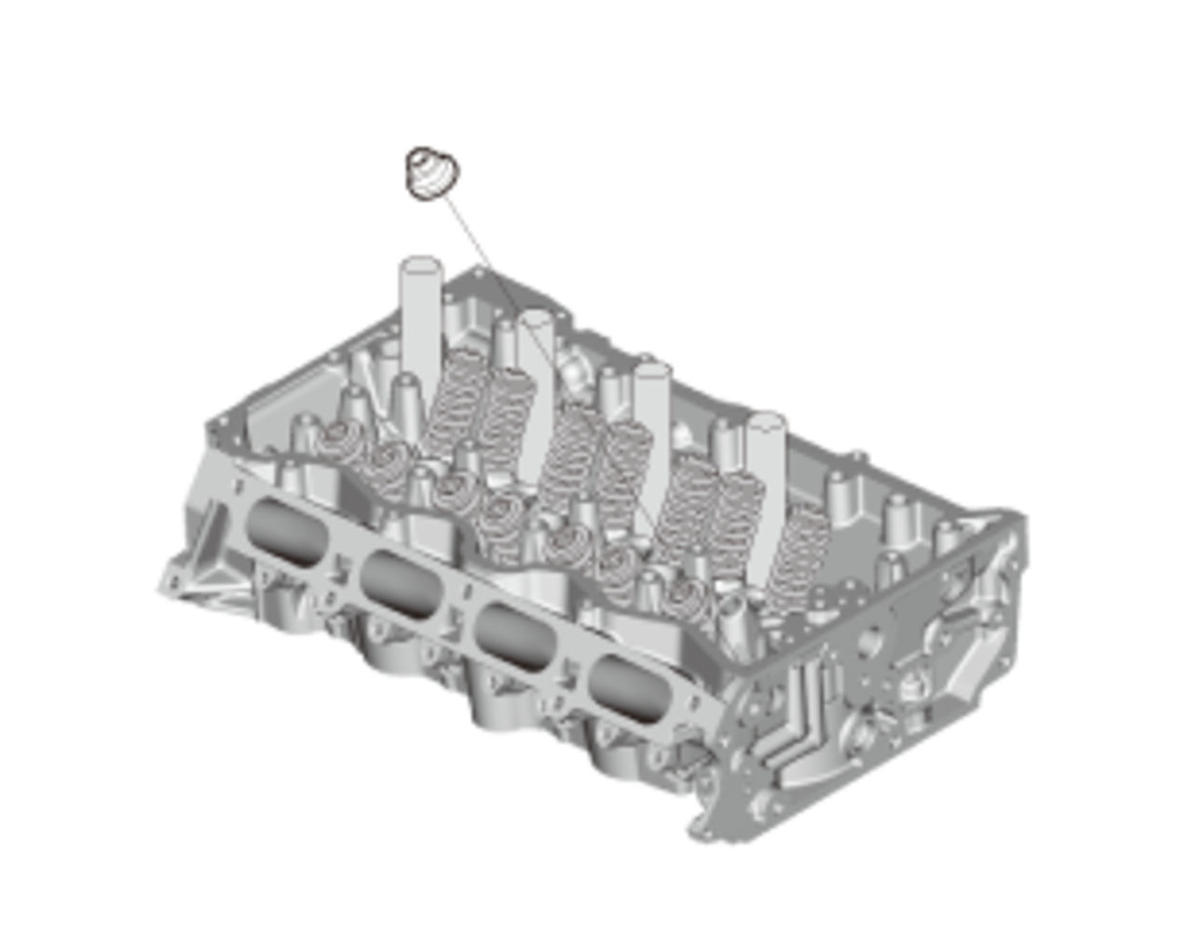

4. Valve Spring Seat - Remove

   Courtesy of HONDA, U.S.A., INC.
