Valve, Spring, and Valve Seal Removal and Installation (2.4 L Engine) (2017 2018 2019): Installation

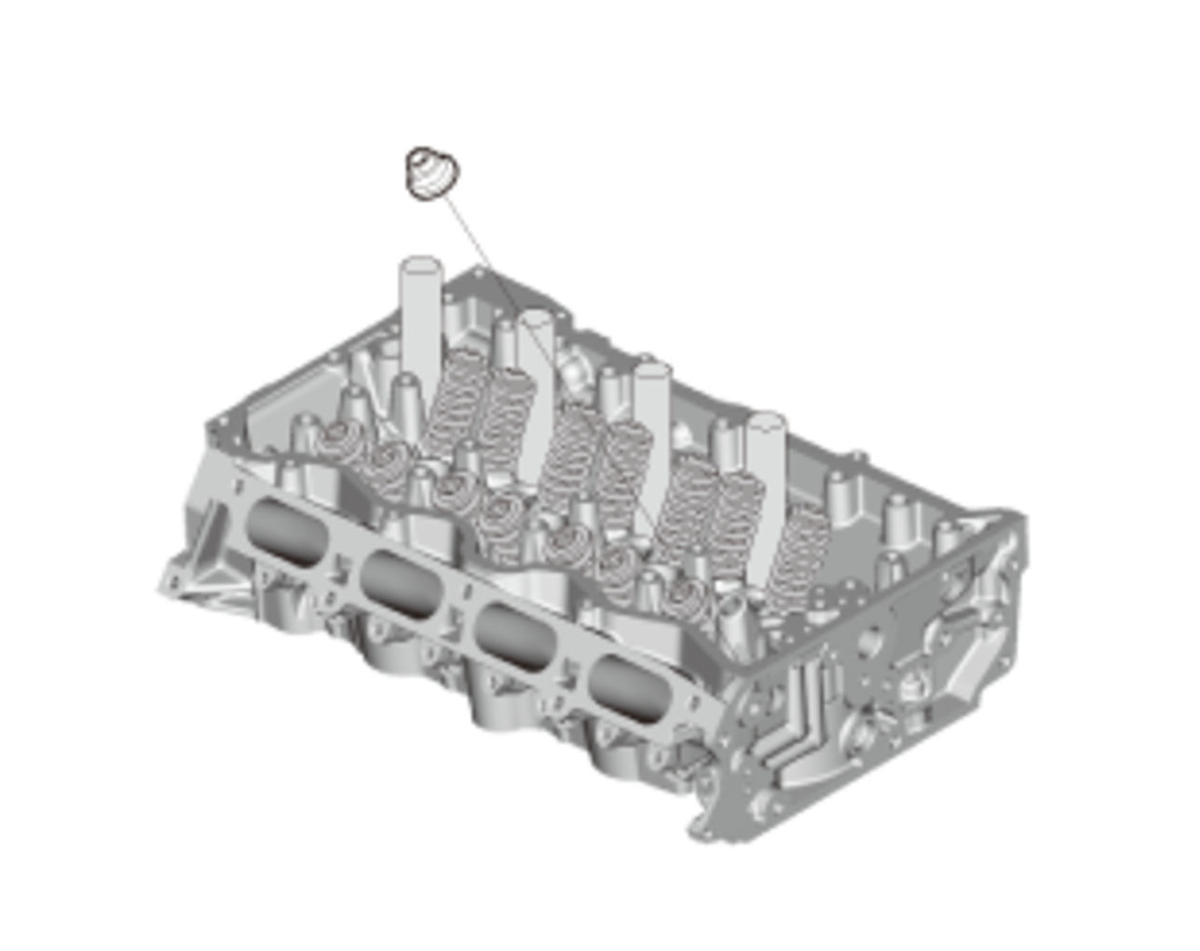

Valve Spring Seat - Install

Courtesy of HONDA, U.S.A., INC.

Valve Seal - Install

Courtesy of HONDA, U.S.A., INC.

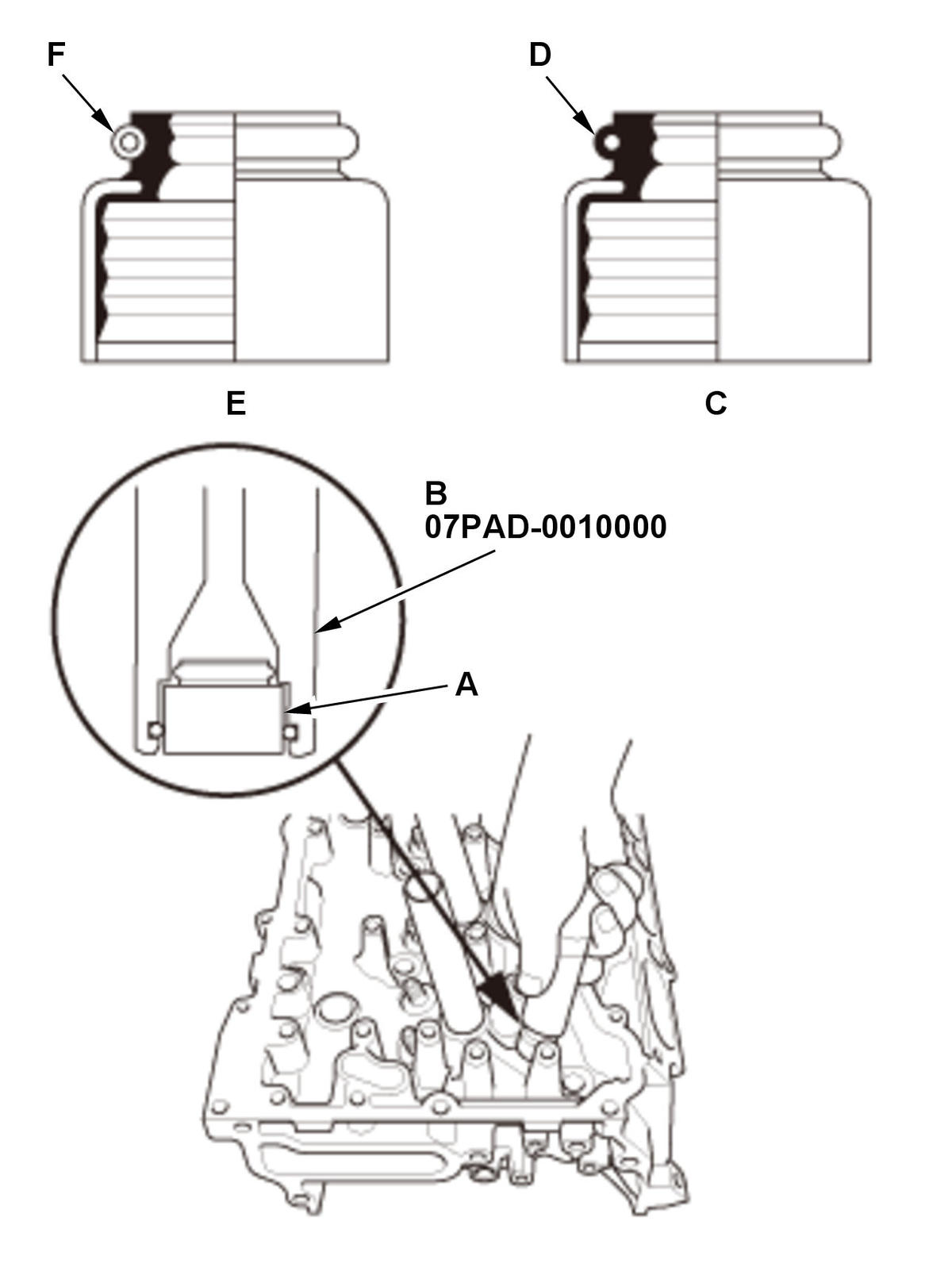

1. Install the new valve seals (A) using the 5.5 mm side of the stem seal driver (B).
NOTE: The exhaust valve seal (C) has a black spring (D), and the intake valve seal (E) has a white or silver spring (F); they are not interchangeable.

Valve and Valve Spring - Install

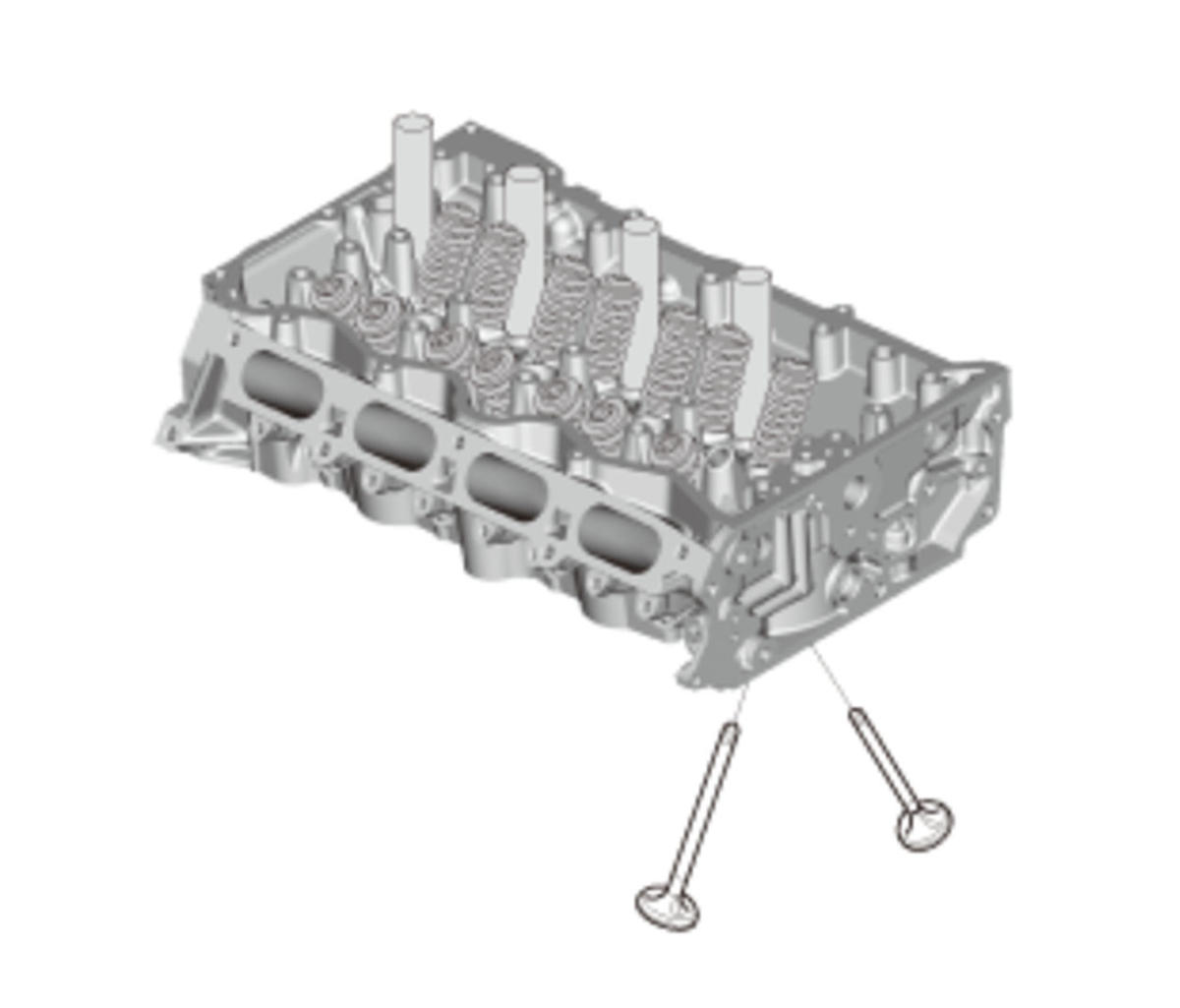

Courtesy of HONDA, U.S.A., INC.

1. Coat the valve stems with new engine oil.

2. Install the valves in the valve guides.

3. Check that the valves move up and down smoothly.

Courtesy of HONDA, U.S.A., INC.

4. Install the valve spring and the spring retainer. Place the end of the valve spring with the closely wound coils toward the cylinder head.

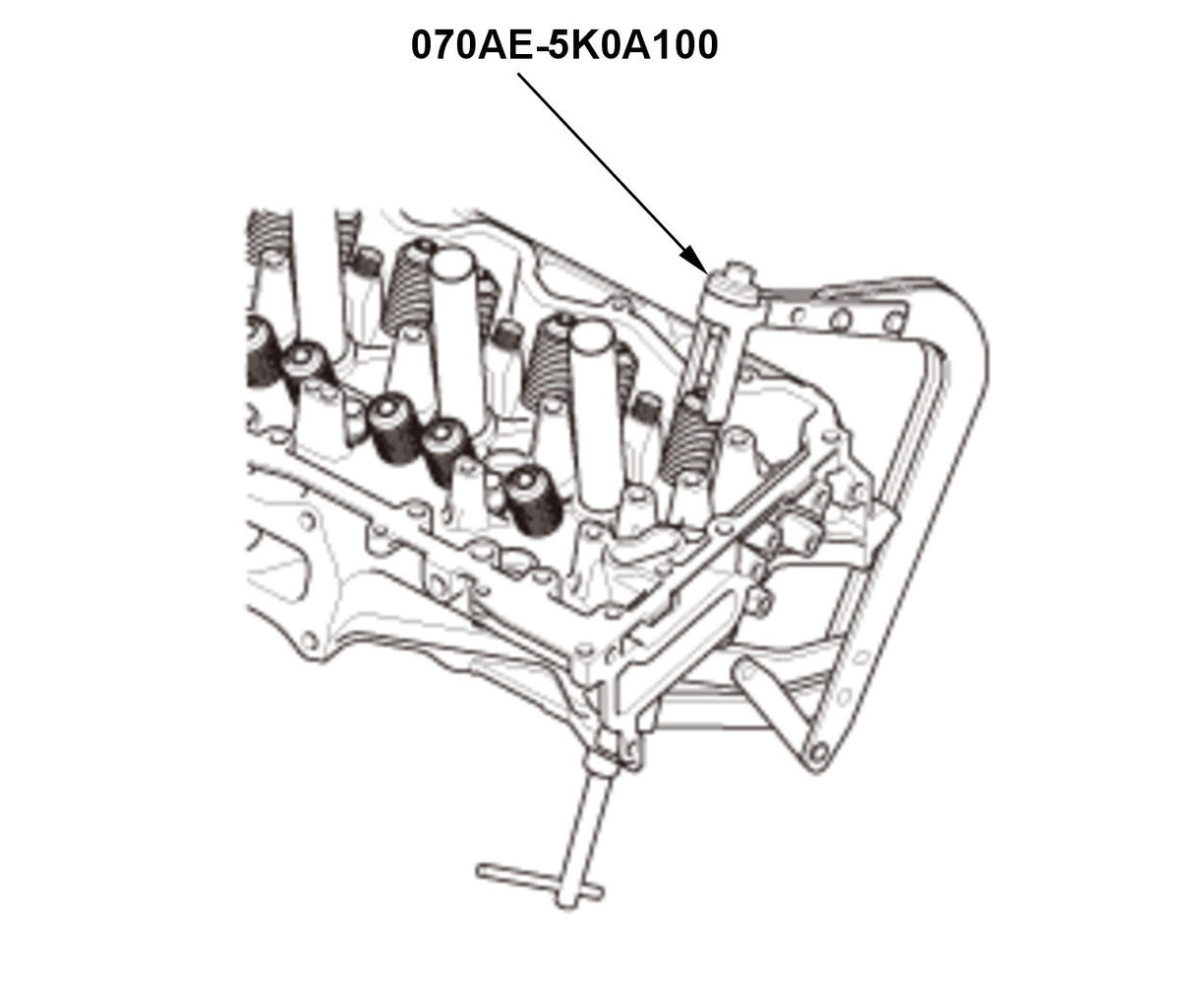

5. Install the valve spring compressor and the valve spring compressor attachment.

6. Compress the valve spring and install the valve cotters.

7. Remove the valve spring compressor and the valve spring compressor attachment.

Courtesy of HONDA, U.S.A., INC.

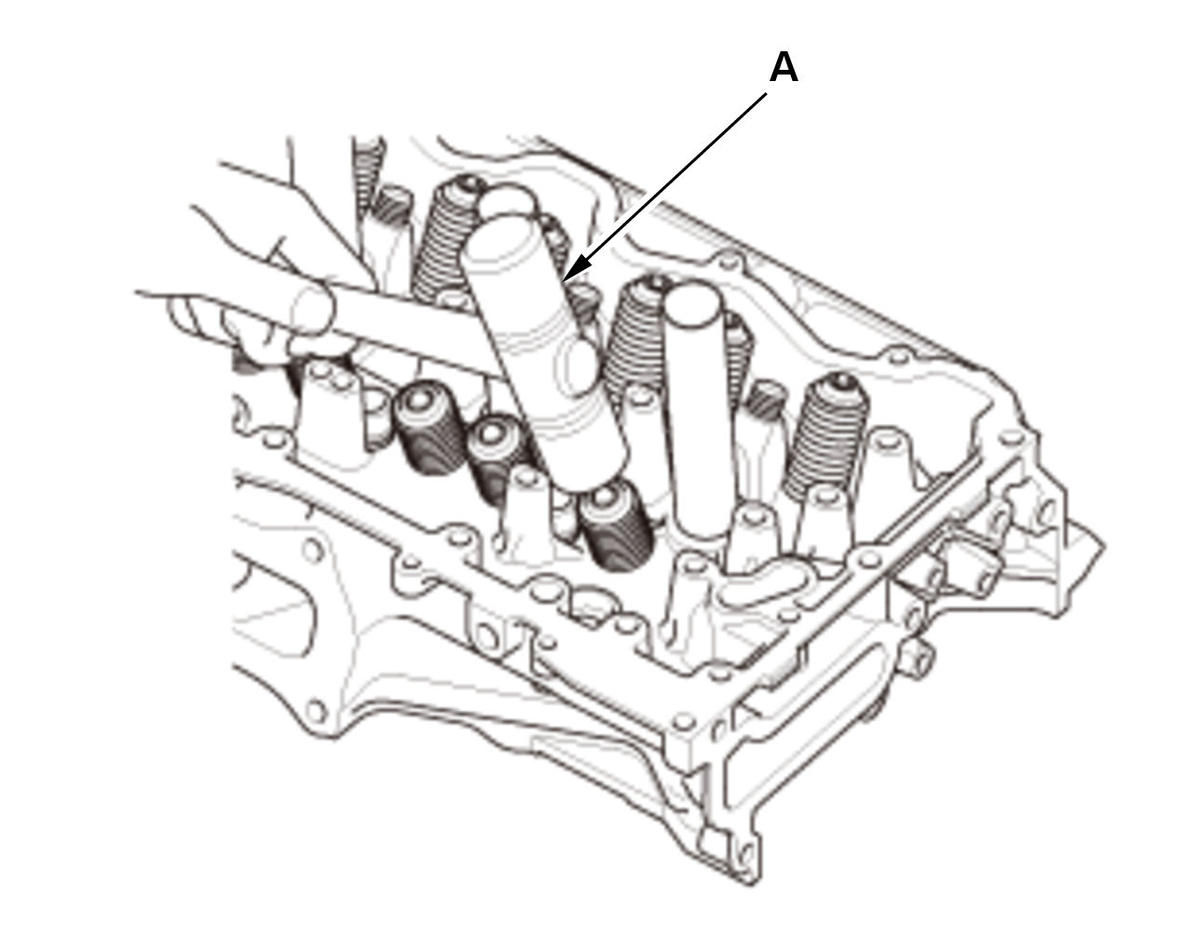

8. Lightly tap the end of each valve stem two or three times with a plastic mallet (A) to ensure proper seating of the valve and the valve cotters. Tap the valve stem only along its axis so you do not bend the stem.
NOTE: Be sure to raise the head off the work bench so the valve is not possibly damaged.

Cylinder Head - Install
