Removal and Installation

1

Upper

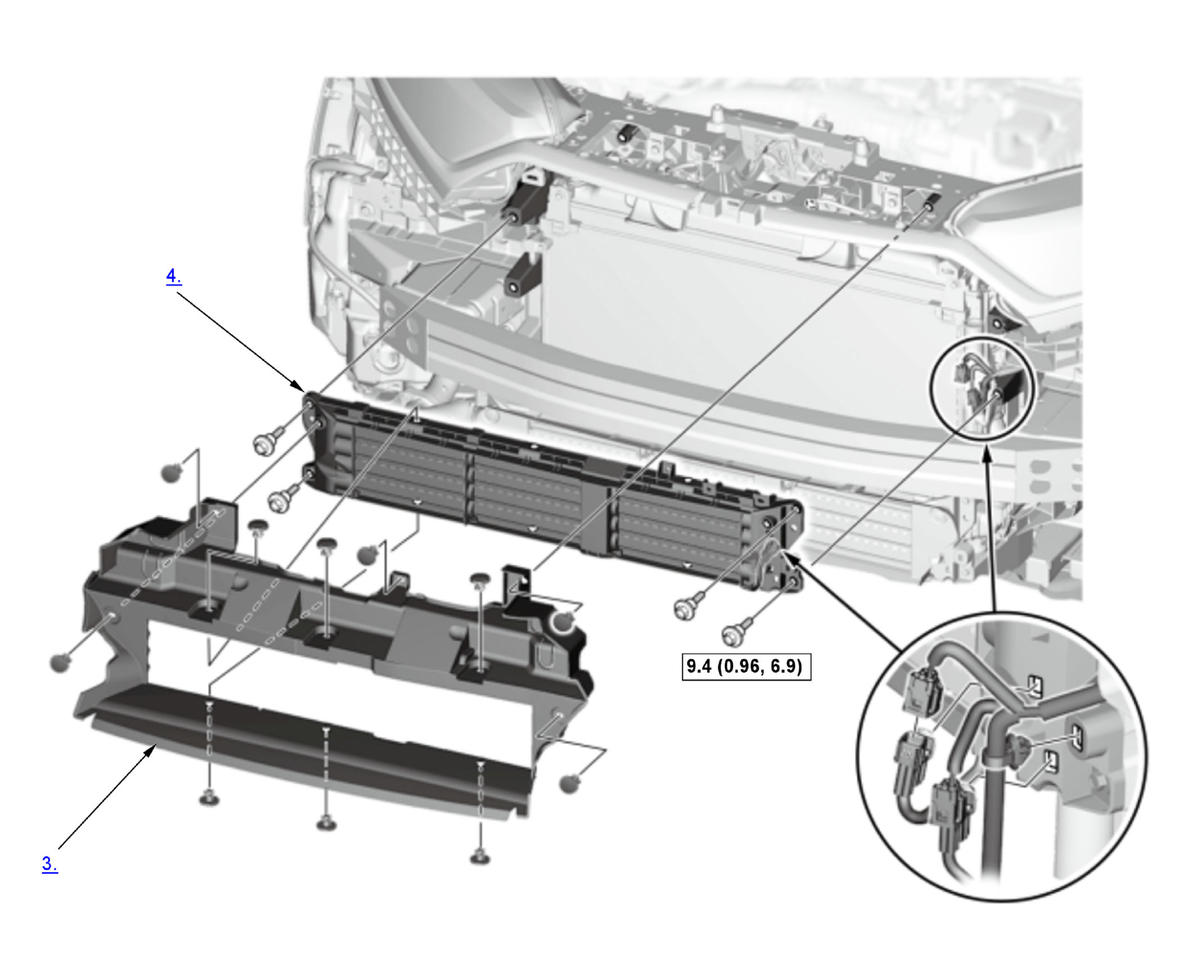

Fig 1: Upper Shutter Grille Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

2

Lower

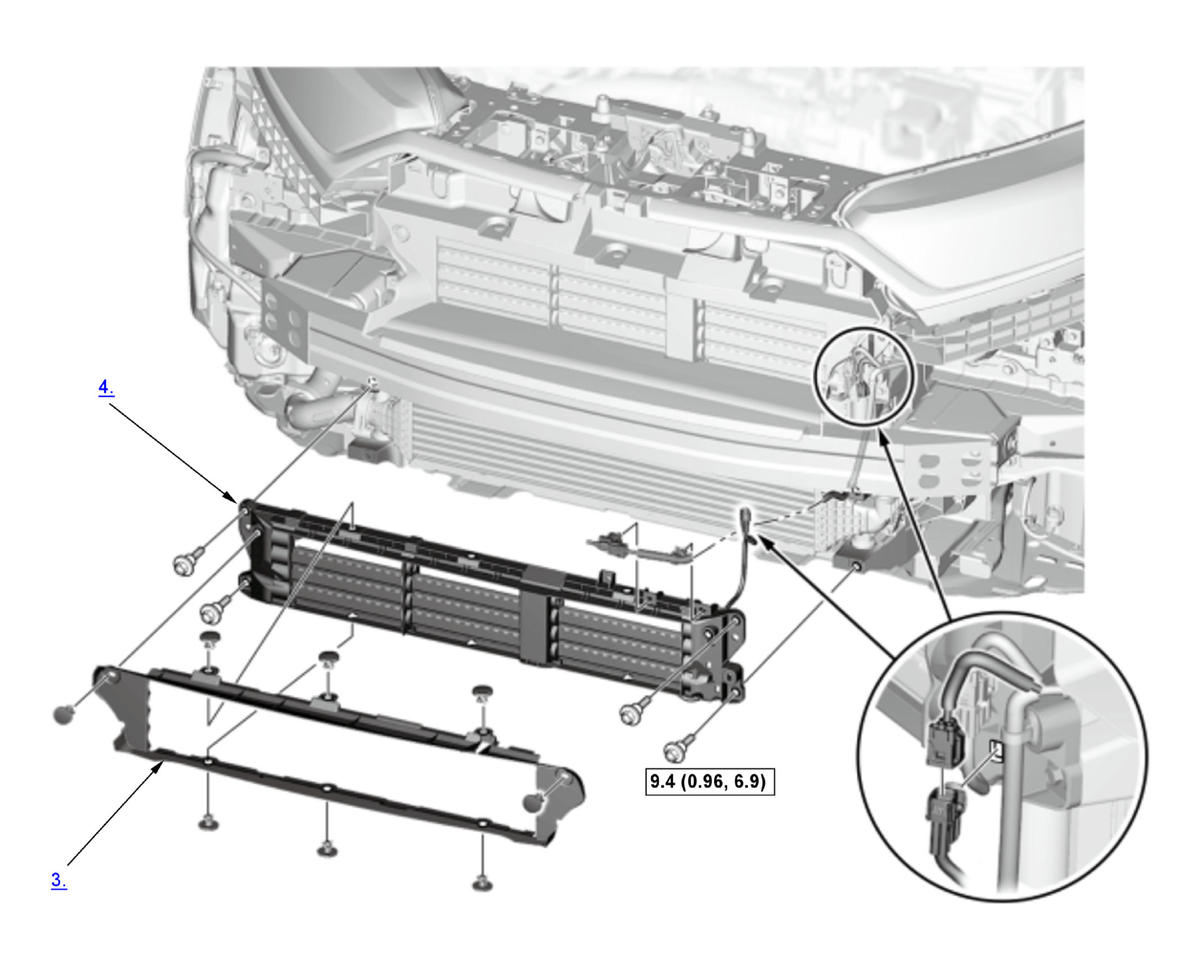

Fig 2: Lower Shutter Grille Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

1. Front Bumper - Remove
2. Millimeter Wave Radar - Remove
3. Duct - Remove
4. Shutter Grille - Remove
5. All Removed Parts - Install
6. Millimeter Wave Radar - Update
7. Millimeter Wave Radar - Aim
