Removal and Installation

NOTE:  Where icon is shown continue to the information below.

1

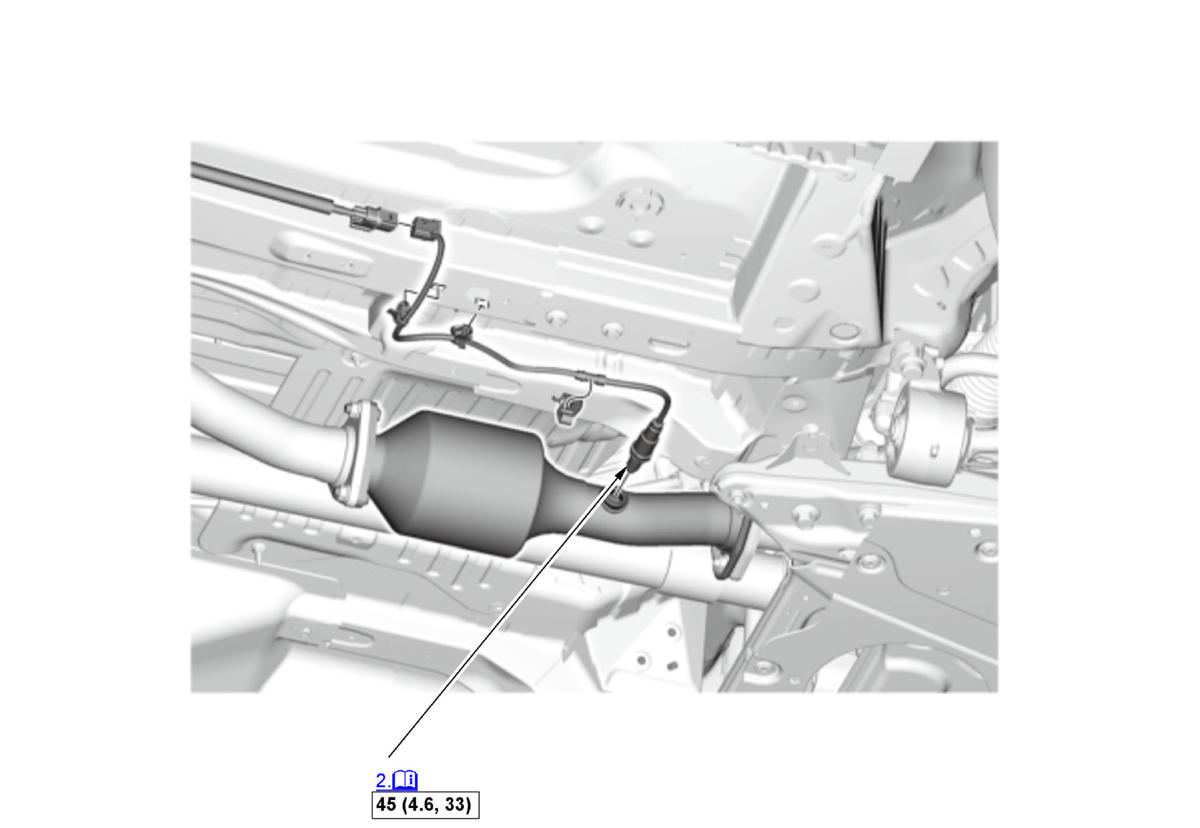

Fig 1: Secondary HO2S Replacement Components With Torque Specifications (2.4 L Engine) (2017 2018 2019)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

1. Middle Floor Undercover - Remove
2. Secondary HO2S - Remove

   Courtesy of HONDA, U.S.A., INC.

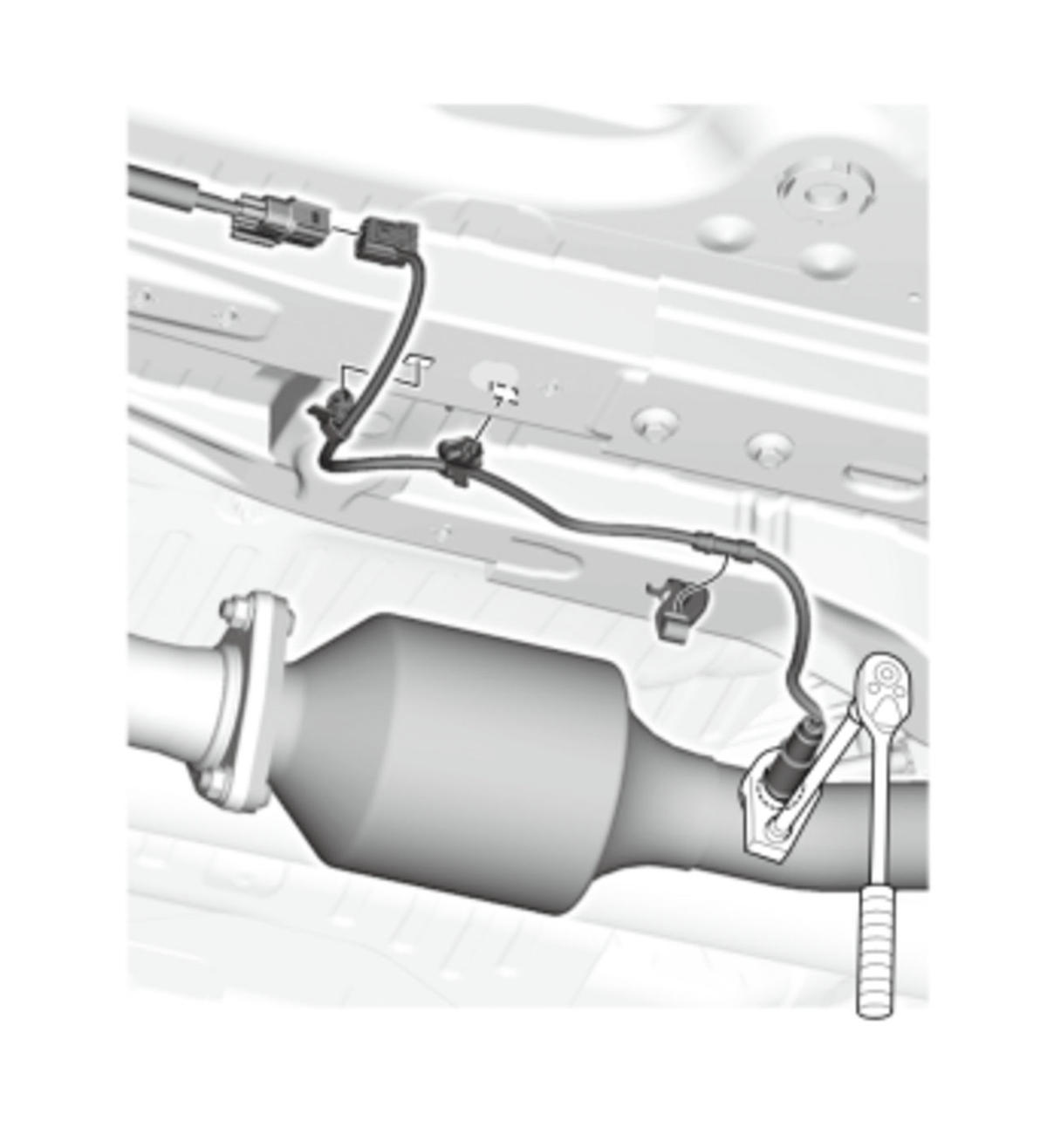

   1. Using a commercially available O2 sensor socket wrench, remove secondary HO2S.

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
