Removal and Installation

NOTE:  Where icon is shown continue to the information below.

1

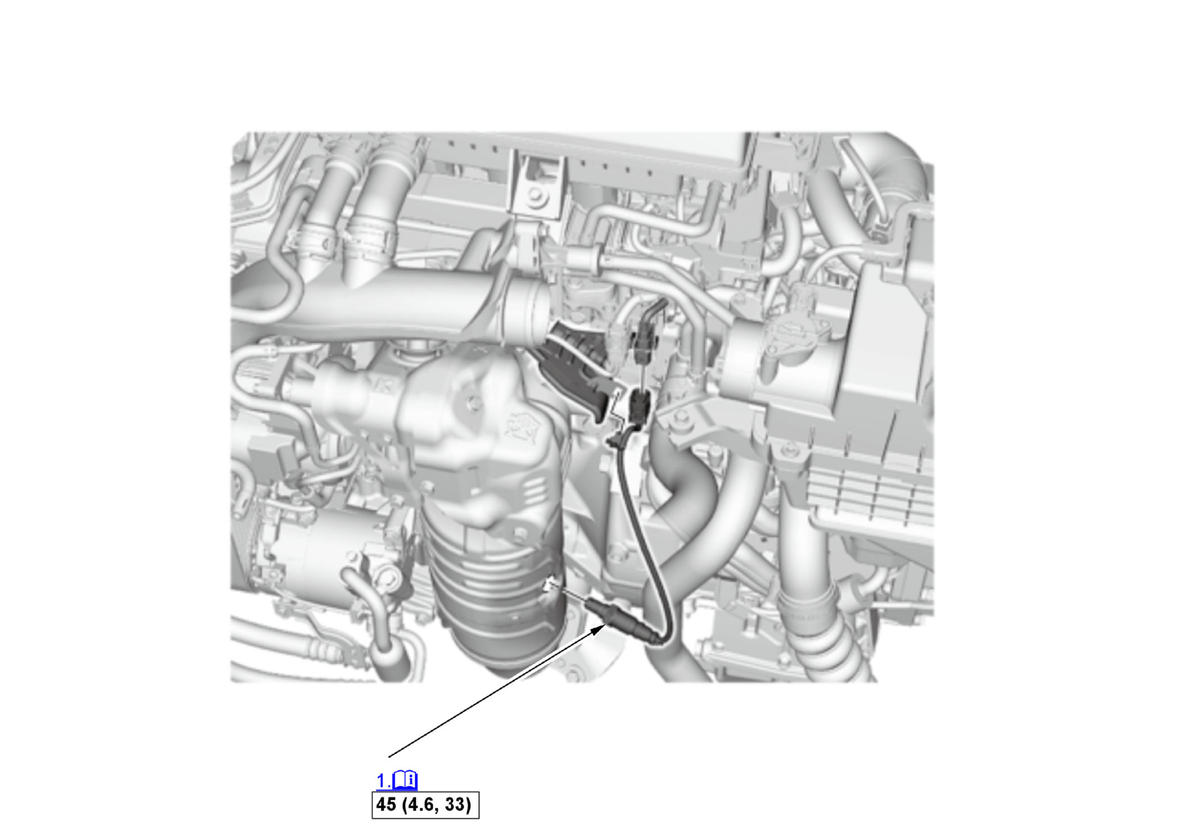

Fig 1: Secondary HO2S Replacement Components With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

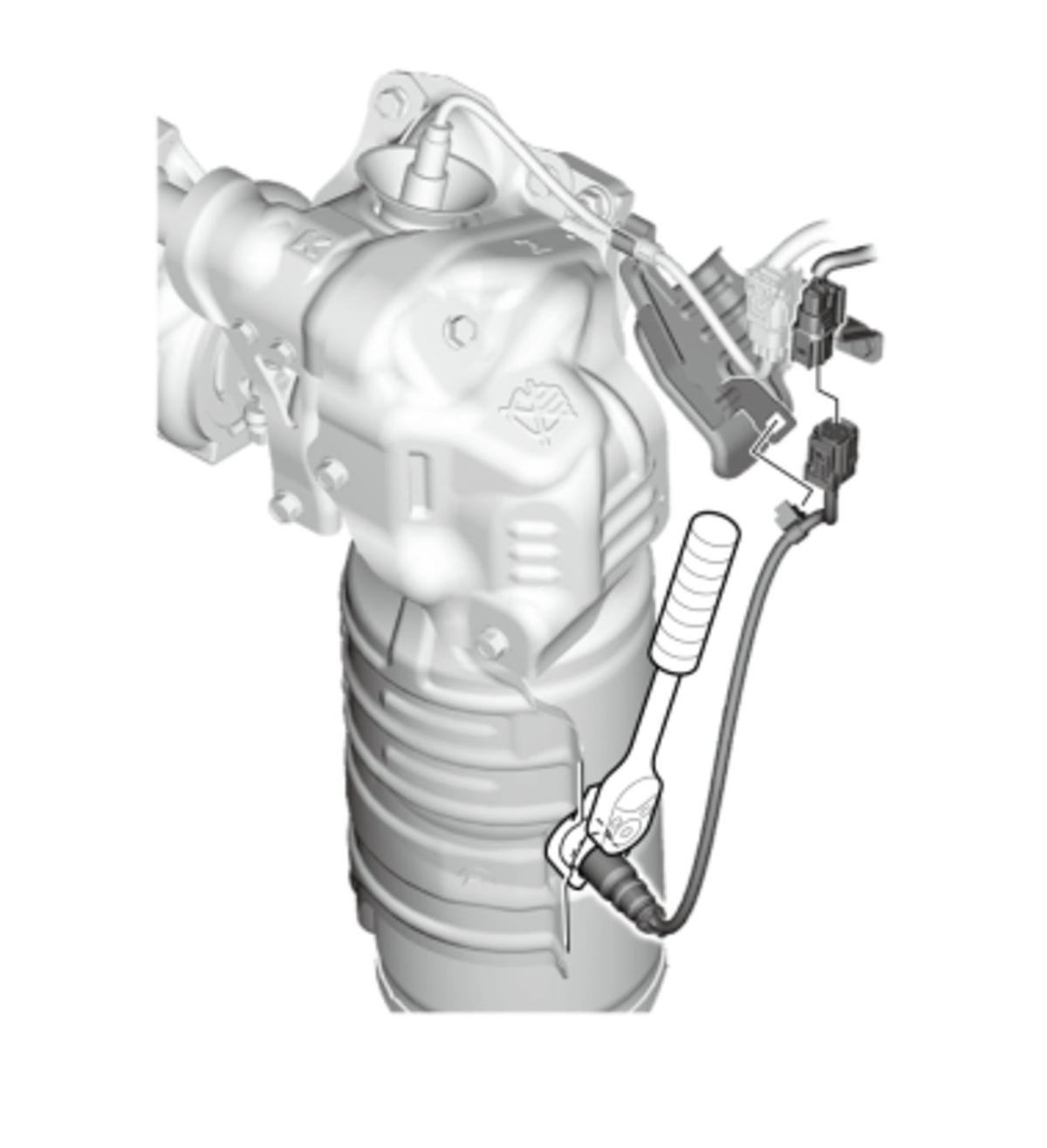

1. Secondary HO2S - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Using a commercially available O2 sensor socket wrench, remove secondary HO2S.

2. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
