Removal and Installation

NOTE:  Although a numbered sequence is shown, these "*1" indicated parts are separate components. If removal or replacement of one of the components is needed, it is not necessary to remove the other.

1

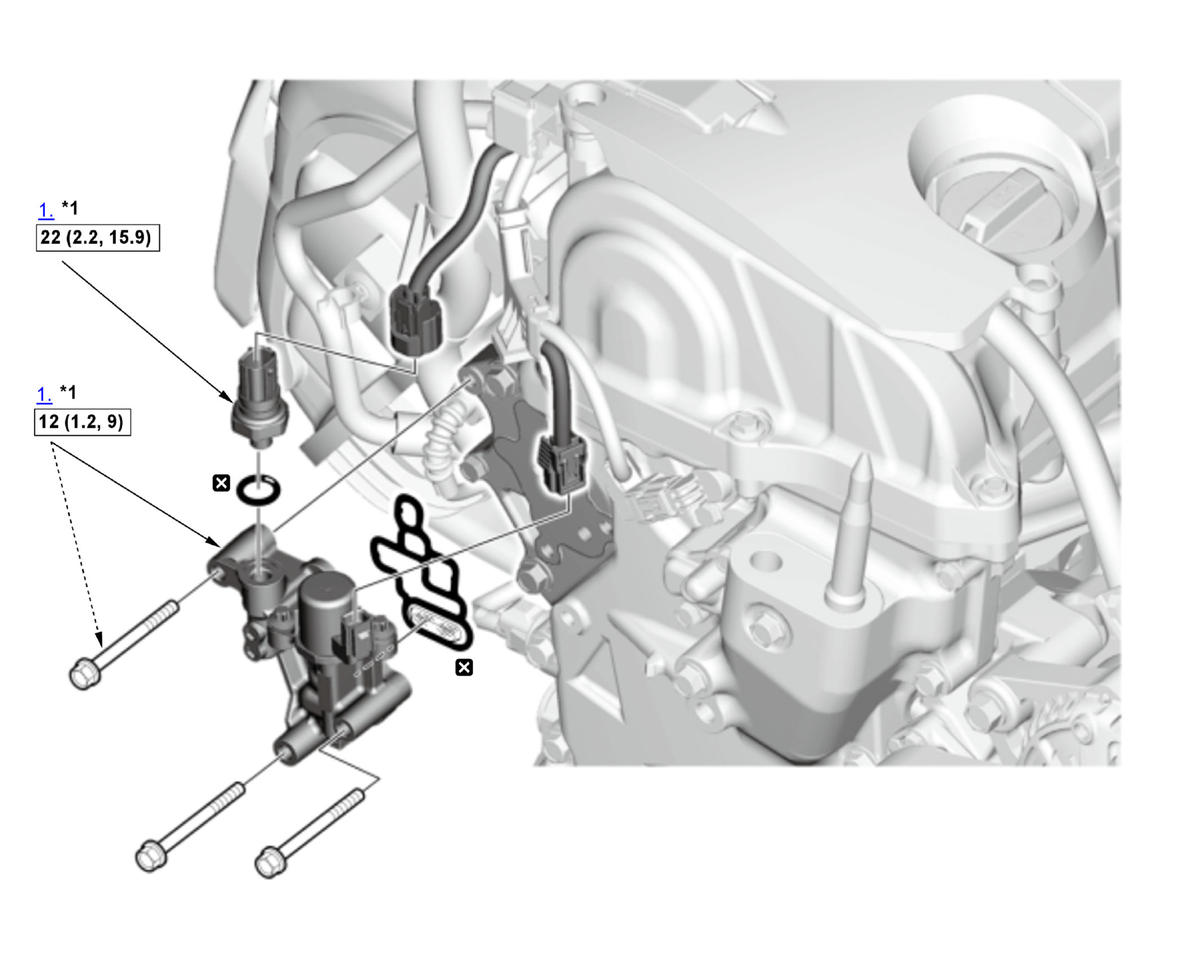

Fig 1: Rocker Arm Oil Control Valve/Rocker Arm Oil Pressure Switch Replacement Components With Torque Specifications (2.4 L Engine) (2017 2018 2019)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

Rocker Arm Oil Control Valve

1. Rocker Arm Oil Control Valve - Remove
2. All Removed Parts - Install

   1. Install the parts in the reverse order of removal with a new O-ring.

   Rocker Arm Oil Pressure Switch

3. Rocker Arm Oil Pressure Switch - Remove
4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal with a new O-ring.
