Removal and Installation

NOTE: How to read the torque specifications .

1. Air Cleaner - Remove
2. 12 Volt Battery - Remove
3. Throttle Body Inlet Pipe - Remove
4. Camshaft - Remove
5. Sealing Bolt - Remove

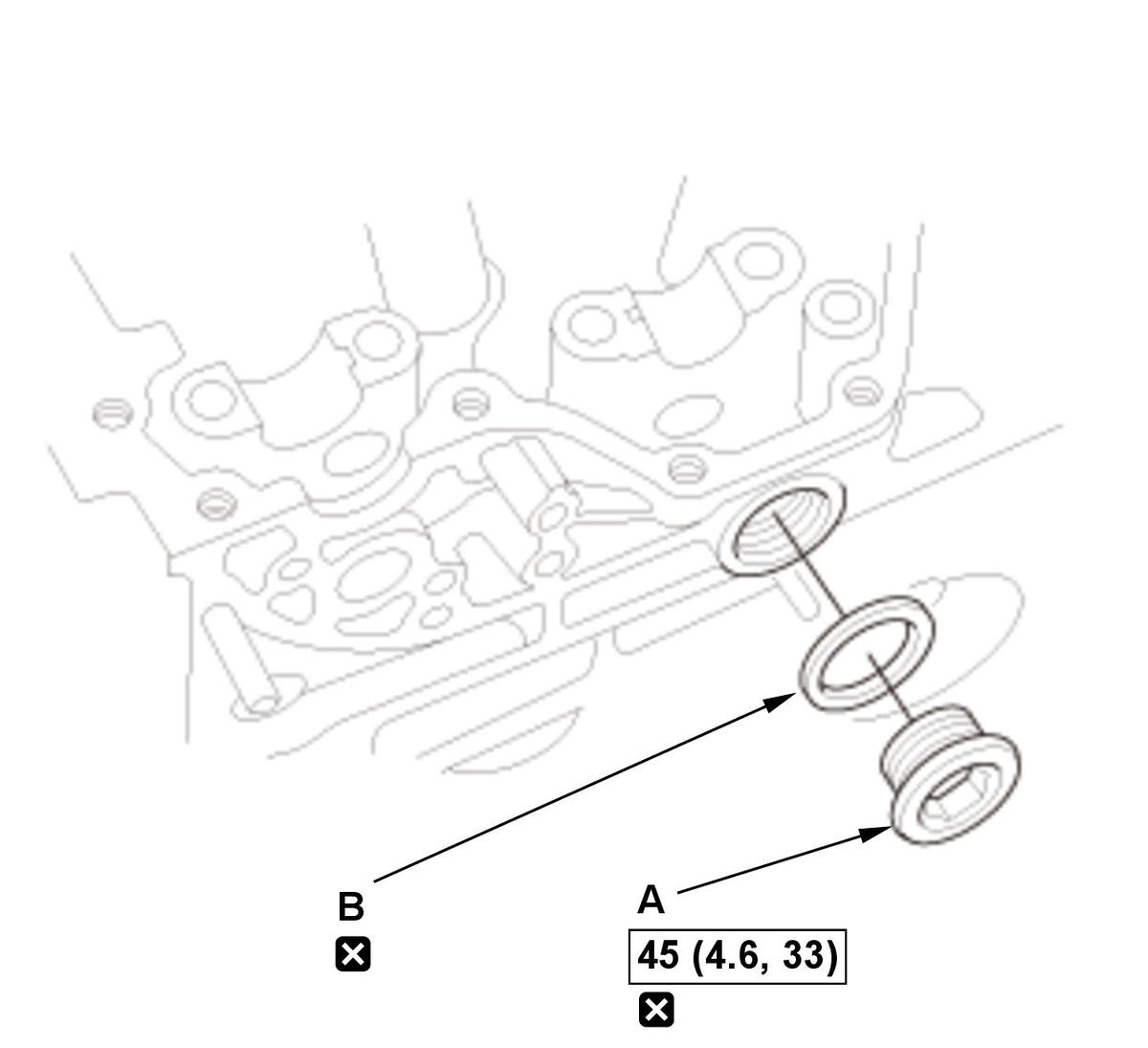

   Fig 1: Sealing Bolt Replacement Components With Torque Specifications (1.5 L Engine)

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the sealing bolt (A) and the washer (B). NOTE:  When the new washer is installed, apply new engine oil to the new washer surfaces.

6. Rocker Arm Assembly - Remove

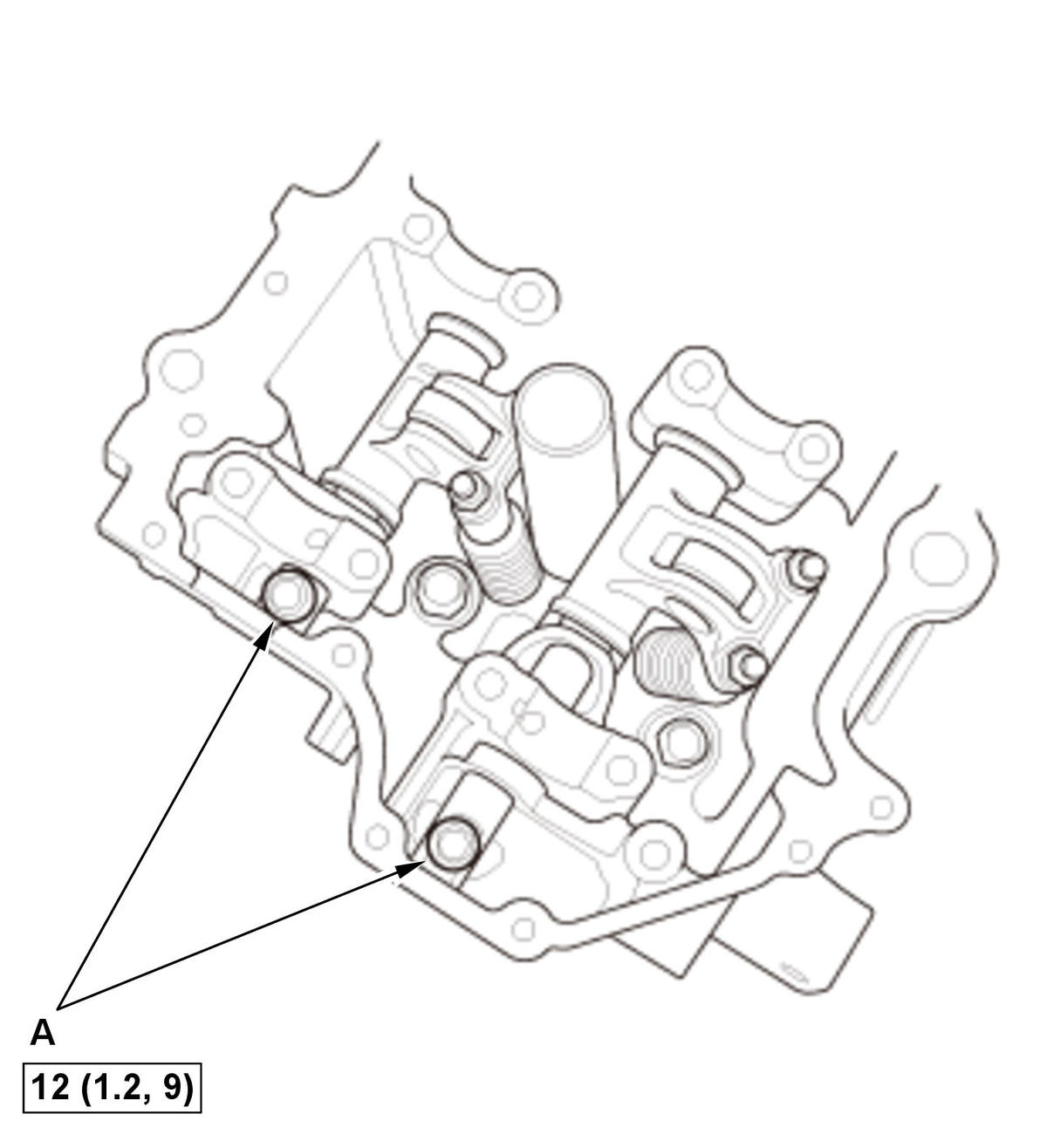

   Fig 2: Rocker Arm Assembly Replacement Components With Torque Specifications (1.5 L Engine)

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the rocker shaft bolts (A).

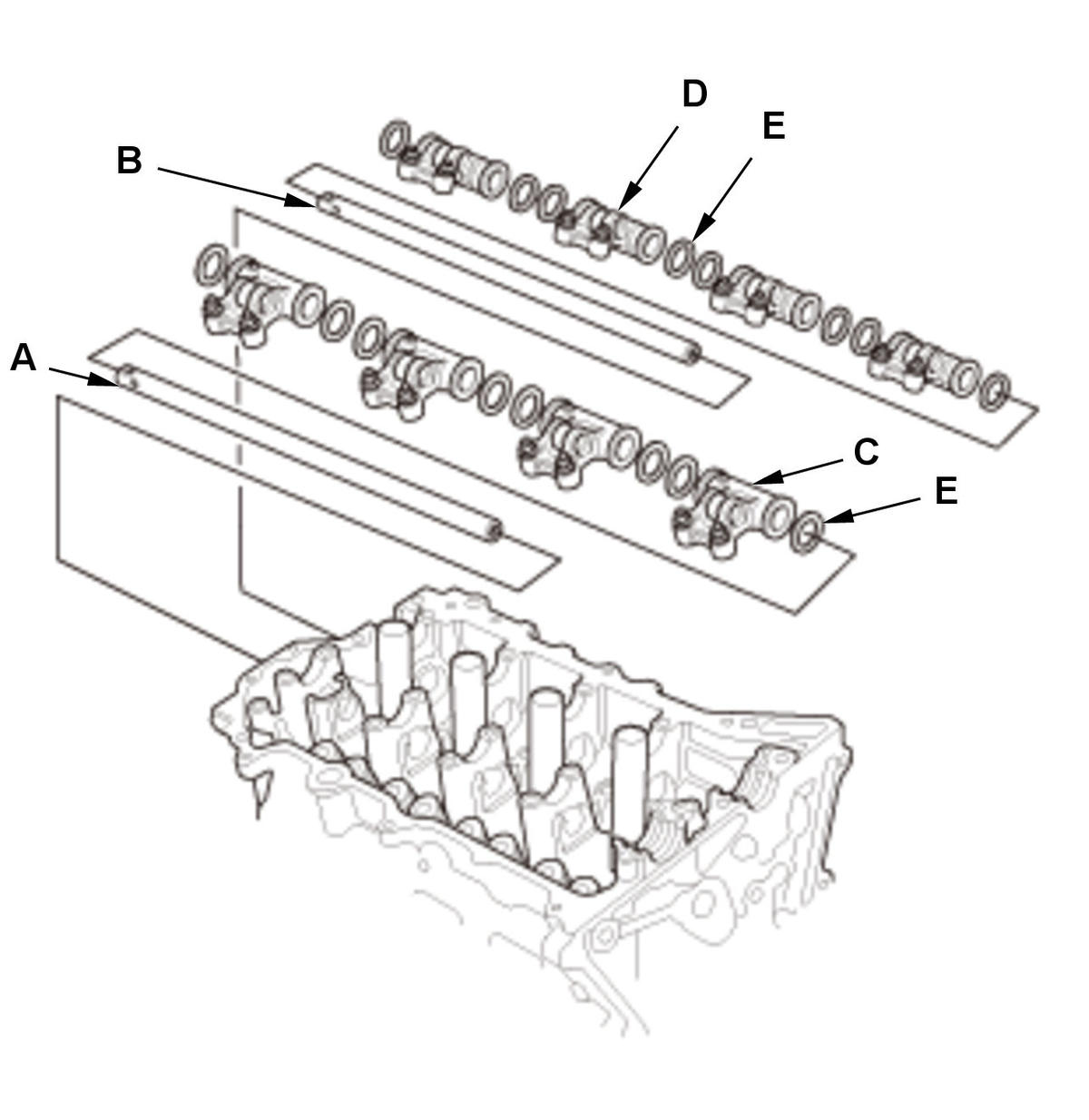

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the intake rocker shaft (A), the exhaust rocker shaft (B), the intake rocker arm assemblies (C), the exhaust rocker arm assemblies (D), and the thrust washers (E).

7. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
