Piston, Ring, Pin, and Connecting Rod Removal and Installation (2.4 L Engine) (2017 2018 2019): Removal

Crankshaft - Remove

Metal or Hard Carbon - Remove

Courtesy of HONDA, U.S.A., INC.

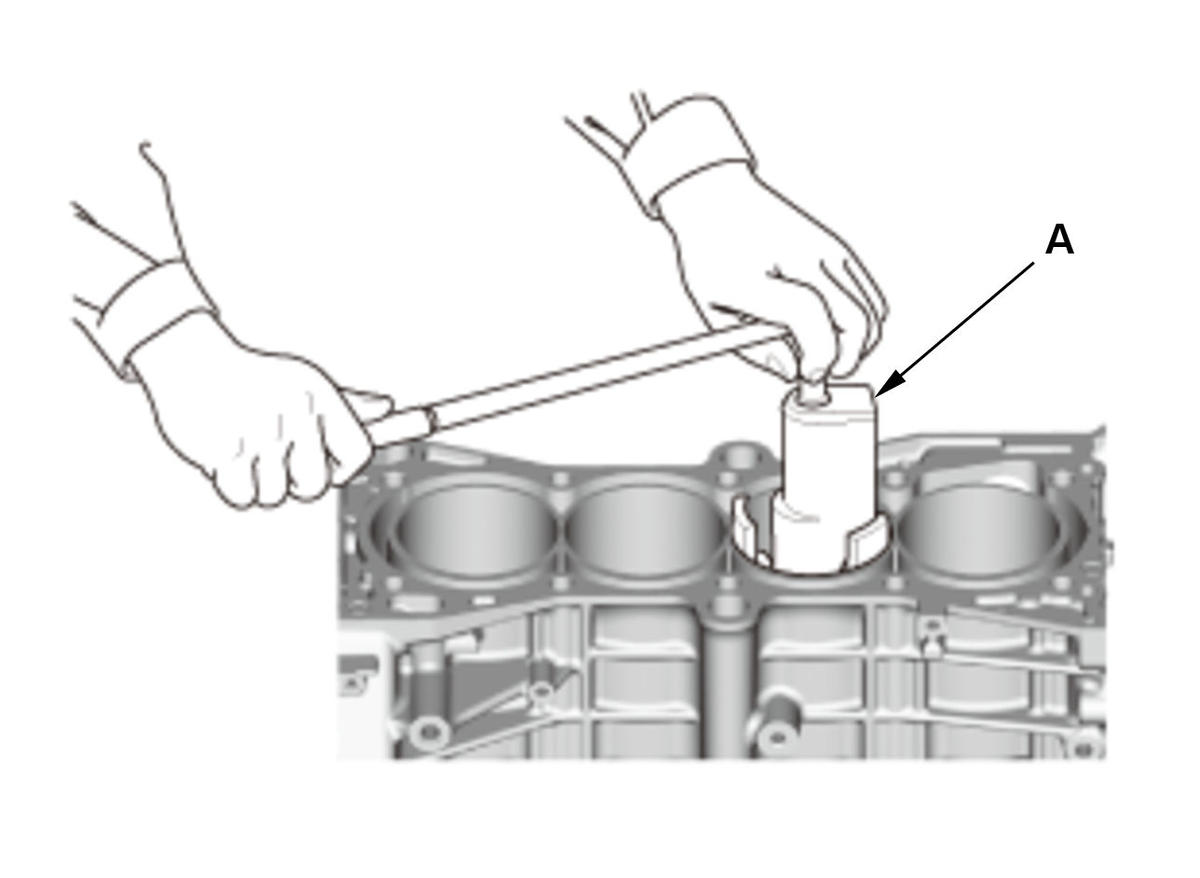

1. If you can feel a ridge of metal or hard carbon around the top of each cylinder, remove it with a ridge reamer (A). Follow the reamer manufacturer's instructions. If the ridge is not removed, it may damage the piston as it is pushed out.

Piston/Connecting Rod Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

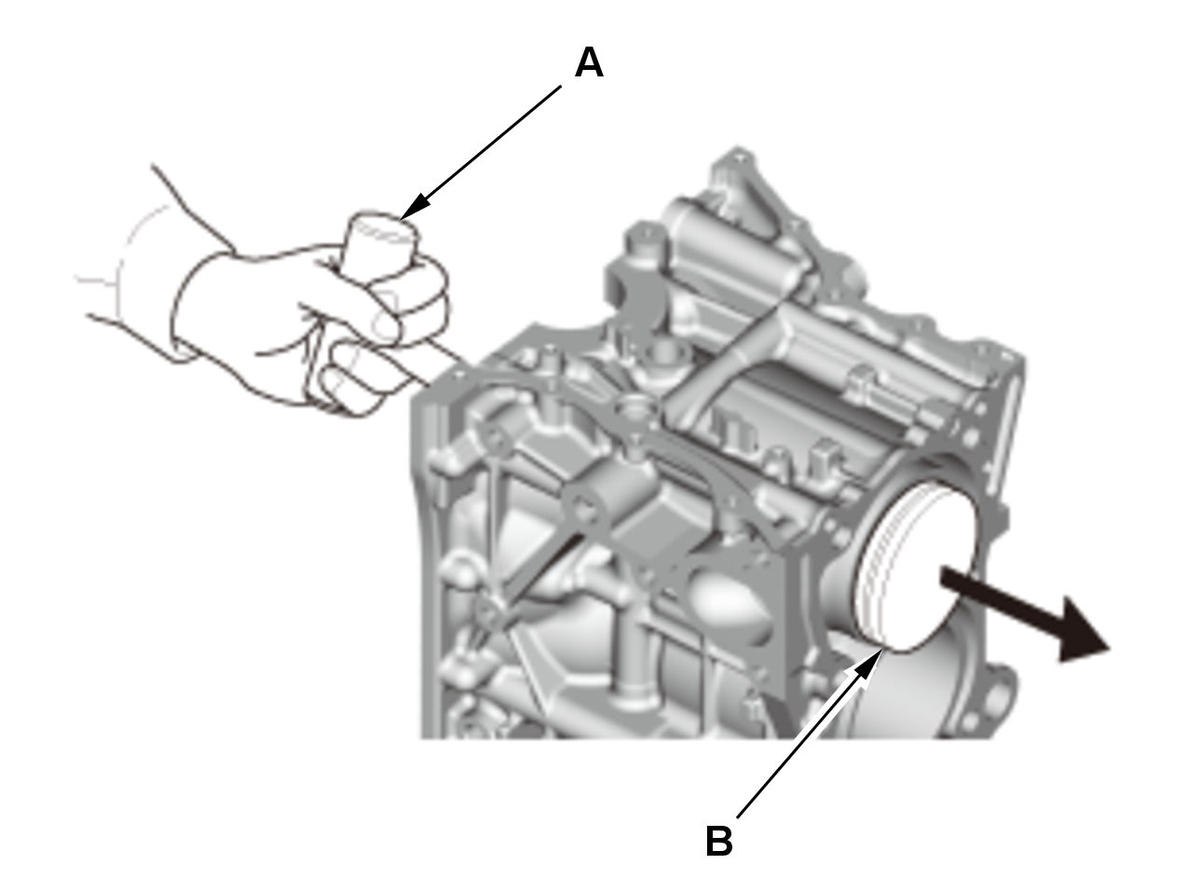

1. Use the wooden handle of a hammer (A) to drive out the piston/connecting rod assembly (B). Take care not to damage the oil jets or cylinder with the connecting rod.

2. Reinstall the connecting rod bearings and caps after removing each piston/connecting rod assembly.

NOTE:

Mark each piston/connecting rod assembly with its cylinder number to make sure they are reinstalled in the original order.
The existing number on the connecting rod does not indicate its position in the engine, it indicates the rod bore size.

Piston Ring End Gap - Inspect

Courtesy of HONDA, U.S.A., INC.

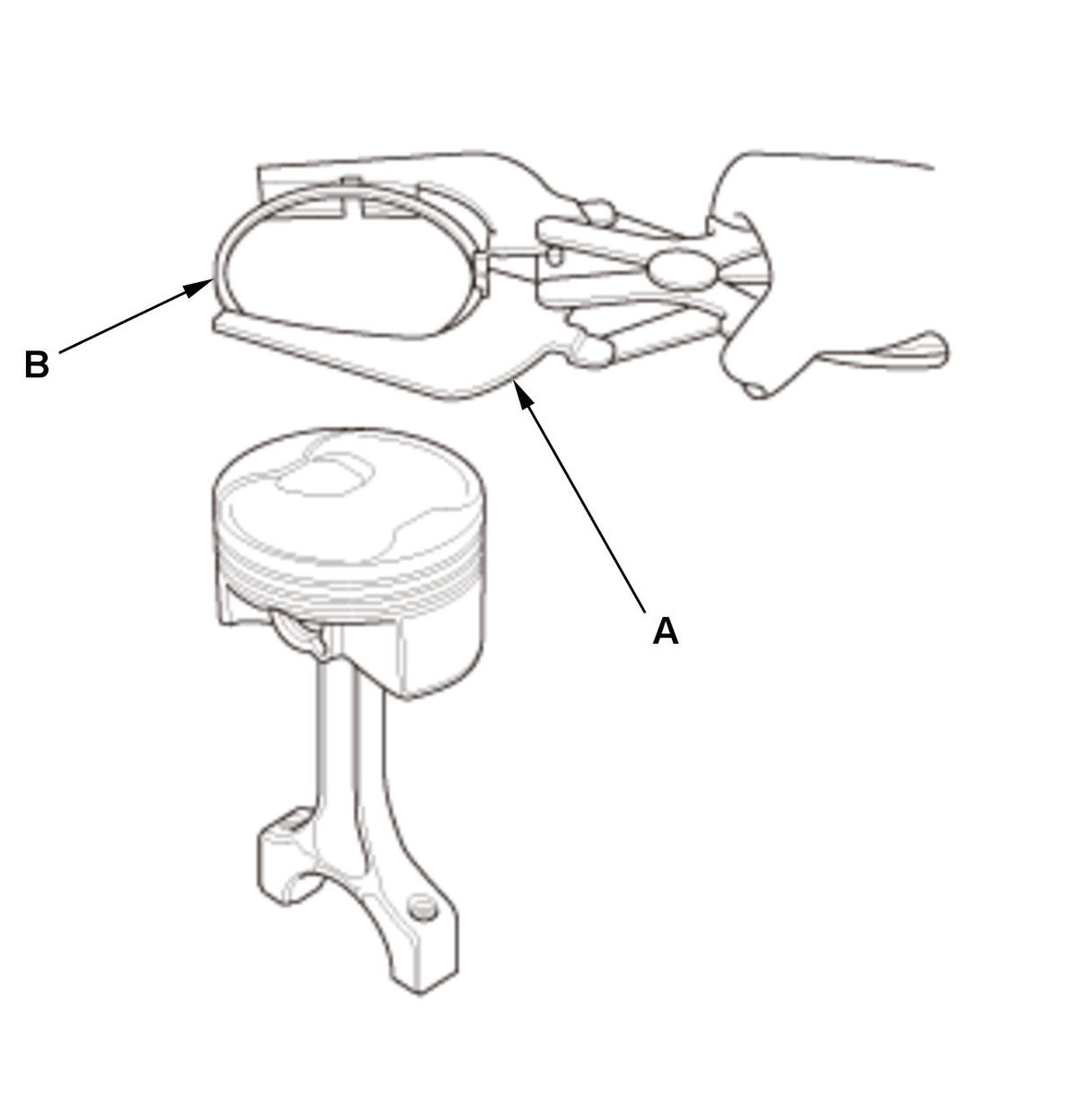

1. Using a ring expander (A), remove the old piston rings (B).

2. Clean all ring grooves thoroughly with a squared-off broken ring or a ring groove cleaner with a blade to fit the piston grooves. The top ring groove is 1.2 mm (0.047 in) wide. The second ring groove is 1.0 mm (0.039 in) wide. The oil ring groove is 2.0 mm (0.079 in) wide. File down a blade if necessary. Do not use a wire brush to clean the ring grooves, or cut the ring grooves deeper with the cleaning tools.

NOTE: If the piston is to be separated from the connecting rod, do not install the new rings yet.

Courtesy of HONDA, U.S.A., INC.

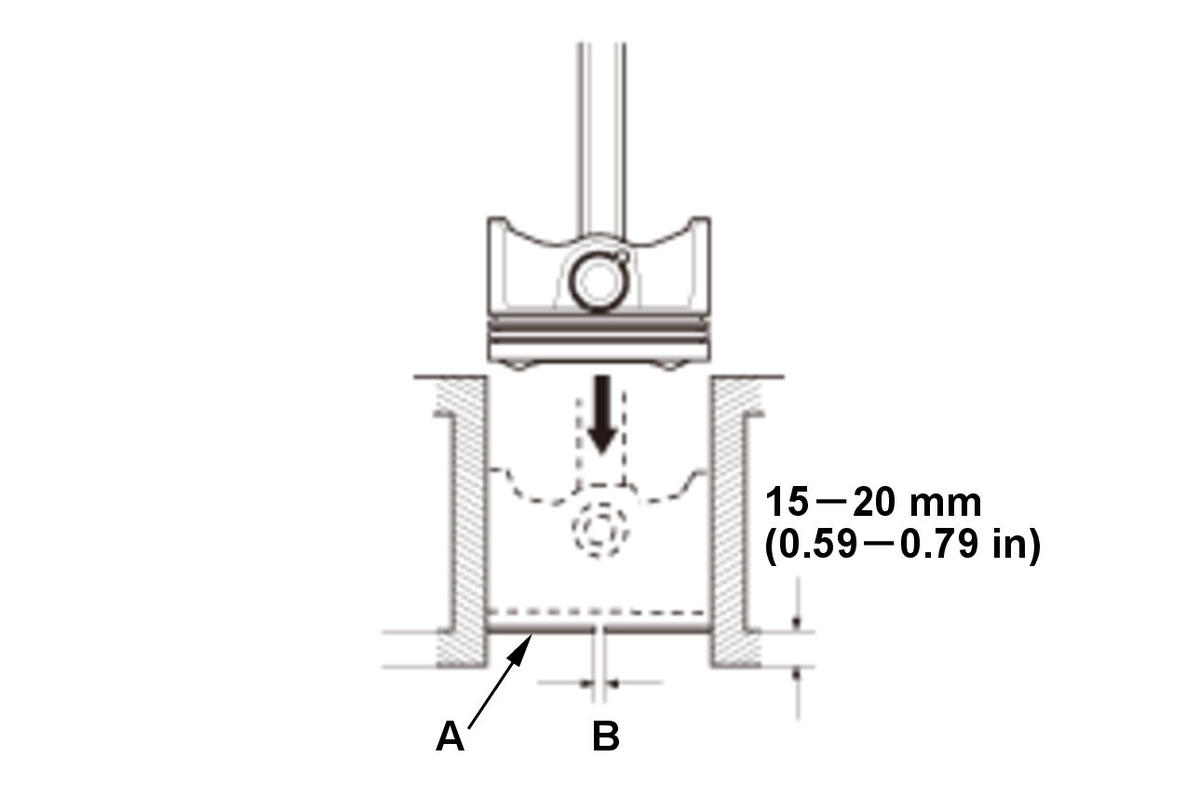

3. Using a piston that has its rings removed, push a new ring (A) into the cylinder bore 15-20 mm (0.59-0.79 in) from the bottom.

4. Measure the piston ring end-gap (B) with a feeler gauge:

If the gap is too small, check to see if you have the proper rings for your engine.
If the gap is too large, recheck the cylinder bore diameter against the wear limits .
If the bore is beyond the service limit, the engine block must be rebored.

Oil Ring:
Standard (New):	0.10-0.40 mm (0.004-0.015 in)
Service Limit:	0.60 mm (0.023 in)

Second Ring:
Standard (New):	0.29-0.41 mm (0.012-0.016 in)
Service Limit:	0.45 mm (0.017 in)

Piston Ring End-Gap
Top Ring:
Standard (New):	0.20-0.28 mm (0.008-0.011 in)
Service Limit:	0.50 mm (0.019 in)

Piston Pin - Remove

Courtesy of HONDA, U.S.A., INC.

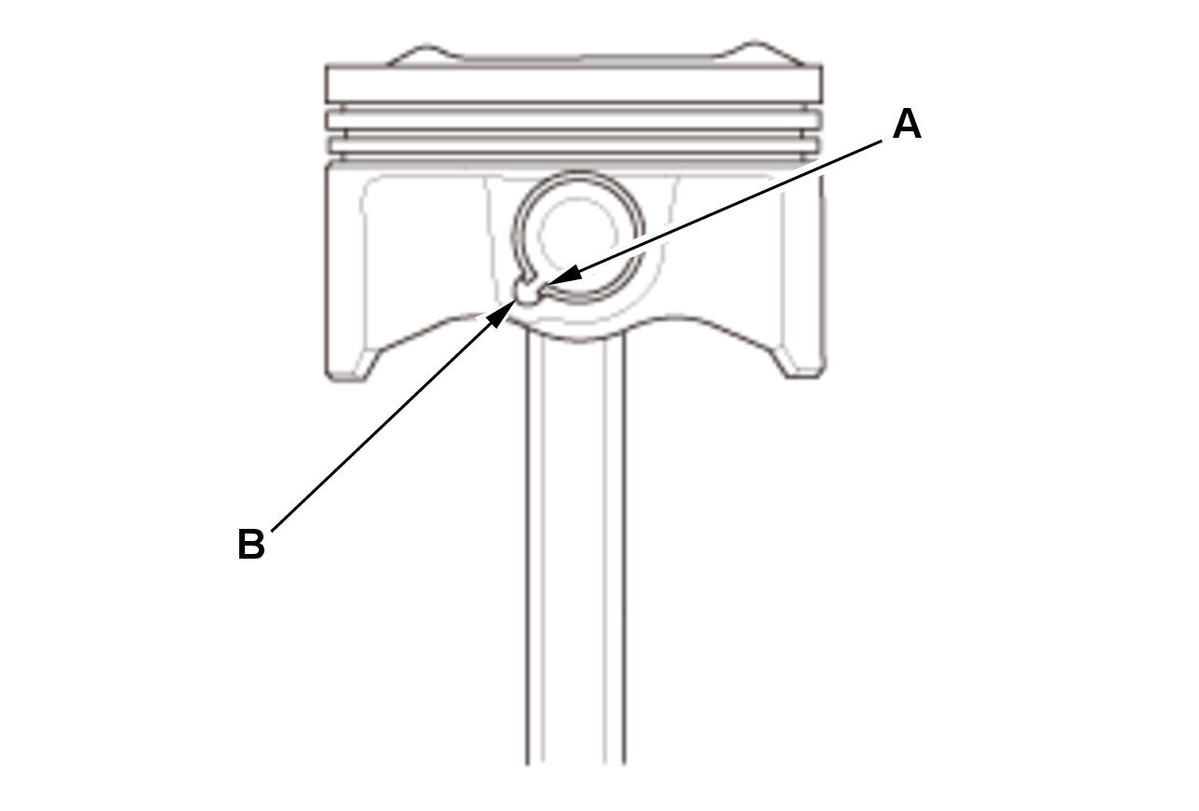

1. Apply new engine oil to the piston pin snap rings (A), and turn them in the ring grooves until the end gaps are lined up with the cutouts in the piston pin bores (B).
NOTE: Take care not to damage the ring grooves.

Courtesy of HONDA, U.S.A., INC.

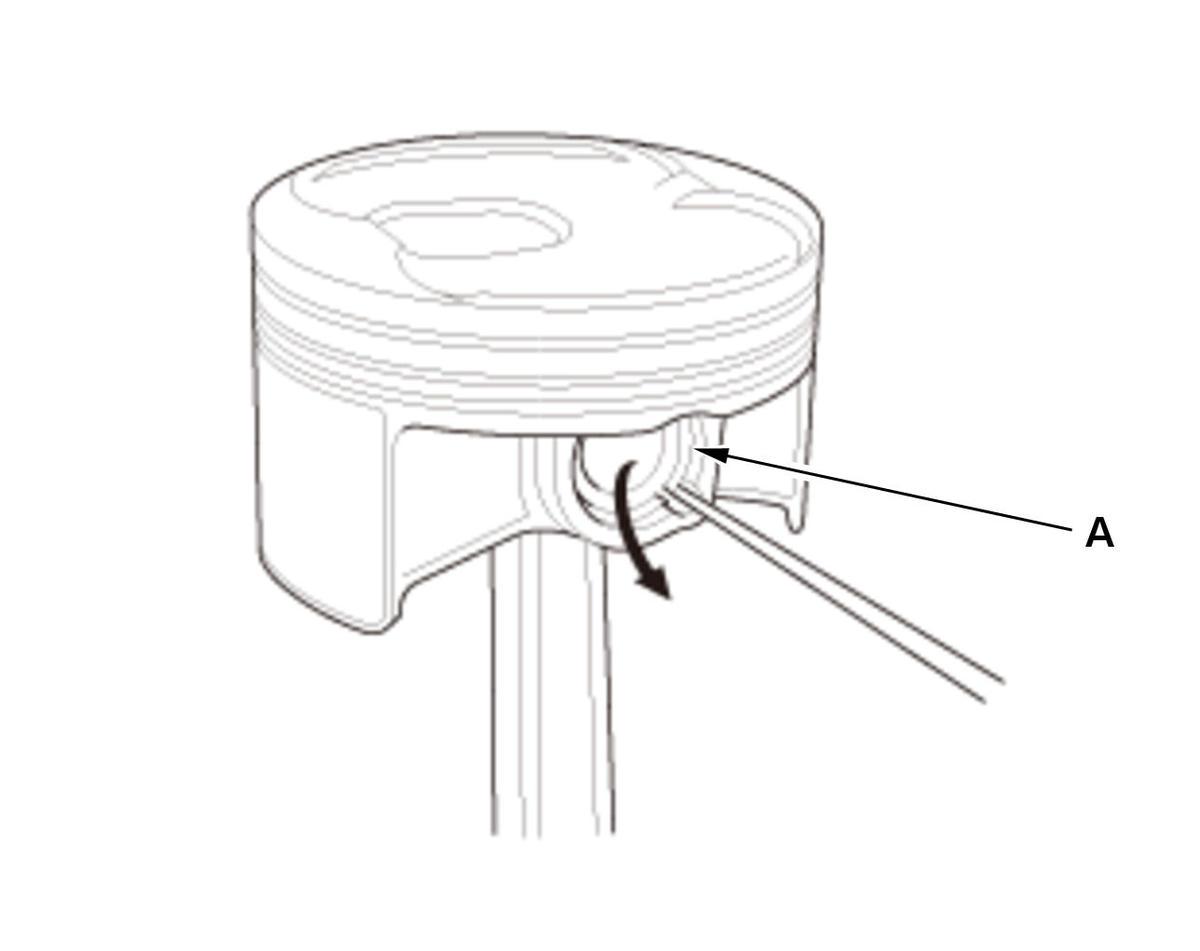

2. Remove the snap rings (A) from both sides of each piston. Start at the cutout in the piston pin bore. Remove the snap rings carefully so they do not go flying or get lost. Wear eye protection.

Courtesy of HONDA, U.S.A., INC.

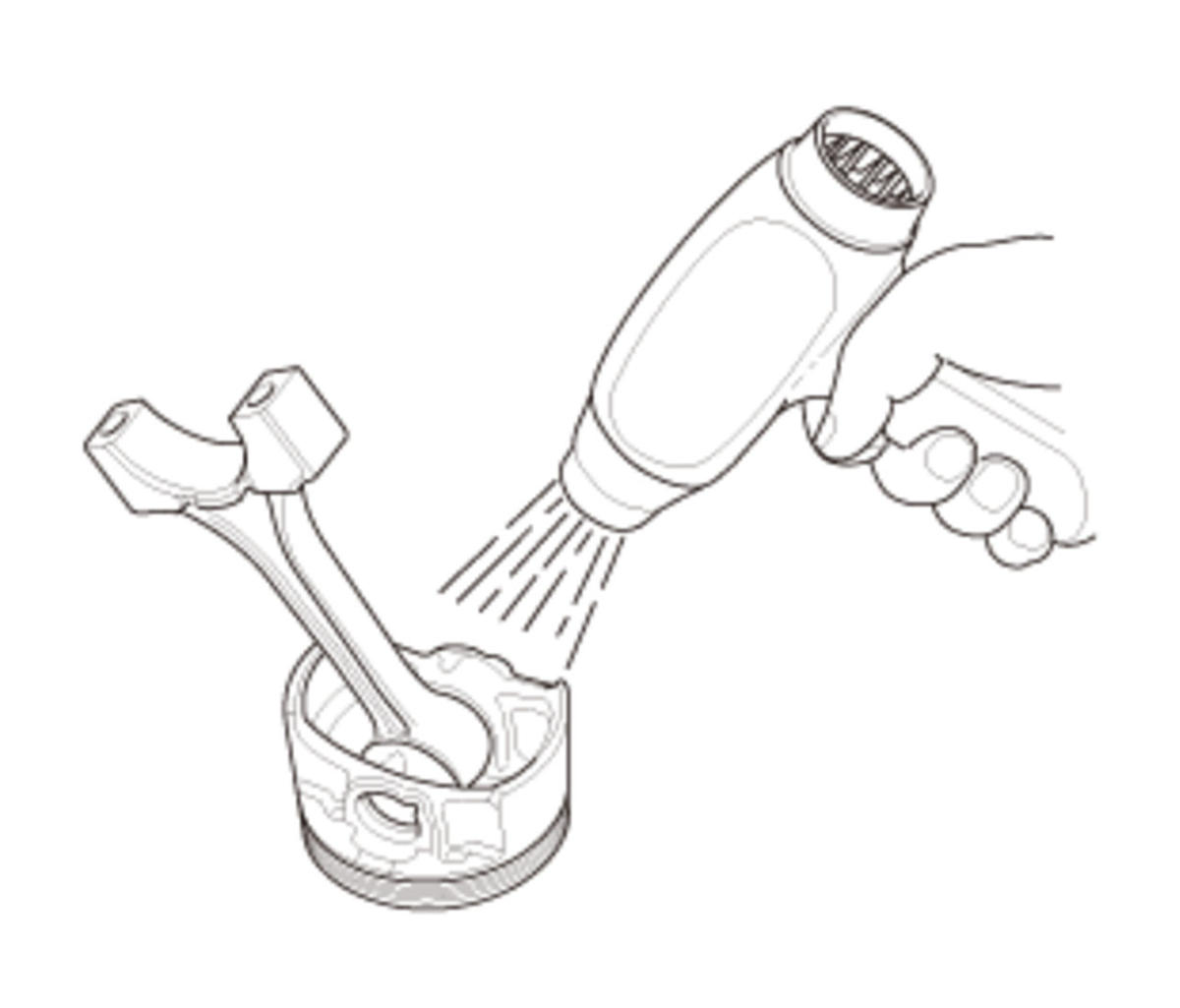

3. Heat the piston and the connecting rod assembly to about 70 deg.C (158 deg.F), then remove the piston pin.

Piston Pin - Inspect

Courtesy of HONDA, U.S.A., INC.

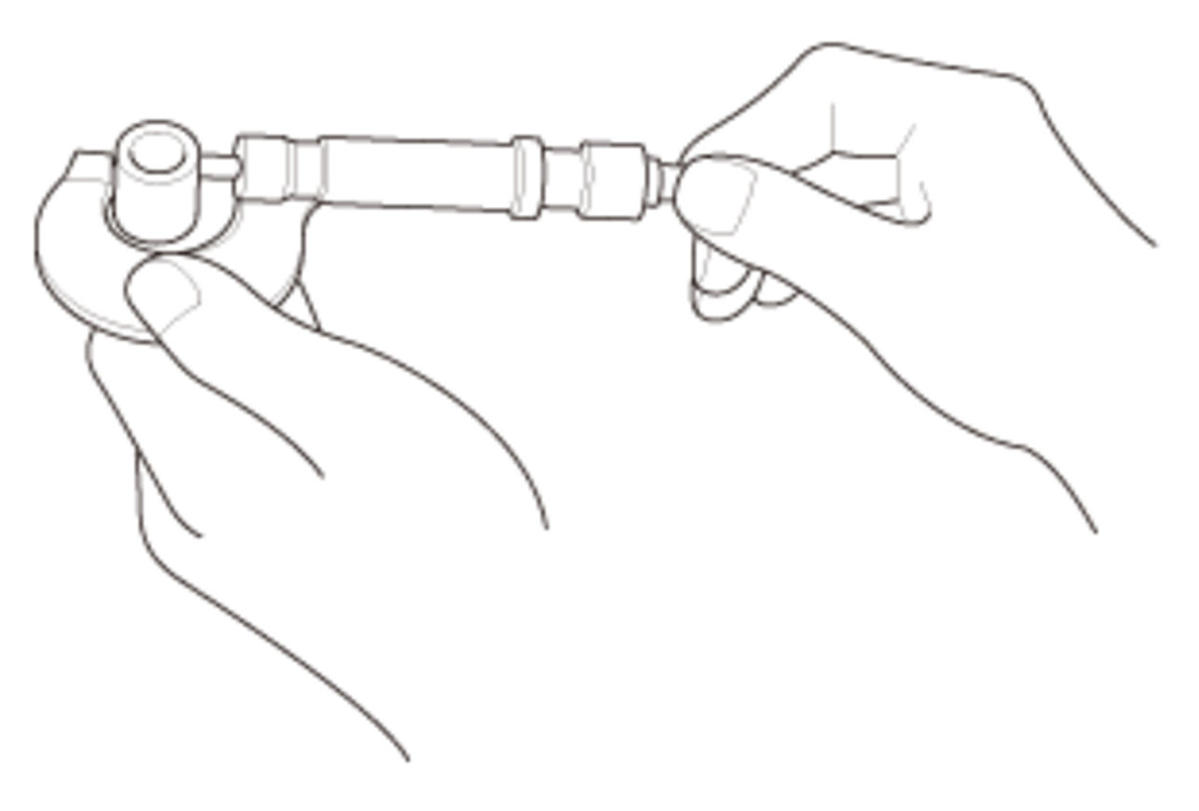

1. Measure the diameter of the piston pin.

Piston Pin Diameter

Standard (New):	21.961-21.965 mm (0.86460-0.86476 in)
Service Limit:	21.953 mm (0.86429 in)

Courtesy of HONDA, U.S.A., INC.

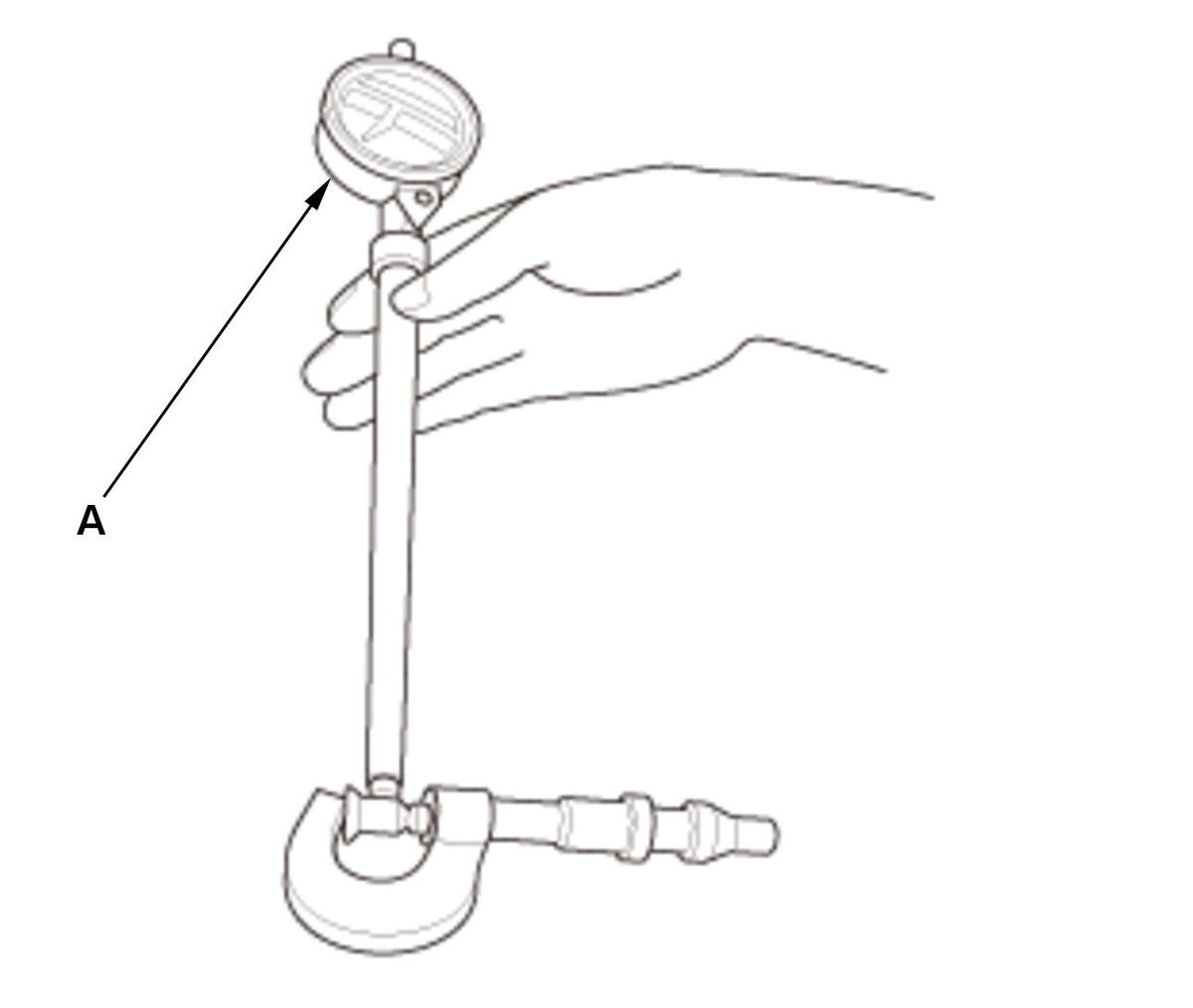

2. Zero the dial indicator (A) to the piston pin diameter.

Courtesy of HONDA, U.S.A., INC.

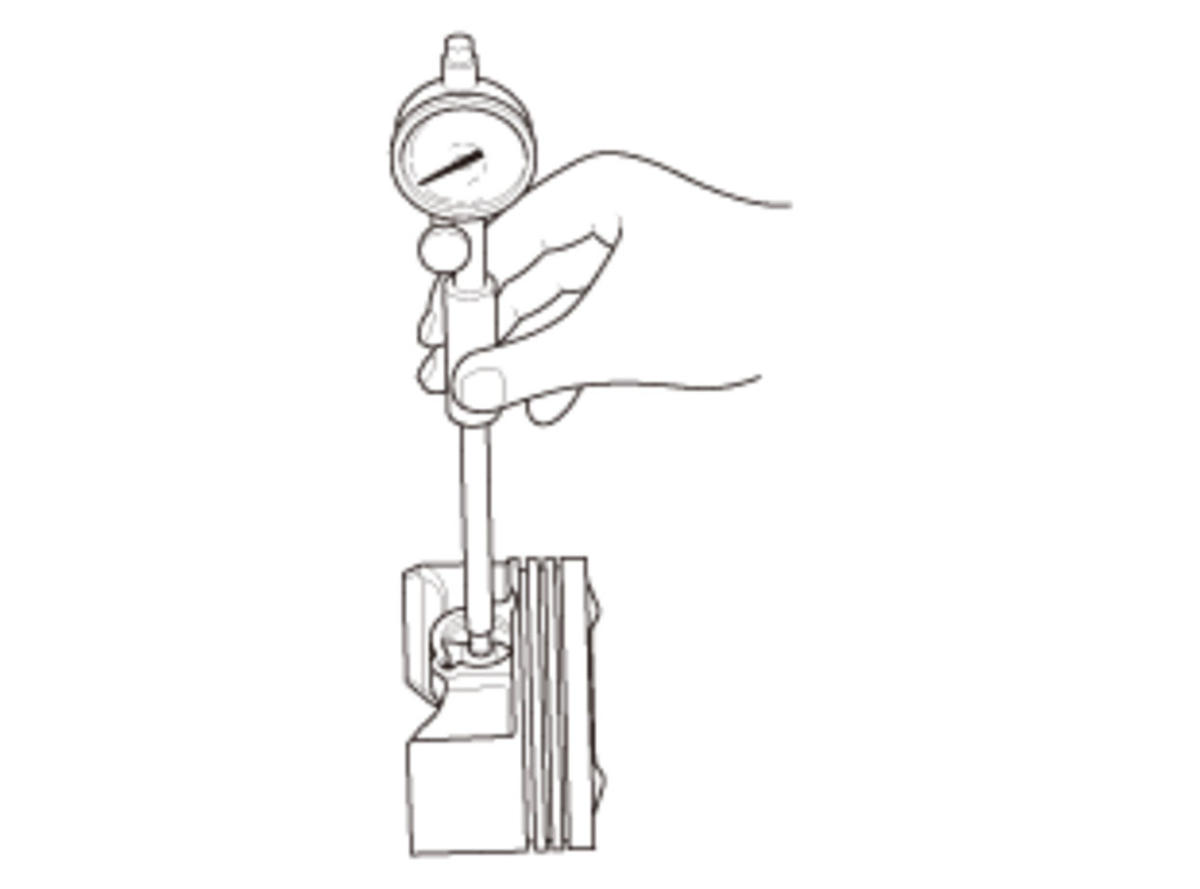

3. Check the difference between the piston pin diameter and the piston pin hole diameter in the piston.

Piston Pin-to-Piston Clearance
Standard (New):	-0.005-0.002 mm (-0.00020-0.00008 in)
Service Limit:	0.005 mm (0.00020 in)

Courtesy of HONDA, U.S.A., INC.

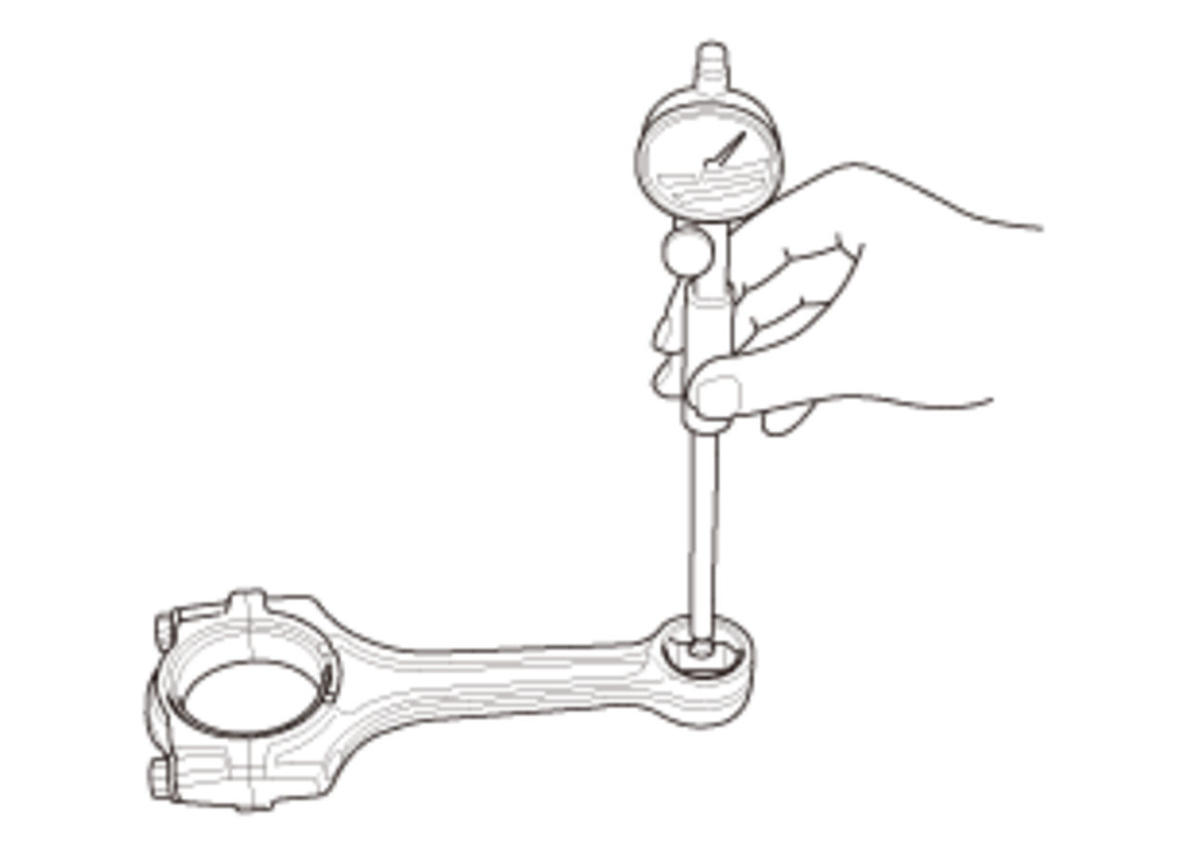

4. Measure the piston pin-to-connecting rod clearance.

Service Limit:

0.02 mm (0.0008 in)

Piston Pin-to-Connecting Rod Clearance
Standard (New):	0.005-0.015 mm (0.00020-0.00059 in)
