PCM Removal and Installation (1.5 L Engine): Removal

NOTE:

• Make sure the HDS or the MVCI has the latest HDS software version.
• If you are replacing the PCM after substituting a known-good PCM, reinstall the original PCM, then do this procedure.
• If you are replacing the PCM, do the all procedures.
• If you are removing or substituting the PCM, skip the procedures of READ DATA (Engine Oil Life).

1

Courtesy of HONDA, U.S.A., INC.

1. HDS - Connect
2. READ DATA - Select

   1. Select the REPLACE PCM MENU, then select READ DATA, and follow the screen prompts. NOTE:  Doing this step copies (READS) the engine oil life data from the original PCM so you can later download (WRITES) them into the new PCM. If the READ DATA indicates FAILED, go to next step.

3. SCS - Short

   1. Turn the vehicle to the OFF (LOCK) mode. 2. Jump the SCS line with the HDS, and wait more than 1 minute.

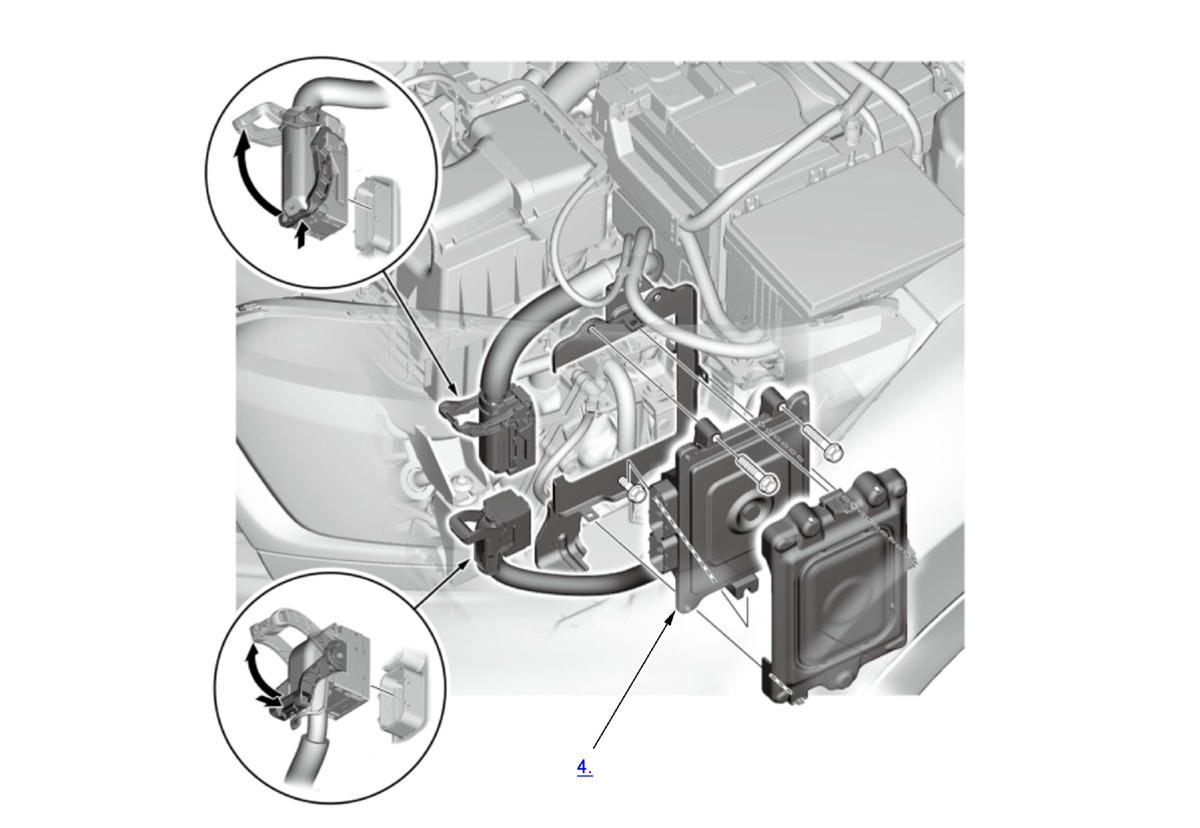

4. PCM - Remove
