Removal and Installation

1

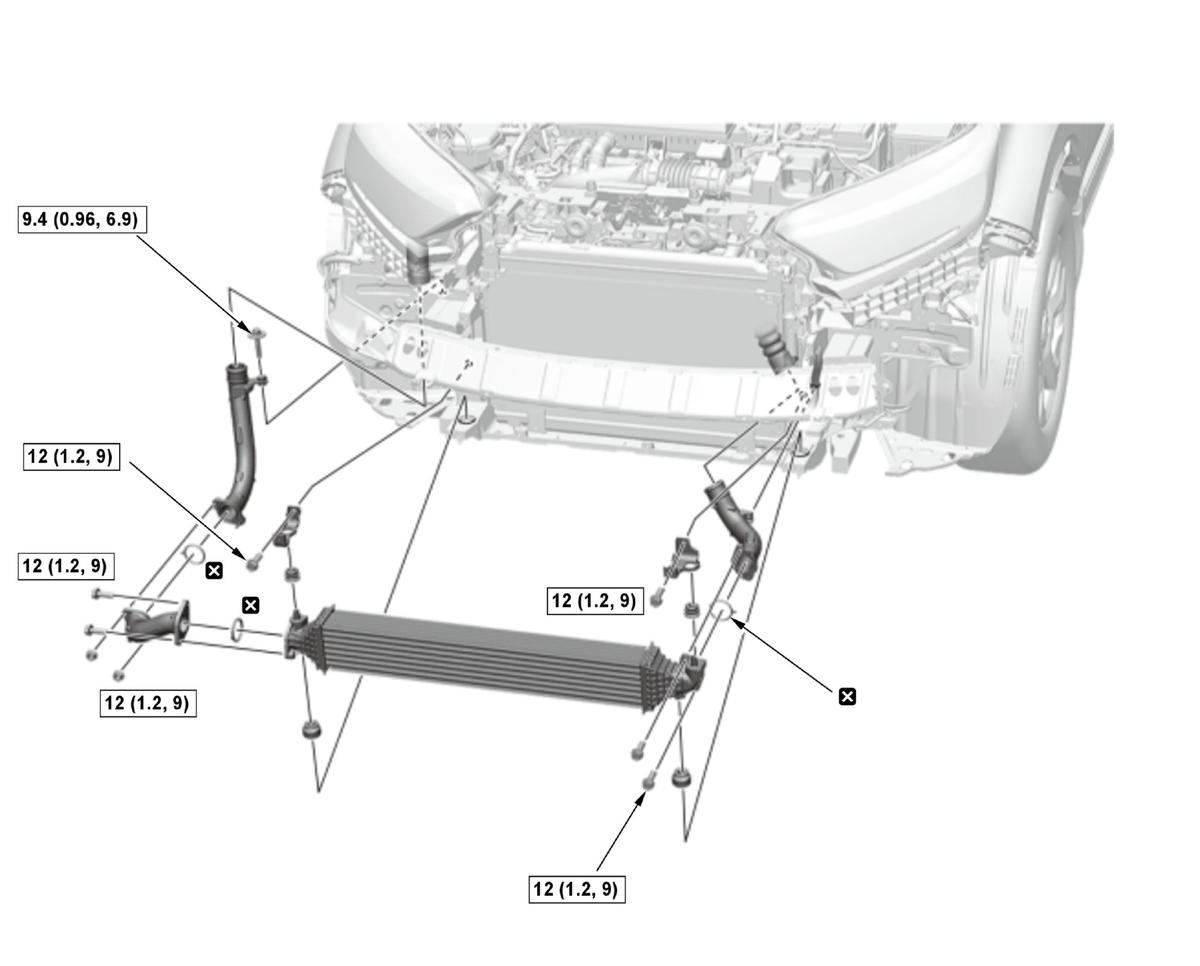

Fig 1: Intercooler Replacement Components With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Front Bumper - Remove
2. Shutter Grille (Lower) - Remove
3. Intercooler - Remove
4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
