Removal and Installation

1

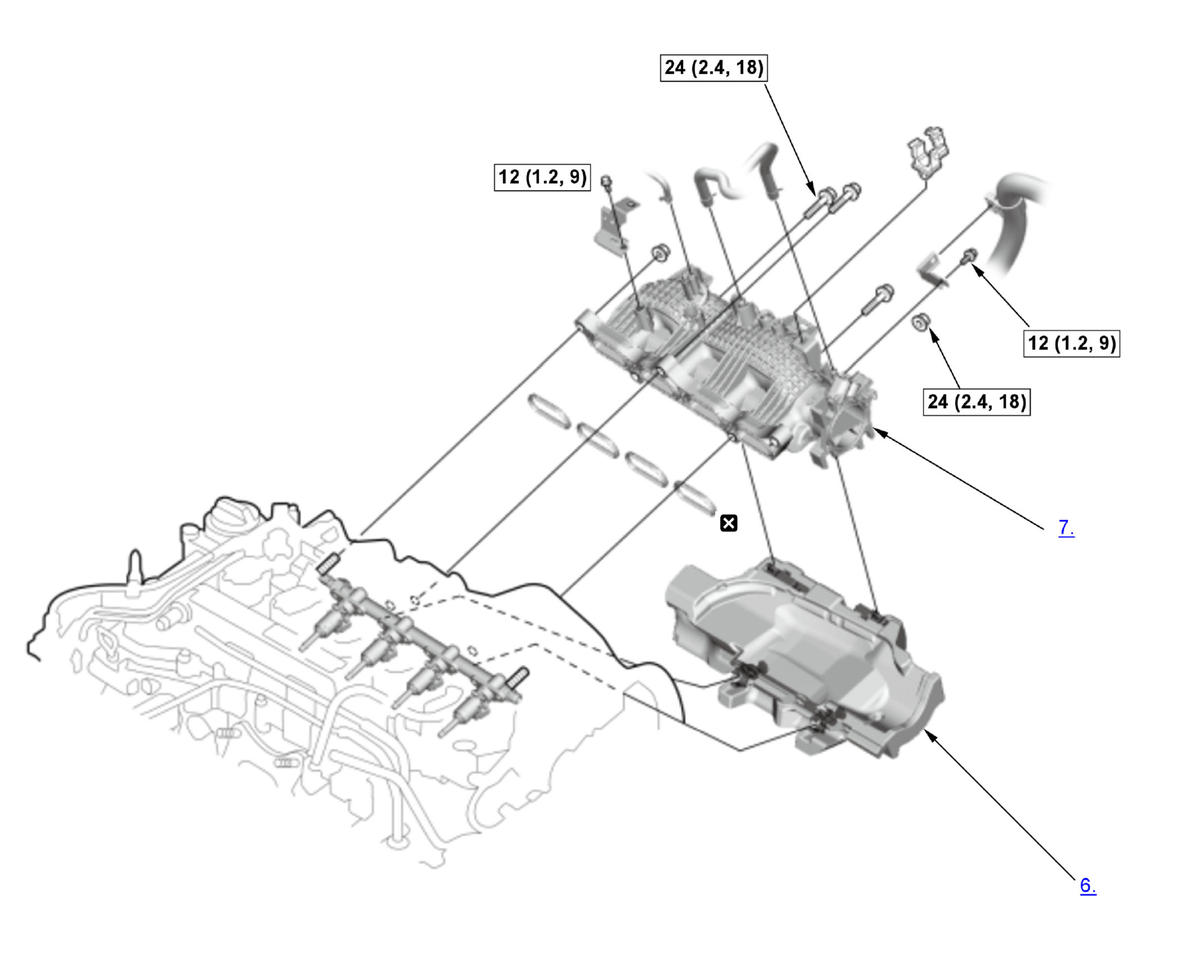

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Air Cleaner - Remove
2. Throttle Body - Move

   NOTE:

   • Do not disconnect the water bypass hoses.
   • Do not bend the water bypass hoses excessively.
3. Intake Manifold Bracket - Remove
4. MAP Sensor - Remove
5. Turbocharger Bypass Control Solenoid Valve - Remove
6. Insulator - Remove
7. Intake Manifold - Remove
8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE:  Tighten the bolts/nuts in three steps; tighten the bolts/nuts until the bolts/nuts sit on the intake manifold, tighten the bolts/nuts until the gasket is compressed, tighten the bolts/nuts to specified torque. After installation, check that all tubes, hoses, and connectors are installed correctly.
