Engine Oil Pump Removal and Installation (1.5 L Engine): Removal

Front Bulkhead Cover - Remove
Cowl Cover - Remove
Expansion Tank Bracket - Remove
Turbocharger Joint - Remove
Cam Chain - Remove

Cam Chain Drive Sprocket - Remove

Courtesy of HONDA, U.S.A., INC.

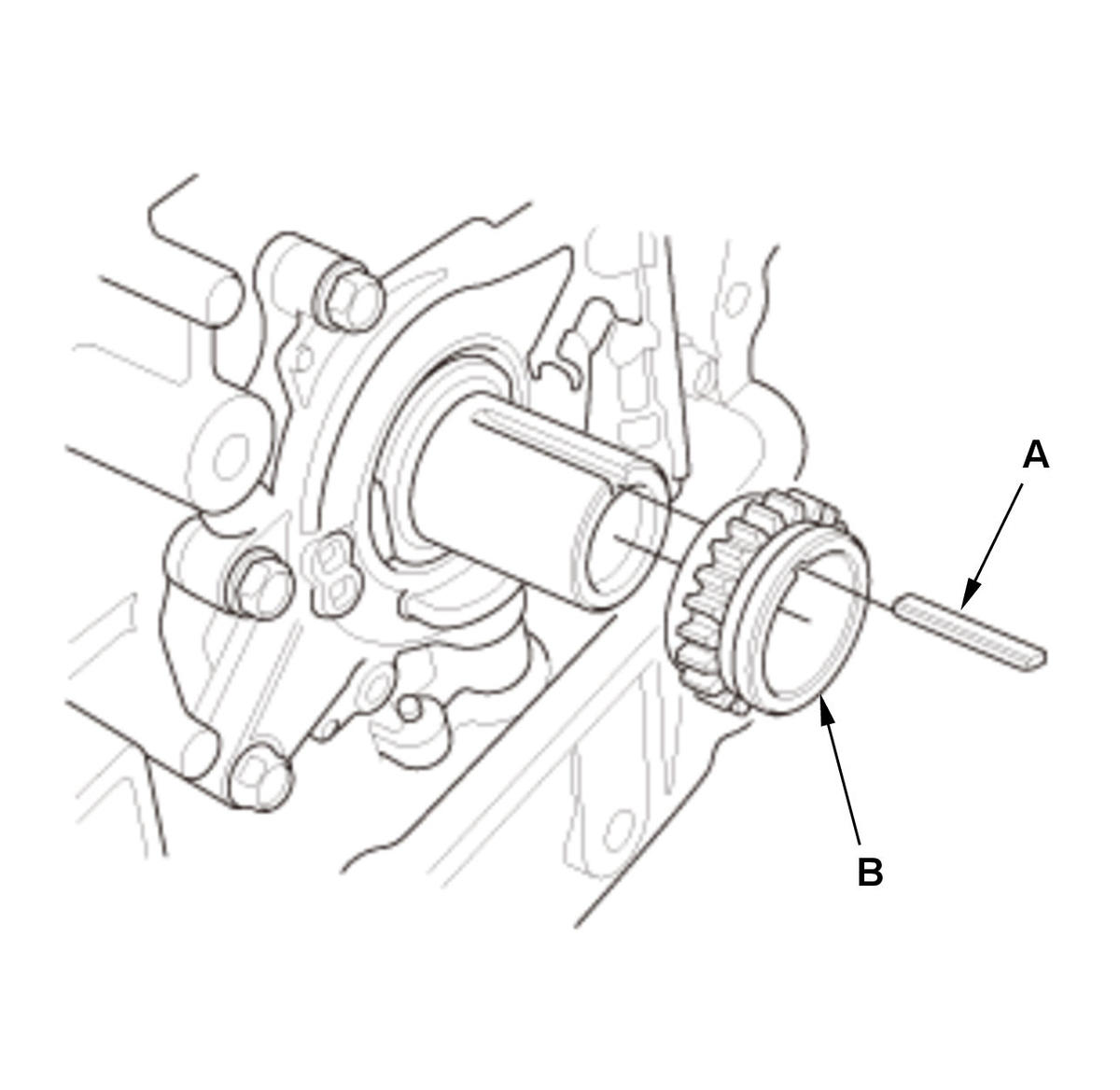

1. Remove the key (A) and the cam chain drive sprocket (B).
NOTE: Check the direction of the key. When the key is installed, install the key as same direction of the original one.

Sub Hanger Stay - Install

Courtesy of HONDA, U.S.A., INC.
Engine Support Hanger - Install
NOTE: Be careful when working around the windshield.

1. Remove the front damper caps.

Courtesy of HONDA, U.S.A., INC.

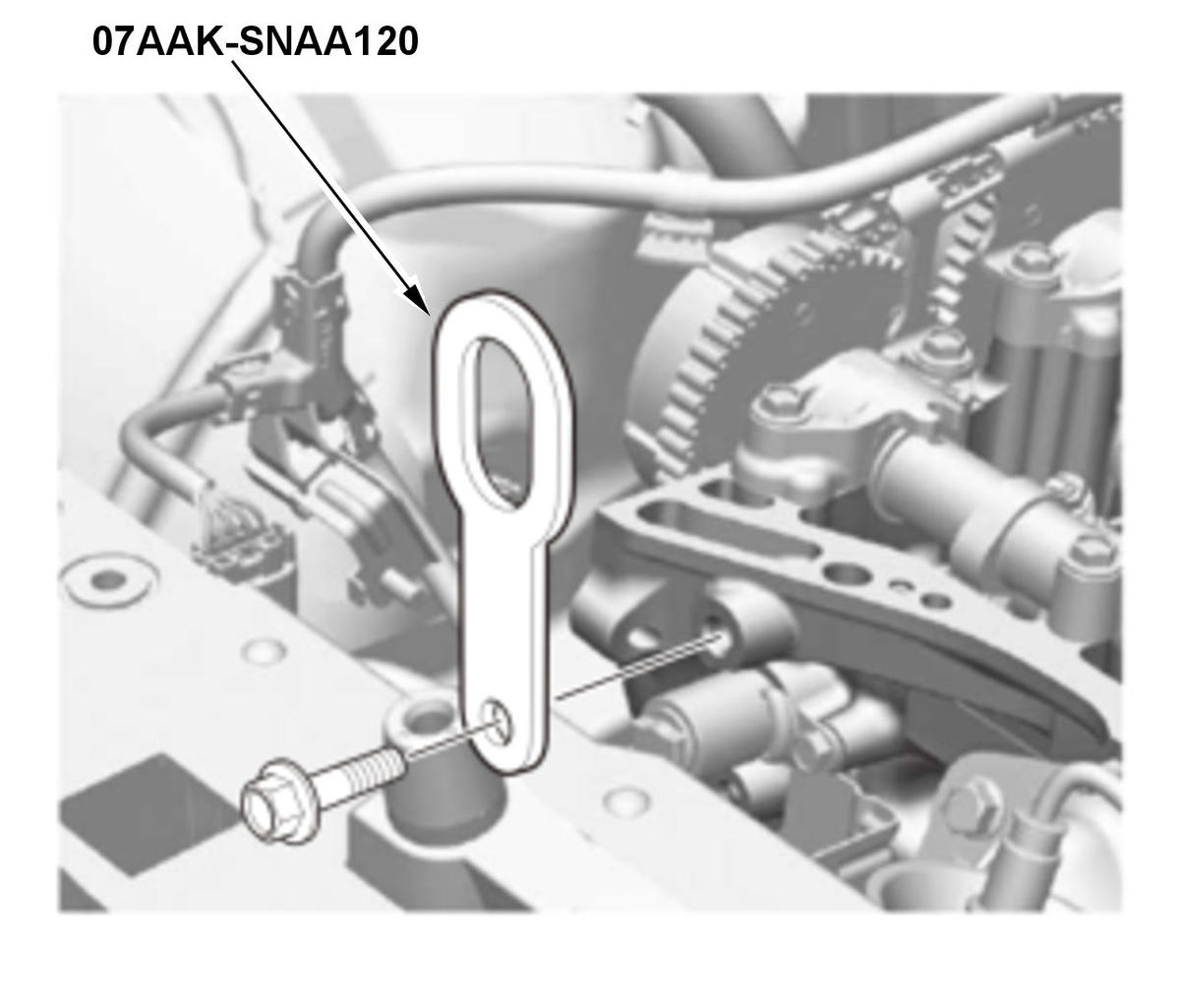

2. Install the engine support hanger onto the vehicle as shown.

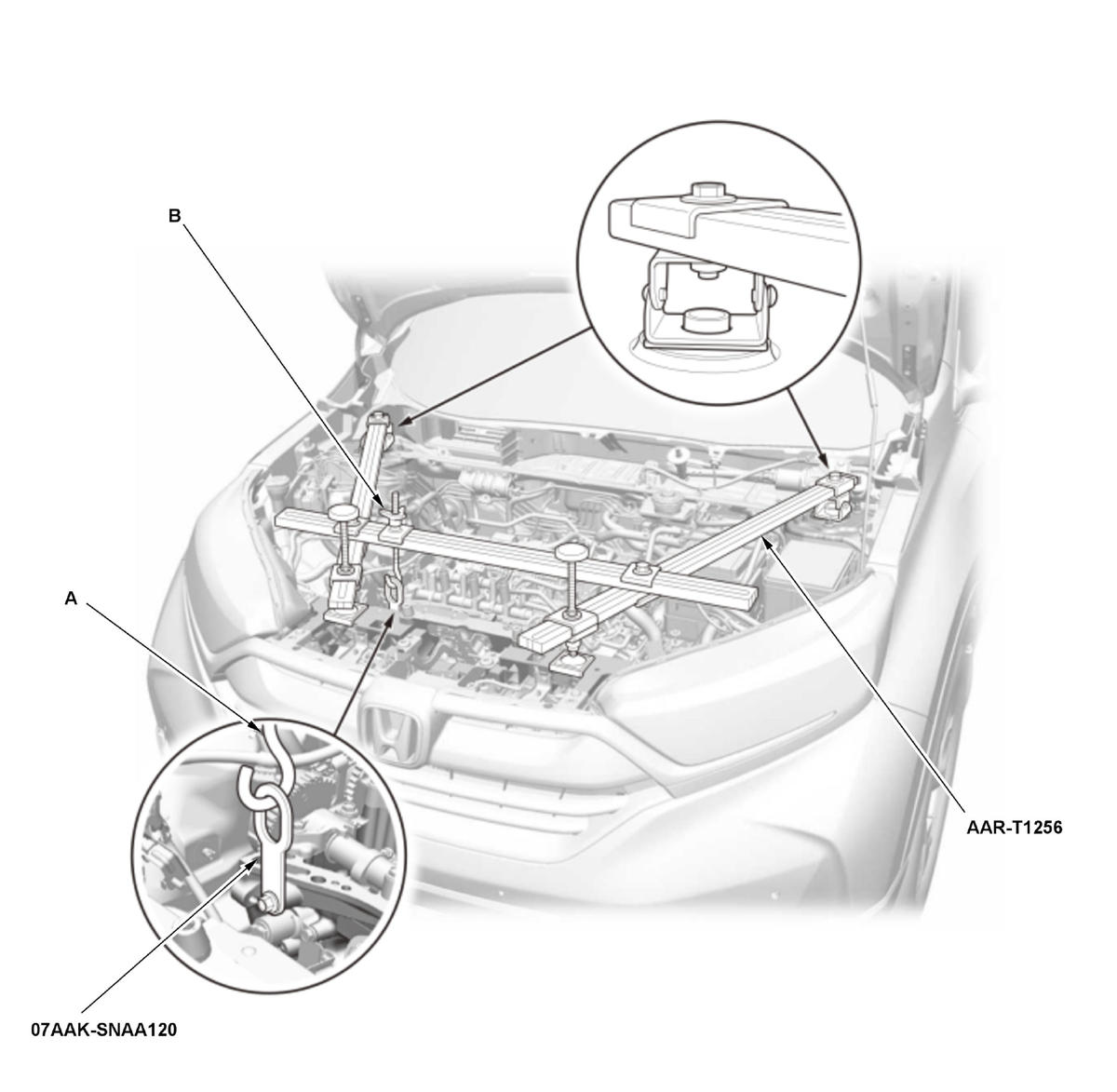

3. Attach the hook (A) to the slotted hole in the universal lifting eyelet.

4. Tighten the wing nut (B) by hand, and lift and support the engine.
Oil Pan - Remove

Oil Pump - Remove

Courtesy of HONDA, U.S.A., INC.

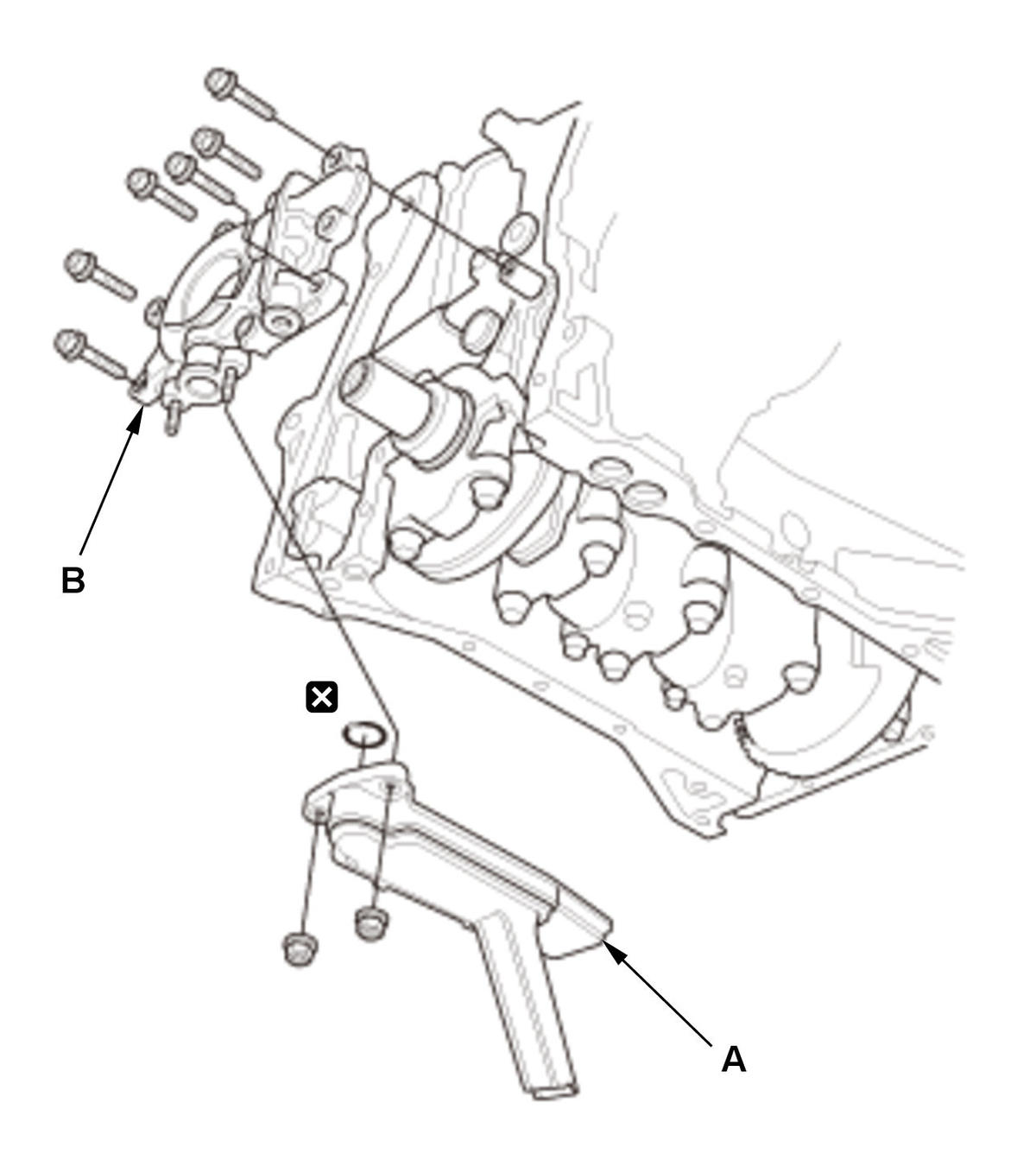

1. Remove the oil strainer (A) and the oil pump (B).
