Engine Oil Pan Removal and Installation (2.4 L Engine) (2017 2018 2019): Installation

NOTE:  Where icon is shown for further information in the information below.

1

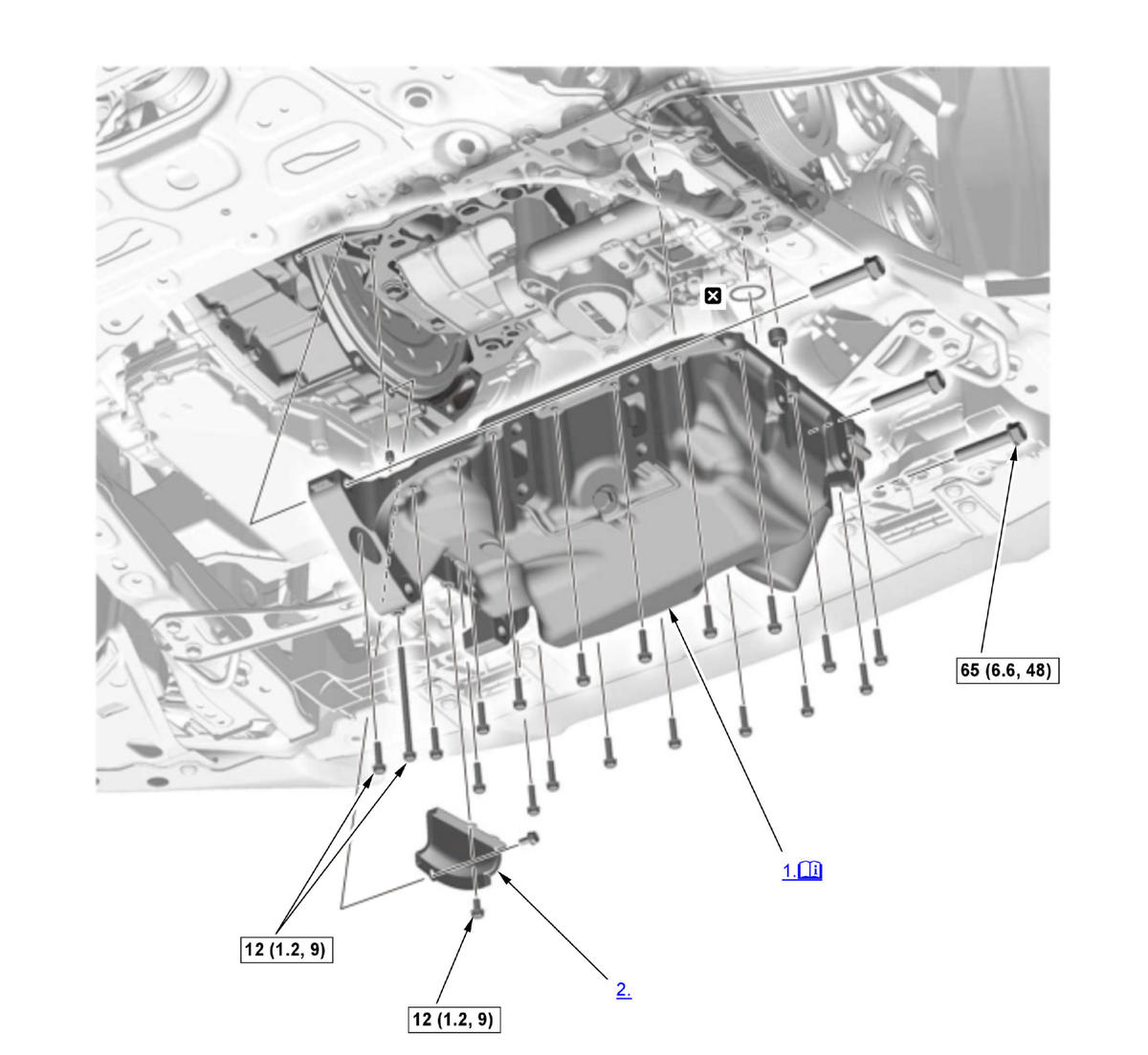

Fig 1: Engine Oil Pan Replacement Components With Torque Specifications (2.4 L Engine) (2017 2018 2019)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Oil Pan - Install

   Courtesy of HONDA, U.S.A., INC.

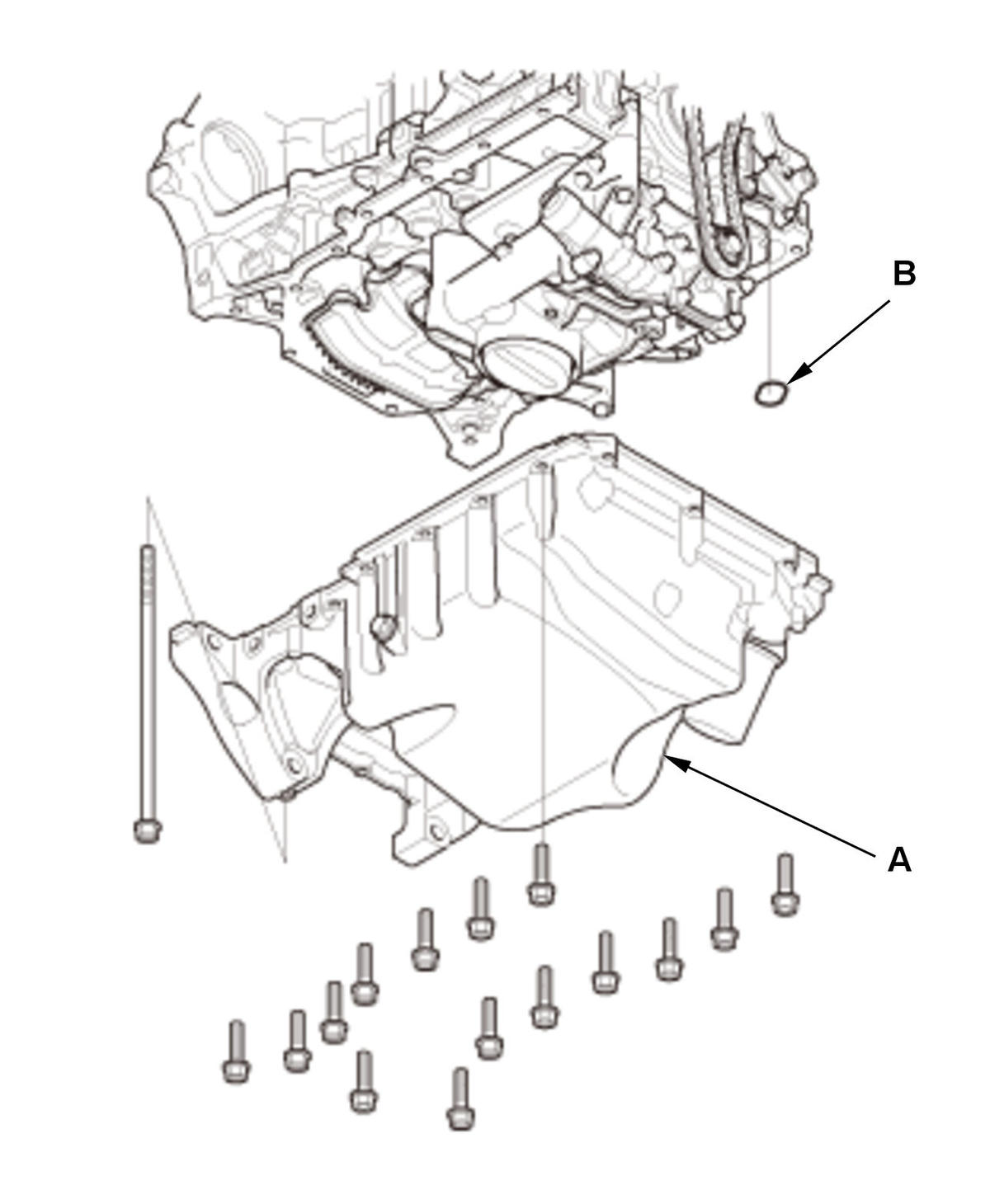

   1. Apply liquid gasket to the engine block mating surface of the oil pan, and to the inside edge of the threaded bolt holes. 2. Install the oil pan (A) with a new O-ring (B).

   Courtesy of HONDA, U.S.A., INC.

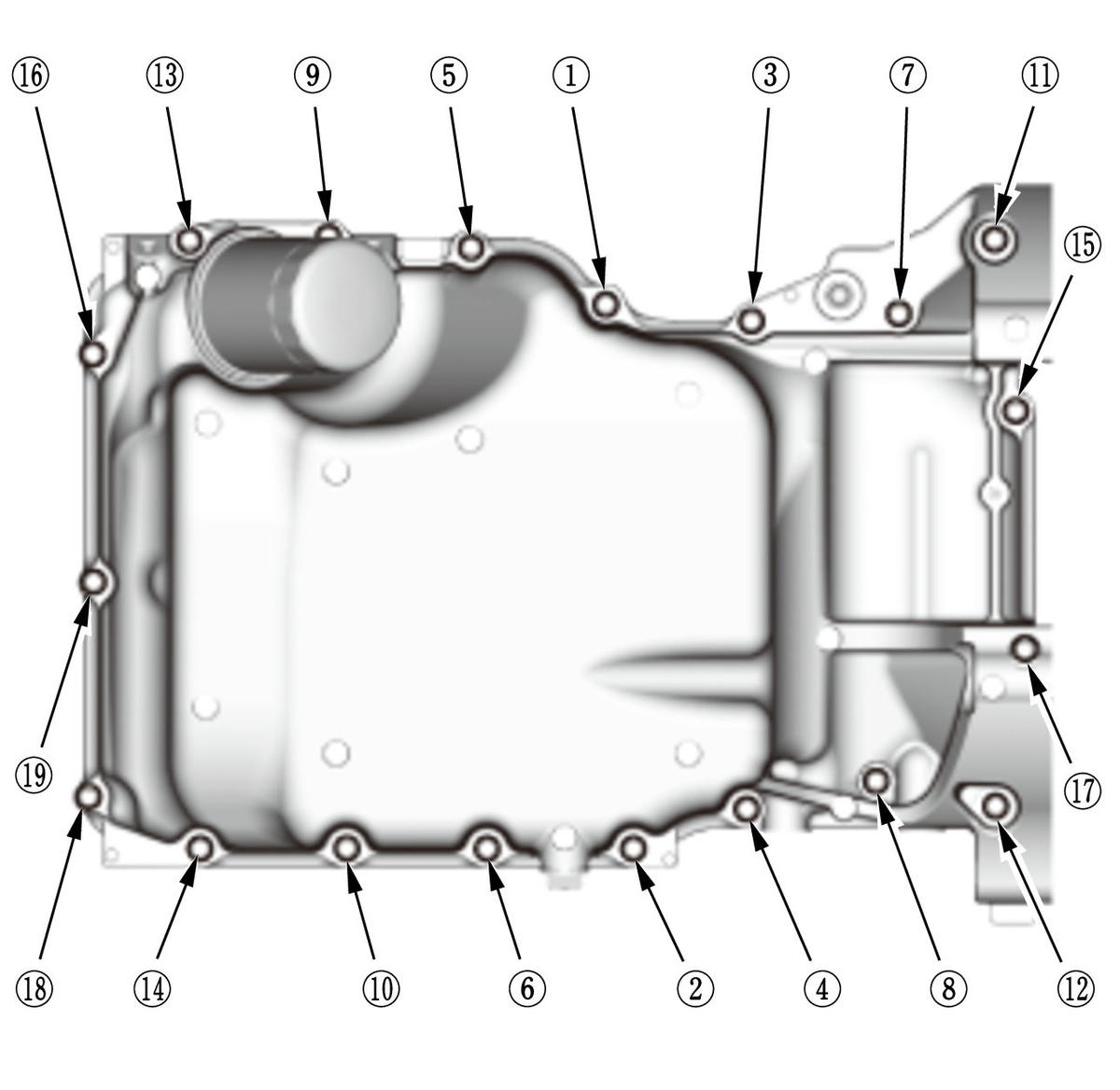

   3. Tighten the bolts in three steps; tighten the bolts until the bolts sit on the oil pan, tighten the bolts until the gasket is compressed, tighten the bolts to specified torque. Wipe off the excess liquid gasket on the each side of crankshaft pulley and drive plate.

2. Torque Converter Case Cover - Install
3. Lower Torque Rod and Lower Torque Rod Bracket - Install
4. Exhaust Pipe A and Exhaust Pipe Bracket - Install
5. A/C Compressor - Install
6. Drive Belt - Install
7. Engine Undercover - Install
8. Engine Oil - Refill
