Engine Oil Pan Removal and Installation (1.5 L Engine): Removal

NOTE:  Where icon is shown for further information in the information below.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Engine Undercover - Remove
2. Engine Oil - Drain
3. Drive Belt - Remove
4. Exhaust Pipe A - Remove
5. TWC Bracket - Remove
6. A/C Compressor - Move

   NOTE:

   • Do not disconnect the suction hose and the discharge hose.
   • Do not bend the suction hose and the discharge hose excessively.
   • Hang the A/C compressor with a wire tie.
7. Oil Return Hose - Disconnect
8. Torque Converter Cover - Remove
9. Lower Torque Rod and Lower Torque Rod Bracket - Remove
10. Intermediate Shaft Mounting Bolt - Remove

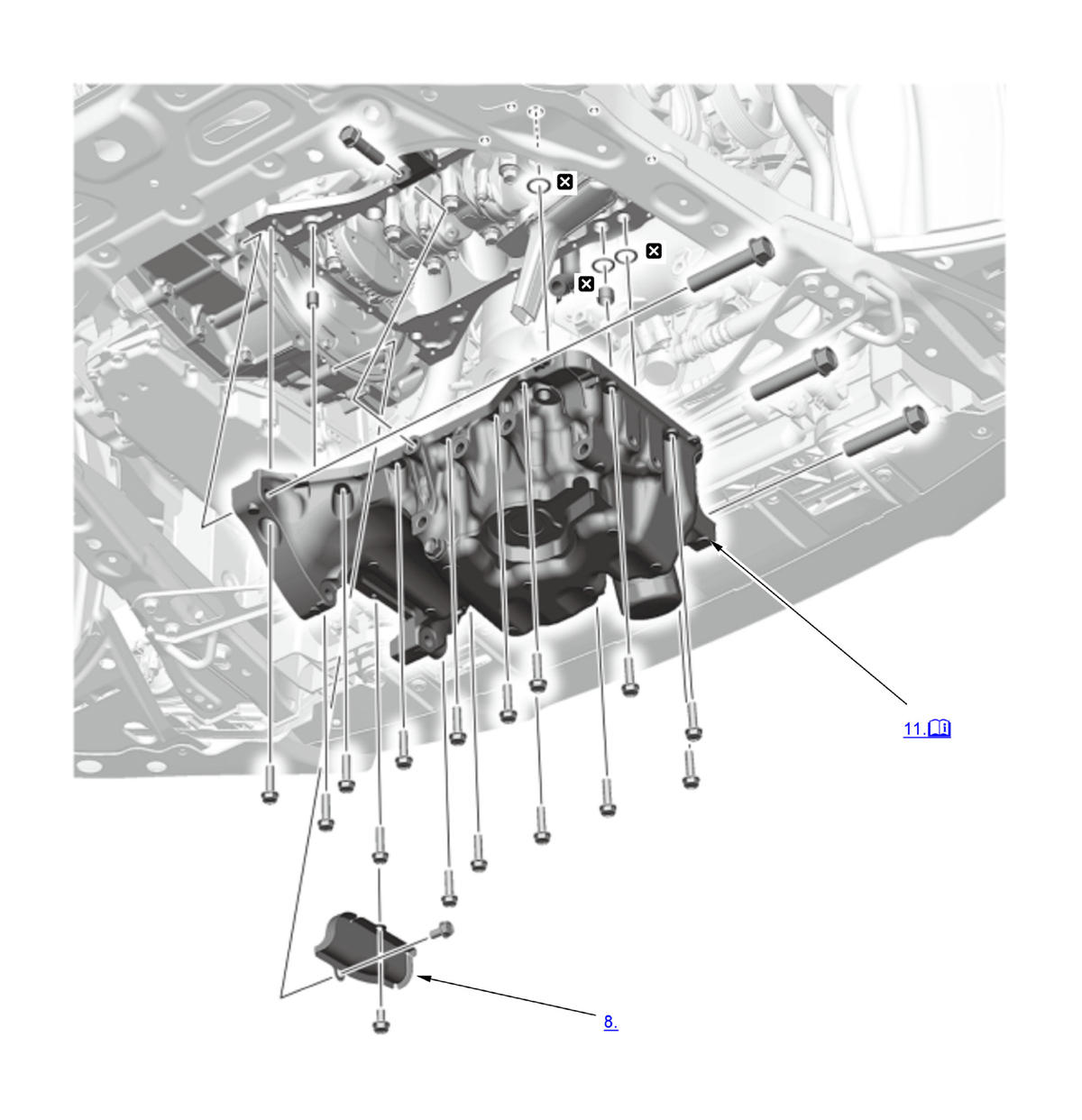

11. Oil Pan - Remove

    Courtesy of HONDA, U.S.A., INC.

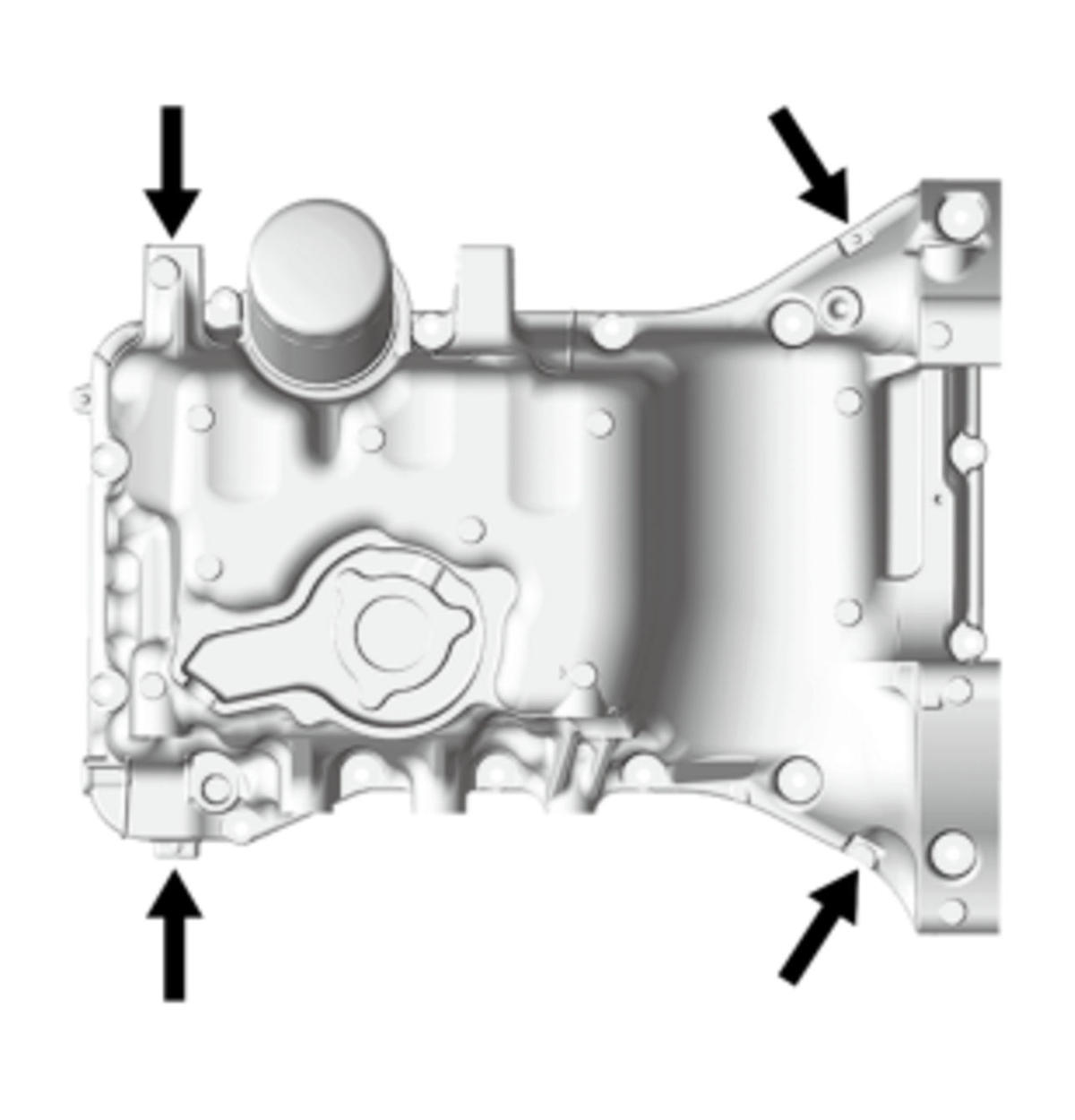

    1. Remove the oil pan mounting bolts. 2. Using a flat blade screwdriver, separate the oil pan from the engine block in the places shown. 3. Remove the oil pan.
