Removal and Installation

1

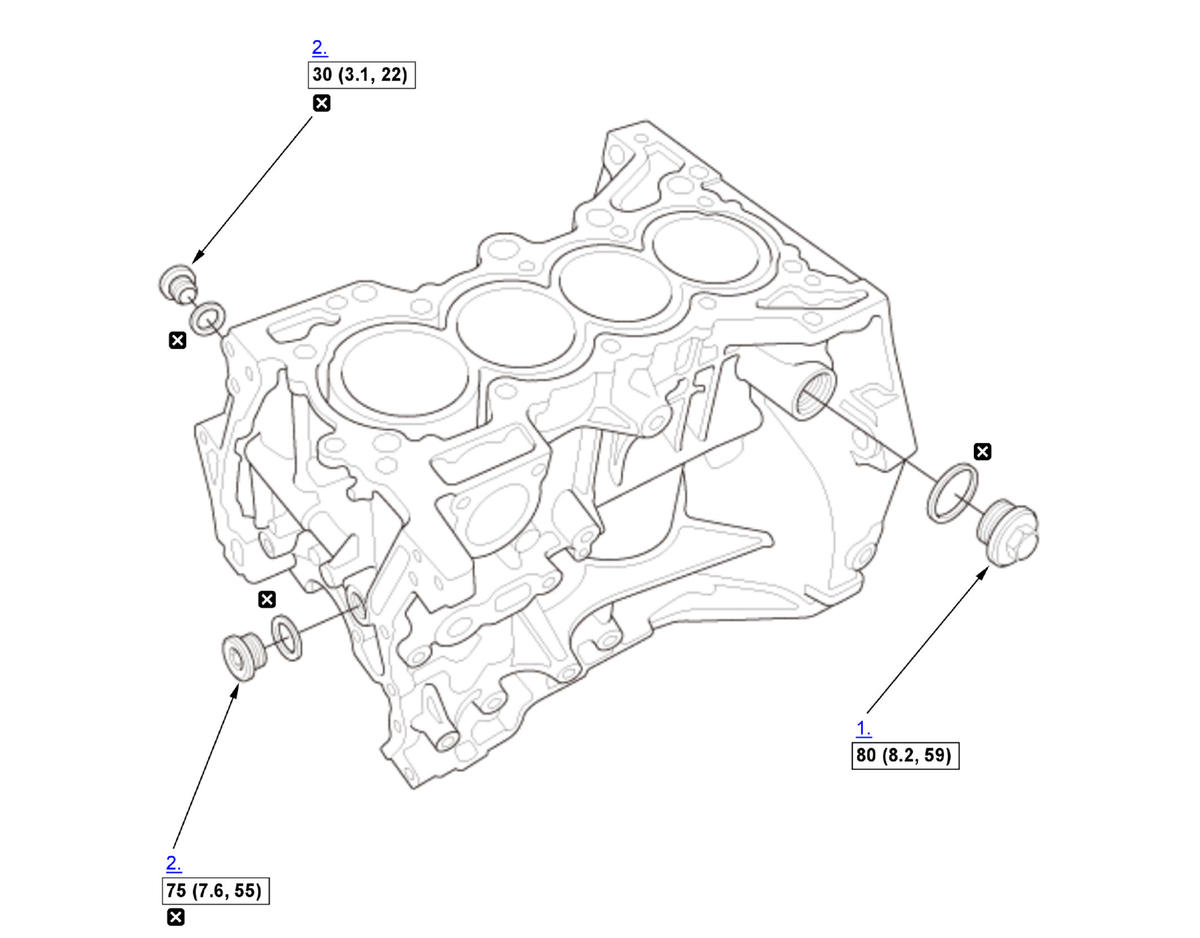

Fig 1: Engine Block Drain Bolt/Sealing Bolt Replacement Components With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Drain Bolt - Remove
2. Sealing Bolt - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
