Crankshaft Pulley Removal and Installation (2.4 L Engine) (2017 2018 2019): Removal

NOTE:  Where icon is shown for further information in the information below.

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. Right Front Wheel - Remove
2. Engine Undercover - Remove
3. Drive Belt - Remove

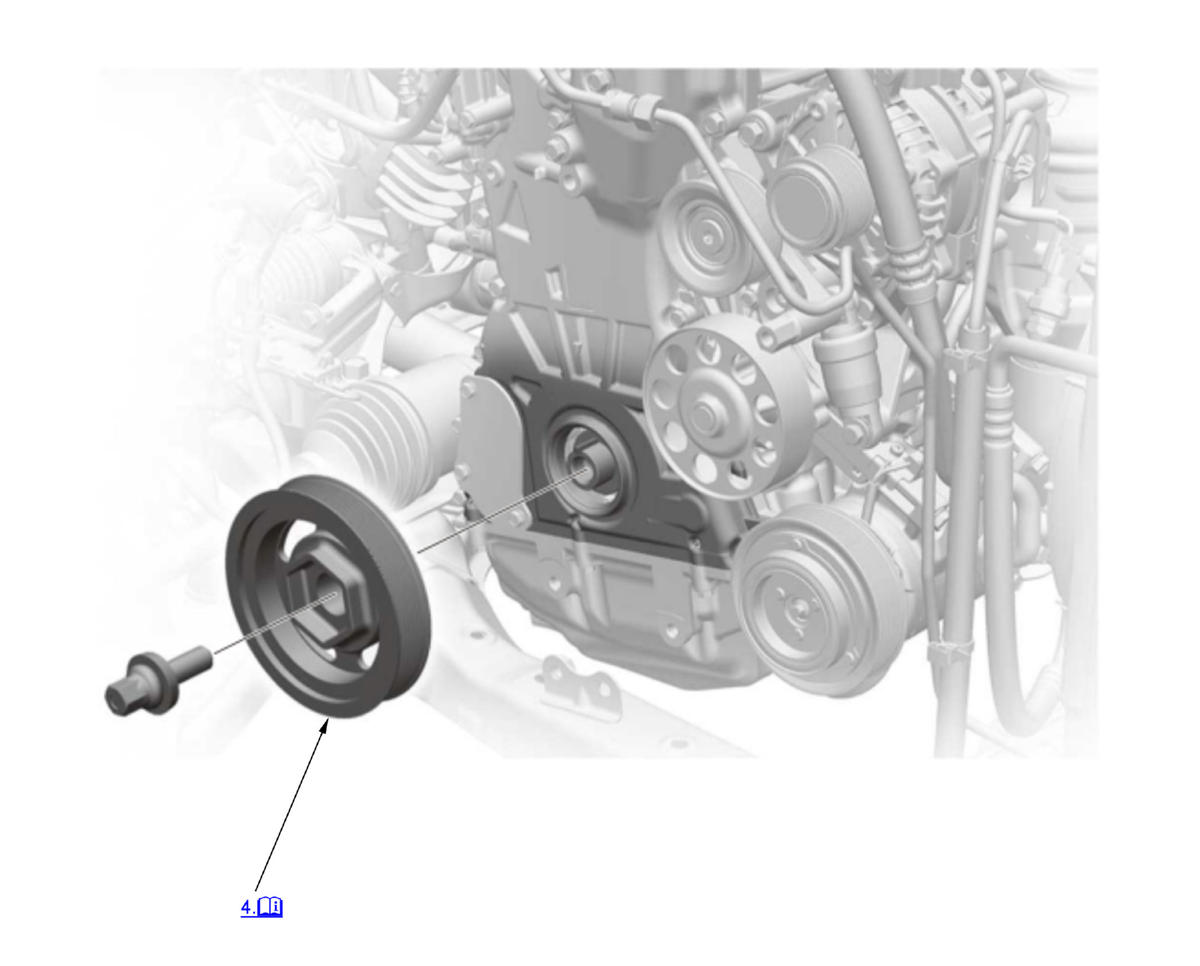

4. Crankshaft Pulley - Remove

   Courtesy of HONDA, U.S.A., INC.

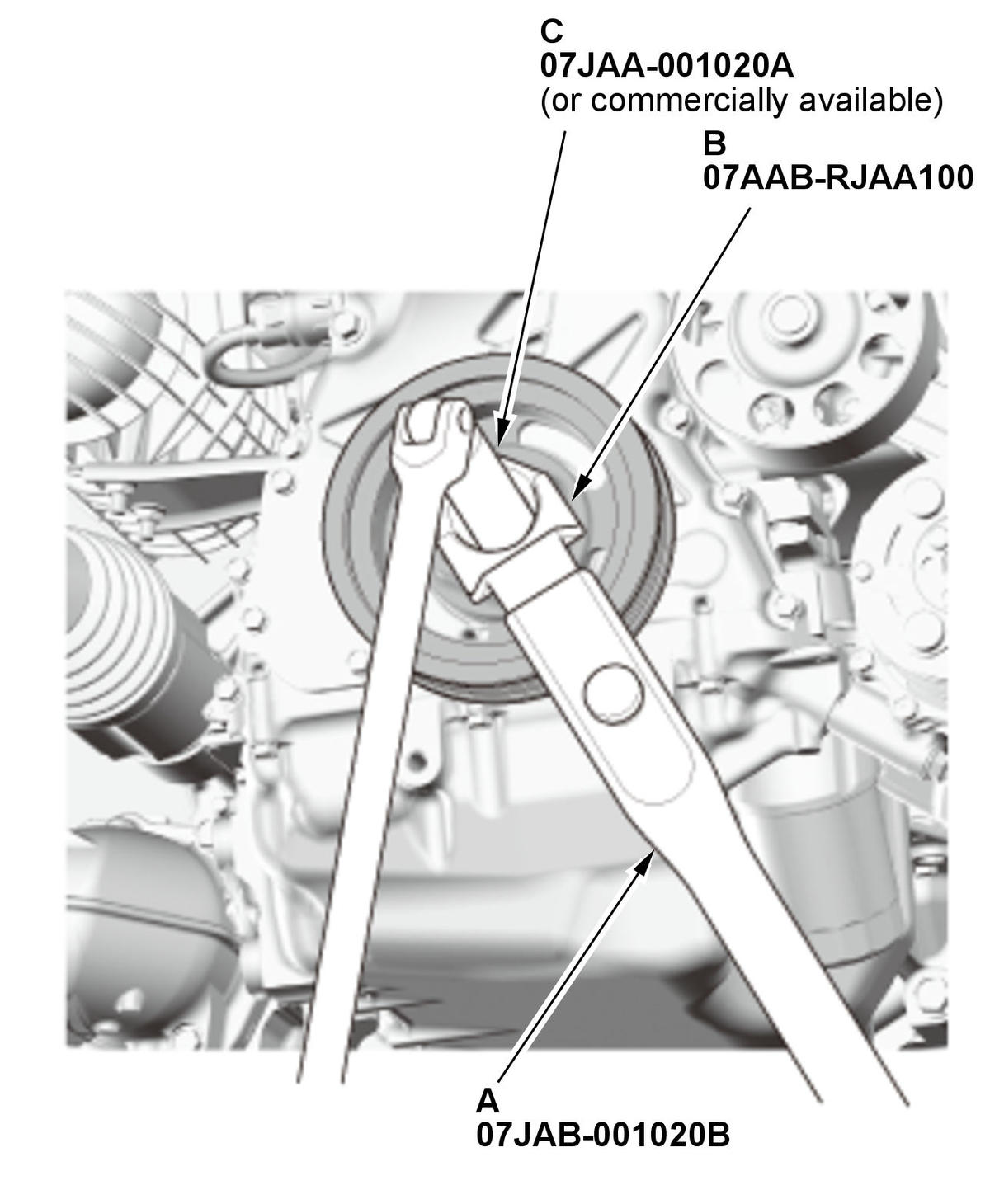

   1. Hold the pulley with the holder handle (A) and the crankshaft pulley holder (B). 2. Remove the bolt with a socket, 19 mm (C) and a breaker bar, then remove the crankshaft pulley.
