Crankshaft Pulley Removal and Installation (2.4 L Engine) (2017 2018 2019): Installation

NOTE:  Where icon is shown for further information in the information below.

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. Crankshaft Pulley - Install

   Courtesy of HONDA, U.S.A., INC.

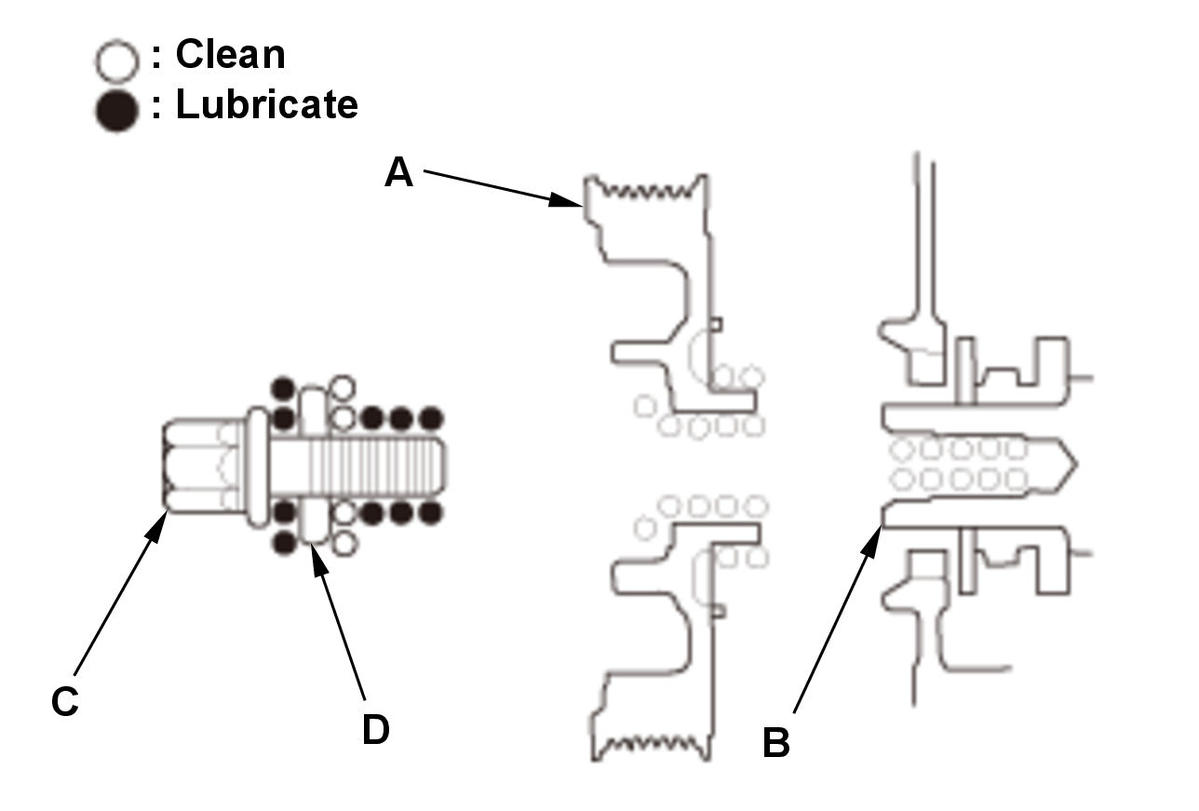

   1. Remove any oil and clean the crankshaft pulley (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.

   Courtesy of HONDA, U.S.A., INC.

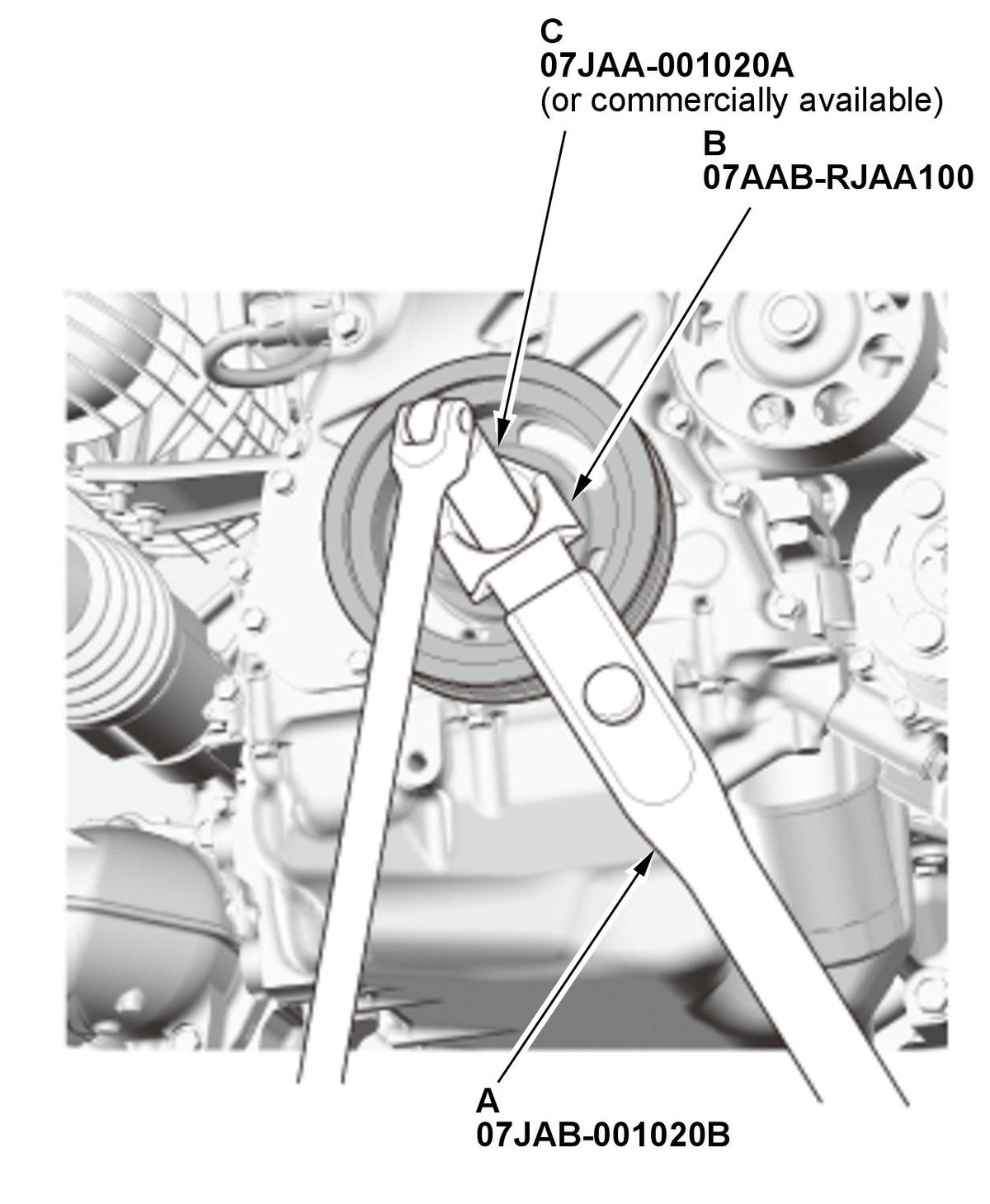

   2. Install the crankshaft pulley, and hold the pulley with the holder handle (A) and the crankshaft pulley holder (B). 3. Torque the bolt to 50 N.m (5.1 kgf.m, 37 lbf.ft) with a torque wrench and a socket, 19 mm (C). Do not use an impact wrench. If the pulley bolt or crankshaft are new, torque the bolt to 180 N.m (18.4 kgf.m, 133 lbf.ft), then remove the bolt and torque it to 50 N.m (5.1 kgf.m, 37 lbf.ft).

   Courtesy of HONDA, U.S.A., INC.

   4. Tighten the pulley bolt an additional 90 deg..

2. Drive Belt - Install
3. Engine Undercover - Install
4. Right Front Wheel - Install
