Crankshaft Pulley Removal and Installation (1.5 L Engine): Removal

NOTE:  Where icon is shown for further information in the information below.

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. Right Front Wheel - Remove
2. Engine Undercover - Remove
3. Drive Belt - Remove

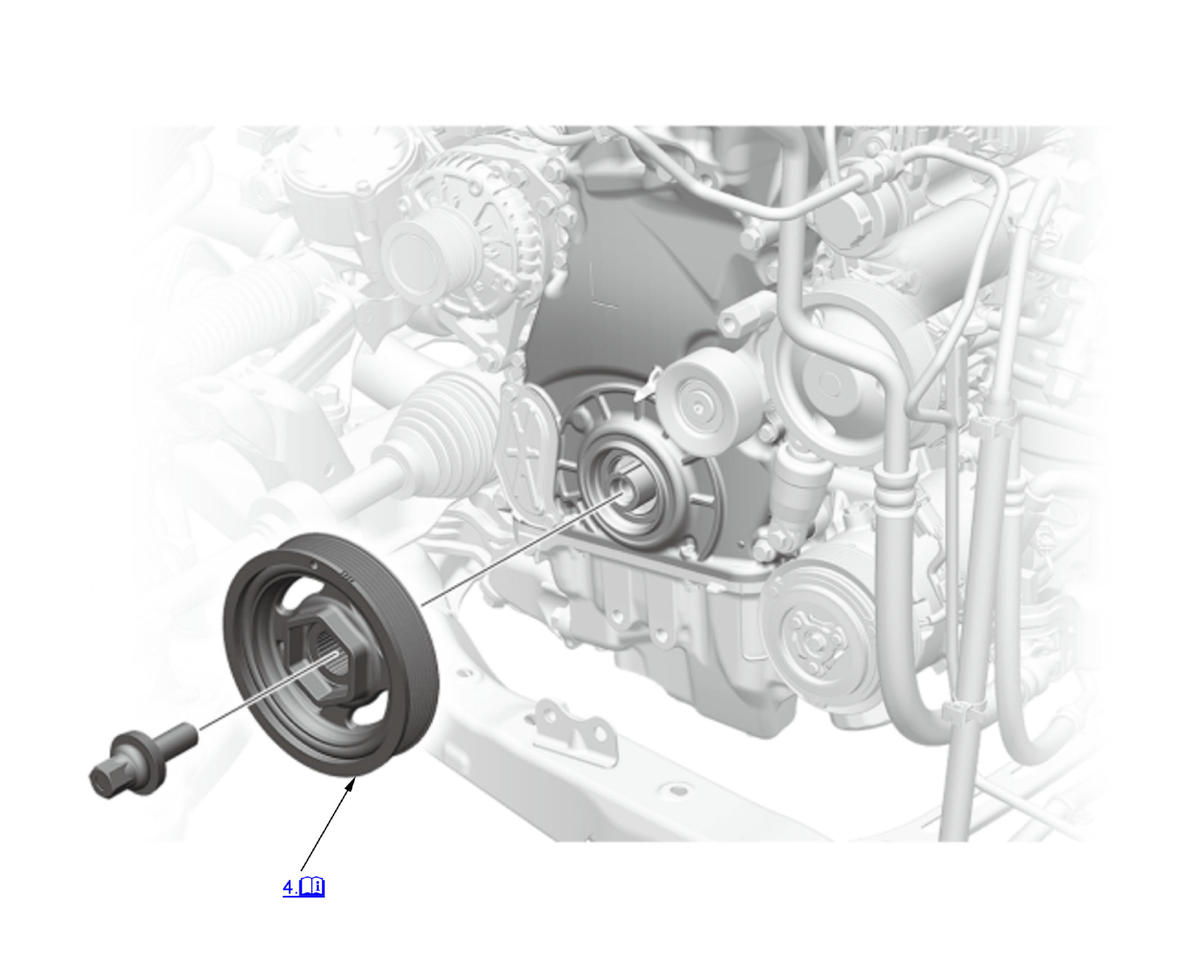

4. Crankshaft Pulley - Remove

   Courtesy of HONDA, U.S.A., INC.

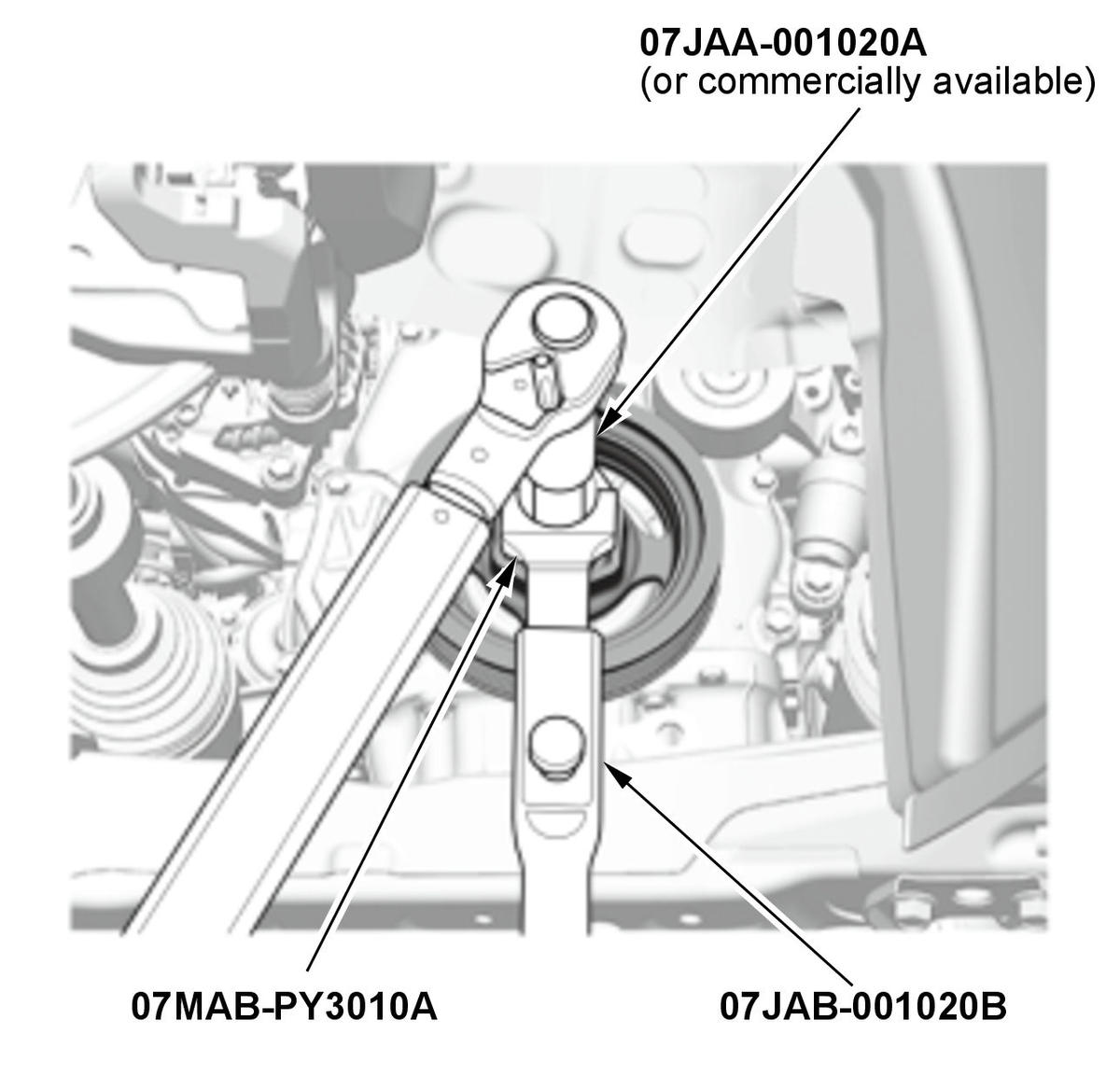

   1. Hold the crankshaft pulley with the holder handle and the pulley holder attachment. 2. Remove the pulley bolt with a socket, 19 mm and a breaker bar. 3. Remove the crankshaft pulley.
