Crankshaft Pulley Removal and Installation (1.5 L Engine): Installation

NOTE:  Where icon is shown for further information in the information below.

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

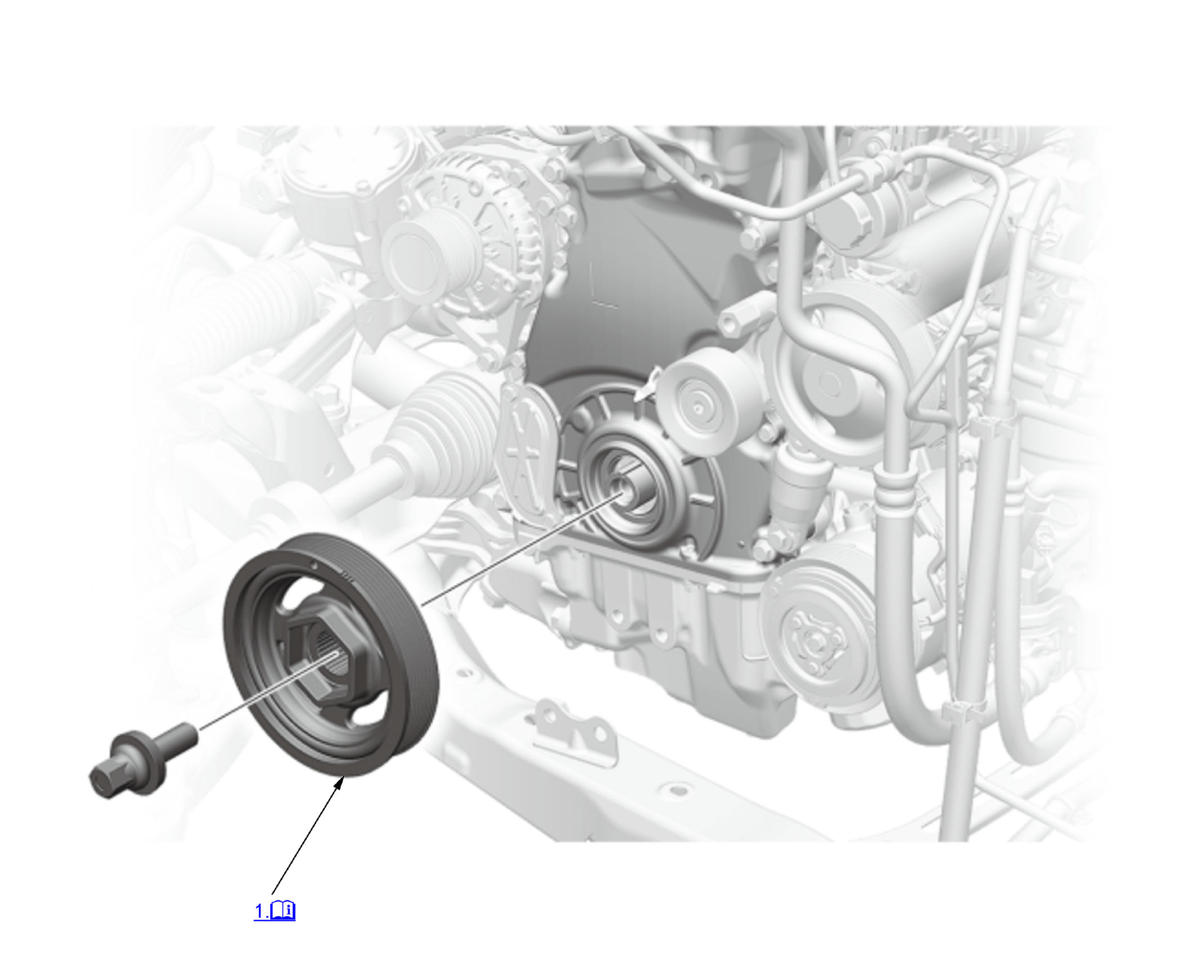

1. Crankshaft Pulley - Install

   Courtesy of HONDA, U.S.A., INC.

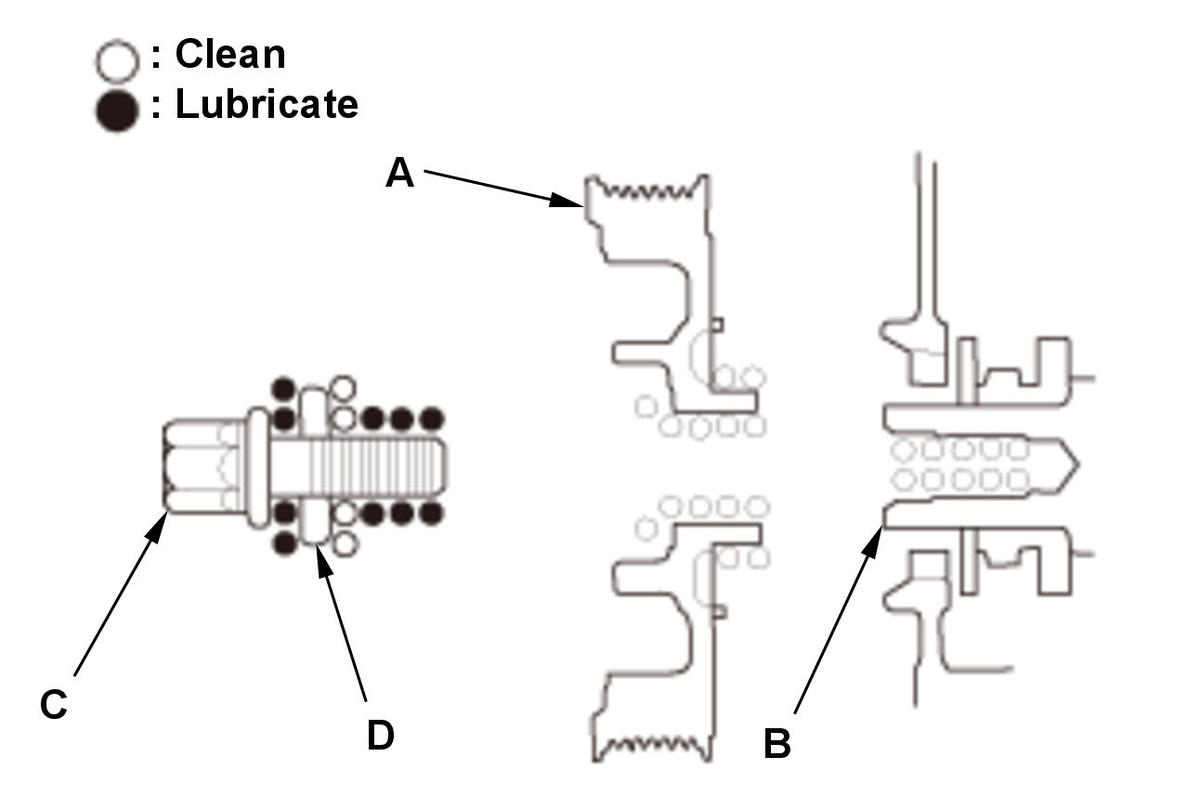

   1. Clean the crankshaft pulley (A), the crankshaft (B), the bolt (C), and the washer (D). 2. Lubricate with new engine oil as shown.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

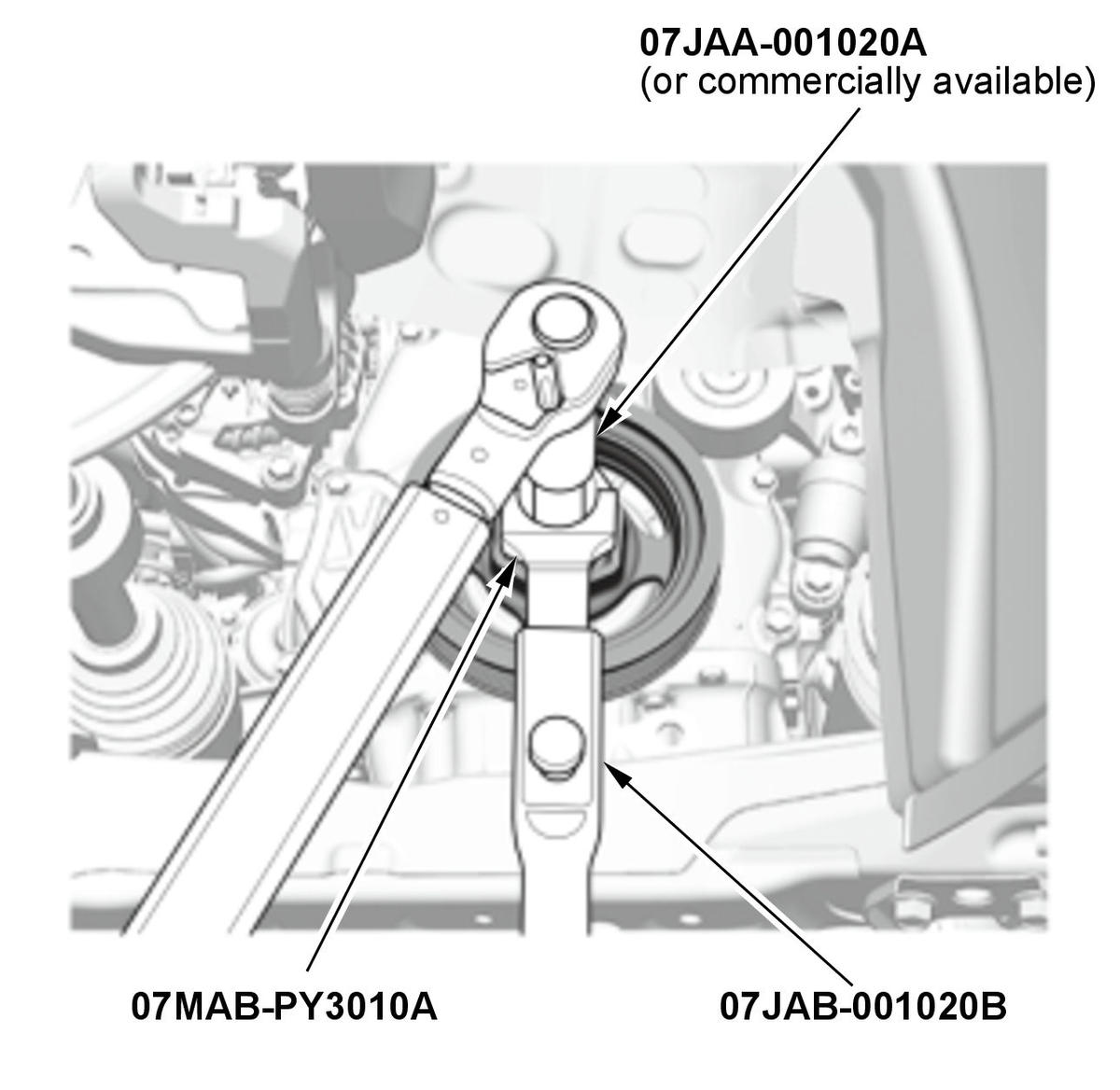

   3. Install the crankshaft pulley and the pulley bolt. 4. Hold the crankshaft pulley with the holder handle and the pulley holder attachment, torque the pulley bolt to 70 N.m (7.1 kgf.m, 52 lbf.ft) with a torque wrench and a socket, 19mm. NOTE:  Tighten the pulley bolt. Do not use an impact wrench. 5. Tighten the pulley bolt an additional 90 deg..

2. Drive Belt - Install
3. Engine Undercover - Install
4. Right Front Wheel - Install
