Cam Chain Auto-Tensioner Removal and Installation (1.5 L Engine): Removal

  1. Right Front Wheel - Remove
  2. Engine Undercover - Remove

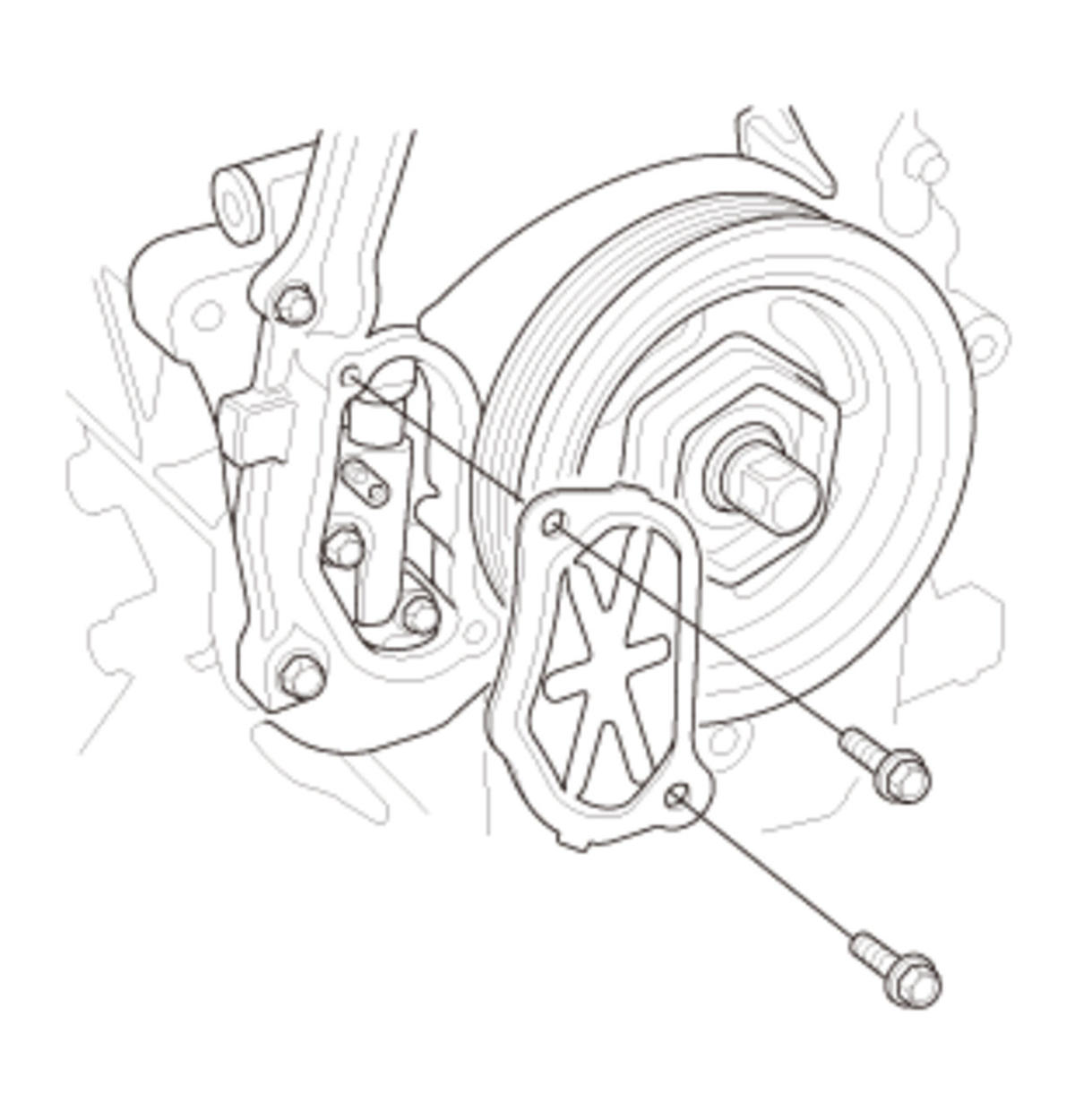

  3. Chain Case Cover - Remove
    GHH427233Courtesy of HONDA, U.S.A., INC.
  4. Cam Chain Auto-Tensioner - Remove
    GHH427234Courtesy of HONDA, U.S.A., INC.

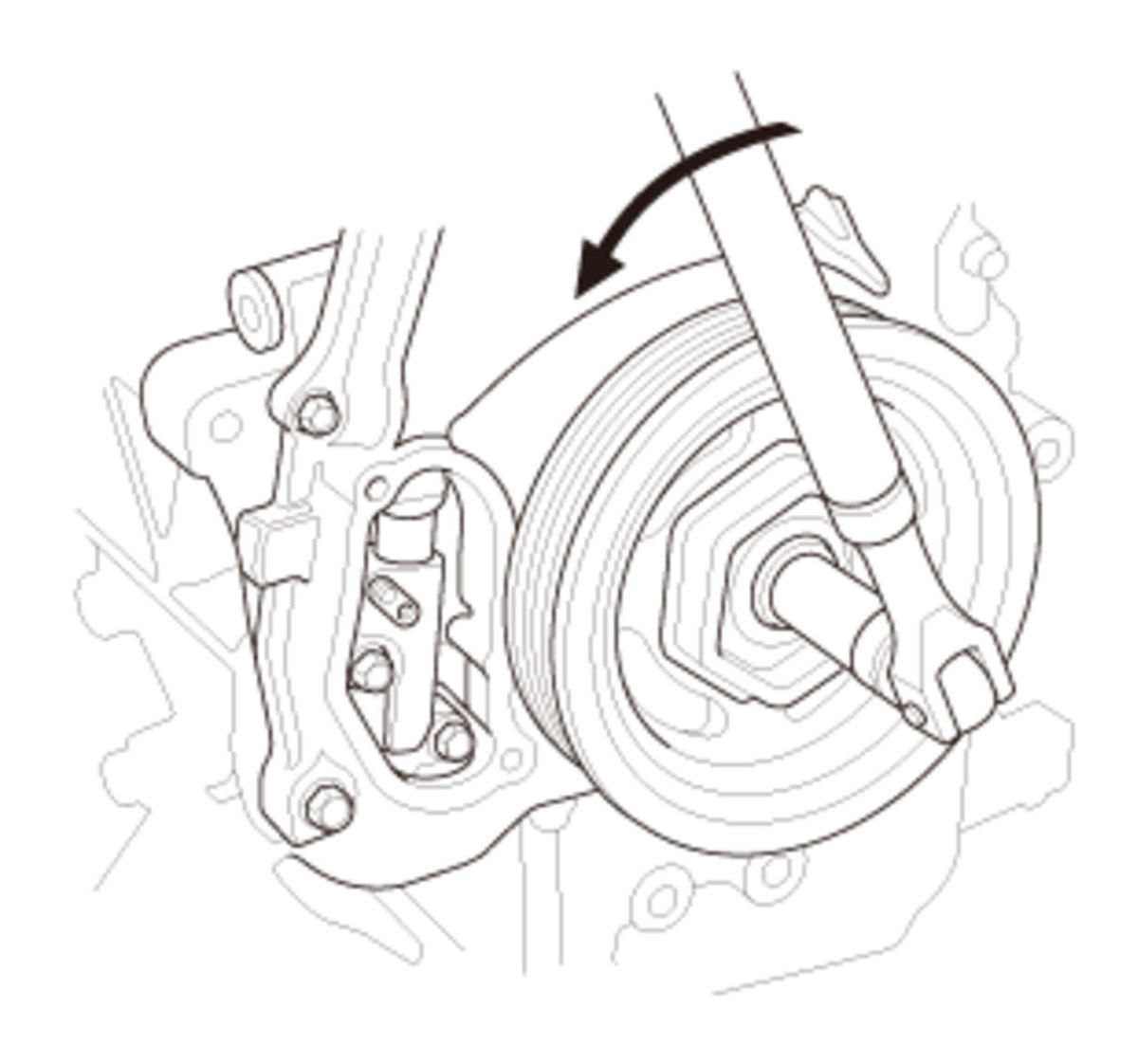

    		 1. Turn the crankshaft counterclockwise to compress the cam chain auto-tensioner.
    GHH427235Courtesy of HONDA, U.S.A., INC.

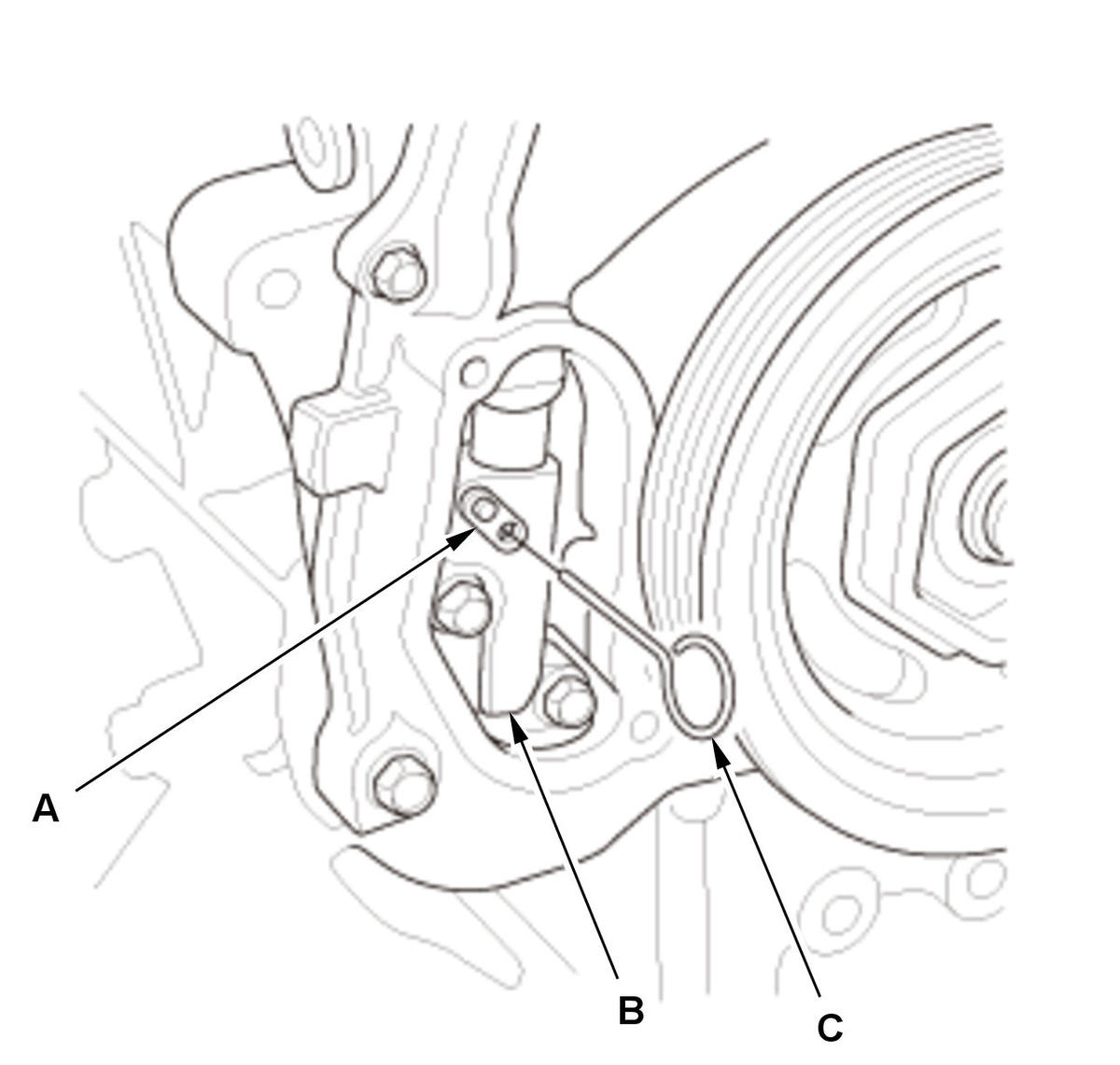

    		 2. Rotate the crankshaft counterclockwise to align the holes on the lock (A) and the cam chain auto-tensioner (B), then insert a 1.2 mm (3/64 in) diameter pin (C) into the holes. Turn the crankshaft clockwise to secure the pin.
    NOTE:  If the holes in the lock and the cam chain auto-tensioner do not align, continue to rotating the crankshaft counterclockwise until the holes align, then install the pin.
    GHH427236Courtesy of HONDA, U.S.A., INC.

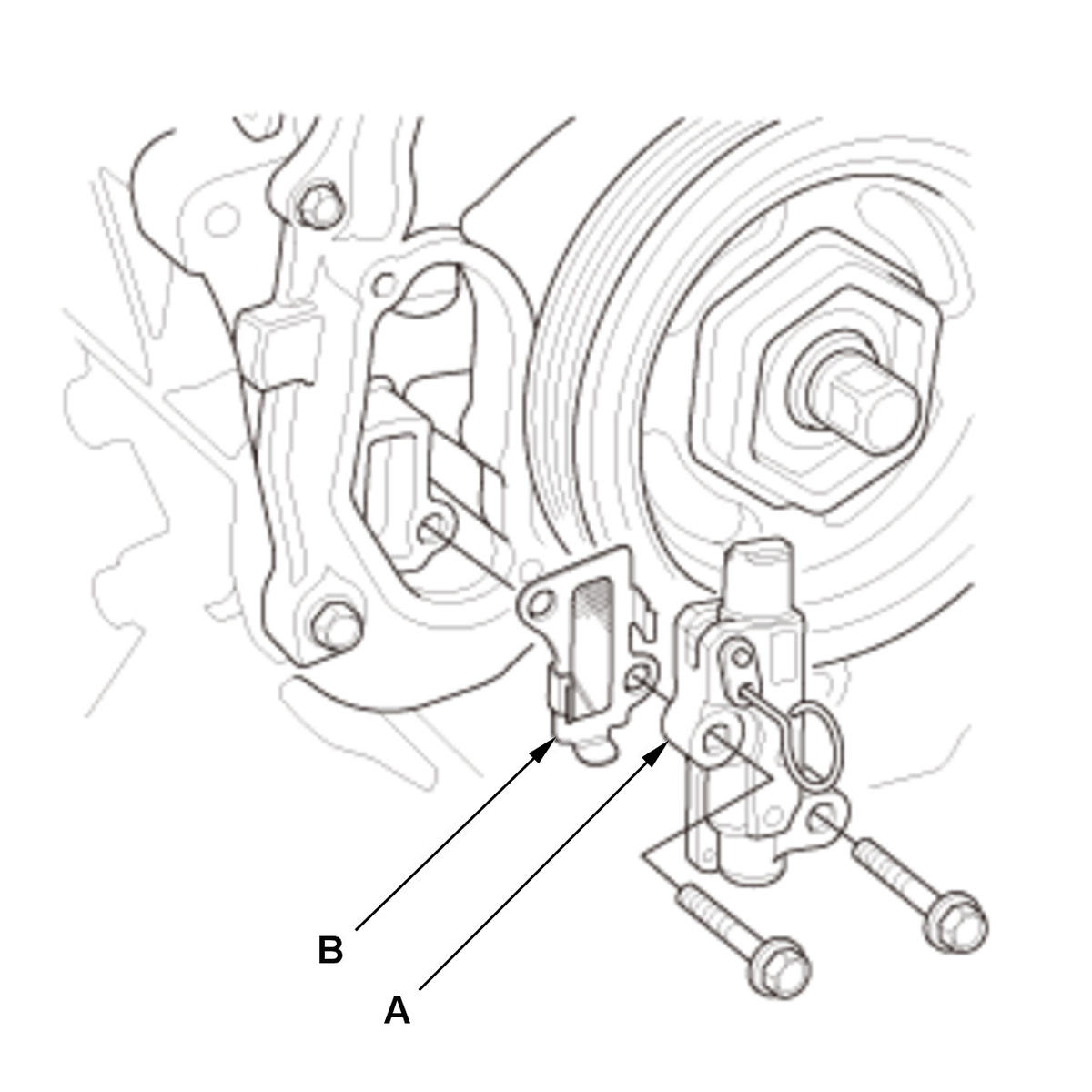

    		 3. Remove the cam chain auto-tensioner (A) and the cam chain auto-tensioner filter (B).
    NOTE:  Check the cam chain auto-tensioner filter for damage. If filter is damaged, replace it.
