Disassembly and Reassembly

NOTE:  Where icon is shown for further information in the information below.

1

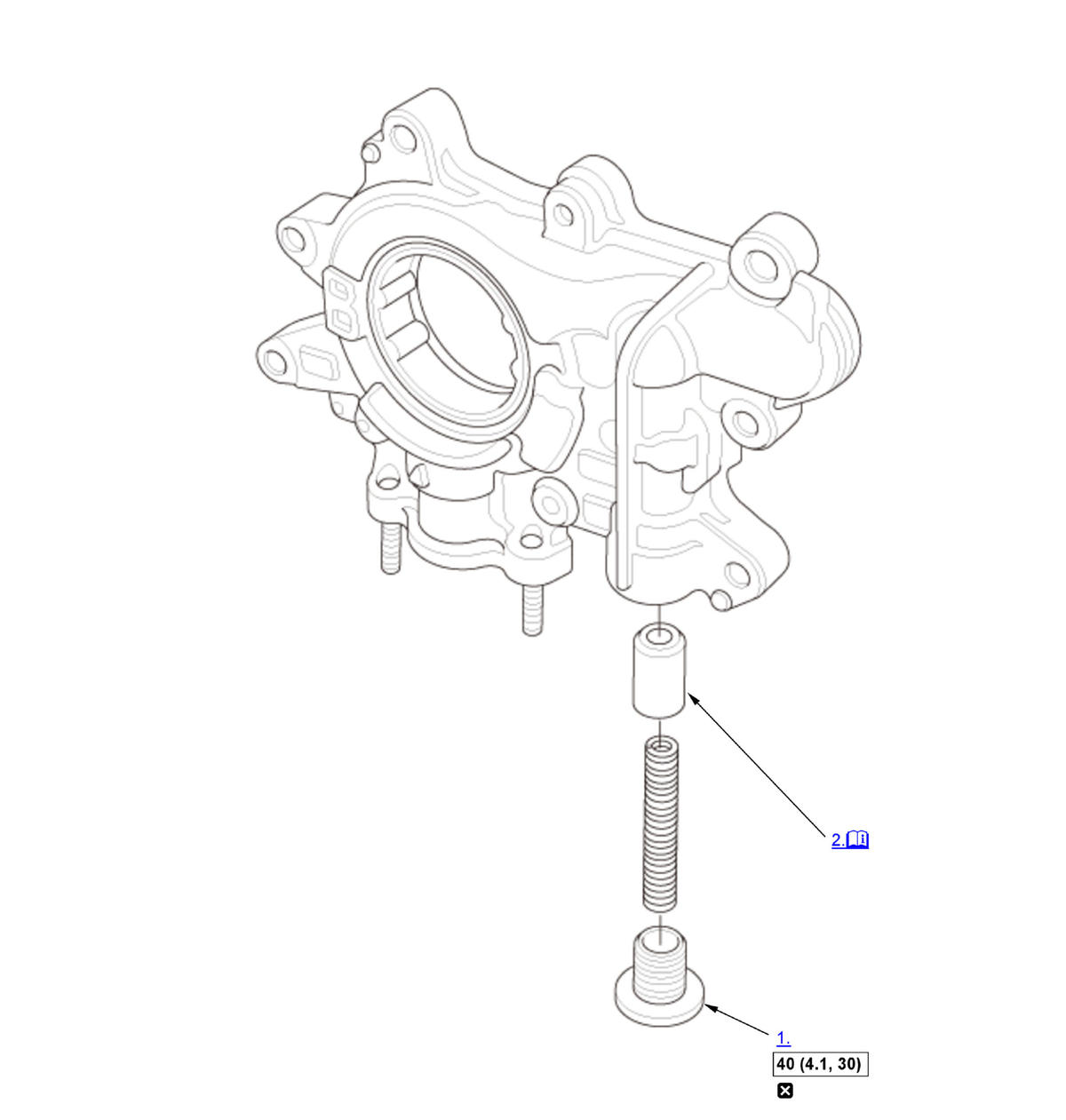

Fig 1: Engine Oil Pump Sealing Bolts With Torque Specifications (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)

Replace

1. Sealing Bolt - Remove
2. Relief Valve - Remove

   NOTE:  Check the relief valve must slide freely in the housing bore. Replace if scored.

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
