Engine stalls (1.5 L Engine)

Engine stalls

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

NOTE:

  1. DTC check

    -1. Turn the vehicle to the ON mode.

    -2. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC


    DTC (PGM-FI)

    Are any Pending or Confirmed DTCs indicated?

    YES

    Go to the indicated DTCs troubleshooting.

    NO

    Go to step 2.

    NOTE:  If the HDS does not communicate with the vehicle, go to the PCM power and ground circuit troubleshooting .

  2. Body electrical system DTC check

    -1. Check for body electrical system DTCs with the HDS.

    DTC Description DTC


    DTC (Body Control Module)

    Are any DTCs indicated?

    YES

    Go to the troubleshooting for body electrical system DTC(s) .

    NO

    Go to step 3.

  3. Problem verification:

    Set the HDS to record a SNAPSHOT of following parameters for 30 seconds.

    • ENGINE SPEED
    • MAF SENSOR
    • ECT SENSOR 1
    • BATTERY
    • CKP NO PULSE
    • CKP NOISE
    • FUEL PRESSURE CONVERTED FROM PF SENSOR
    • FUEL PRESSURE DIRECT INJECTION SYSTEM
    • AF FB (ST FUEL TRIM)
    • EVAP PC DUTY
    • MISFIRE
    • A/C CLUTCH
    • PNP SWITCH

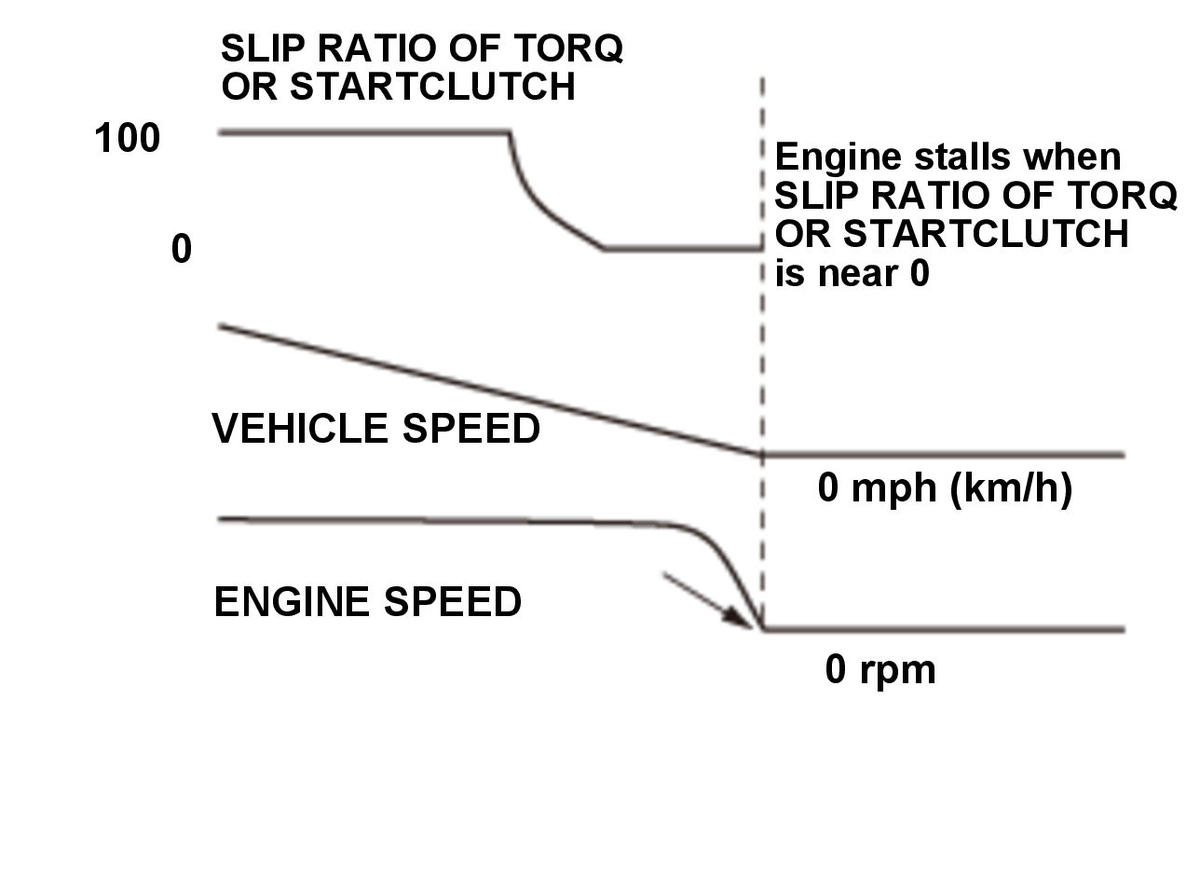

    • SLIP RATIO OF TORQ OR STARTCLUTCH

    Data List

    -2. Begin the snapshot, then start the engine and let it idle without load (in P or N).

    Did the engine stall?

    YES

    Go to step 5 (diagnosis by parameter (MAF SENSOR)).

    NO

    Go to step 4.

  4. On-board snapshot check

    -1. Check for a record of Engine Stall 2 in the on-board snapshot with the HDS.

    On-board Snapshot

    Is there an Engine Stall 2 record in the on-board snapshot?

    YES

    Go to step 5 (diagnosis by parameter (MAF SENSOR)).

    NO

    Go to step 17 (fuel system troubleshooting).

    NOTE:  If an engine stall on-board snapshot was not found, the snapshot may have been lost due to low 12 volt battery voltage or because of 12 volt battery disconnection or replacement.

  5. On-board snapshot check (MAF SENSOR):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the MAF SENSOR and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the MAF SENSOR pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks

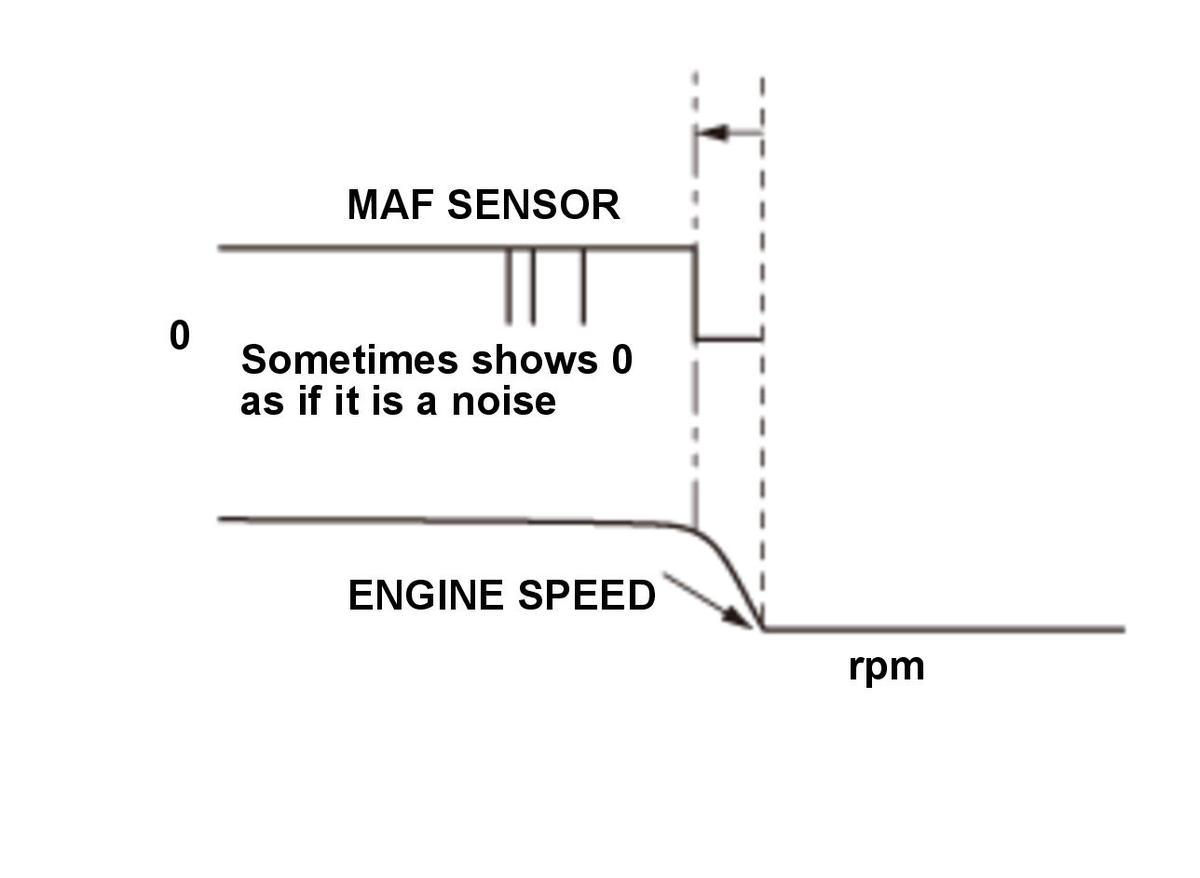

    Pattern 1 Poor connection of MAF SENSOR
    GHH428006Courtesy of HONDA, U.S.A., INC.
    		 If the engine stalls 1 - 2 seconds after MAF SENSOR shows "0" g/s the engine stall may be caused by a faulty MAF sensor, poor connection, or electrical noise in the MAF sensor signal.

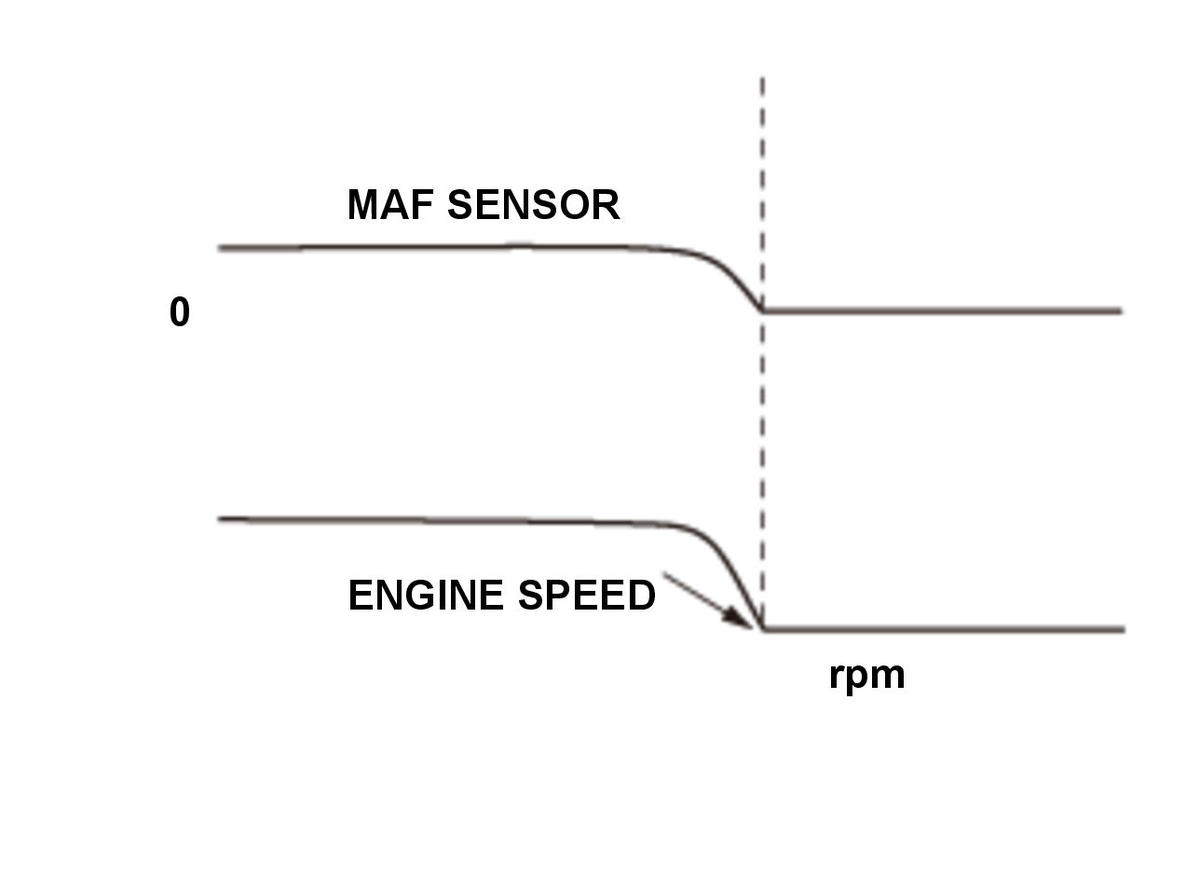

    Pattern 2 MAF SENSOR normal
    GHH428007Courtesy of HONDA, U.S.A., INC.
    		 When the MAF SENSOR pattern matches ENGINE SPEED, the MAF sensor is normal.

    Which pattern is indicated?

    Pattern 1

    Check MAF sensor/IAT sensor 1 for loose terminals or poor connections. If the terminals and connections are OK, substitute a known-good MAF sensor/IAT sensor 1 .

    Pattern 2

    Go to step 6 (diagnosis by parameter (ECT SENSOR 1)).

  6. On-board snapshot check (ECT SENSOR 1):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the ECT SENSOR 1 and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare ECT SENSOR 1 pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks
    Pattern 1 ECT SENSOR 1 high

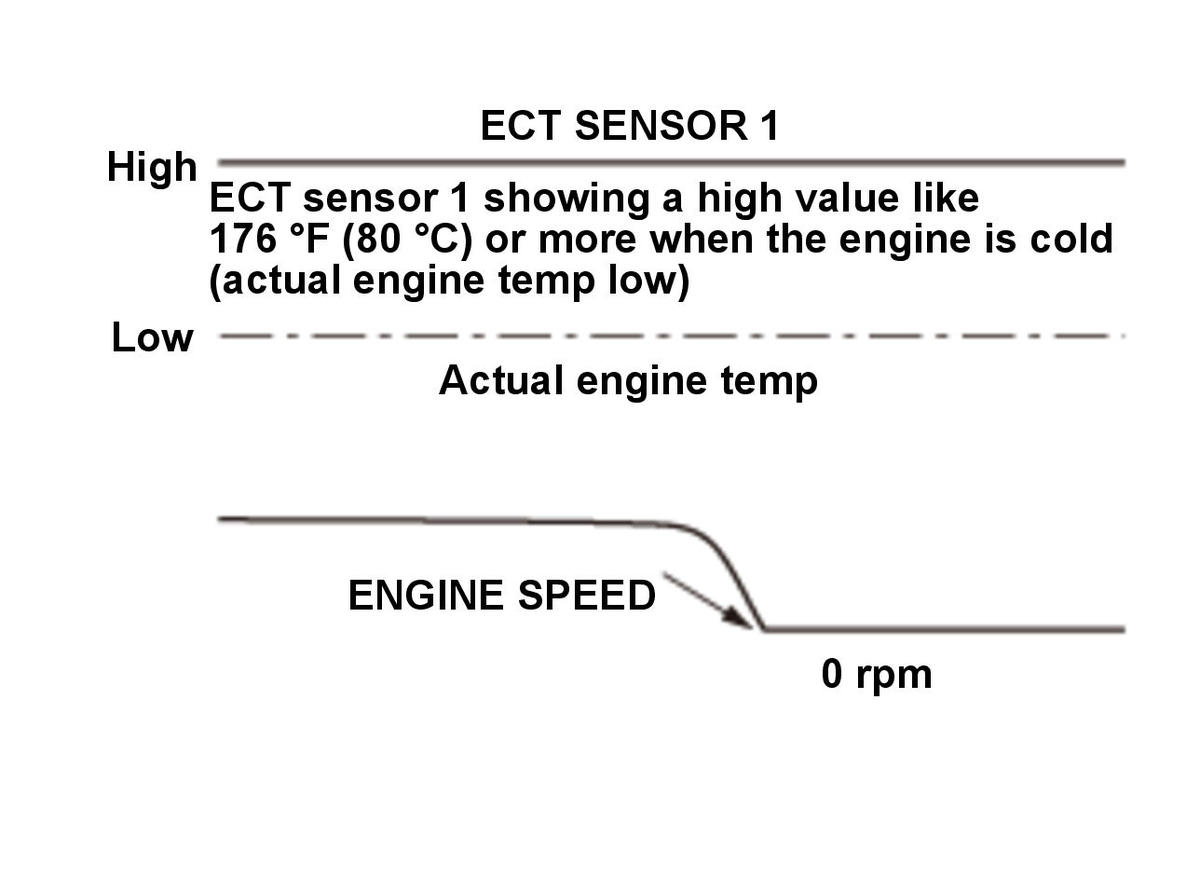

    GHH428008Courtesy of HONDA, U.S.A., INC.
    		 When ECT SENSOR 1 indicates about 176 deg.F (80 deg.C) or more when the engine is actually cold, ECT sensor 1 signal may be stuck high. If this occurs, the PCM may not properly compensate for cold engine operation, causing the engine to stall.

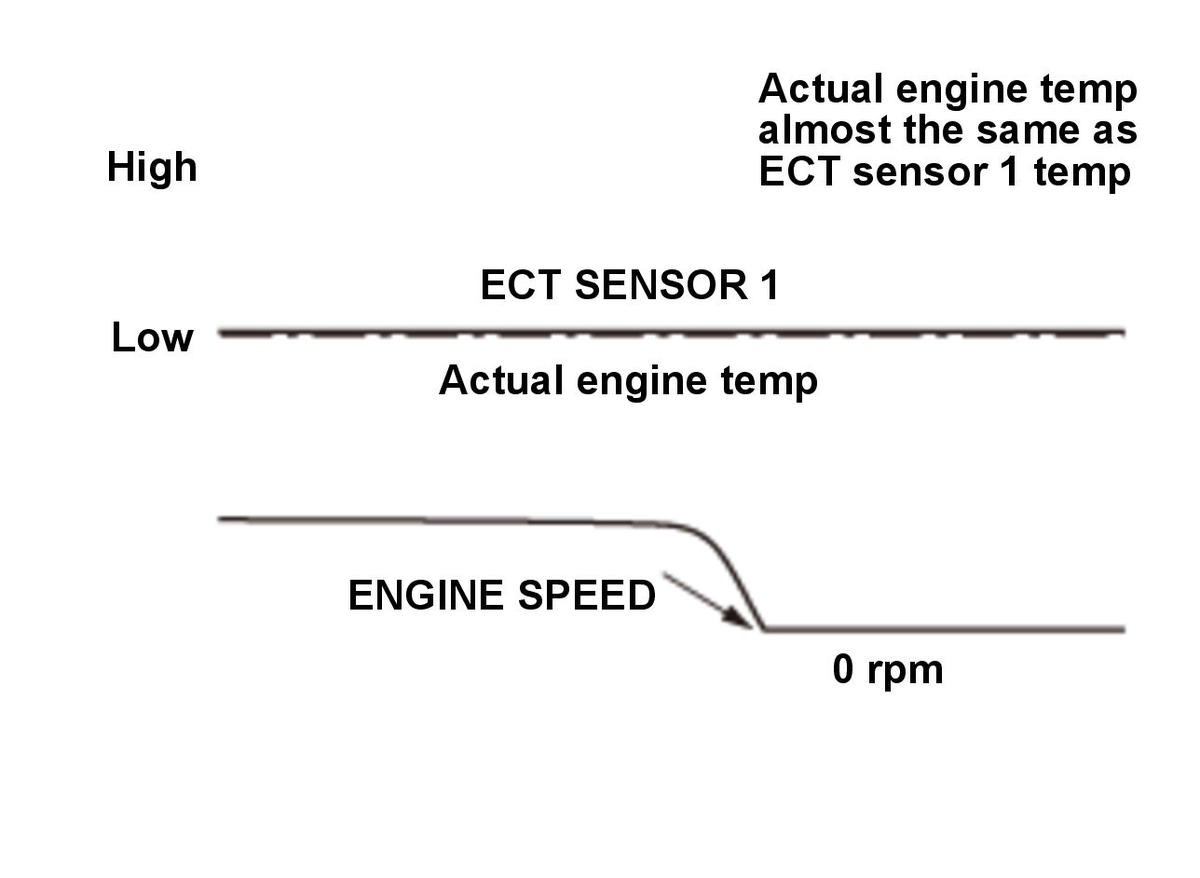

    Pattern 2 ECT SENSOR 1 normal
    GHH428009Courtesy of HONDA, U.S.A., INC.
    		 If actual engine temp is similar to ECT SENSOR 1, ECT sensor 1 is normal.

    Which pattern is indicated?

    Pattern 1

    Check for a short in the ECT sensor 1 circuit and a failure in ECT sensor 1.

    Pattern 2

    Go to step 7.

  7. ECT sensor 1 check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Let the engine cool for 24 hours.

    -3. Measure the ambient temperature of the engine with the thermometer.

    -4. Turn the vehicle to the ON mode, but do not start the engine.

    -5. Check the parameter(s) below with the HDS.

    Signal Current conditions
    Values Unit
    ECT SENSOR 1
    ECT SENSOR 2

    Are the values of ECT SENSOR 1, ECT SENSOR 2, and the ambient temperature almost the same?

    YES

    Go to step 8 (diagnosis by parameter (BATTERY)).

    NO

    If the value of ECT SENSOR 1 is much higher (or lower) than that of ECT SENSOR 2 and the ambient temperature, check for the ECT sensor 1 circuit and a failure in ECT sensor 1.

  8. On-board snapshot check (BATTERY):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    Select the BATTERY and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the BATTERY pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks

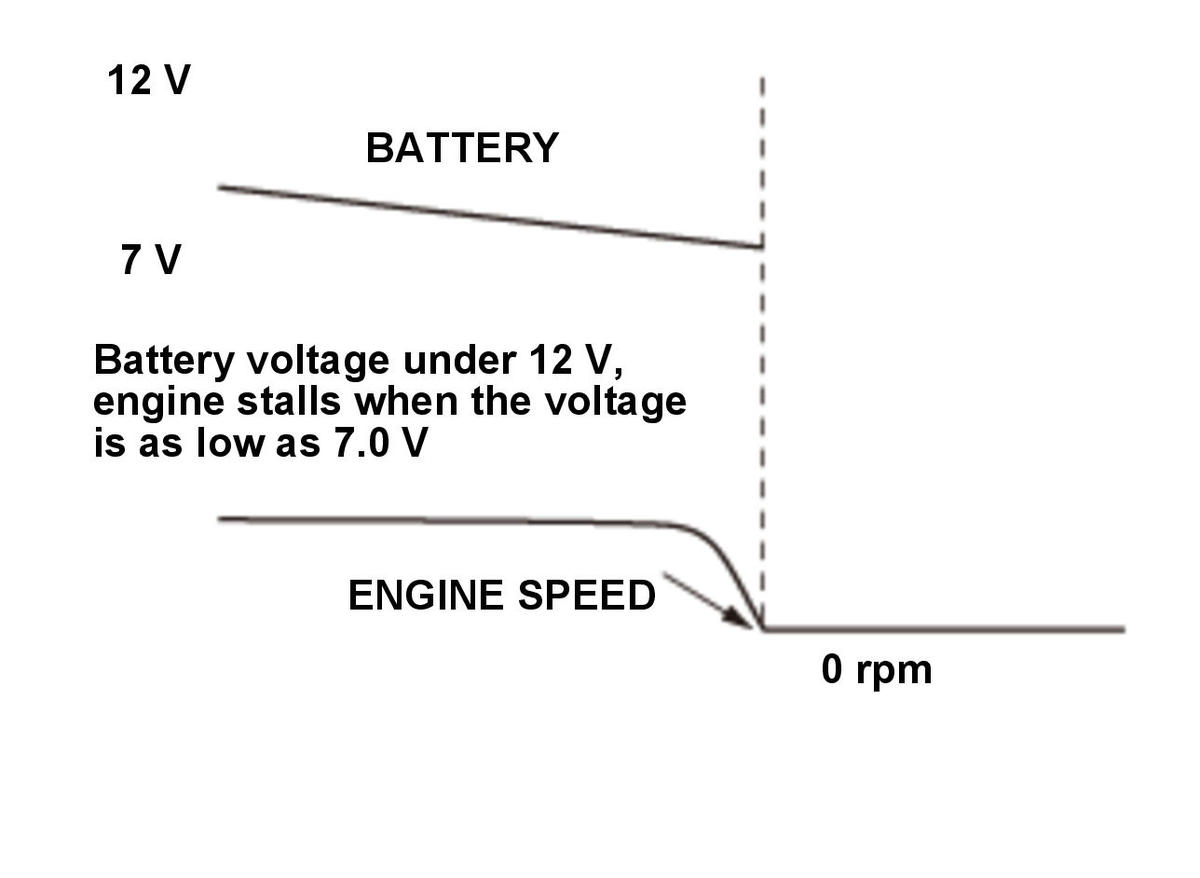

    Pattern 1 BATTERY voltage low
    GHH428010Courtesy of HONDA, U.S.A., INC.
    • When the BATTERY voltage is excessively low, the PCM or control unit stops functioning, causing engine stall.
    • For PCM or each control unit to start (functioning), more than 7.0 V is needed.

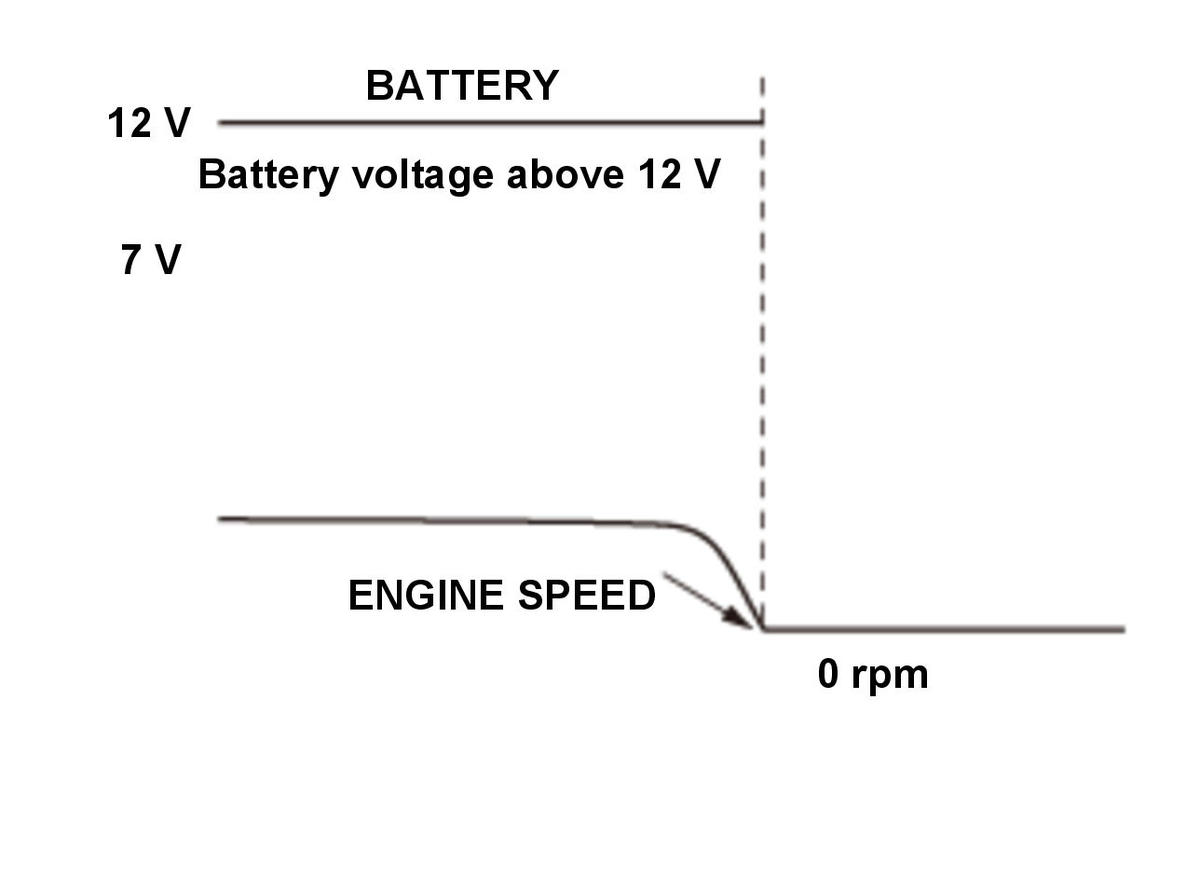

    Pattern 2 BATTERY voltage normal
    GHH428011Courtesy of HONDA, U.S.A., INC.
    		 If the BATTERY voltage is above 12 V when the engine stalls, the 12 volt battery is normal.

    Which pattern is indicated?

    Pattern 1

    Test the 12 volt battery , and check the 12 volt battery cables and terminals.

    Pattern 2

    Go to step 9 (diagnosis by parameter (CKP NO PULSE)).

  9. On-board snapshot check (CKP NO PULSE):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the CKP NO PULSE and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the CKP NO PULSE pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks

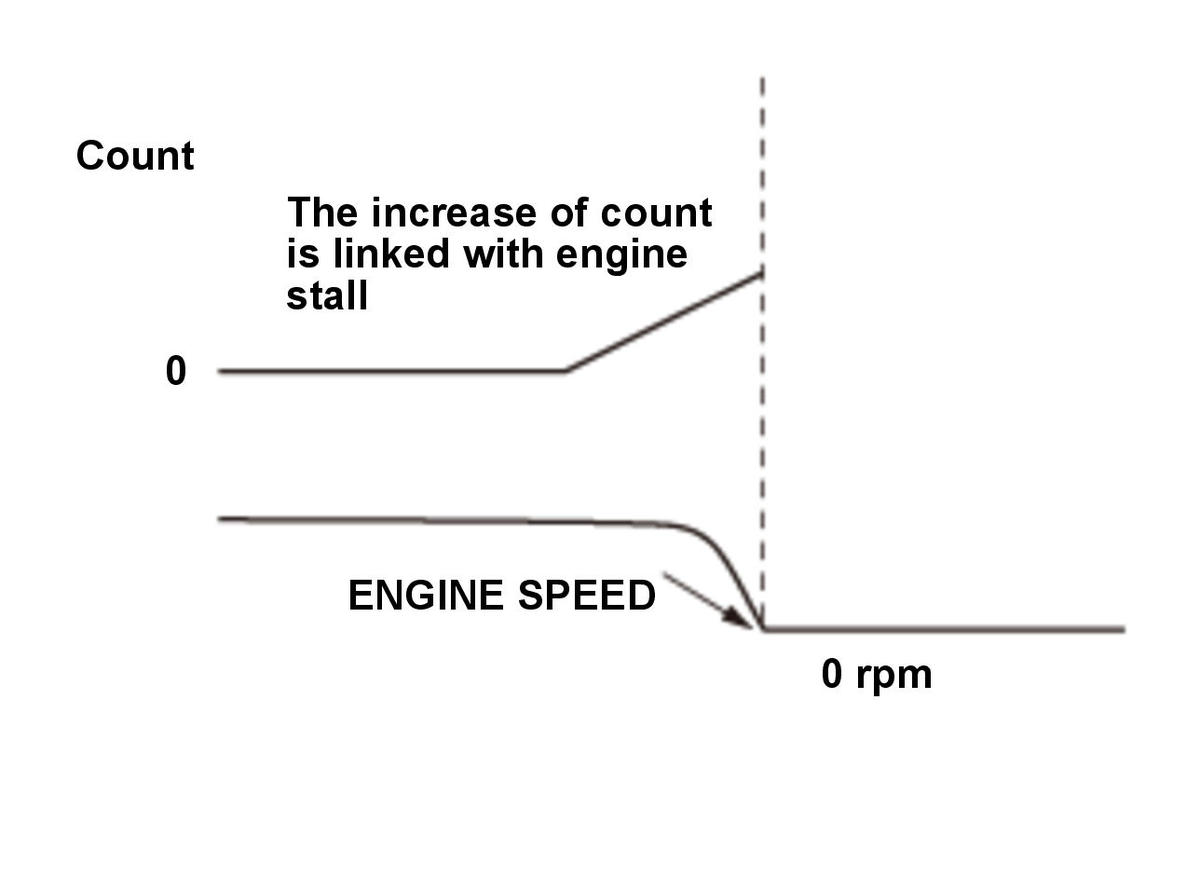

    Pattern 1 Count is continuously up
    GHH428012Courtesy of HONDA, U.S.A., INC.
    		 When CKP NO PULSE counts go up, the PCM is not receiving the CKP sensor signal.
    Pattern 2 Count is continuously not up

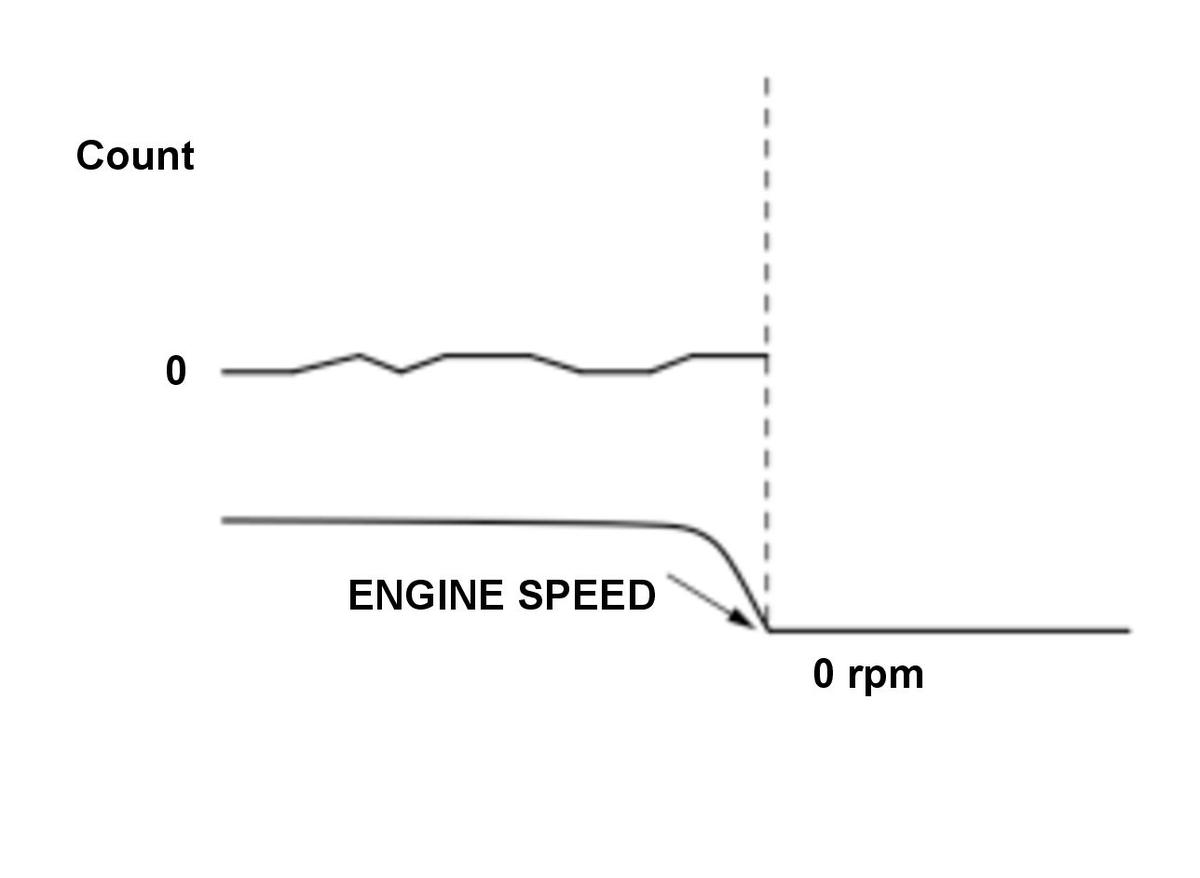

    GHH428013Courtesy of HONDA, U.S.A., INC.


    Which pattern is indicated?

    Pattern 1

    Go to the troubleshooting for DTC P0335 .

    Pattern 2

    Go to step 10 (diagnosis by parameter (CKP NOISE)).

  10. On-board snapshot check (CKP NOISE):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the CKP NOISE and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the CKP NOISE pattern from these charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks
    Pattern 1 Count is continuously up
    GHH428014Courtesy of HONDA, U.S.A., INC.
    		 When CKP NOISE counts go up, the PCM is receiving electrical noise along with the CKP sensor signal.
    Pattern 2 Count is continuously not up
    GHH428015Courtesy of HONDA, U.S.A., INC.


    Which pattern is indicated?

    Pattern 1

    Go to the troubleshooting for DTC P0339 .

    Pattern 2

    Go to step 11 (diagnosis by parameter (FUEL PRESSURE CONVERTED FROM PF SENSOR and FUEL PRESSURE DIRECT INJECTION SYSTEM)).

  11. On-board snapshot or snapshot check (FUEL PRESSURE CONVERTED FROM PF SENSOR and FUEL PRESSURE DIRECT INJECTION SYSTEM):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    Select the FUEL PRESSURE CONVERTED FROM PF SENSOR, FUEL PRESSURE DIRECT INJECTION SYSTEM, and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the FUEL PRESSURE CONVERTED FROM PF SENSOR and FUEL PRESSURE DIRECT INJECTION SYSTEM patterns from these charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks

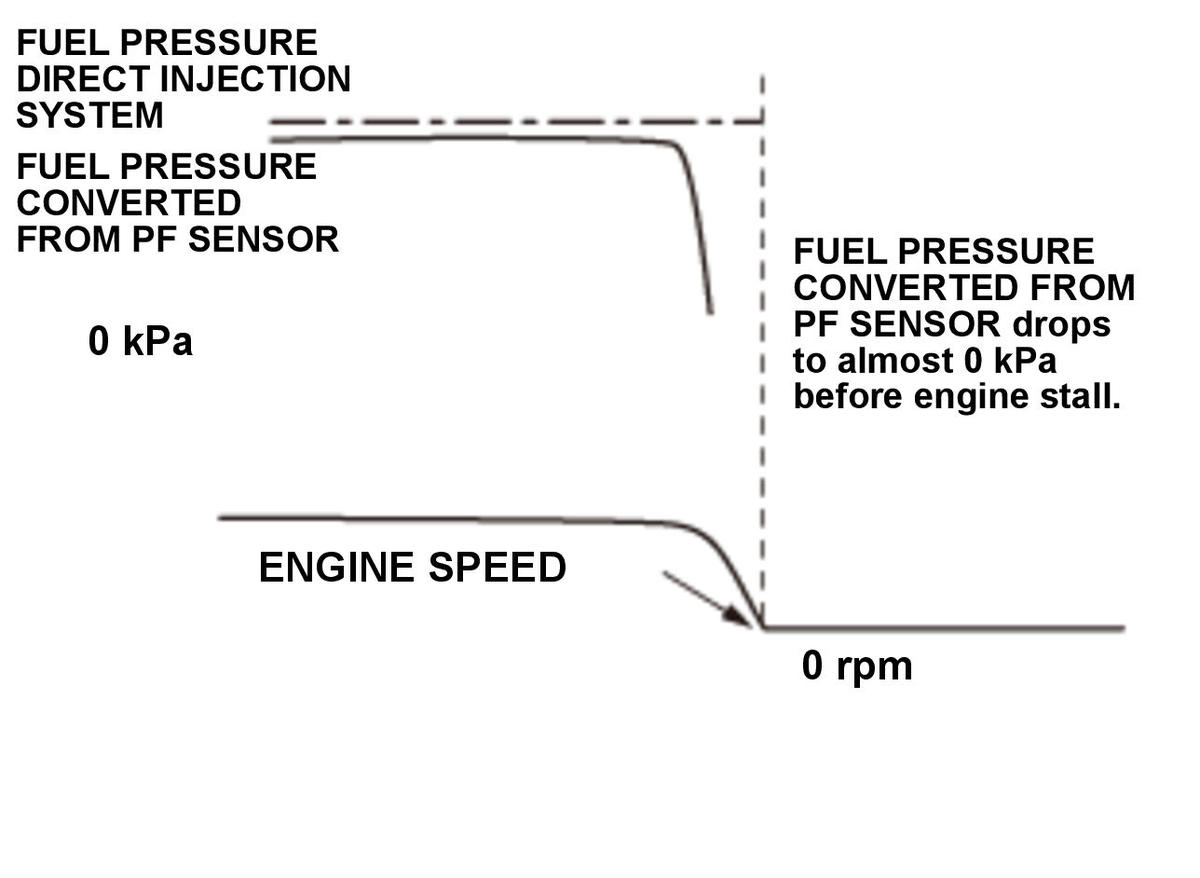

    Pattern 1 FUEL PRESSURE CONVERTED FROM PF SENSOR drops to almost 0 kPa before engine stalls
    GHH428016Courtesy of HONDA, U.S.A., INC.
    		 If the FUEL PRESSURE CONVERTED FROM PF SENSOR drops to almost 0 kPa before engine stall, the engine stall may be caused by low fuel pressure.
    • Fuel leak, out of fuel
    • Fuel rail pressure sensor failure
    • Spill valve stuck off
    • Fuel pressure regulator (low pressure side)
    • Fuel pump (low pressure side)
    • High pressure fuel pump

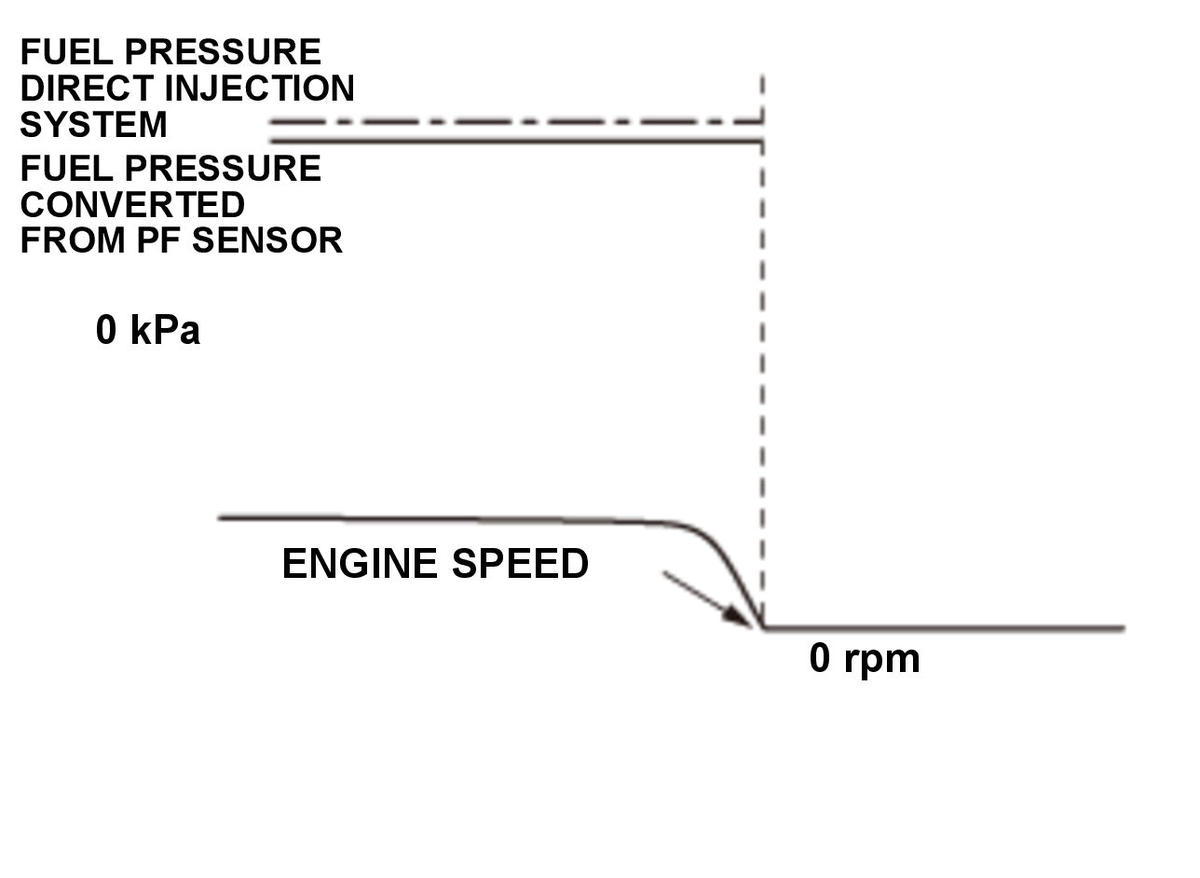

    Pattern 2 Normal when the FUEL PRESSURE CONVERTED FROM PF SENSOR is nearly the same as the FUEL PRESSURE DIRECT INJECTION SYSTEM.
    GHH428017Courtesy of HONDA, U.S.A., INC.
    		 If the FUEL PRESSURE CONVERTED FROM PF SENSOR is nearly the same as the FUEL PRESSURE DIRECT INJECTION SYSTEM when engine stalls, the fuel pressure is normal.

    Which pattern is indicated?

    Pattern 1

    Go to the troubleshooting for DTC P0087 .

    Pattern 2

    Go to step 12 (diagnosis by parameter (AF FB (ST FUEL TRIM))).

  12. On-board snapshot check (AF FB (ST FUEL TRIM)):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the AF FB (ST FUEL TRIM), EVAP PC DUTY, and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the AF FB (ST FUEL TRIM) pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks

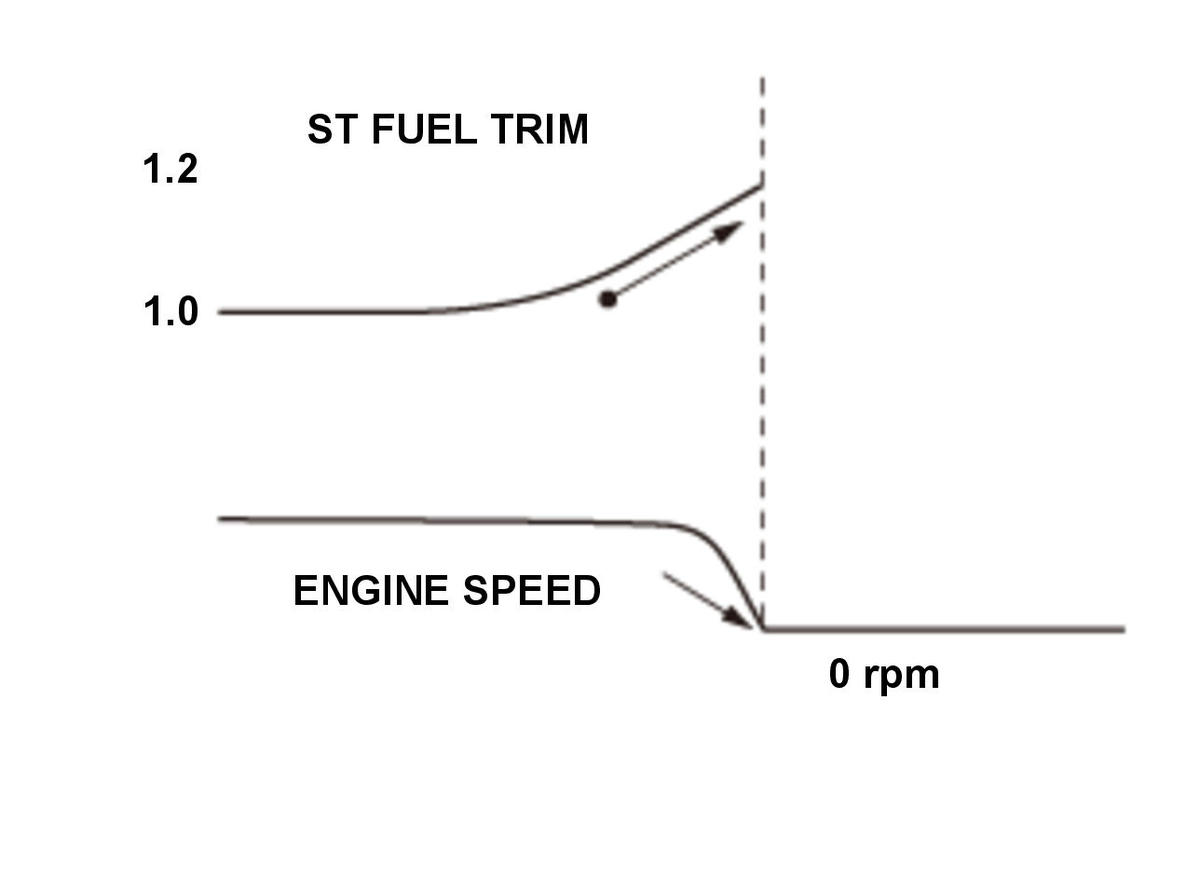

    Pattern 1 Engine stalls while AF FB (ST FUEL TRIM) value increases
    GHH428018Courtesy of HONDA, U.S.A., INC.
    		 If the AF FB (ST FUEL TRIM) value increases when the engine stalls, there may be a lean condition.

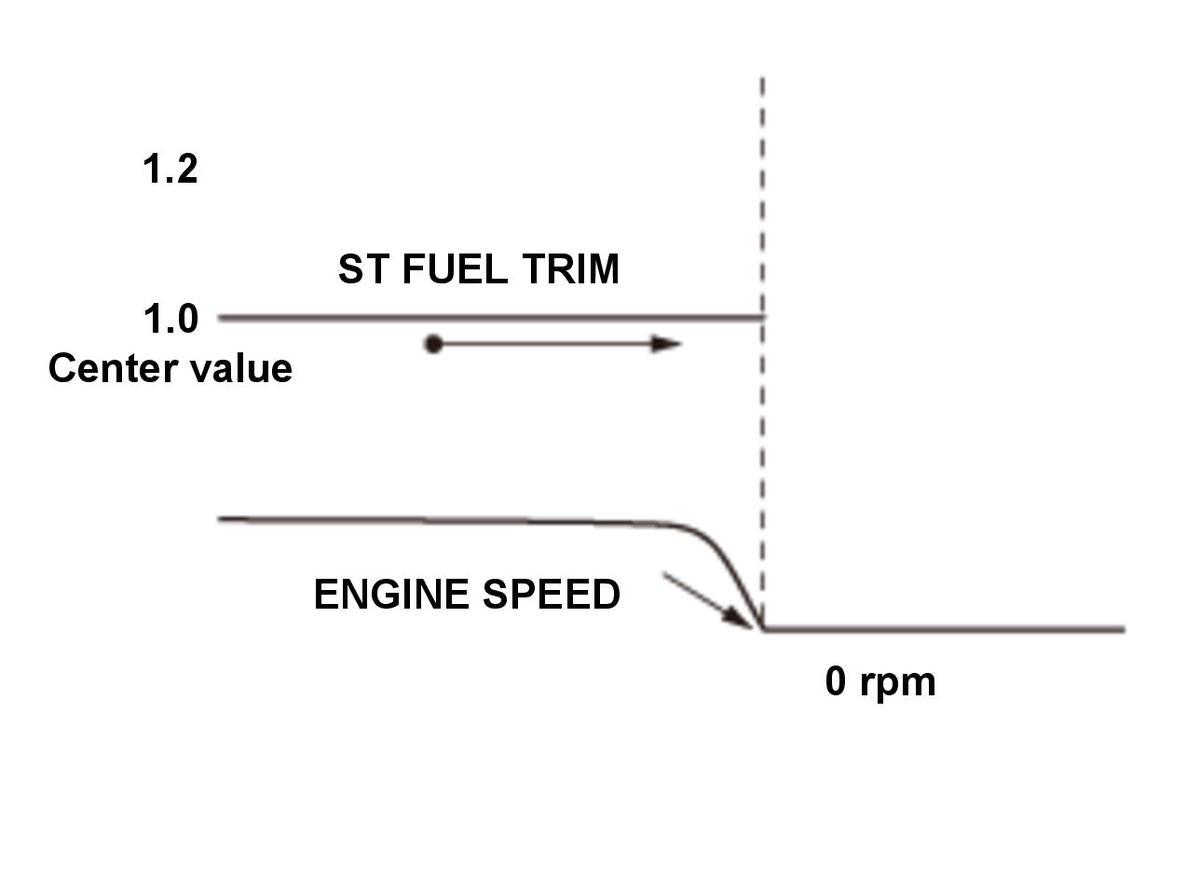

    Pattern 2 Normal when the engine stalls when AF FB (ST FUEL TRIM) is around 1.0 (center value)
    GHH428019Courtesy of HONDA, U.S.A., INC.
    		 The fuel trim is normal when the engine stalled with AF FB (ST FUEL TRIM) around 1.0 (center value).
    Pattern 3 Engine stalls when AF FB (ST FUEL TRIM) is around 0.8

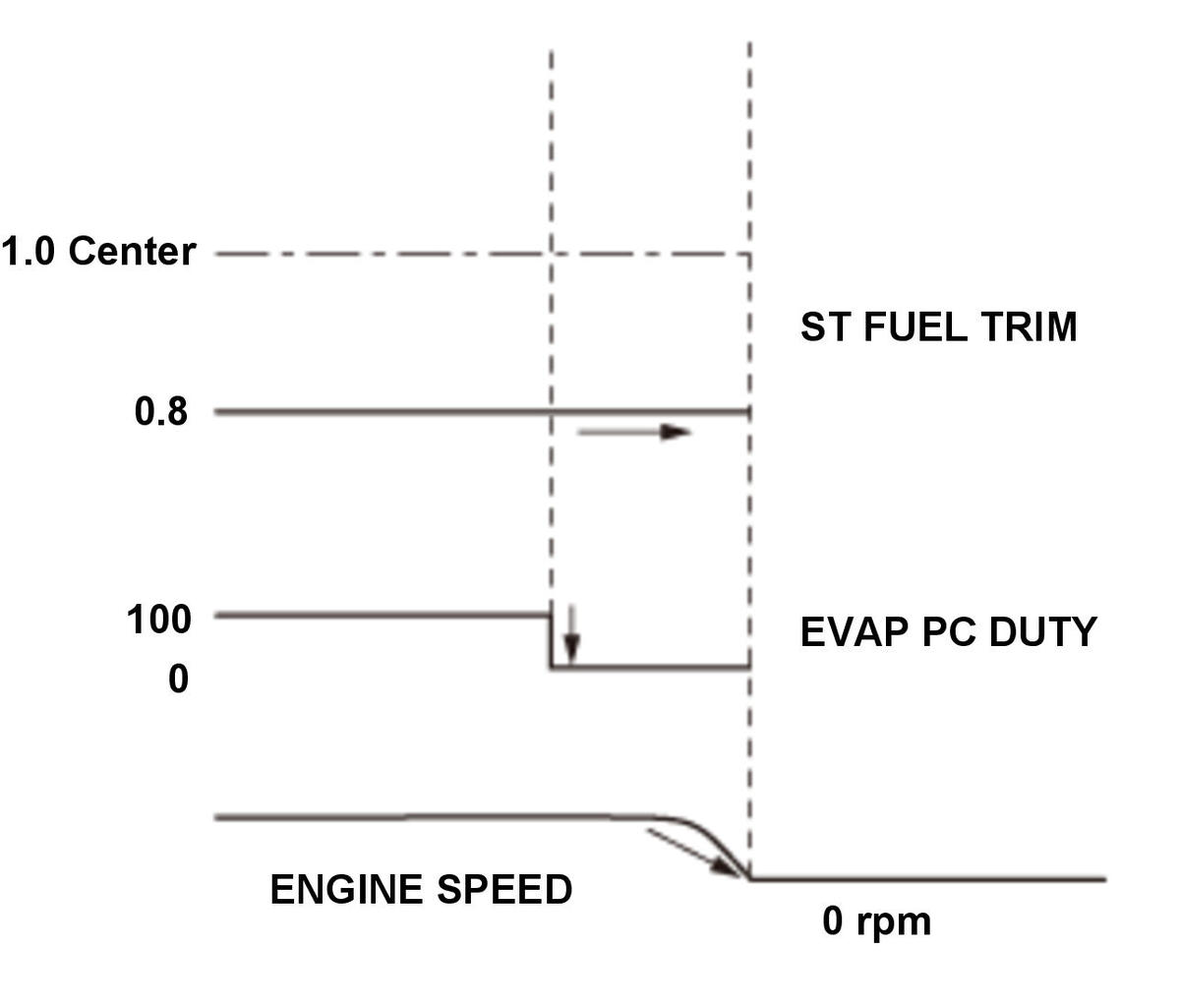

    GHH428020Courtesy of HONDA, U.S.A., INC.
    		 When the value of AF FB (ST FUEL TRIM) is around 0.8, the PCM commands the EVAP canister purge valve to close (closed when EVAP PC DUTY is 0 %). If the AF FB (ST FUEL TRIM) does not move toward 1.0, the PCS may be leaking.
    Pattern Symptom (Diagnosis by parameter) Additional remarks
    Pattern 4 Normal when the engine stalls with AF FB (ST FUEL TRIM) is around 1.0 (center value)

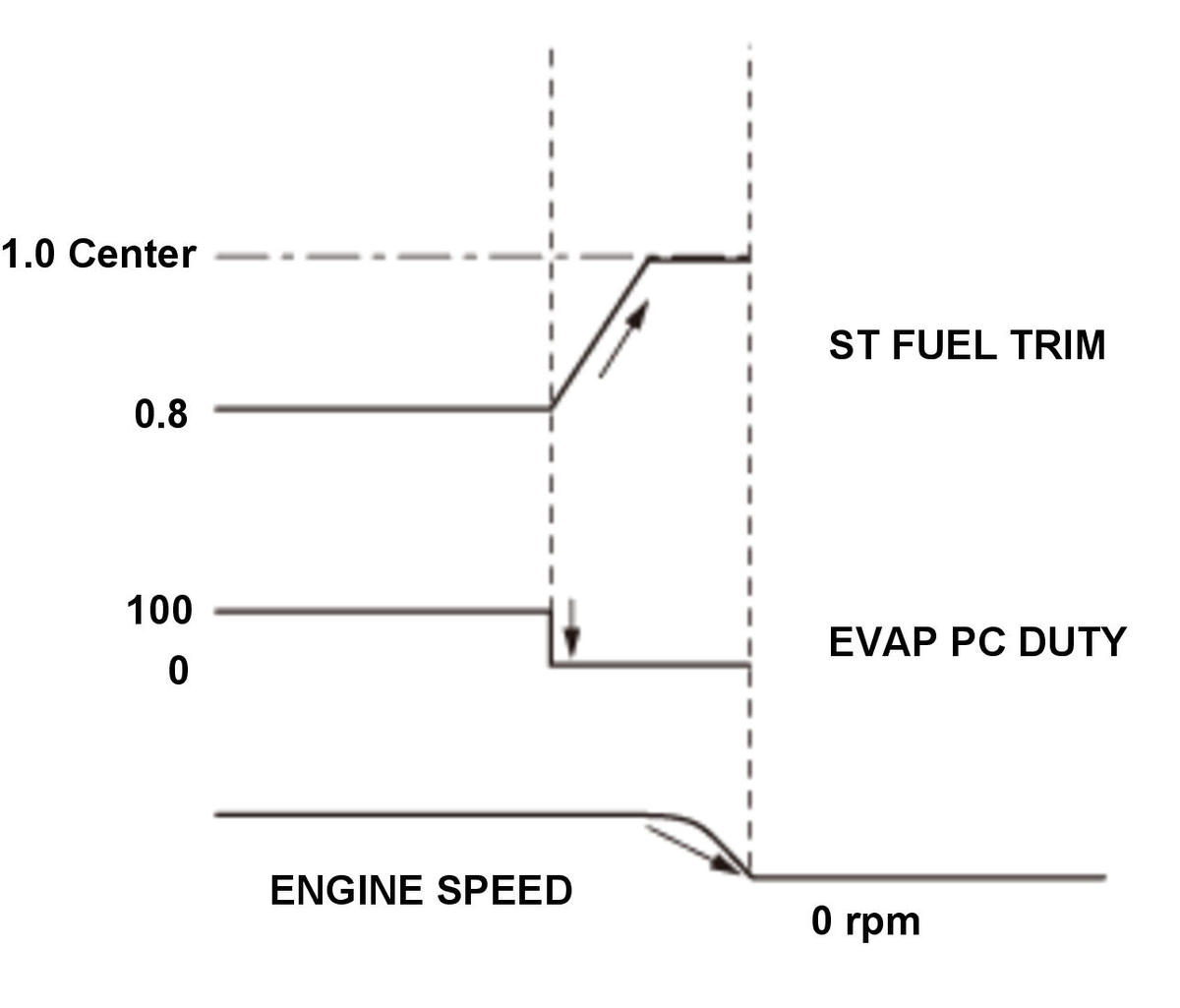

    GHH428021Courtesy of HONDA, U.S.A., INC.
    		 When the value of AF FB (ST FUEL TRIM) is around 0.8, the PCM commands the EVAP canister purge valve to close (closed when EVAP PC DUTY is 0 %). If the AF FB (ST FUEL TRIM) moves toward 1.0, the PCS is normal (no leaks).

    Which pattern is indicated?

    1. Pattern 1

      Diagnostic procedure:

      Pattern 3

      Check the EVAP canister purge valve for leaks.

      Pattern 2 and 4

      Go to step 13 (diagnosis by parameter (MISFIRE)).

  13. On-board snapshot check (MISFIRE):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the MISFIRE and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare those snapshots to the MISFIRE pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks

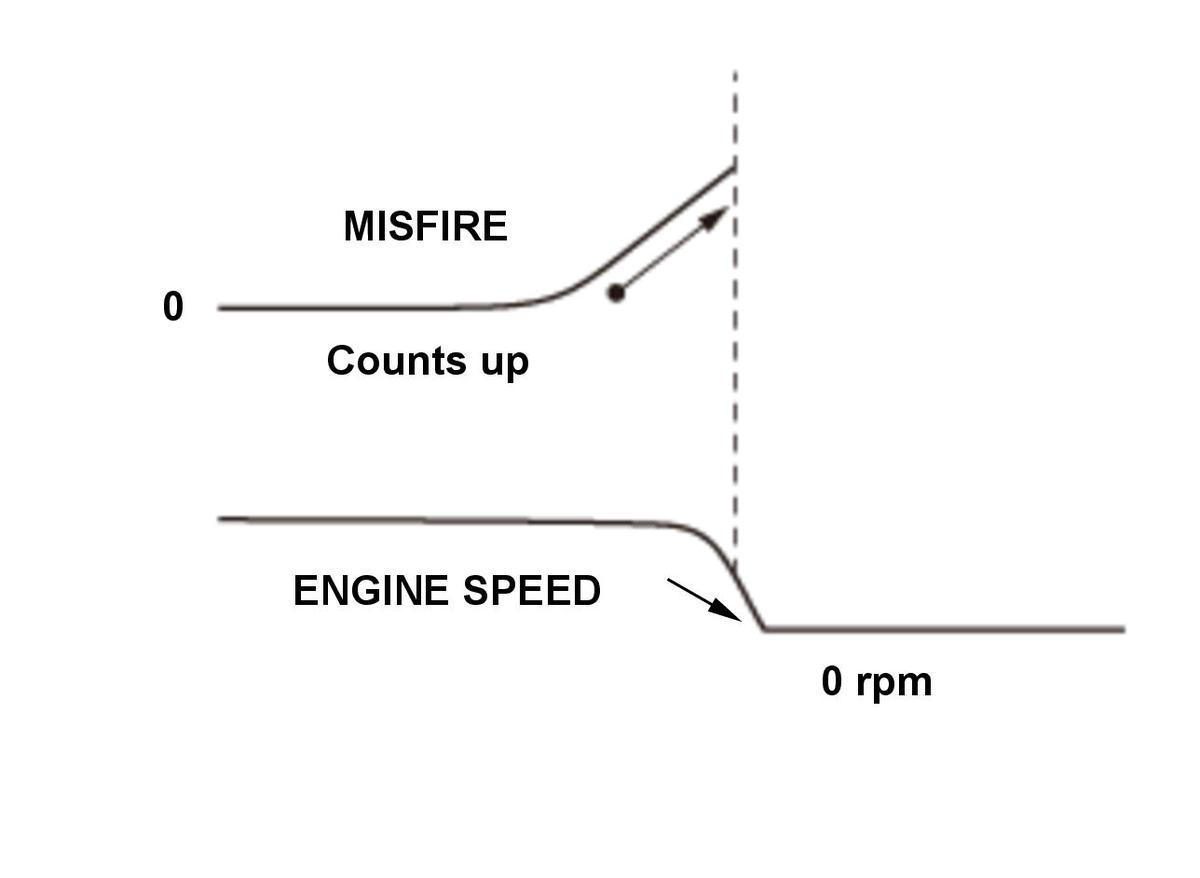

    Pattern 1 Engine stalls after MISFIRE counts go up
    GHH428022Courtesy of HONDA, U.S.A., INC.
    		 When engine stalls after MISFIRE count increases, the engine stall may be caused by misfire.

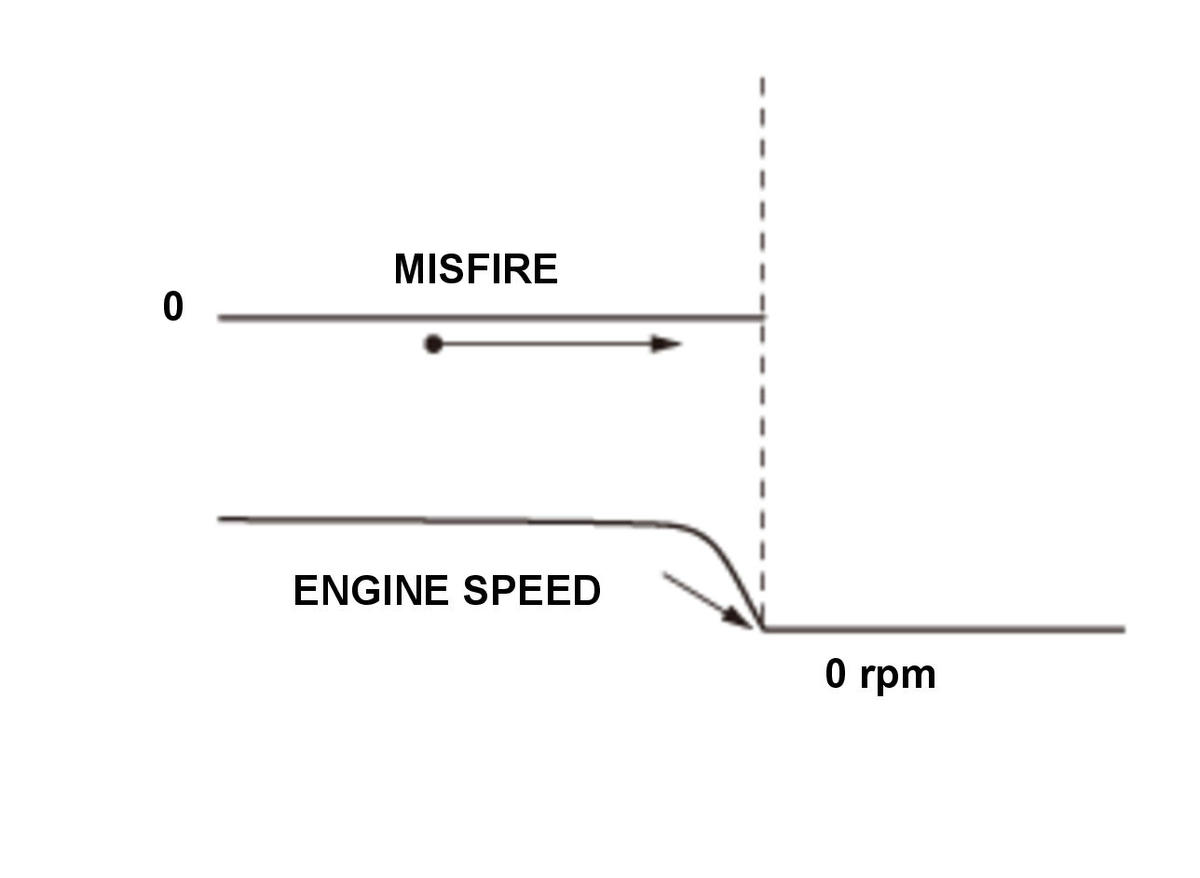

    Pattern 2 Normal when engine stalls with MISFIRE count remaining constant
    GHH428023Courtesy of HONDA, U.S.A., INC.
    		 If the MISFIRE count remains steady when the engine stalls, the stall was not caused by misfire.

    Which pattern is indicated?

    Pattern 1

    Diagnostic procedure:

    Pattern 2

    Go to step 14 (diagnosis by parameter (A/C CLUTCH)).

  14. On-board snapshot check (A/C CLUTCH):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    -2. Select the A/C CLUTCH and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the A/C CLUTCH pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks
    Pattern 1 Engine stalls when A/C CLUTCH is ON.

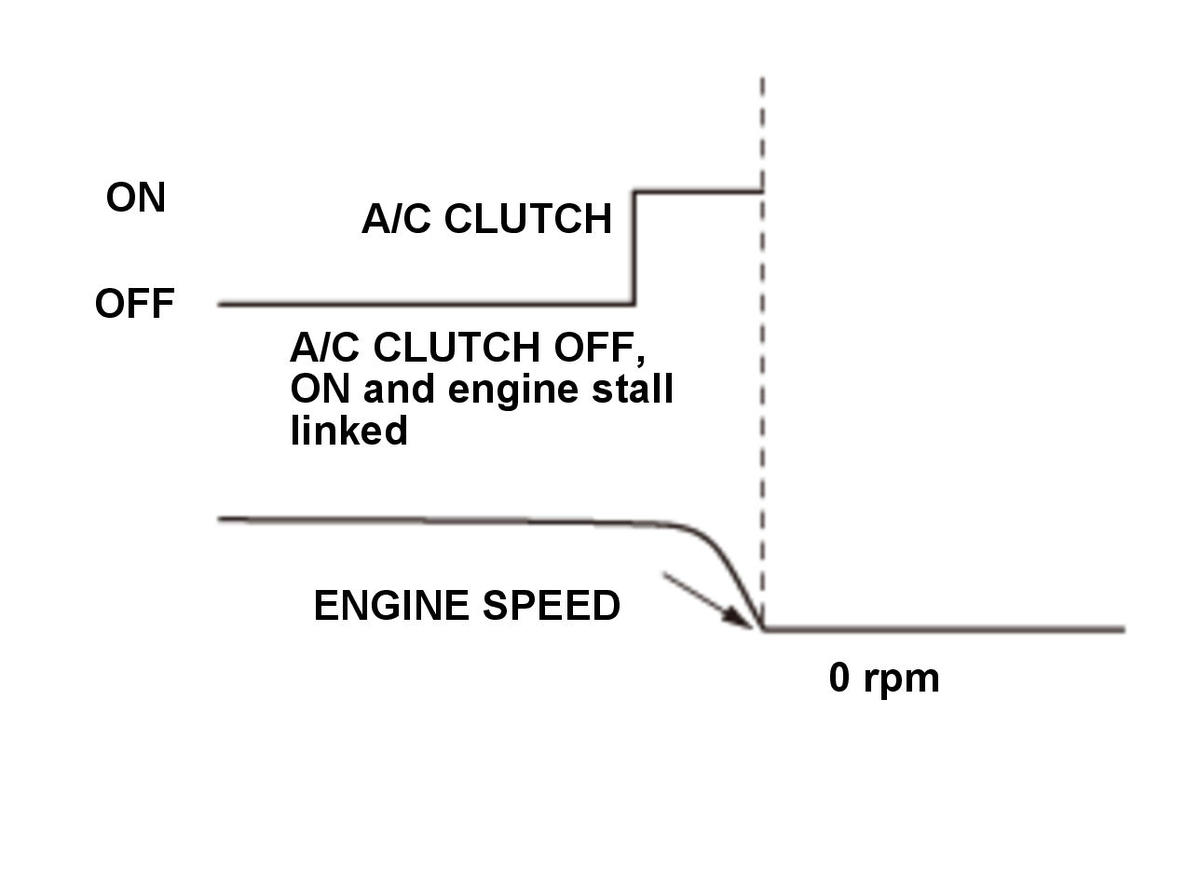

    GHH428024Courtesy of HONDA, U.S.A., INC.
    		 If the engine stall occurs just after the A/C compressor clutch turns on, the stall may be caused by excessive A/C compressor load.

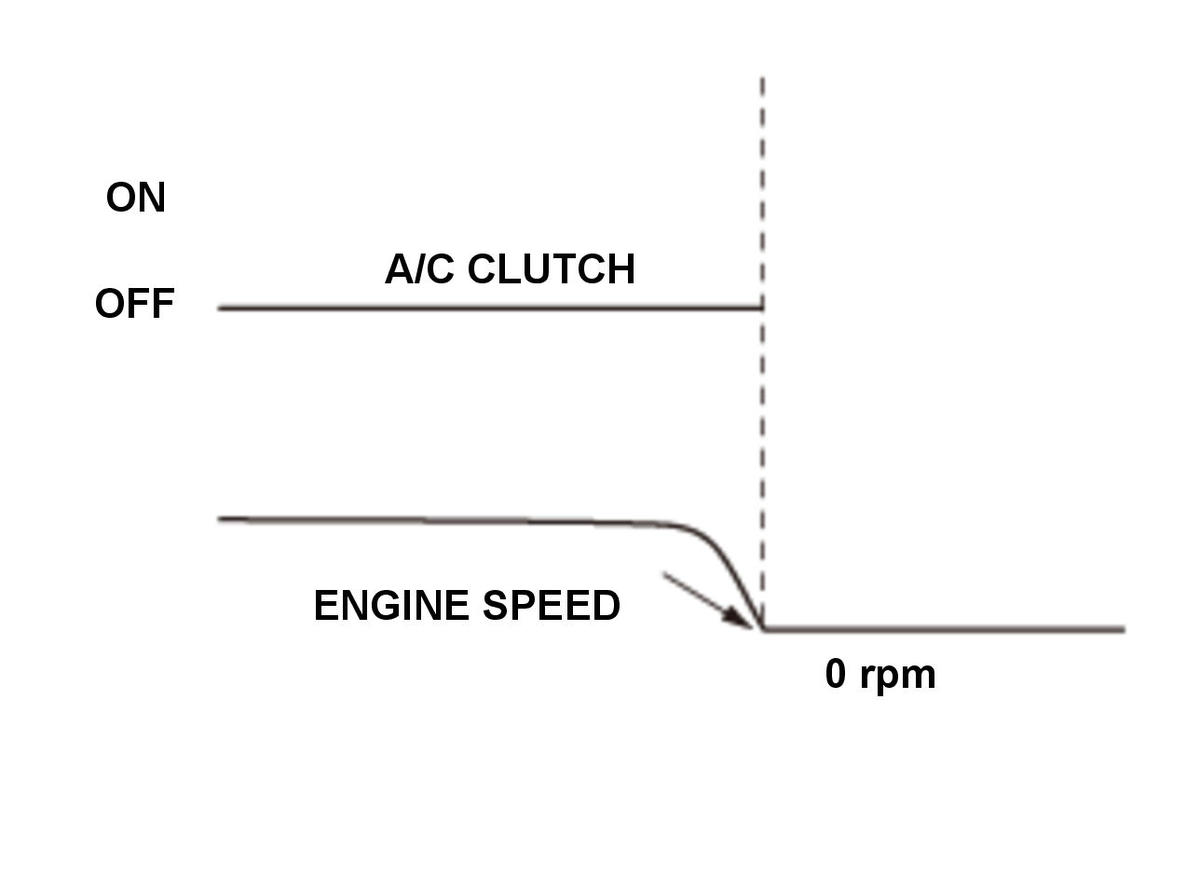

    Pattern 2 Engine stalls during A/C CLUTCH is OFF.
    GHH428025Courtesy of HONDA, U.S.A., INC.
    		 If the engine stall occurs just when the A/C compressor clutch is off, the A/C system is not the cause of the engine stall.

    Which pattern is indicated?

    Pattern 1

    Diagnostic procedure:

    • Check for over-charge A/C refrigerant.
    • Check for charging with the wrong refrigerant.
    • Check for drag of the A/C compressor and A/C compressor clutch.

    Pattern 2

    Go to step 15 (diagnosis by parameter (PNP SWITCH)).

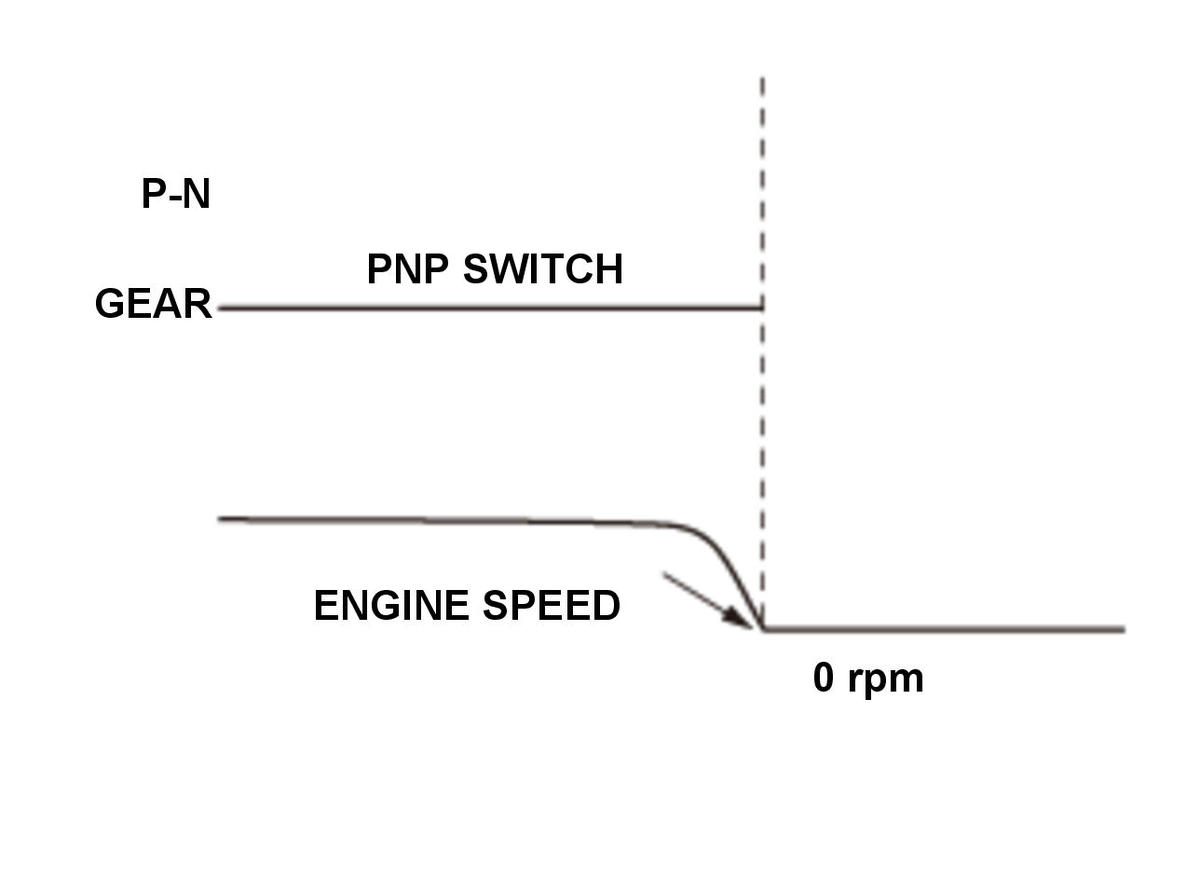

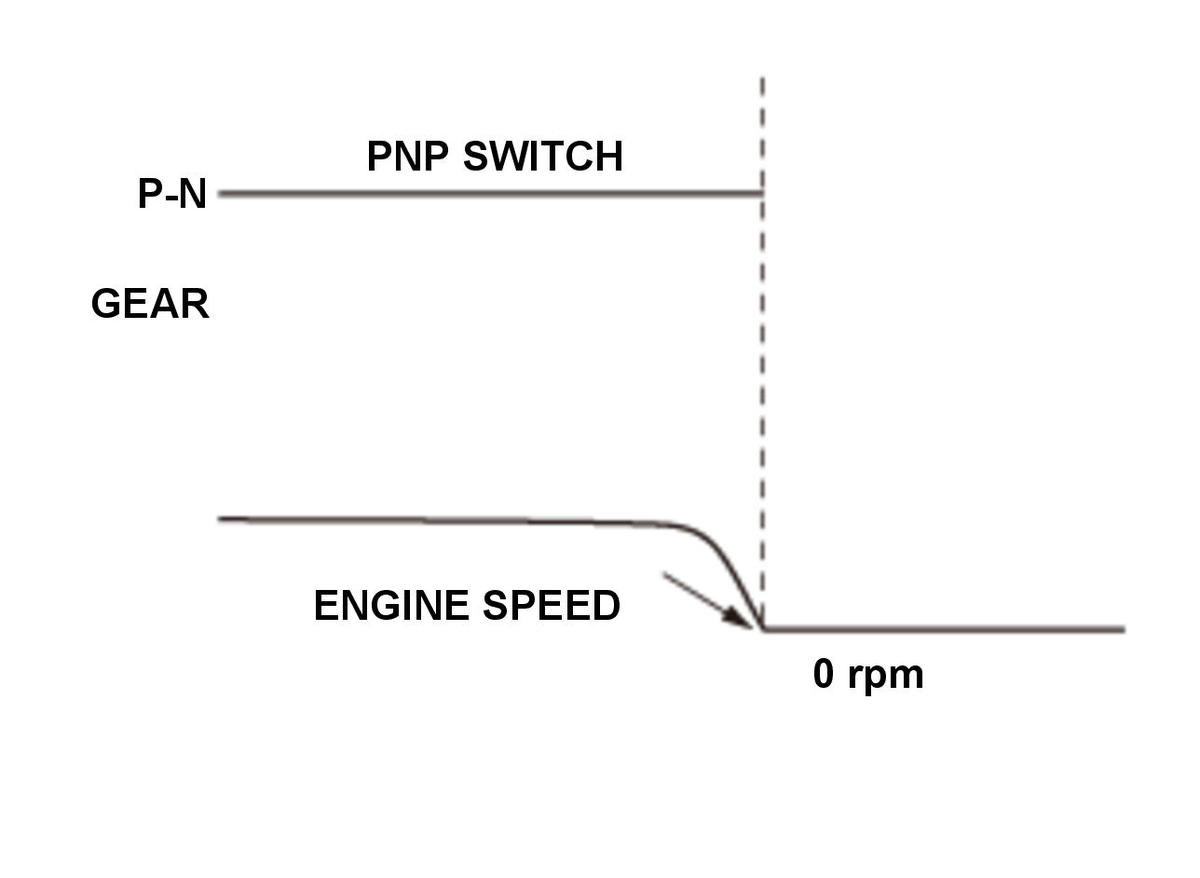

  15. On-board snapshot check (PNP SWITCH):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the PNP SWITCH and ENGINE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the PNP SWITCH pattern from the charts, and determine the problem.

    Pattern Symptom (Diagnosis by parameter) Additional remarks
    Pattern 1 Transmission is in-gear condition
    GHH428026Courtesy of HONDA, U.S.A., INC.
    		 In-gear condition when PNP SWITCH is "GEAR". Engine stall may be caused by transmission.(Engine also is a factor)
    Pattern 2 Transmission is N or P condition
    GHH428027Courtesy of HONDA, U.S.A., INC.
    		 N or P condition when PNP SWITCH is "P-N". The engine stall is not caused by transmission.

    Transmission is not faulty.

    Which pattern is indicated?

    Pattern 1

    Go to step 16 (diagnosis by parameter (SLIP RATIO OF TORQ OR STARTCLUTCH)).

    Pattern 2

    Go to step 17 (fuel system troubleshooting).

  16. On-board snapshot check (SLIP RATIO OF TORQ OR STARTCLUTCH):

    NOTE:  Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

    -1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

    On-board Snapshot

    -2. Select the SLIP RATIO OF TORQ OR STARTCLUTCH, ENGINE SPEED, and VEHICLE SPEED in the configuration list.

    Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the SLIP RATIO OF TORQ OR STARTCLUTCH pattern from the charts, and determine the problem.

    Pattern Symptom (diagnosis by parameter) Additional remarks

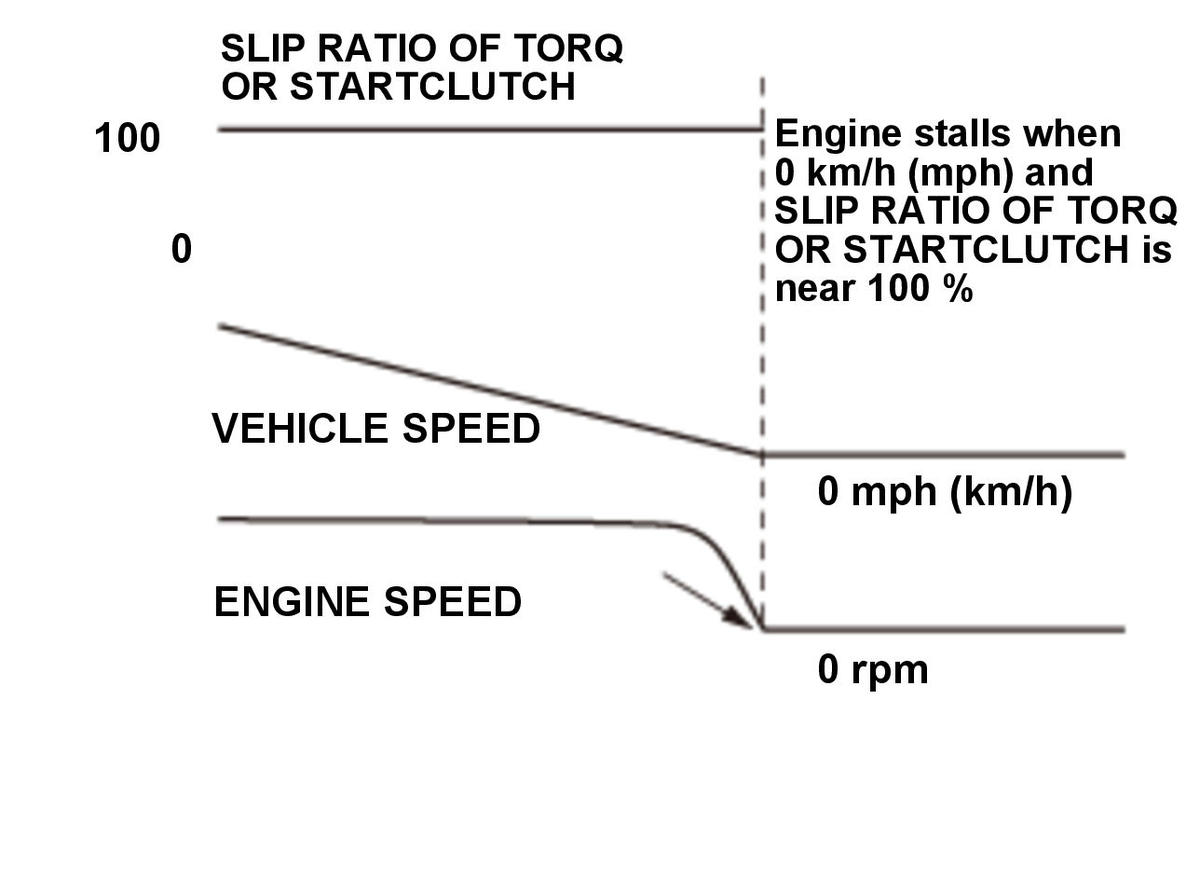

    Pattern 1 Engine stall caused by lock-up
    GHH428028Courtesy of HONDA, U.S.A., INC.
    		 When engine stalls, SLIP RATIO OF TORQ OR STARTCLUTCH is near 100 % from deceleration to stopping, the engine stall is caused by lock-up.
    Pattern 2 Lock-up normal
    GHH428029Courtesy of HONDA, U.S.A., INC.
    		 Lock-up is normal when engine stalls with SLIP RATIO OF TORQ OR STARTCLUTCH near "0" in the middle of deceleration.

    Which pattern is indicated?

    Pattern 1

    Go to the DCT systems symptom troubleshooting index for torque converter clutch does not disengage; engine stalls easily .

    Pattern 2

    Go to step 17 (fuel system troubleshooting).

  17. Fuel pressure check (low pressure side)

    -1. Do the fuel pressure test .

    Is the fuel pressure OK?

    YES

    Go to step 18 (ignition system troubleshooting).

    NO

    Check for following parts:

  18. Spark plug visual check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the spark plugs .

    -3. Check the condition of the spark plug electrodes .

    NOTE:  Make sure the spark plugs are the correct part number for the vehicle. If the plugs are aftermarket or they are not the correct part number, replace all of the plugs and retest.

    Is the electrode damaged or wet?

    1. YES (wet)

      Check the following conditions. If those conditions do not apply, go to step 19.

      • In very cold conditions, multiple very short trips can cause the spark plug to foul. If this is the case, drive the vehicle a longer distance and recheck.
      • Incorrect or poor quality fuel can cause a wet spark plug. Replace the fuel and recheck.

      YES (damaged)

      Replace the damaged spark plugs , determine the cause of the spark plug damage.

      NO

      Go to step 19.

  19. Determine possible failure area (ignition system, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Fit a spark plug to the ignition coil and ground it to the engine.

    -3. Turn the vehicle to the ON mode.

    -4. Select ALL INJECTORS STOP in the INSPECTION MENU with the HDS, and stop fuel injection from the injector.

    ALL INJECTORS STOP

    Crank the engine and watch for spark at the spark plugs.

    Do the spark plugs sparkΩ

    YES

    Select PCM reset in the PGM-FI INSPECTION MENU to cancel ALL INJECTORS STOP with the HDS, then go to step 21 (engine compression troubleshooting).

    NO

    Go to step 20.

  20. Ignition coil power circuit check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector(s).

    Ignition coil(s) 3P connector from the problem cylinder

    -3. Turn the vehicle to the ON mode.

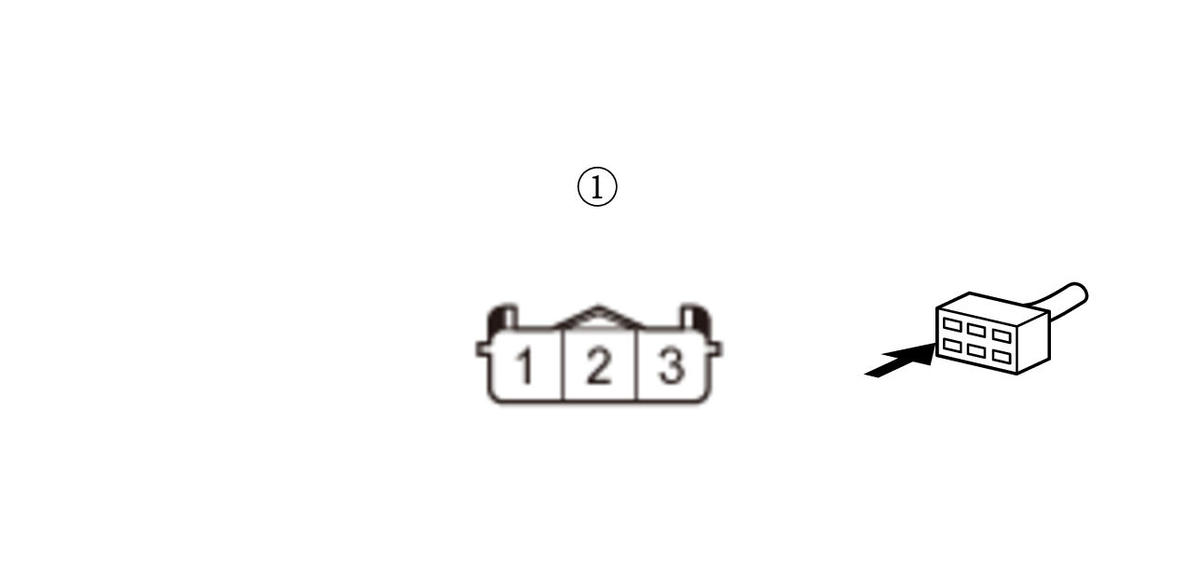

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Ignition coil 3P connector (problem cylinder): disconnected
    Test point 1 Ignition coil 3P connector (female terminal) No. 1:
    Test point 2 Body ground
    GHH428031Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The ignition coil power circuit is OK. Replace the ignition coil(s) .

    NO

    Repair an open in the IG COIL RLY OUT/IG1(COIL)/IG1(IGN) wire between the relay circuit board and the ignition coil.

  21. Engine compression check

    -1. Do an engine compression inspection .

    Is the engine compression OK?

    YES

    Go to step 22 (EVAP canister purge valve check).

    NO

    Check for wear or damage to these parts:

    • Incorrect valve clearance
    • Confirmation of cam timing
    • Oil pressure relief valve
    • Damage or worn cam lobes
    • Damage or worn valve and seats
    • Damage cylinder head gasket
    • Damage or worn piston rings
    • Damage or worn piston and cylinder bore
  22. EVAP canister purge valve check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    EVAP canister purge valve 2P connector

    -3. Remove the EVAP canister purge valve with its vacuum hose connected.

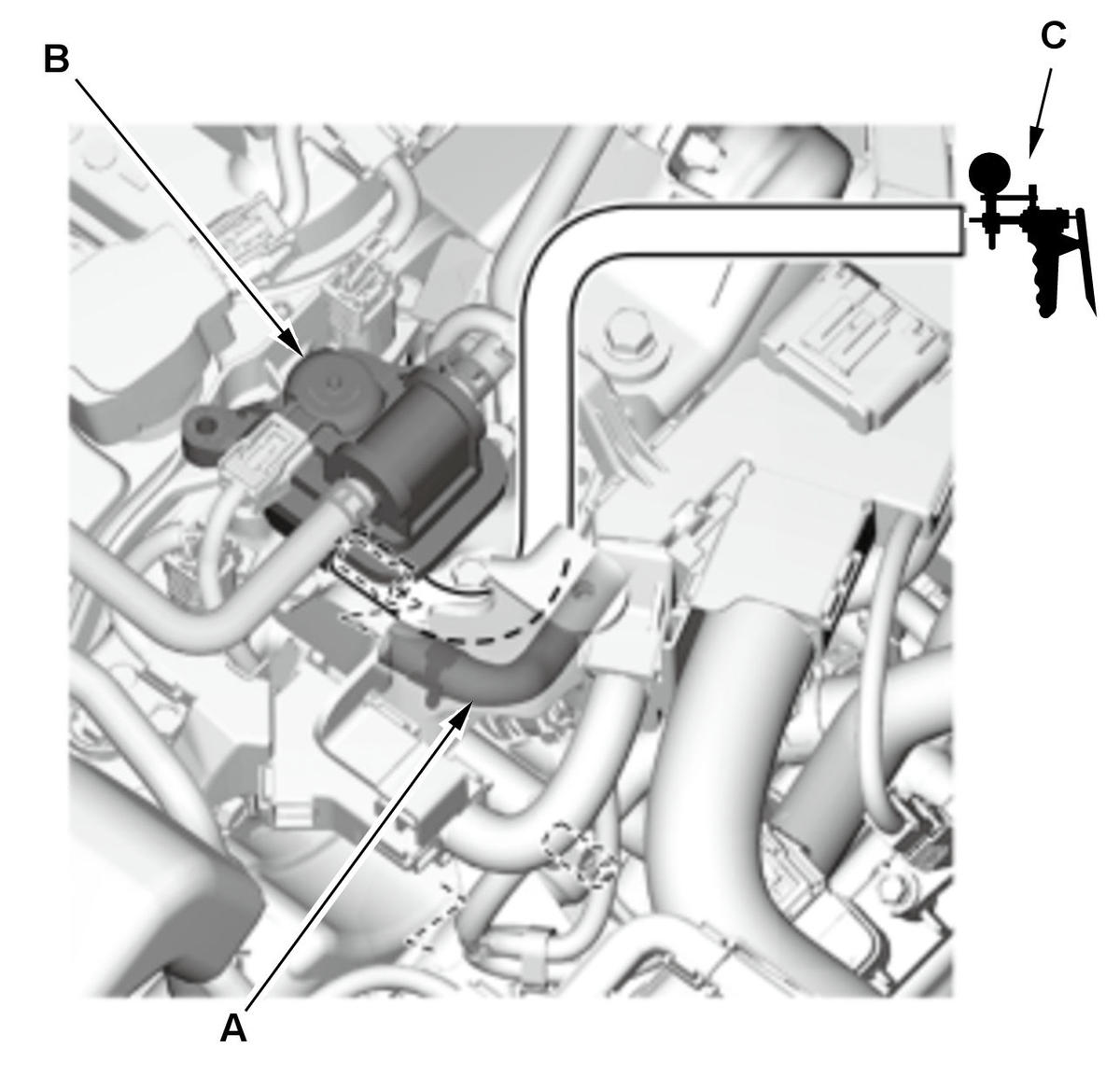

    -4. Disconnect the vacuum hose (purge line) (A) from the EVAP canister purge valve (B) in the engine compartment, and connect a vacuum pump/gauge, 0-30 inHg (C) to the purge valve.

    GHH428032Courtesy of HONDA, U.S.A., INC.

    -5. Start the engine.

    Does the vacuum pump indicate vacuum?

    YES

    When the climate is warm, fuel vapor from the canister line to the fuel tank enters intake manifold, enriching mixture (excessively rich), causing the engine to stall in some cases. If needed, replace the EVAP canister purge valve .

    NO (Reproducible failure)

    Go to step 23 (fuse check).

    NO (Intermittent failure)

    Go to step 24 (relay check).

  23. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the following fuses.

    Fuse No. A7 (15 A) to relay circuit board (PGM-FI main relay 1 circuit)
    No. A15 (15 A) to relay circuit board (ignition coil relay circuit)
    No. A8 (15 A) to relay circuit board (PGM-FI subrelay circuit)
    No. A10 (20 A) to injector relay
    Location Under-hood fuse/relay box
    Fuse No. D8 (15 A) to PGM-FI main relay 2
    Location Under-dash fuse/relay box

    Are the fuses OK?

    YES

    Go to step 24 (relay check).

    NO

    Replace the blown fuse(s).

  24. Relay check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    Test the following relays:

    NOTE:  In situations where the failure is difficult to reproduce, the following relays may have an intermittent failure.

    Are the relay circuit board and the relays OK?

    YES

    Go to step 25 (power and ground terminal check).

    NO

    Replace any damaged relay(s).

  25. Power and ground terminal check:

    Check the corrosion and looseness at the following terminals:

    • 12 volt battery terminals
    • Ground cable terminals between the engine and the body ground, and the transmission and the body ground
    • Engine wire harness ground (G101, G102)

    Are the terminals OK?

    YES

    Go to step 26 (connector terminal check).

    NO

    Repair any terminal(s) as needed.

  26. Connector terminal check:

    Check the foreign objects clogged and corrosion at the following connector terminals:

    • PCM connectors
      • FI MAIN RLY OUT, FI MAIN RLY CL-
      • FUEL PUMP RLY CL-
      • INJ RLY OUT
      • FI SUB RLY OUT, FI SUB RLY CL-, +B VBACT
      • GND2, FI ECU GND, GND3, GND4, INJ GND1, INJ GND2
      • INJH1, INJL1, INJH2, INJL2, INJH3, INJL3, INJH4, INJL4
      • IGN01, IGN02, IGN03, IGN04
      • HPUMP H, HPUMP L
      • TDCAM
      • CRKP
      • PB
      • FGP
      • TW
      • IPV
      • MTR1, MTR2, THL1, THL2
    • CMP sensor A
    • CKP sensor
    • Ignition coils
    • Injectors
    • High pressure fuel pump
    • ECT sensor 1
    • MAF sensor/IAT sensor 1
    • MAP sensor
    • Throttle body
    • EVAP canister purge valve
    • Fuel tank unit

    Are the terminals OK?

    YES

    Go to the diagnostic interview for engine stalls .

    NO

    Repair any terminal(s) as needed.

scientia non olet · About LEMON Manuals
