Fuel and Emissions Systems Circuit Diagram (2.4 L Engine) (2017 2018 2019)

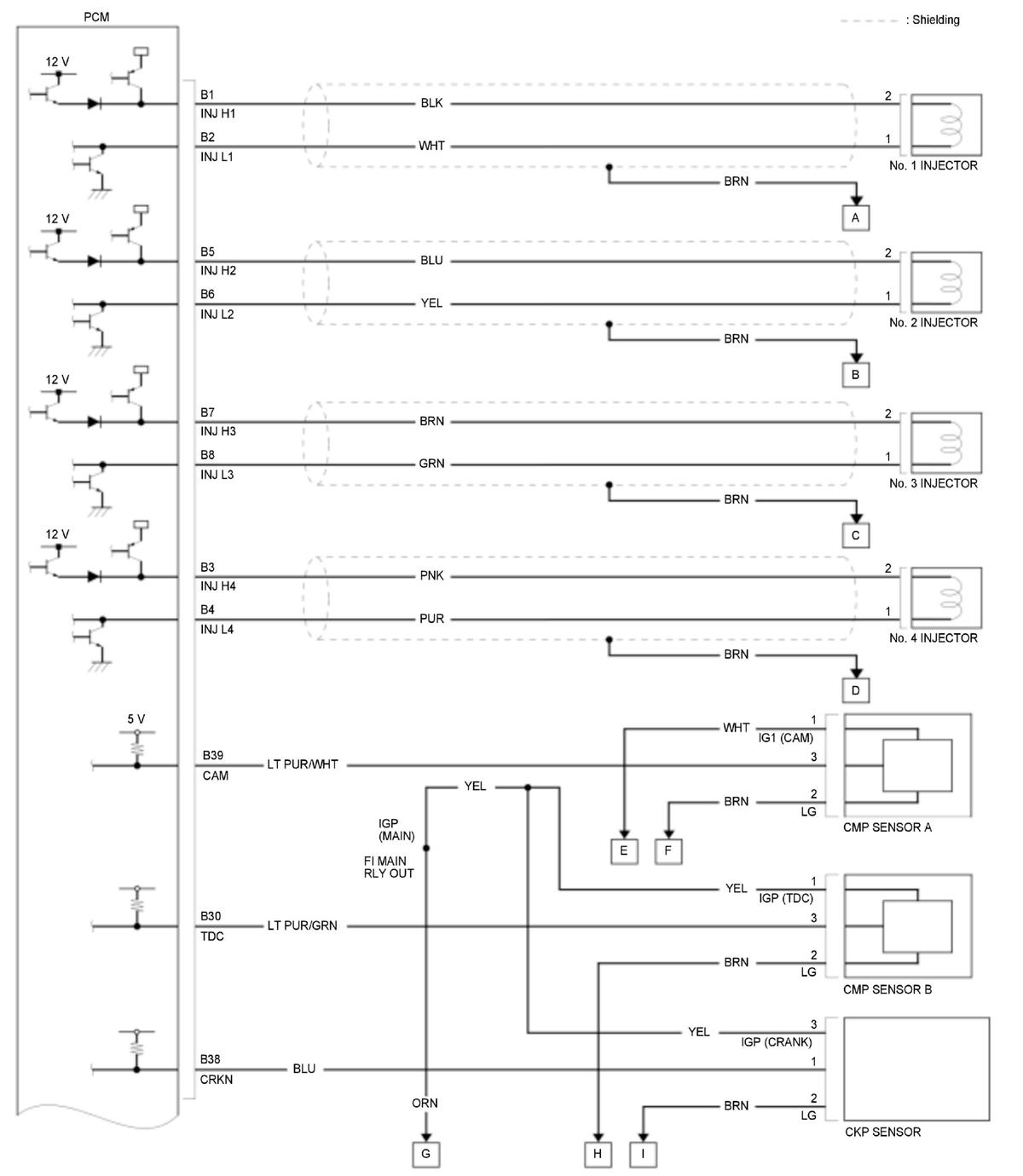

GHH427964

Courtesy of HONDA, U.S.A., INC.

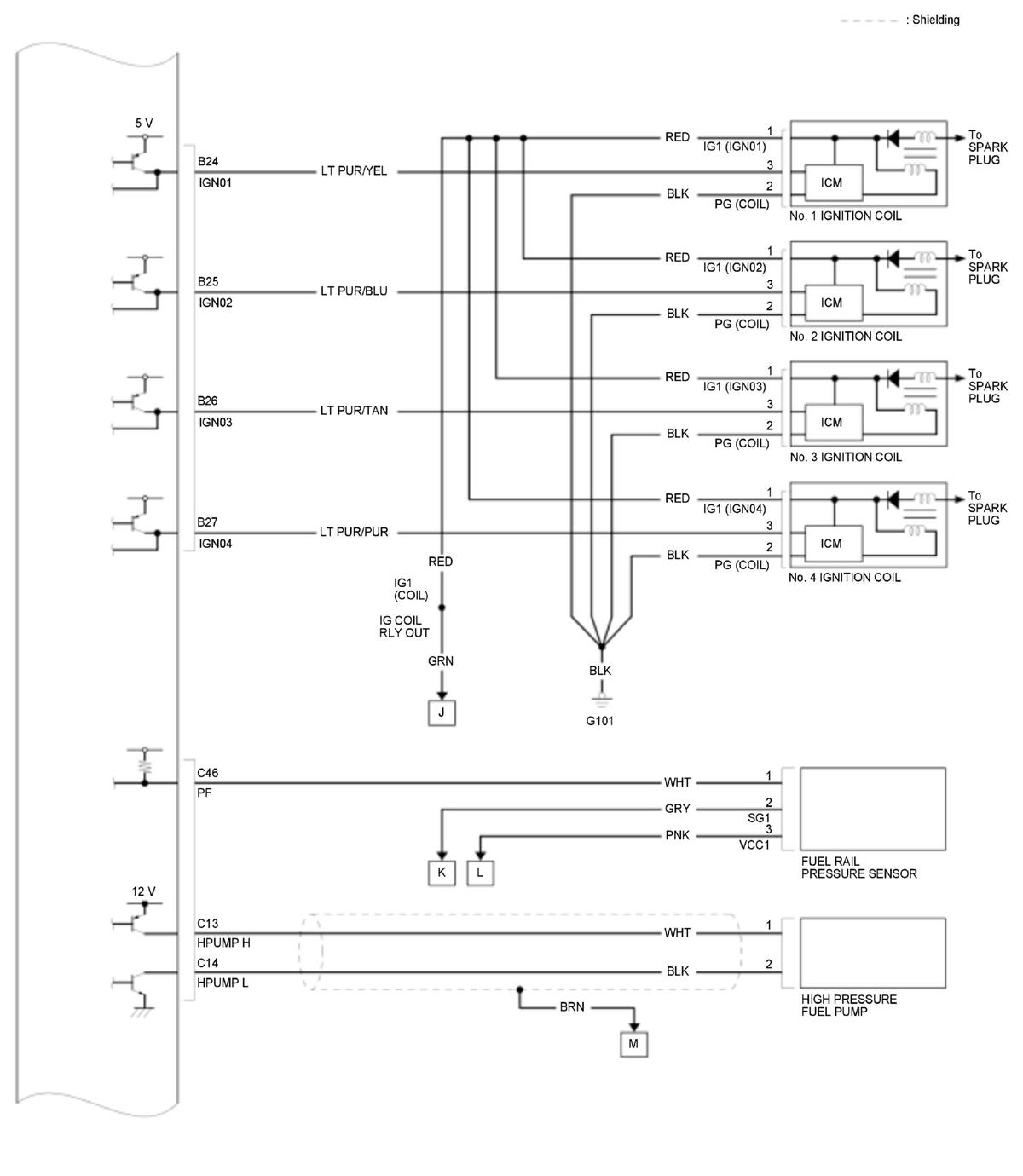

GHH427965

Courtesy of HONDA, U.S.A., INC.

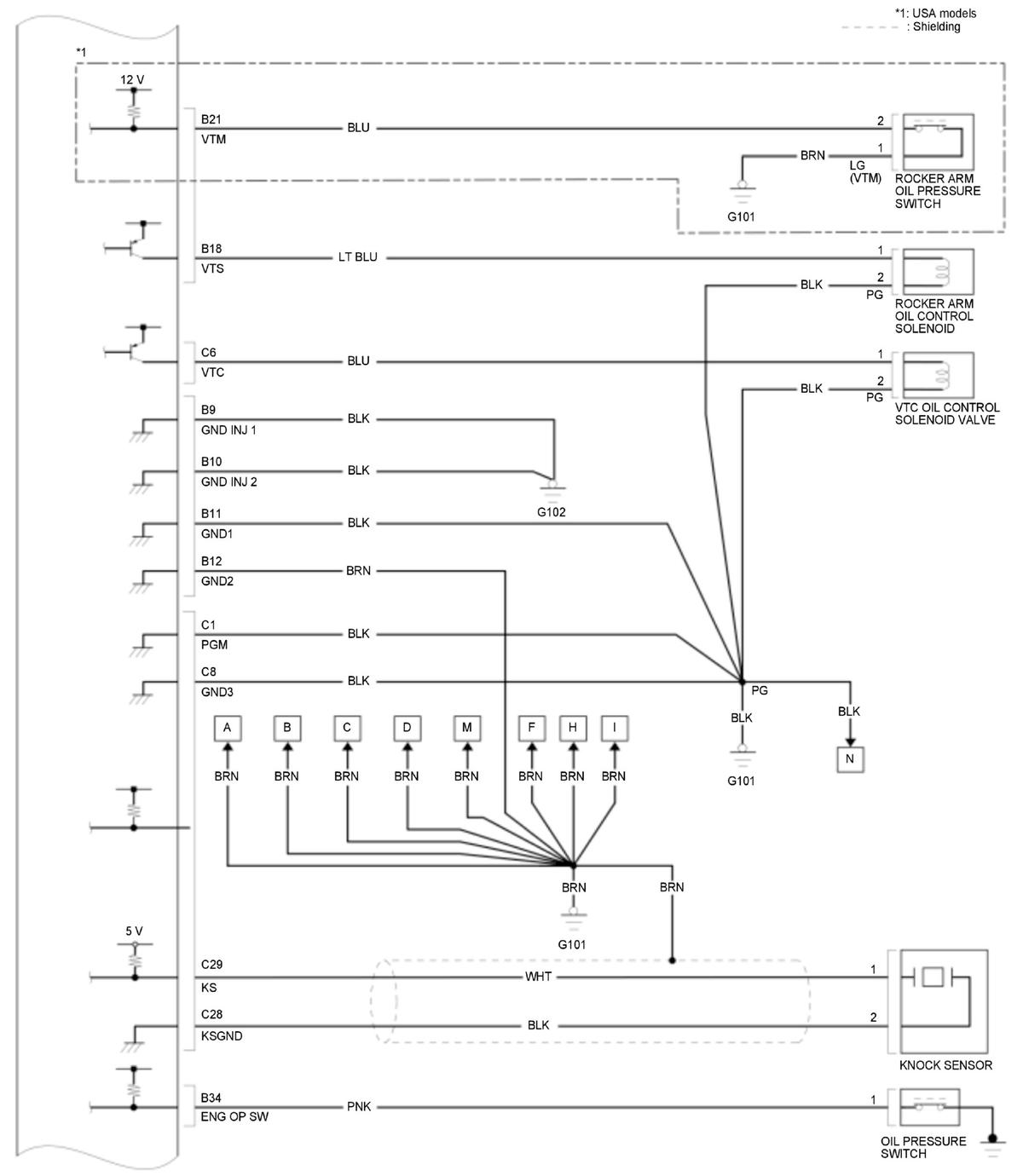

GHH427966

Courtesy of HONDA, U.S.A., INC.

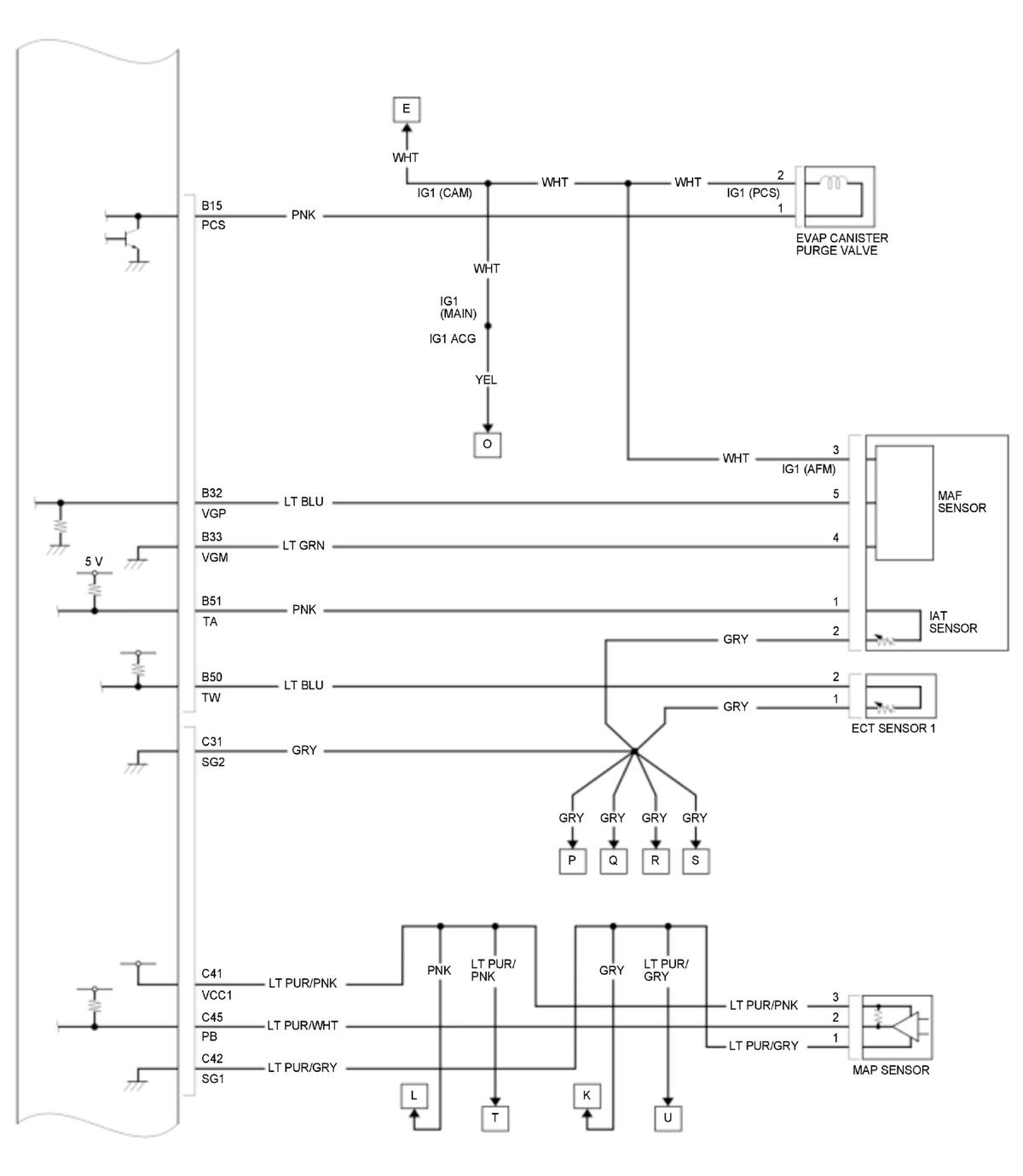

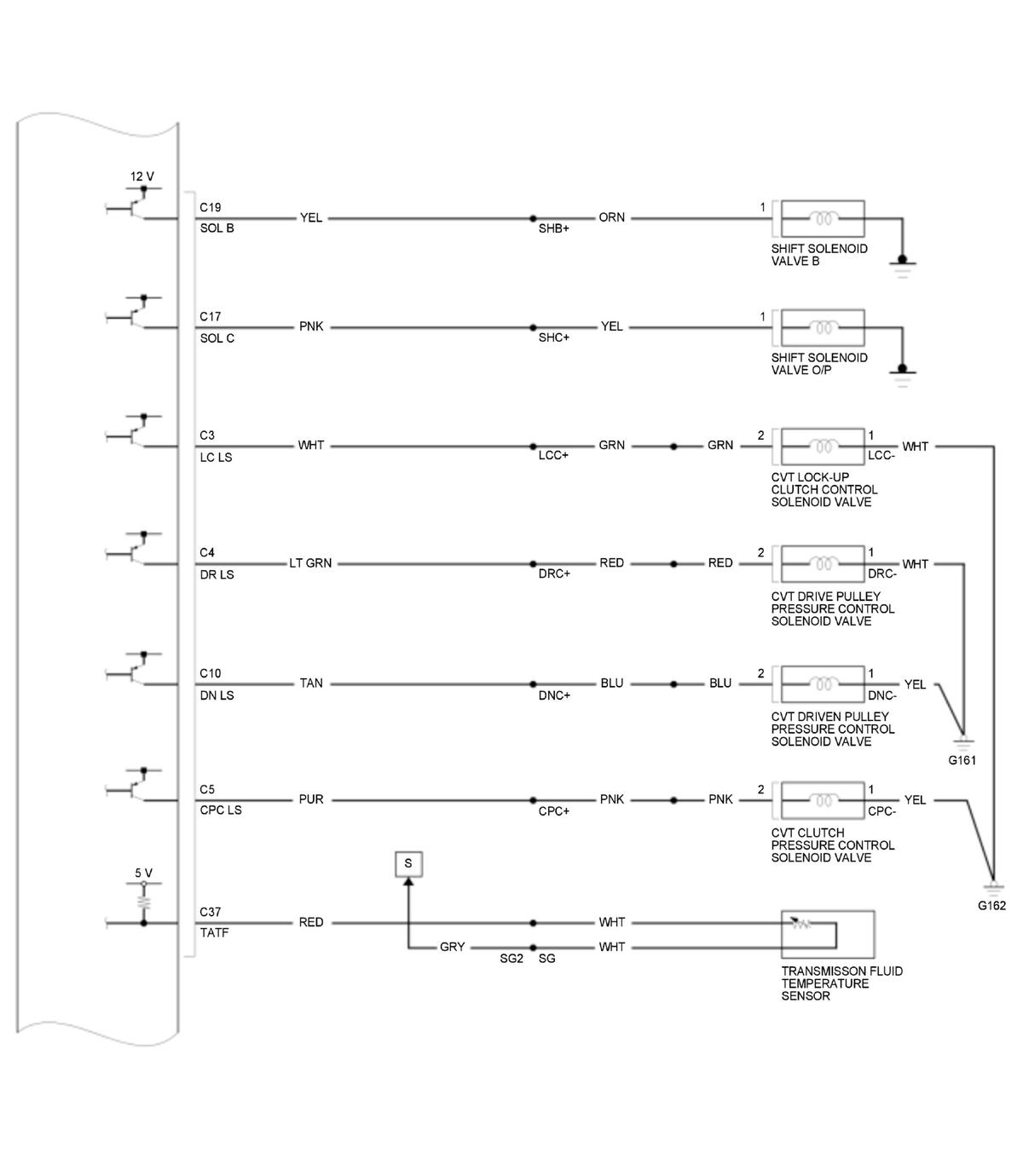

GHH427967

Courtesy of HONDA, U.S.A., INC.

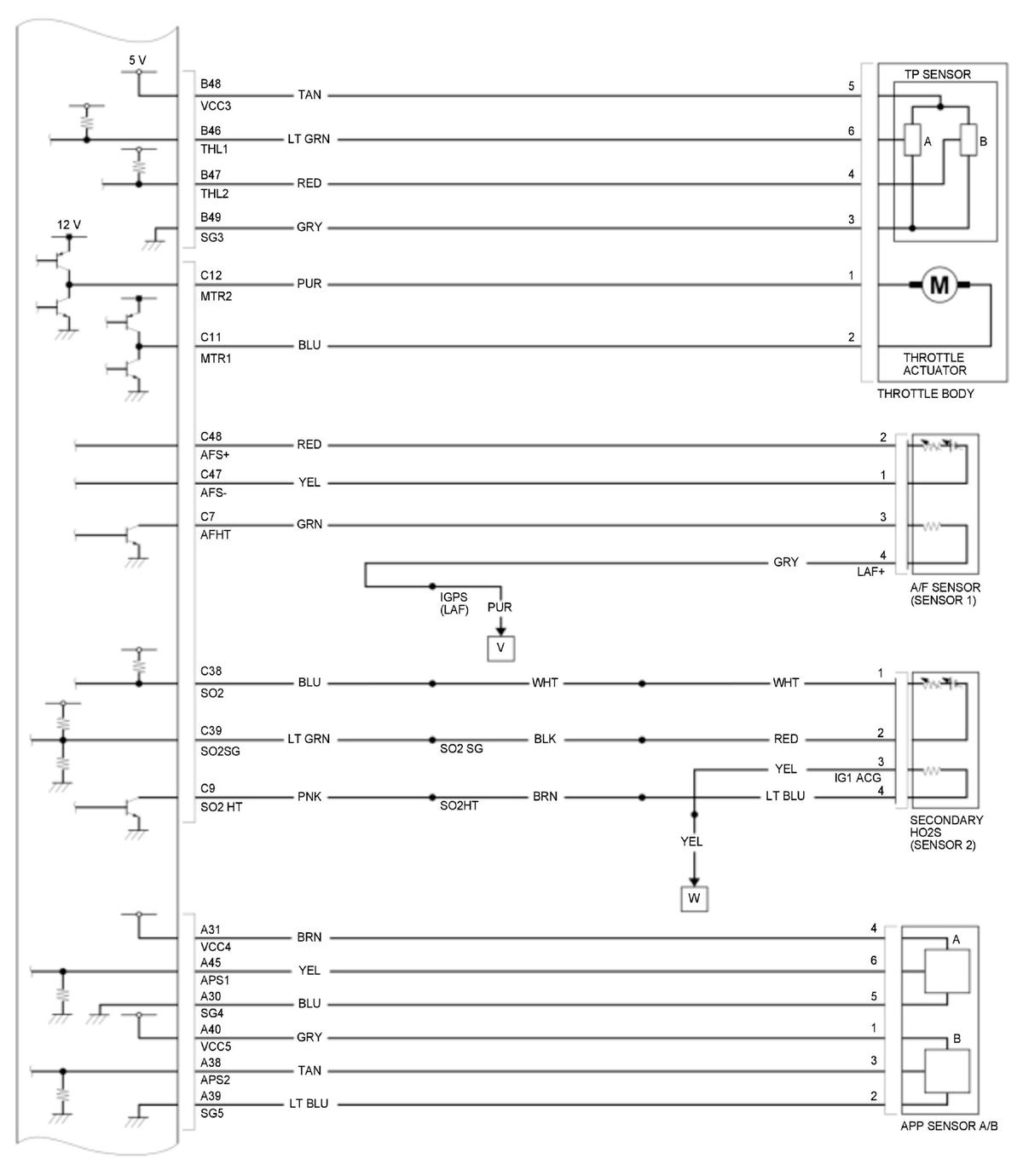

GHH427968

Courtesy of HONDA, U.S.A., INC.

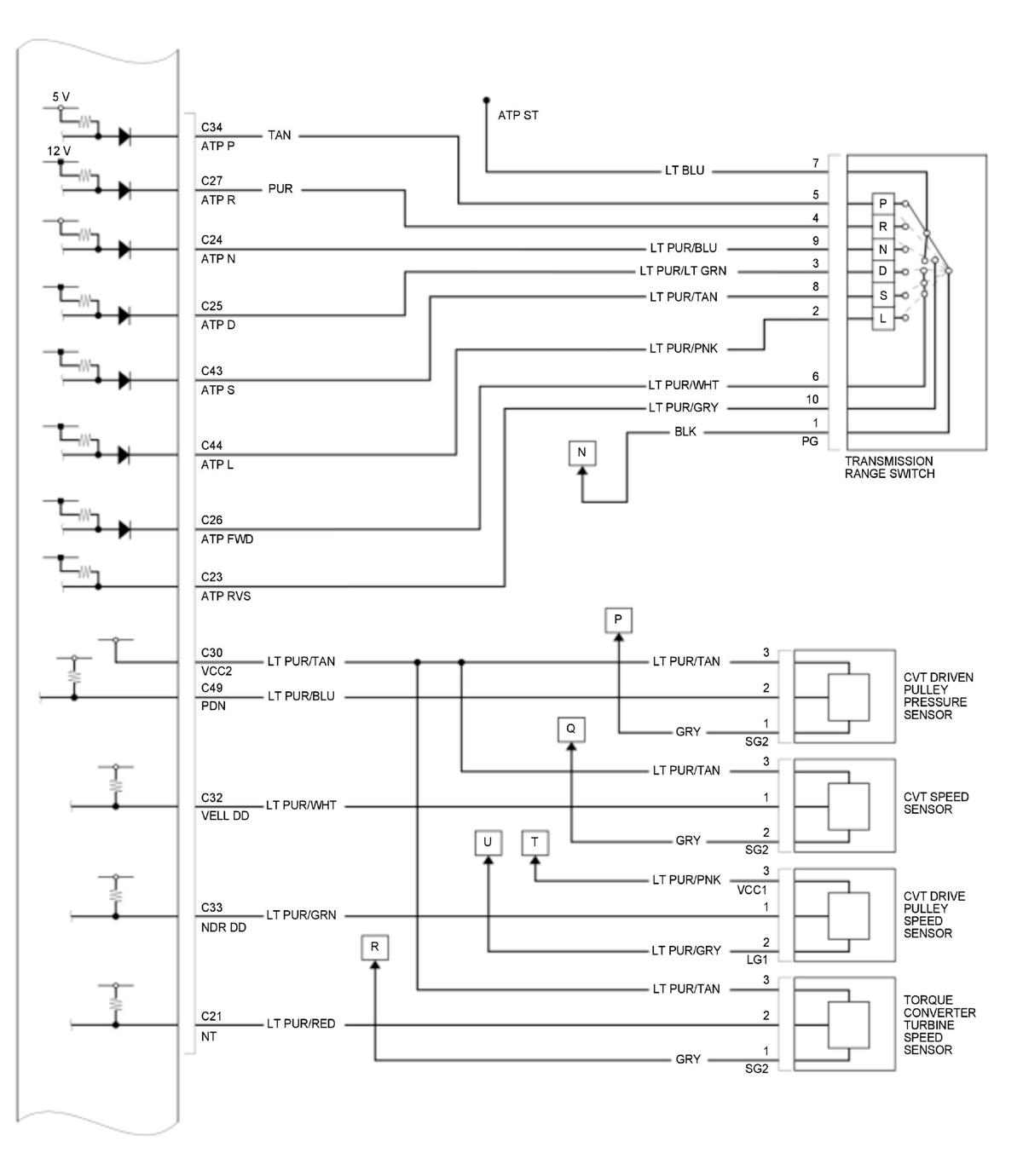

GHH427969

Courtesy of HONDA, U.S.A., INC.

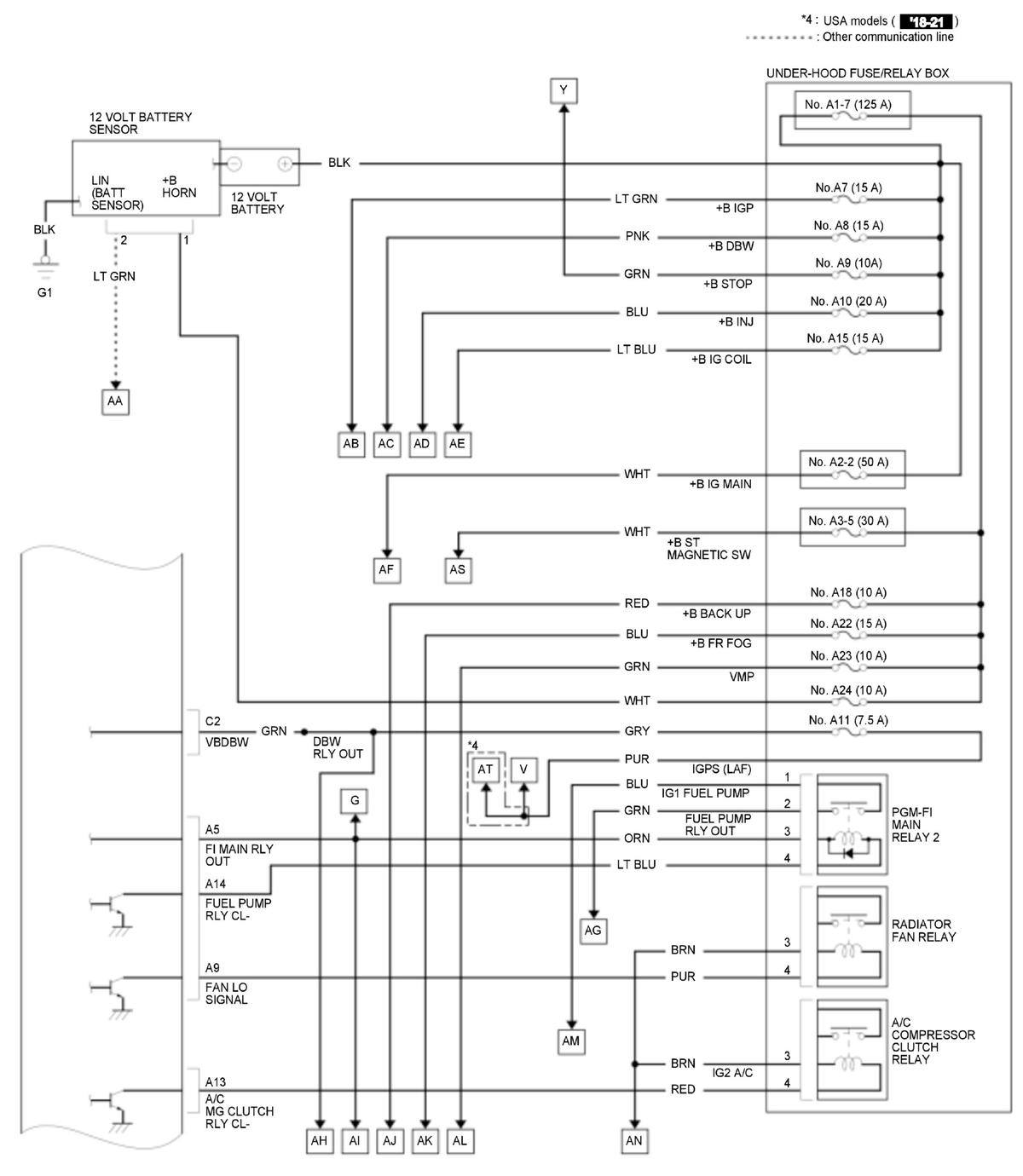

GHH427970

Courtesy of HONDA, U.S.A., INC.

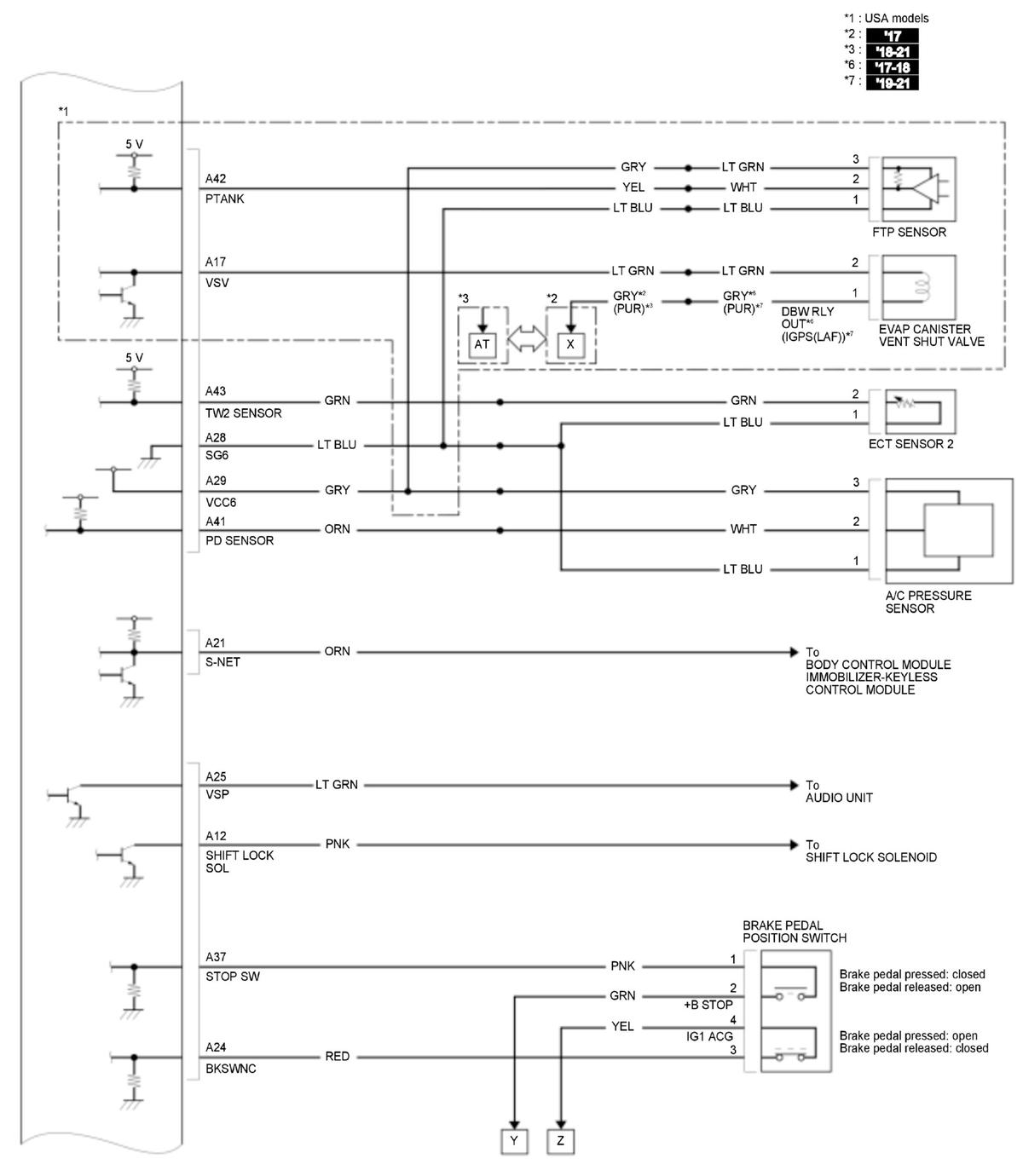

GHH427971

Courtesy of HONDA, U.S.A., INC.

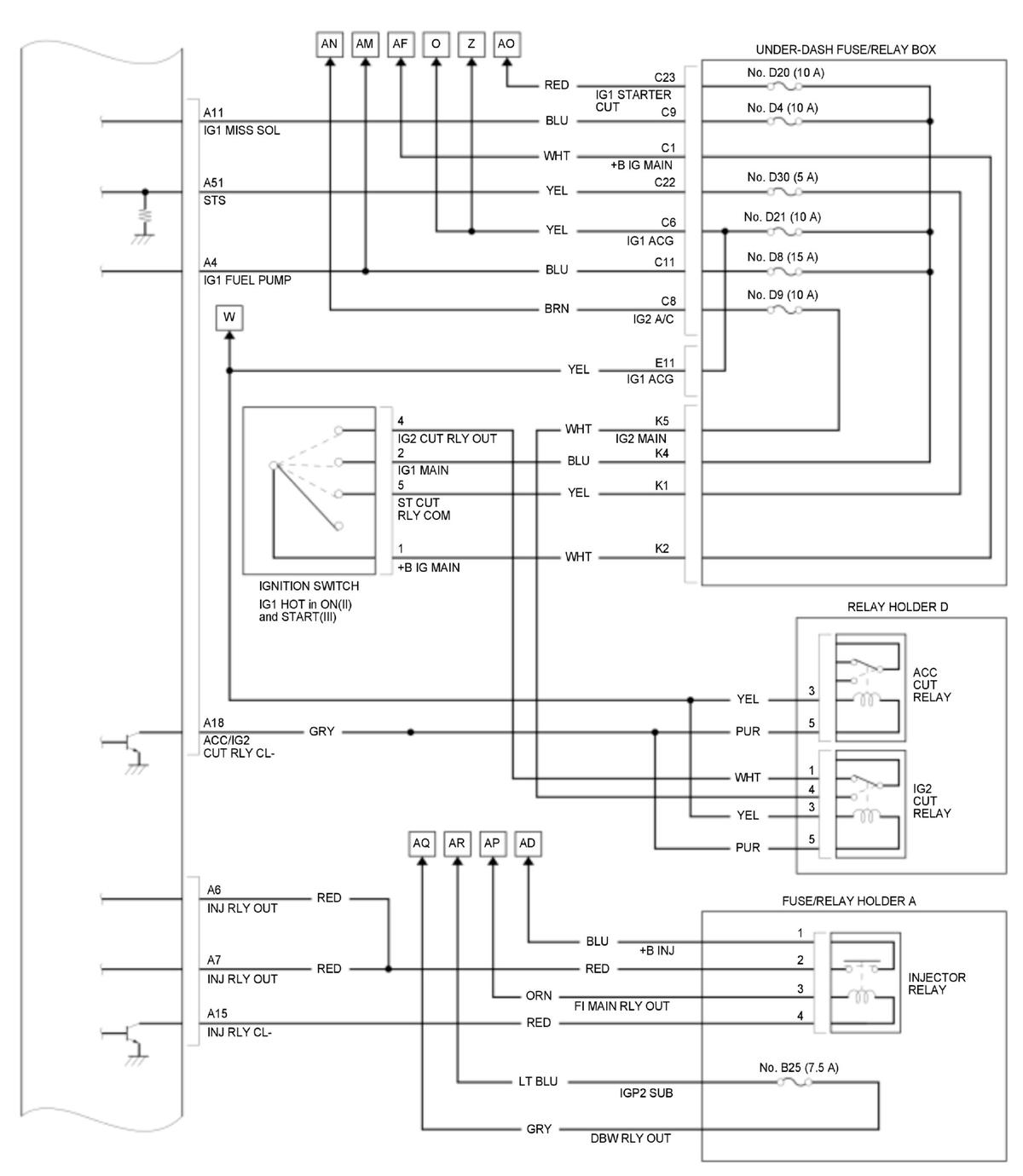

GHH427972

Courtesy of HONDA, U.S.A., INC.

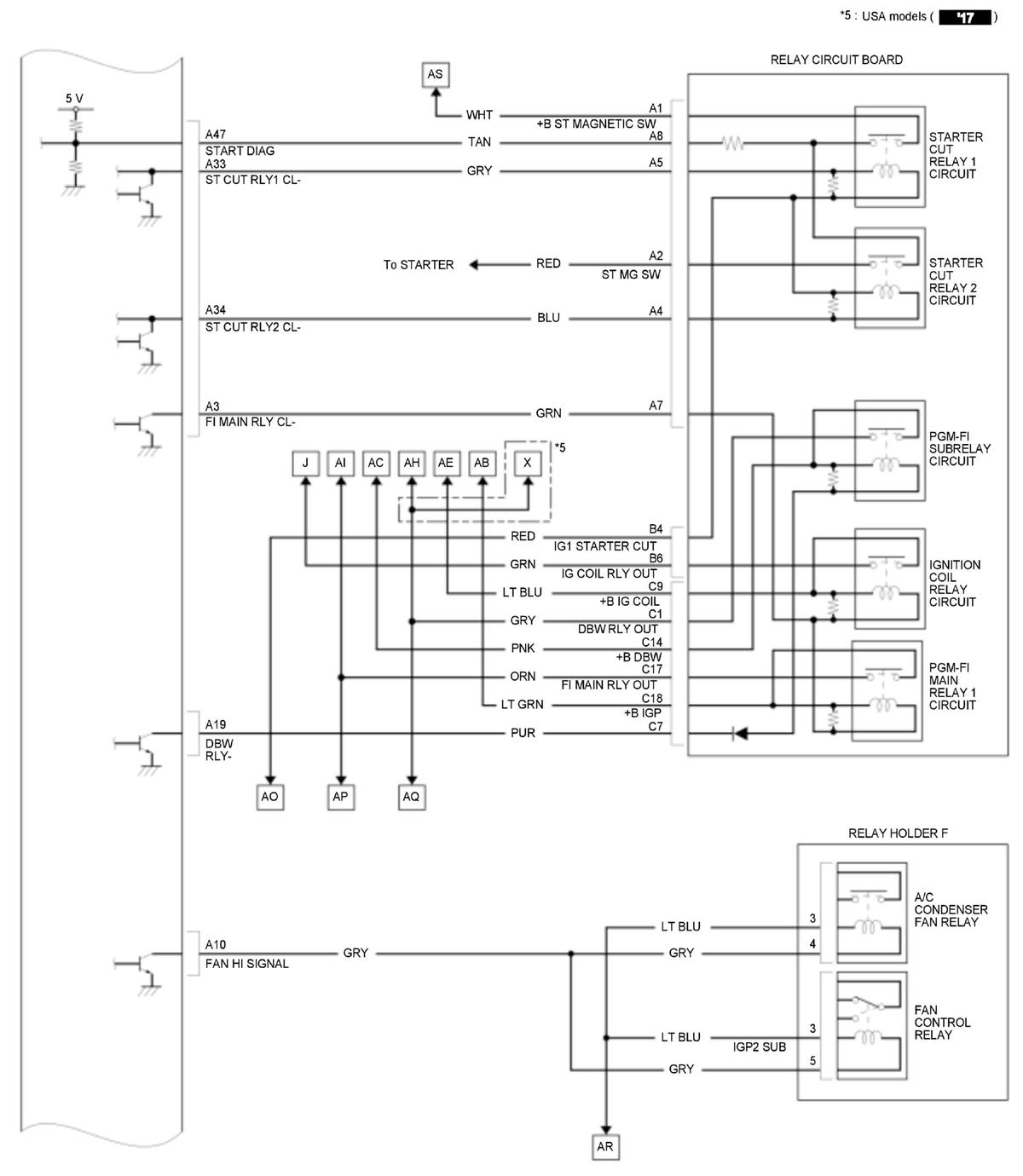

GHH427973

Courtesy of HONDA, U.S.A., INC.

GHH427974

Courtesy of HONDA, U.S.A., INC.

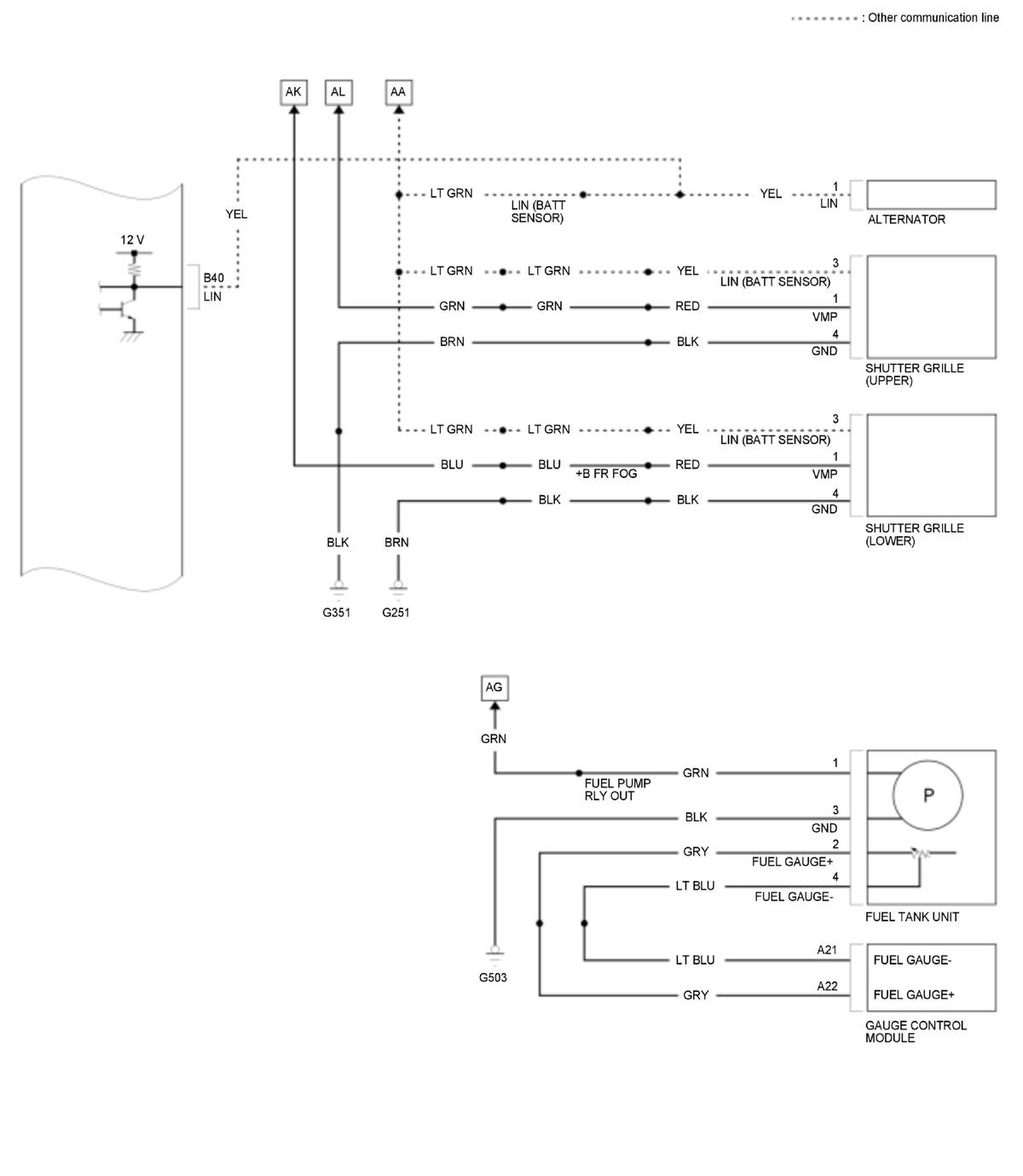

GHH427975

Courtesy of HONDA, U.S.A., INC.

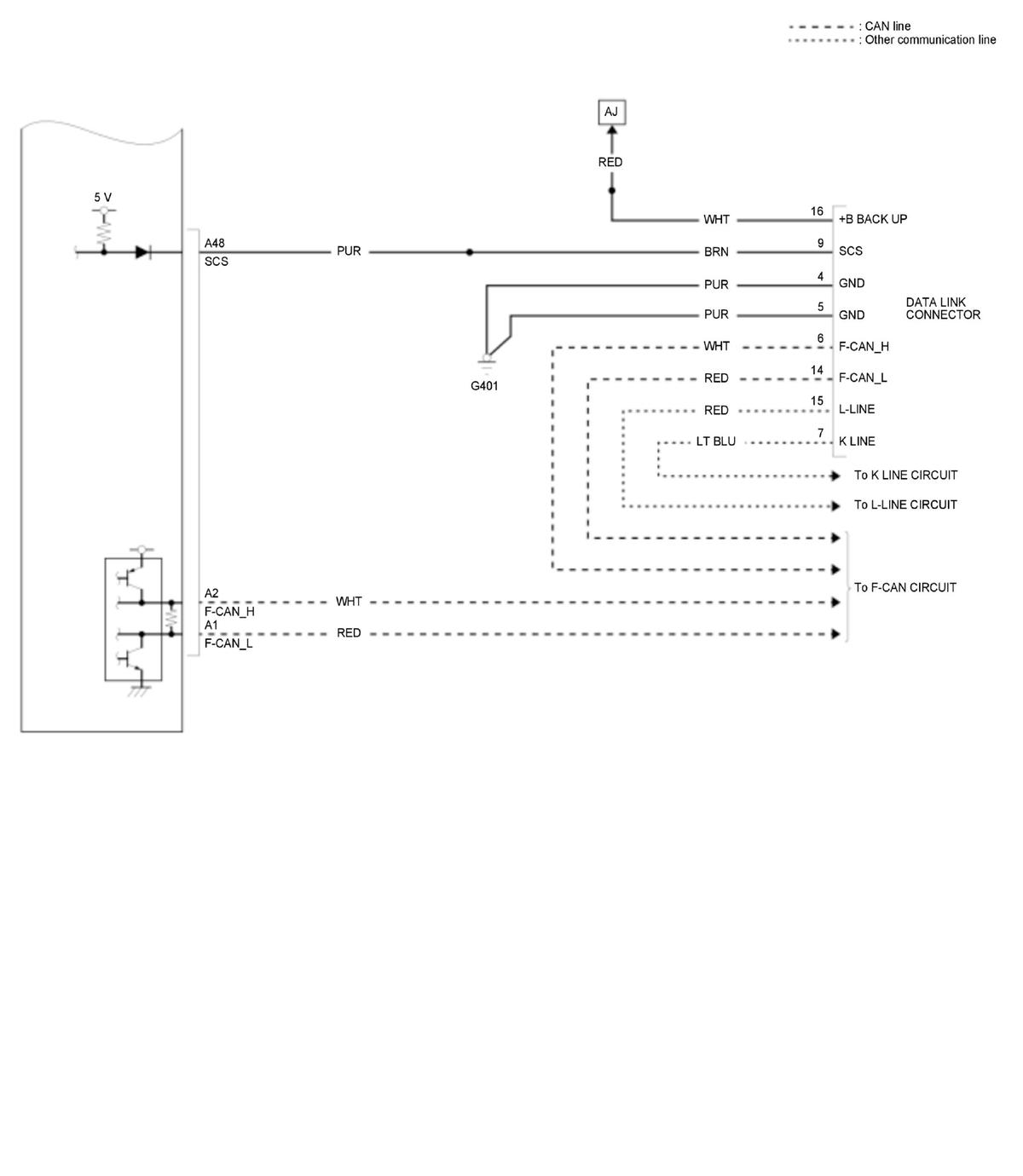

GHH427976

Courtesy of HONDA, U.S.A., INC.
