Fuel and Emissions Systems Circuit Diagram (1.5 L Engine)

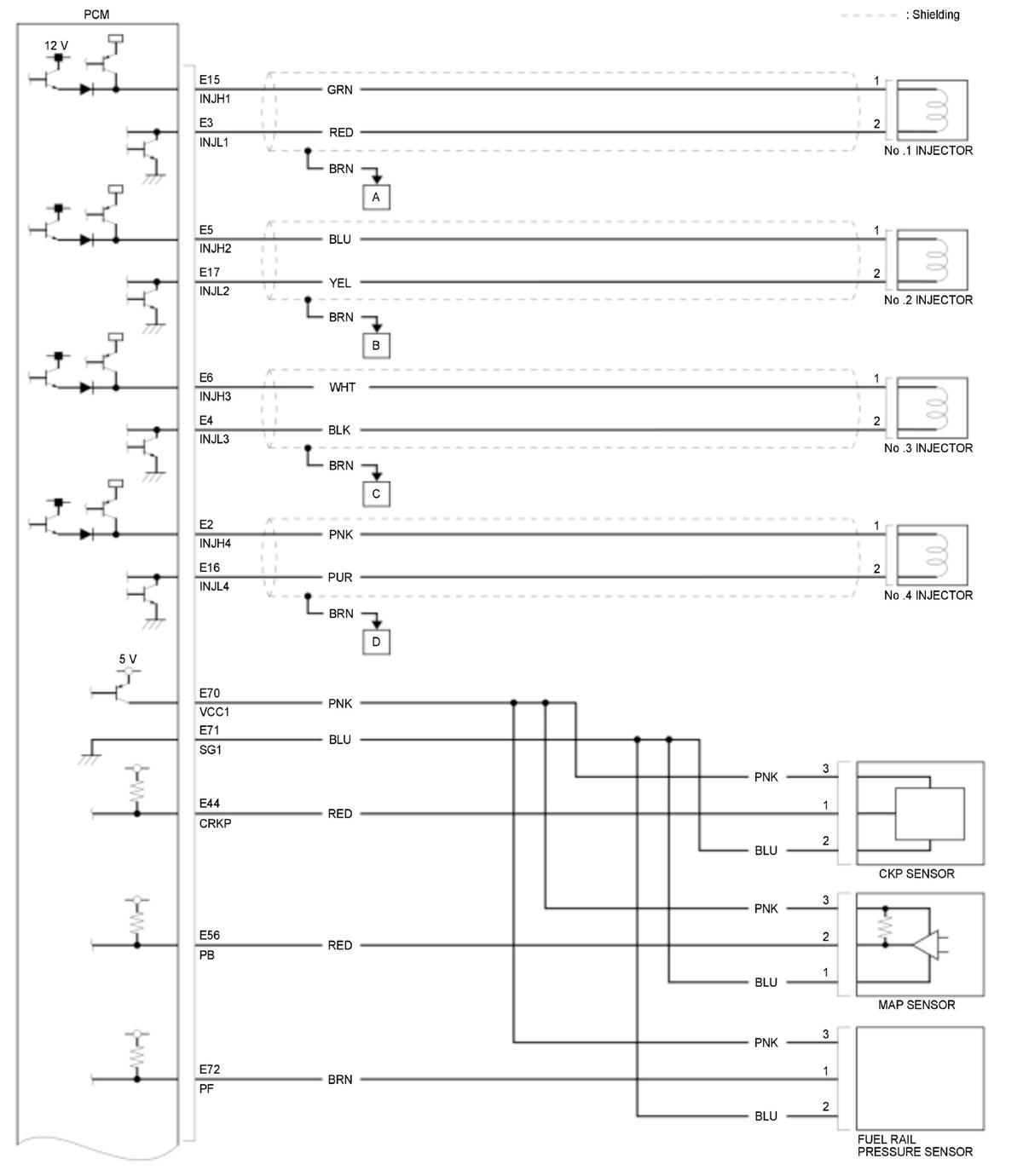

GHH427949

Courtesy of HONDA, U.S.A., INC.

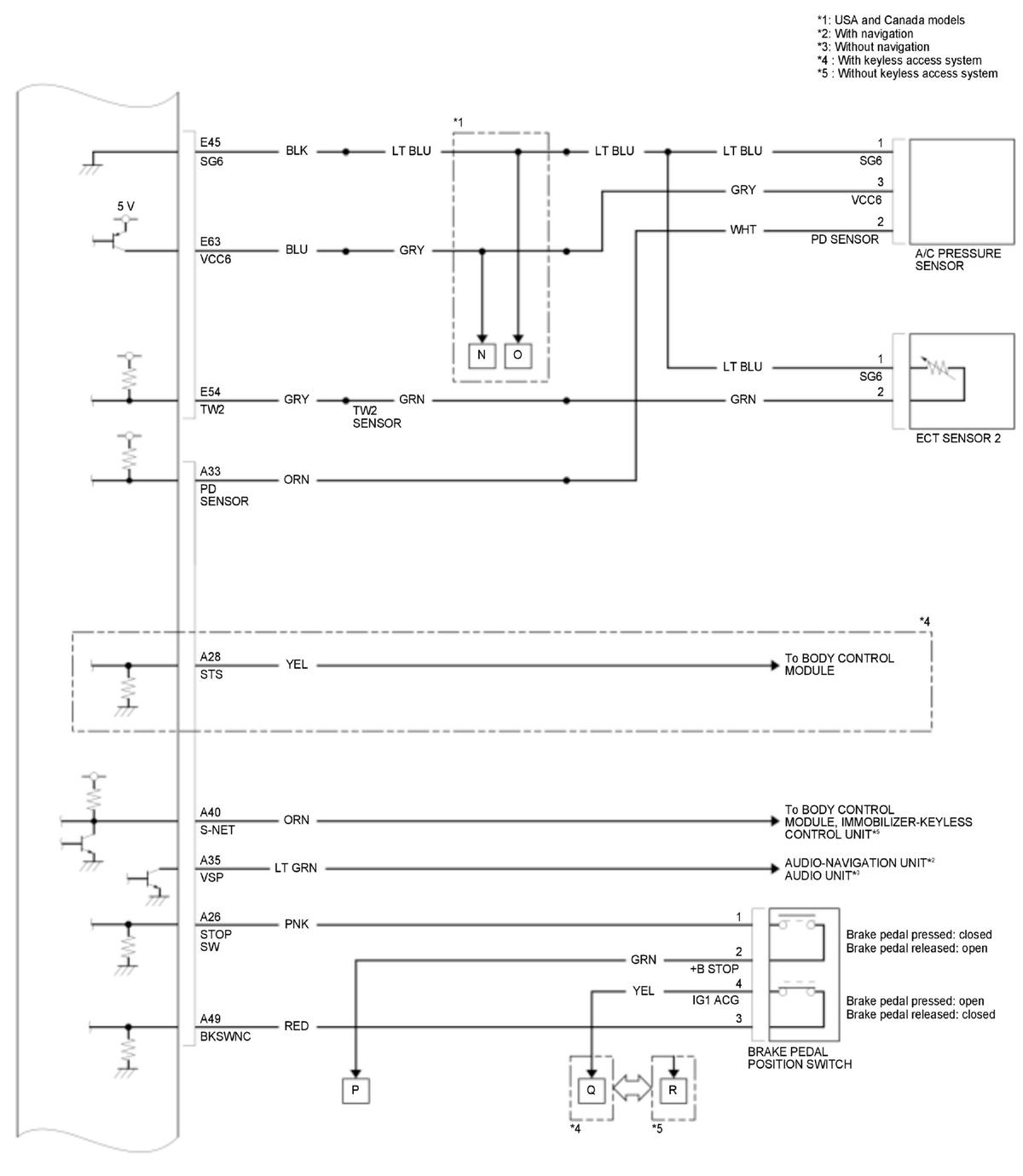

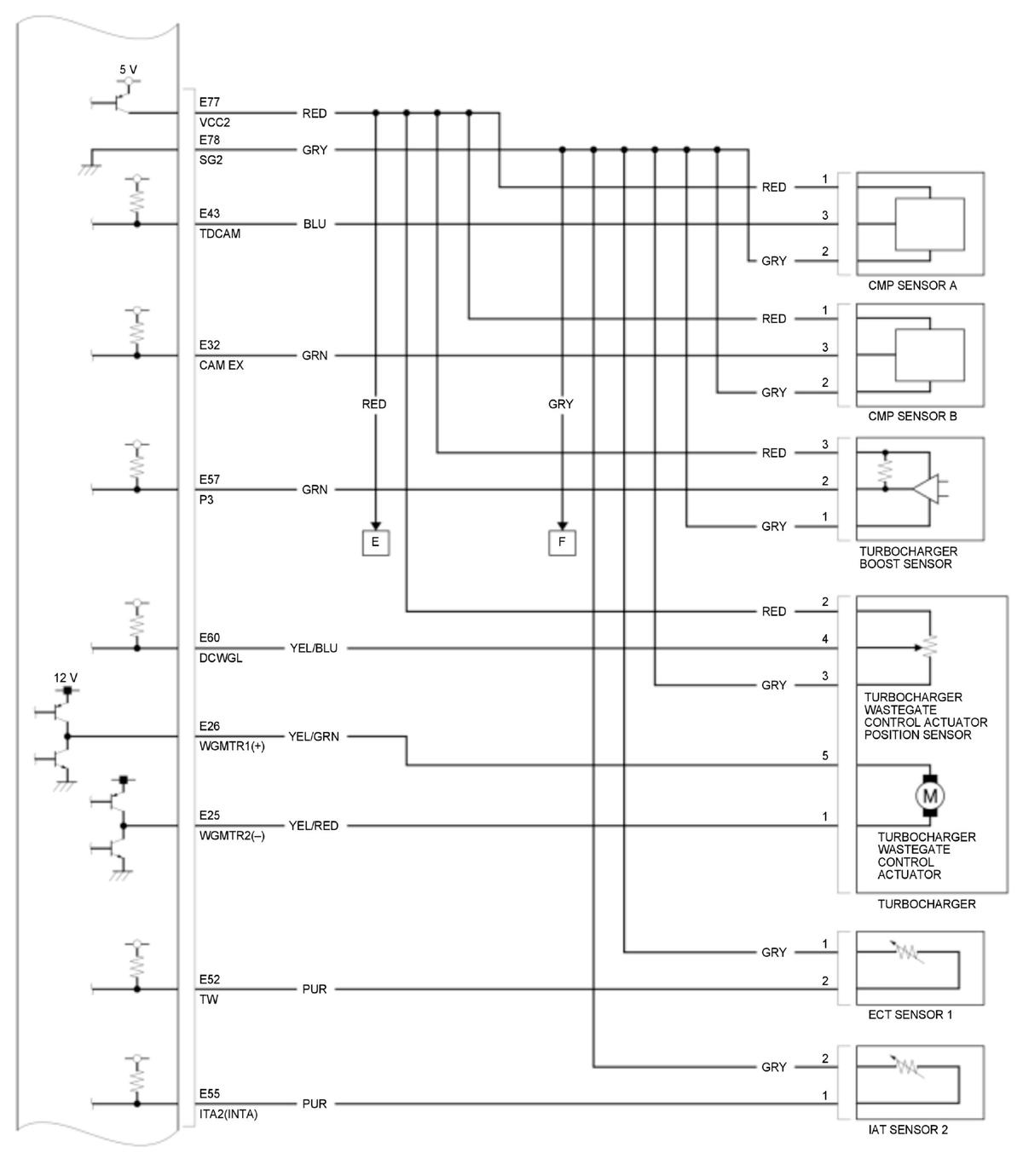

GHH427950

Courtesy of HONDA, U.S.A., INC.

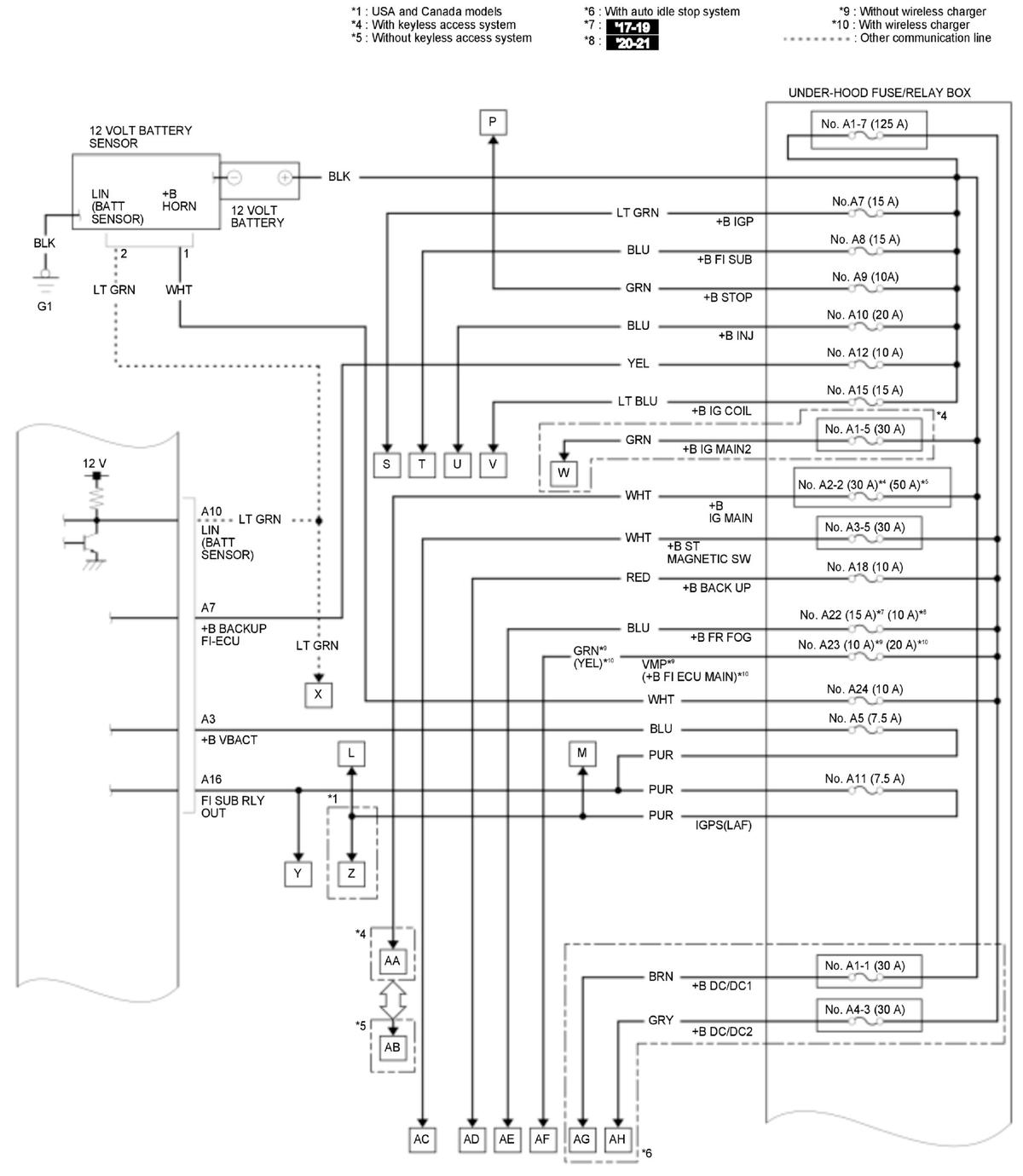

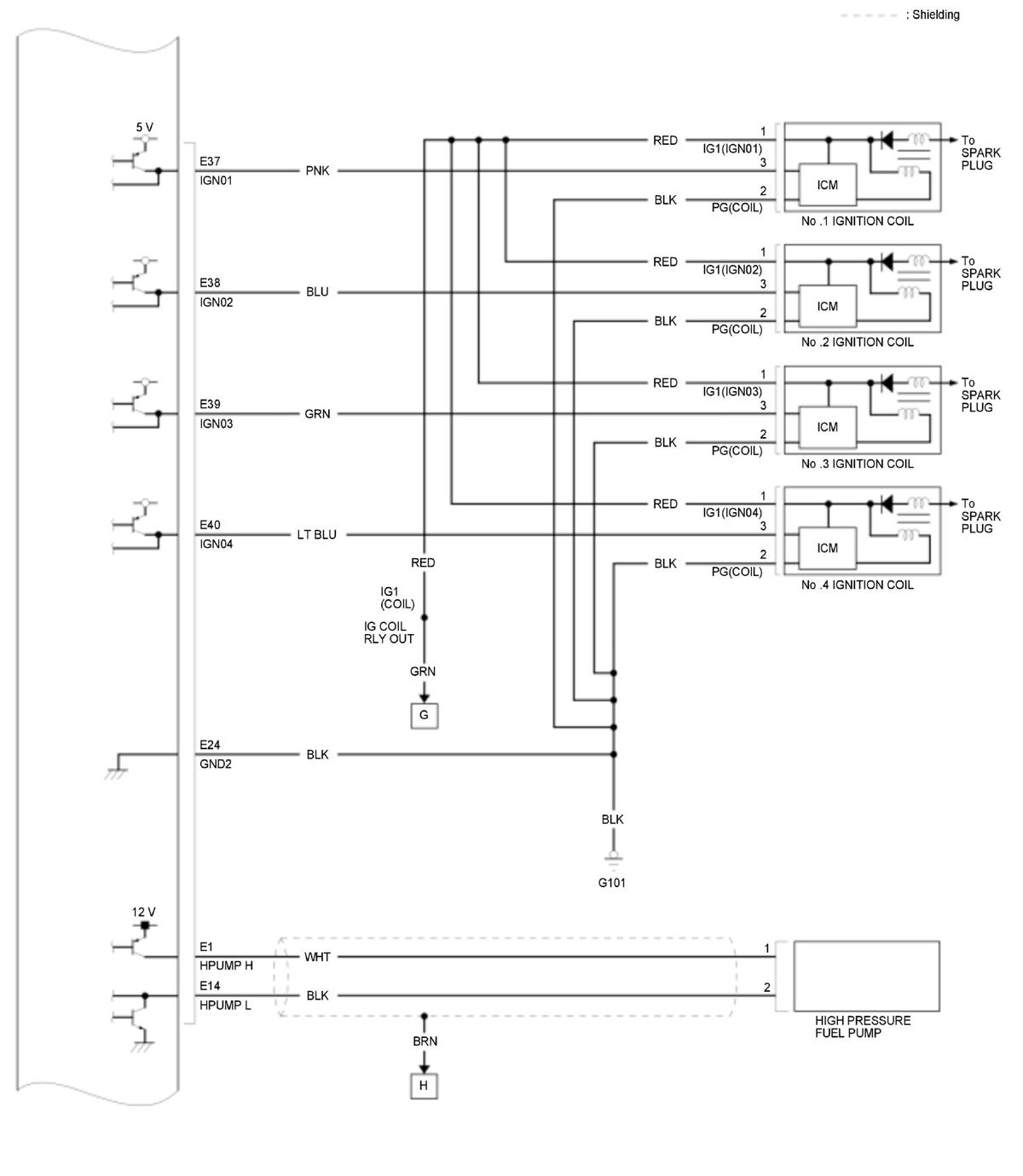

GHH427951

Courtesy of HONDA, U.S.A., INC.

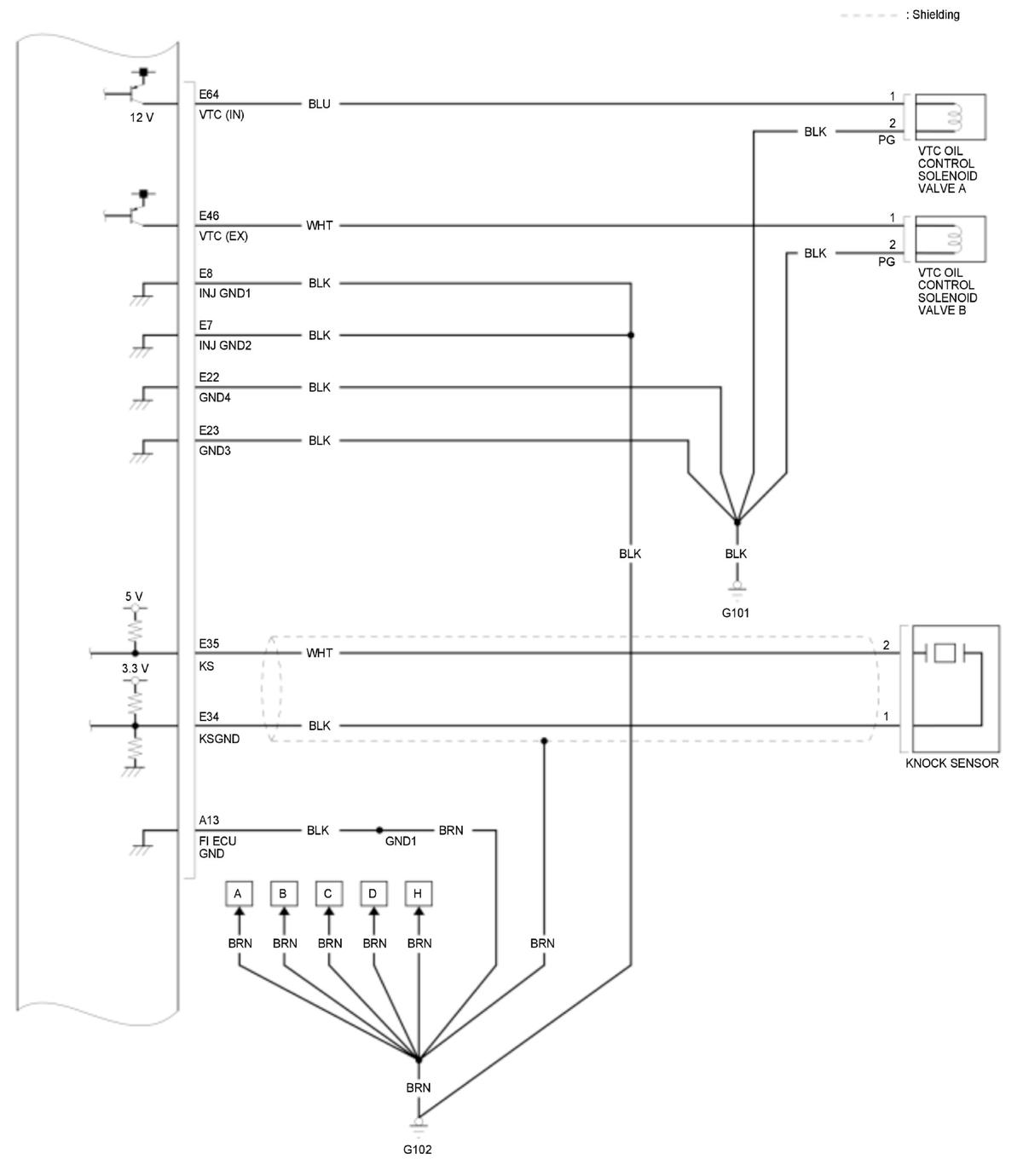

GHH427952

Courtesy of HONDA, U.S.A., INC.

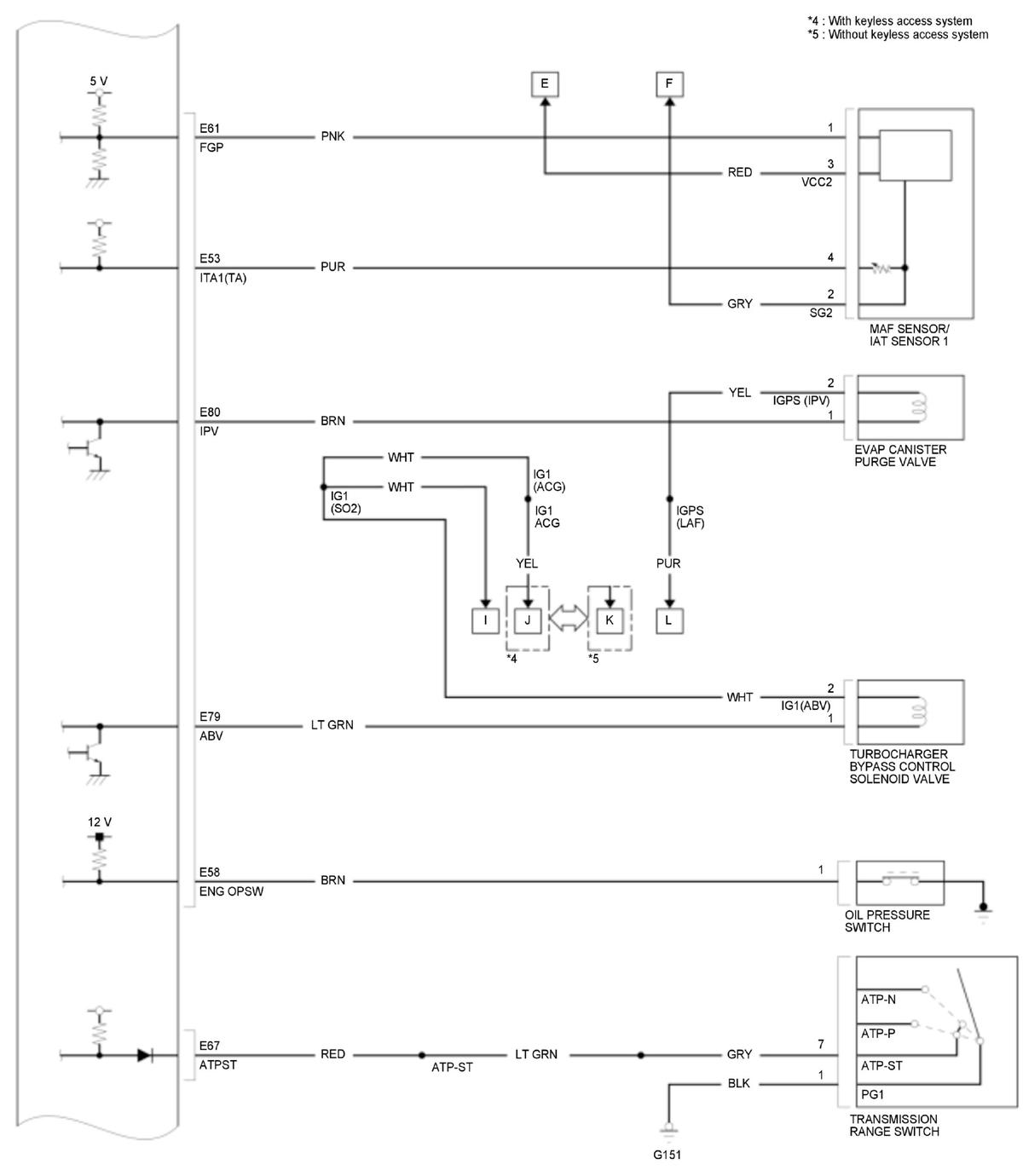

GHH427953

Courtesy of HONDA, U.S.A., INC.

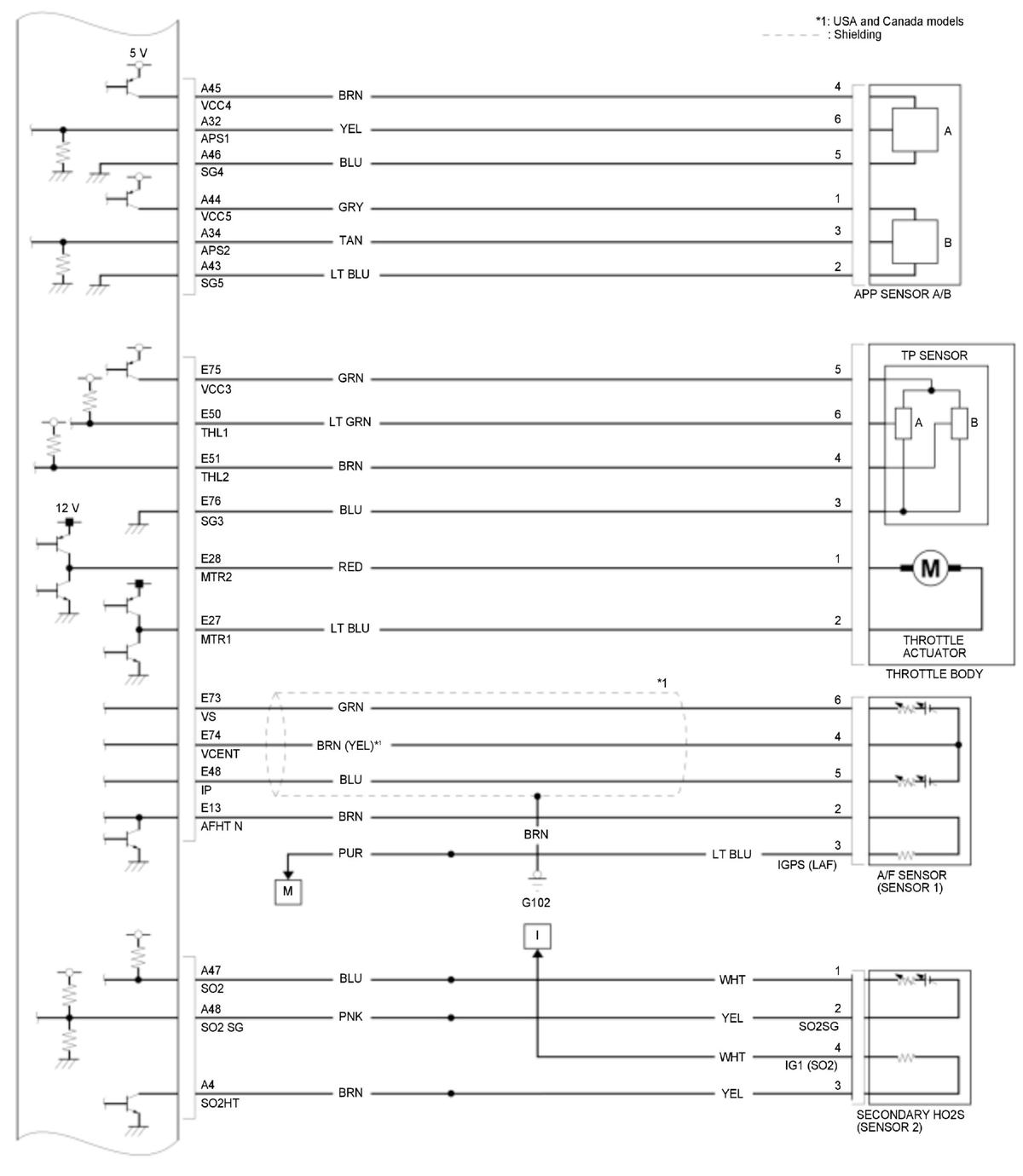

GHH427954

Courtesy of HONDA, U.S.A., INC.

GHH427955

Courtesy of HONDA, U.S.A., INC.

GHH427956

Courtesy of HONDA, U.S.A., INC.

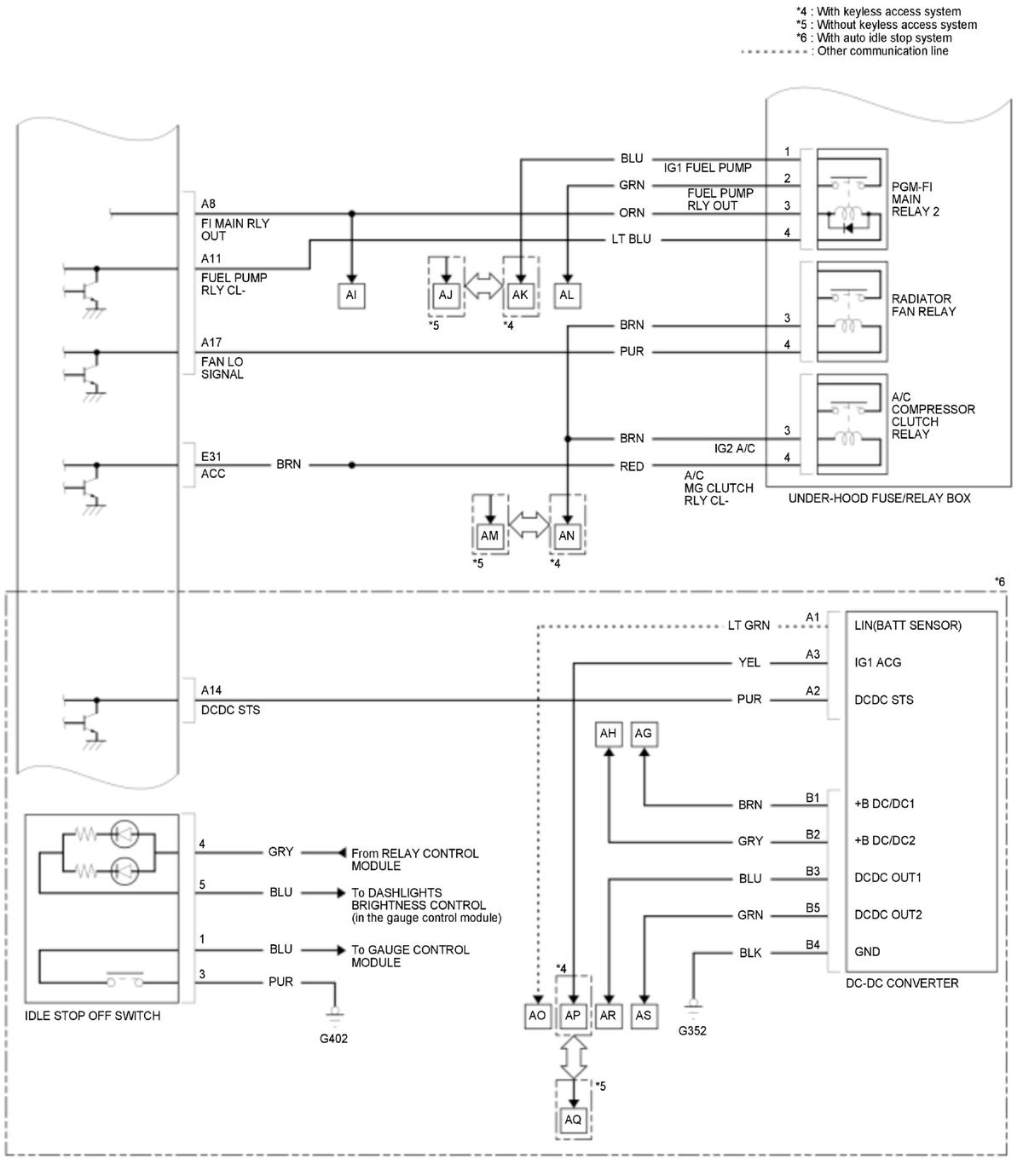

GHH427957

Courtesy of HONDA, U.S.A., INC.

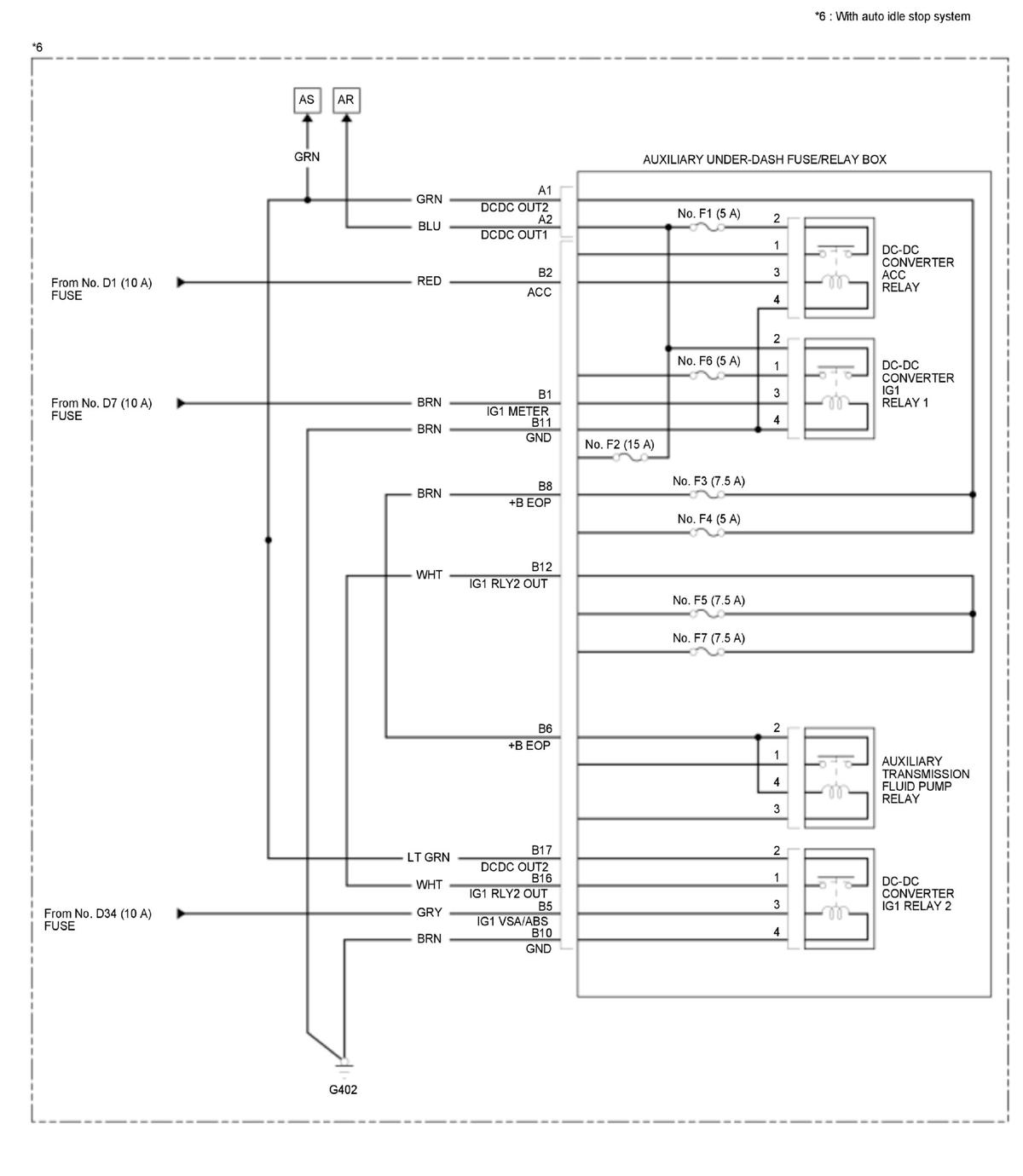

GHH427958

Courtesy of HONDA, U.S.A., INC.

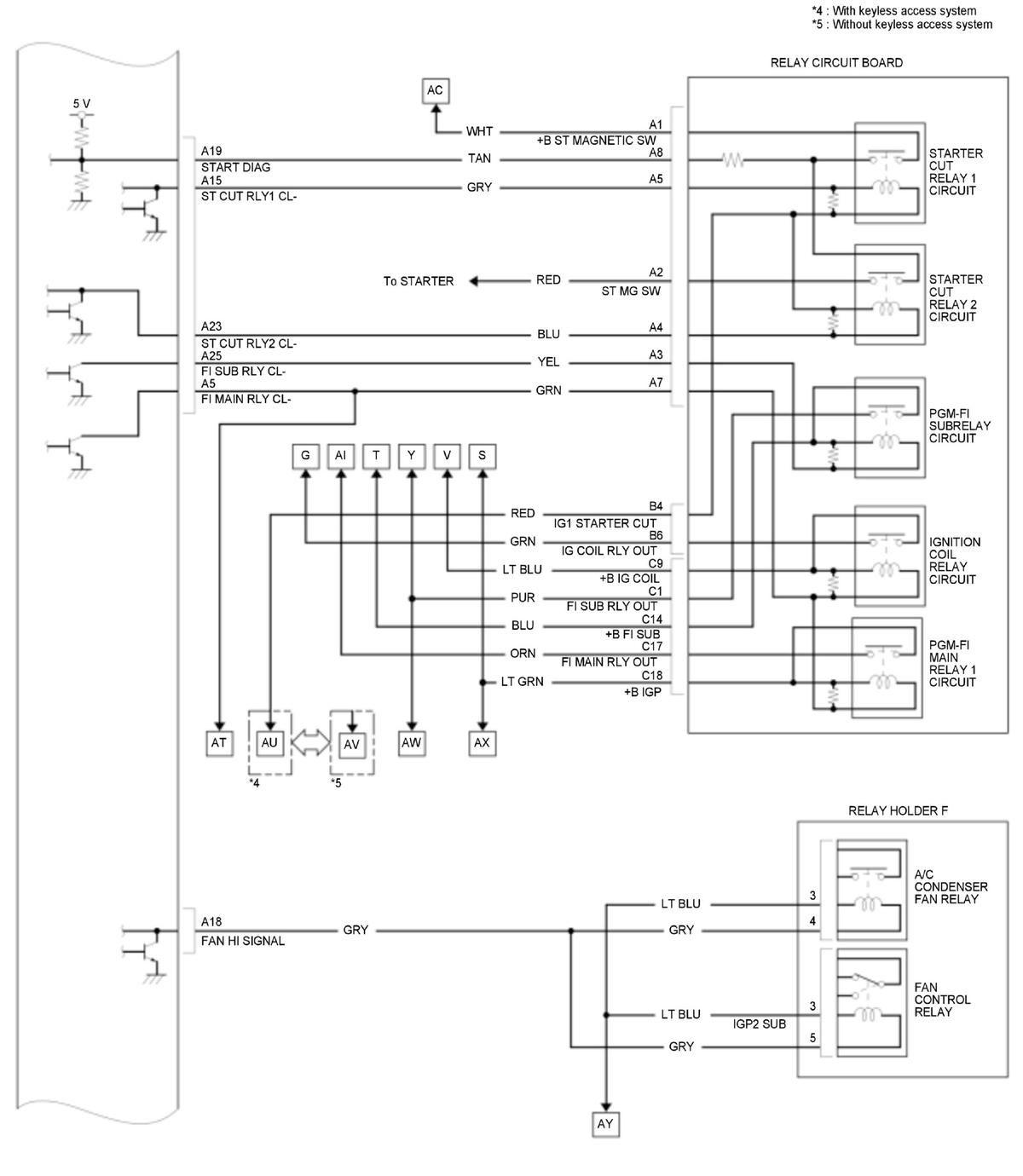

GHH427959

Courtesy of HONDA, U.S.A., INC.

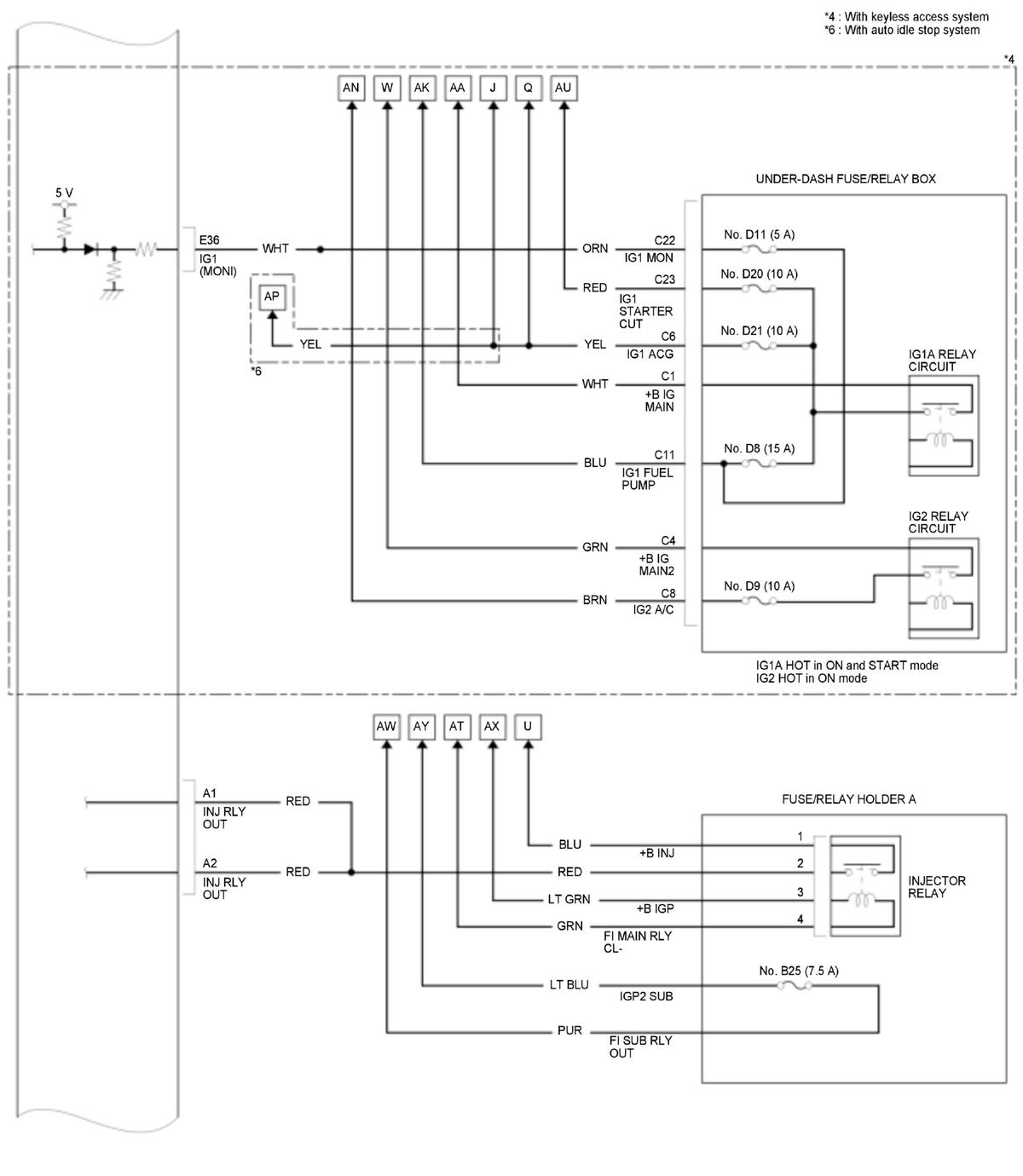

GHH427960

Courtesy of HONDA, U.S.A., INC.

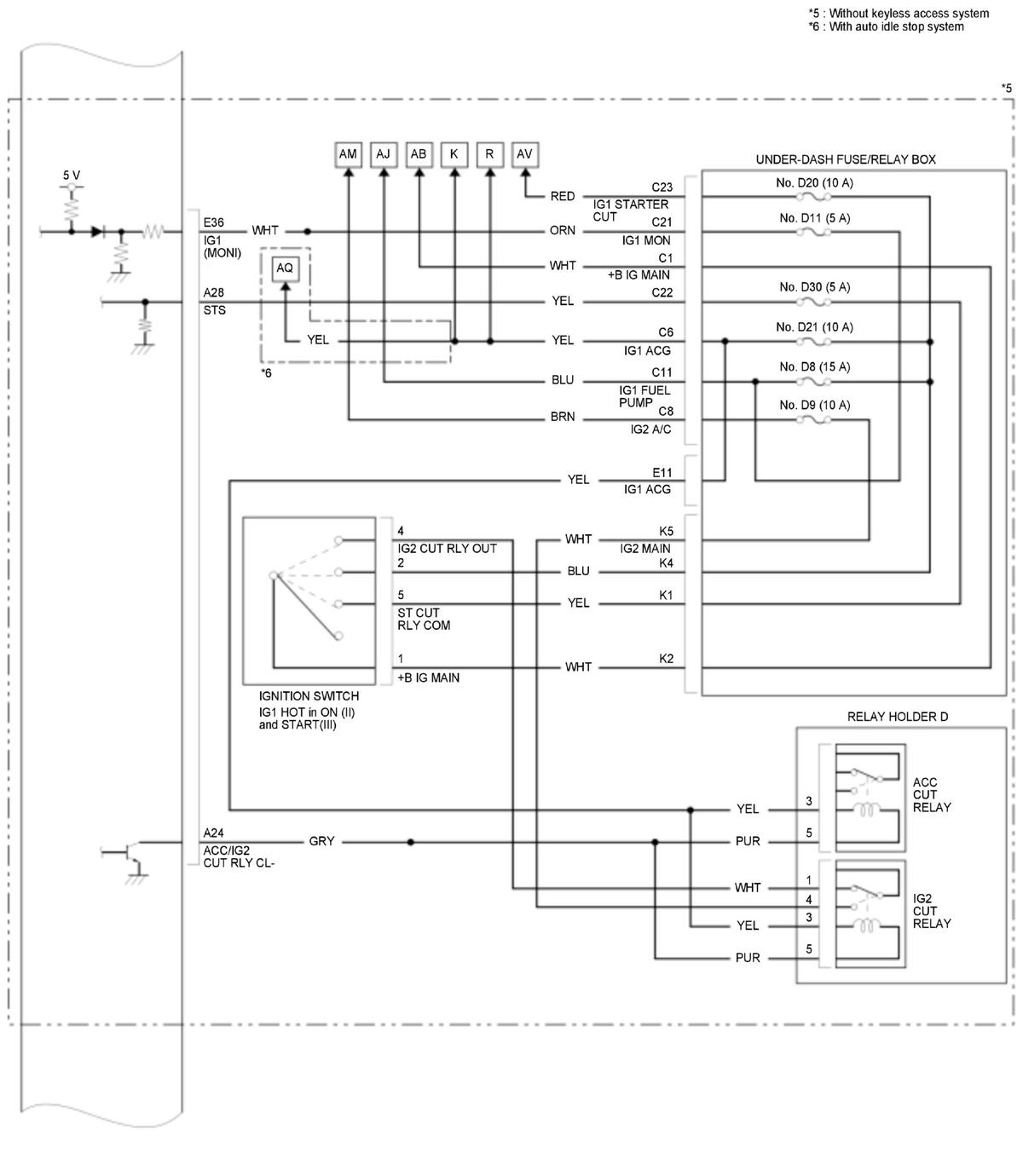

GHH427961

Courtesy of HONDA, U.S.A., INC.

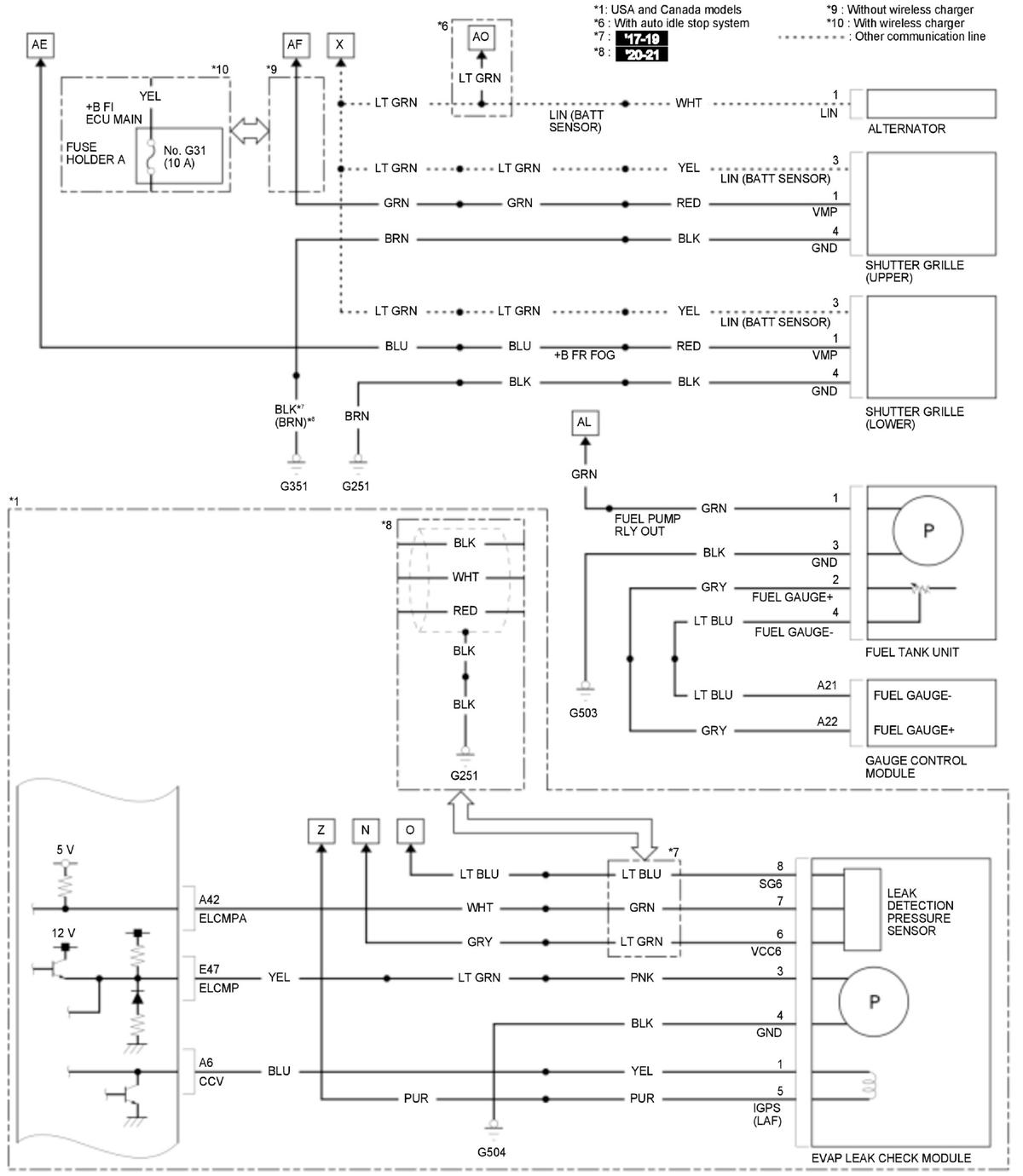

GHH427962

Courtesy of HONDA, U.S.A., INC.

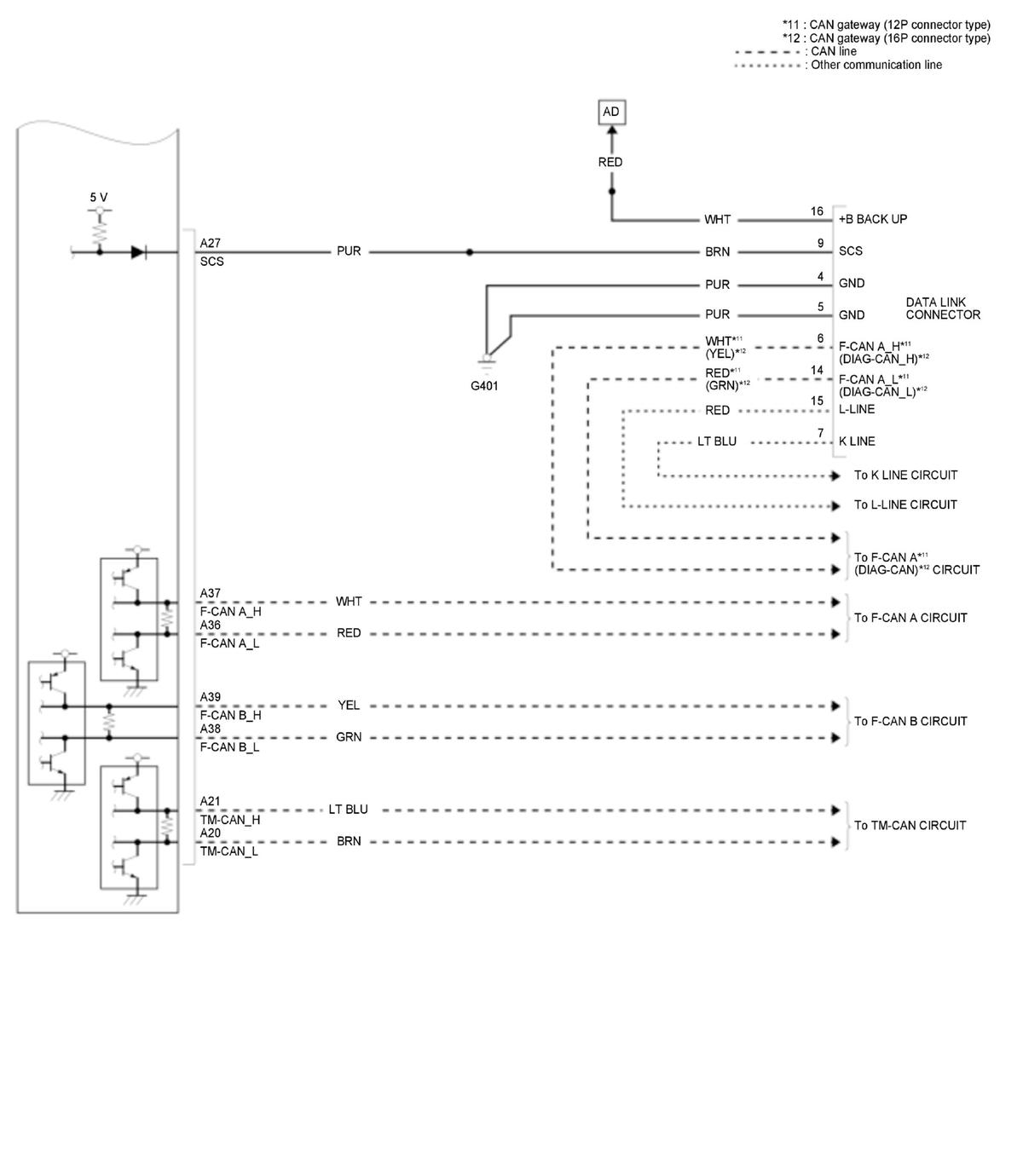

GHH427963

Courtesy of HONDA, U.S.A., INC.
