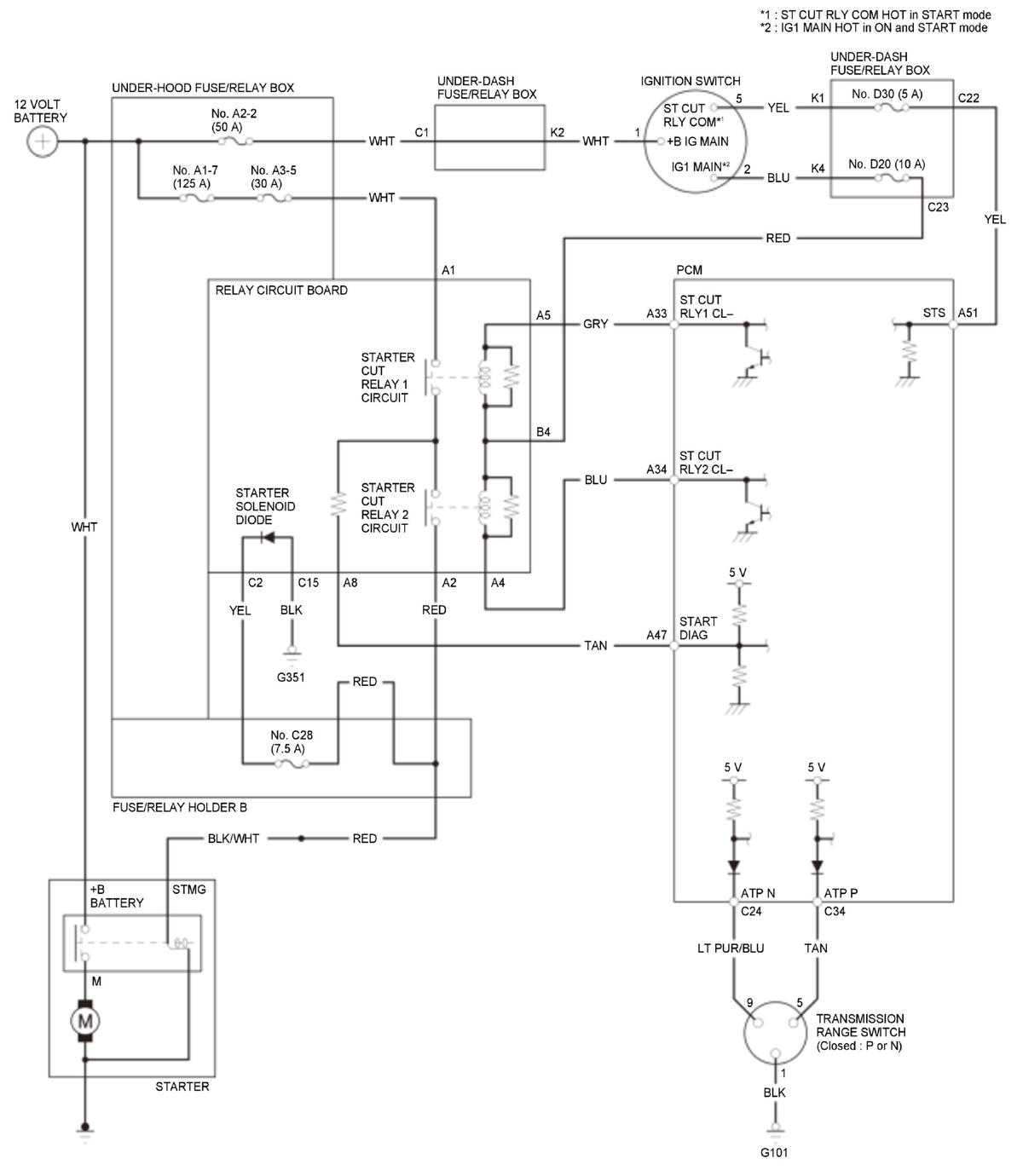

Starting System Circuit Diagram (2.4 L Engine) (2017 2018 2019)

GHH431026

Courtesy of HONDA, U.S.A., INC.
