Starting System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

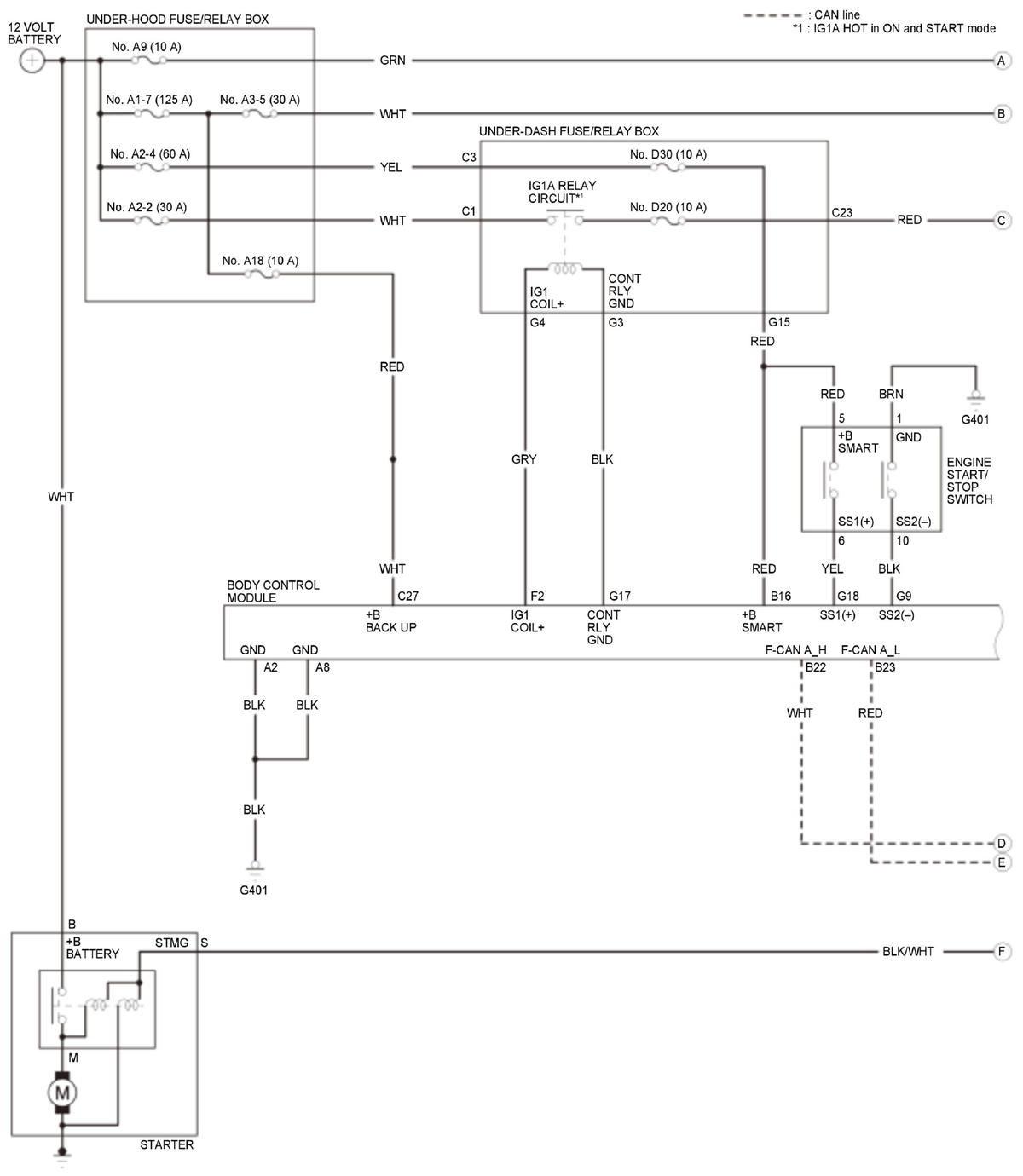

Starting System Circuit Diagram (1.5 L Engine)

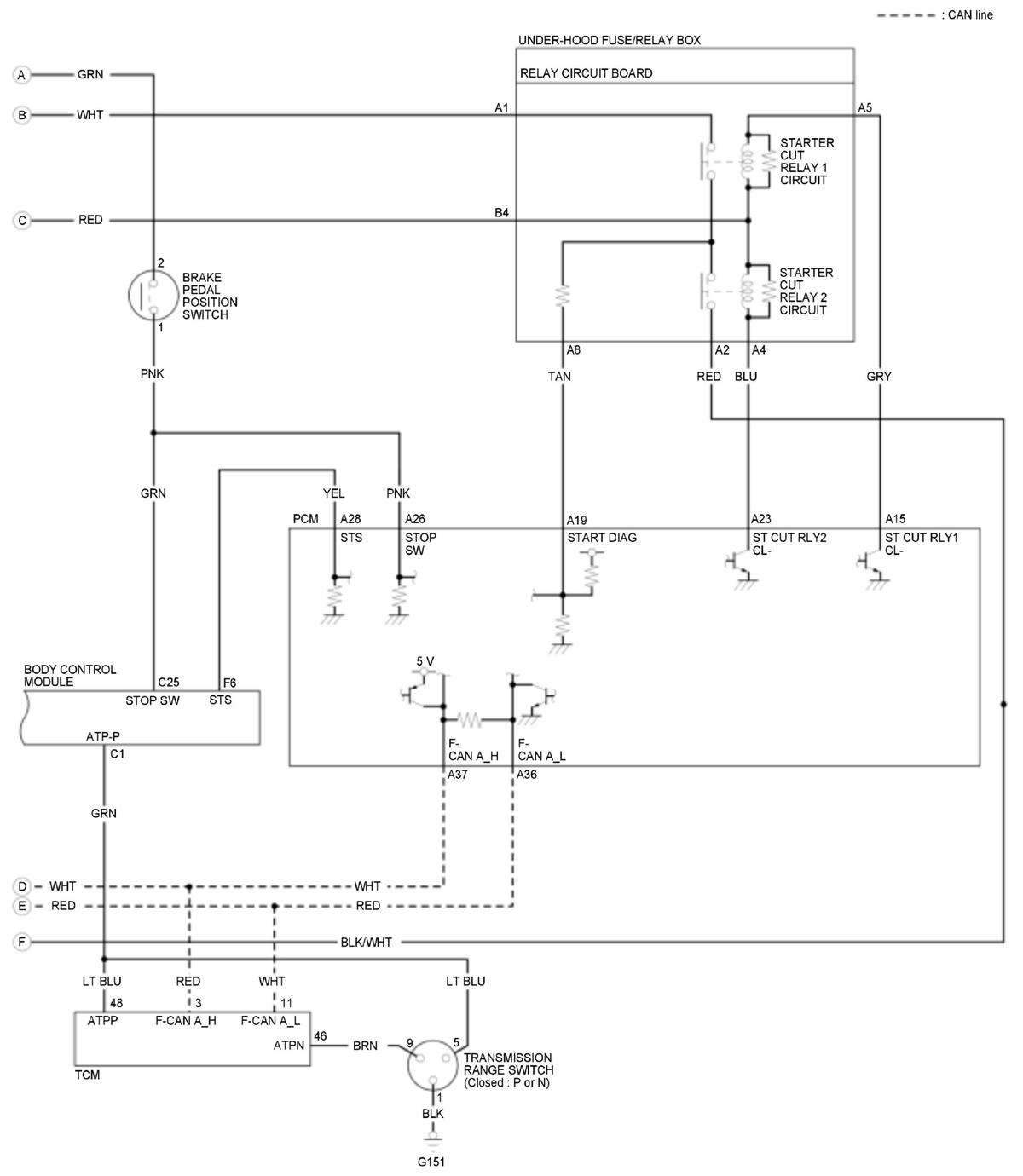

Starting System Circuit Diagram (1.5 L Engine)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
