Starting System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

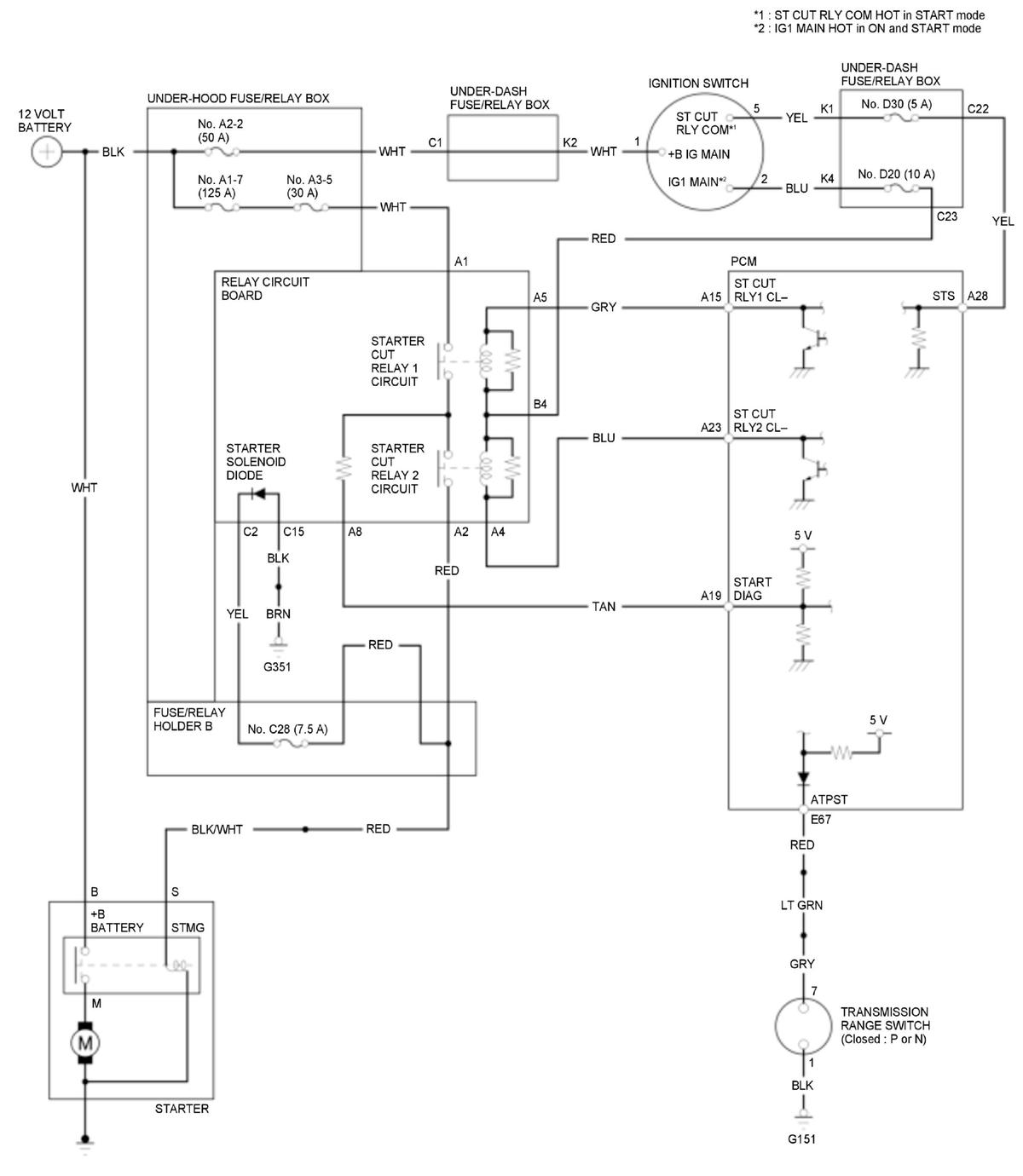

Starting System Circuit Diagram (1.5 L Engine (Without Keyless Access System)) (2020 2021)
Starting System Circuit Diagram (1.5 L Engine (Without Keyless Access System)) (2020 2021)
Courtesy of HONDA, U.S.A., INC.
