Starter Removal, Installation, and Performance Test (2.4 L Engine) (2017 2018 2019): Test

Starter Performance - Test

Courtesy of HONDA, U.S.A., INC.

1. Clamp the starter firmly in a vise.

2. Make the connections for this test using the thickest (gauge) wire possible (preferably the same gauge as used on the vehicle).

NOTE:

To avoid damaging the starter, never leave the 12 volt battery connected for more than 5 seconds.

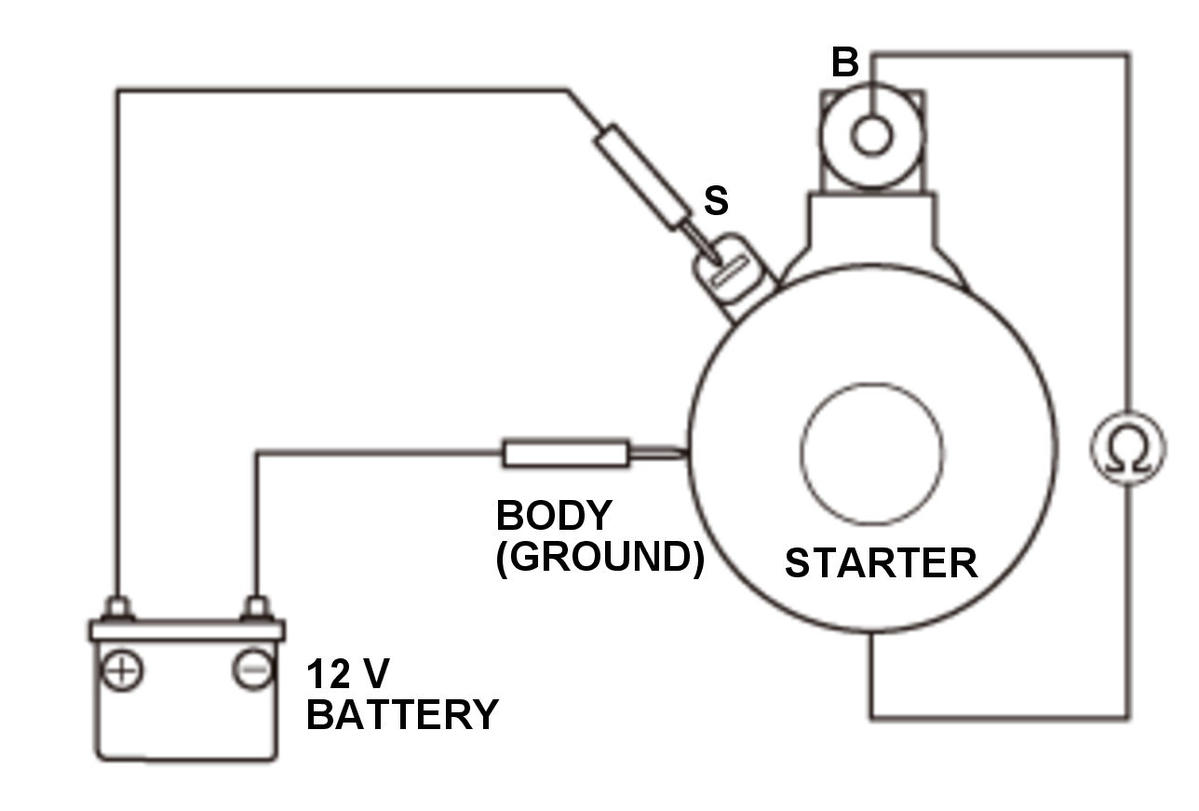

3. Connect the 12 volt battery as shown, and check for continuity between the B terminal and the starter body. If there is continuity, it is working properly.

Courtesy of HONDA, U.S.A., INC.

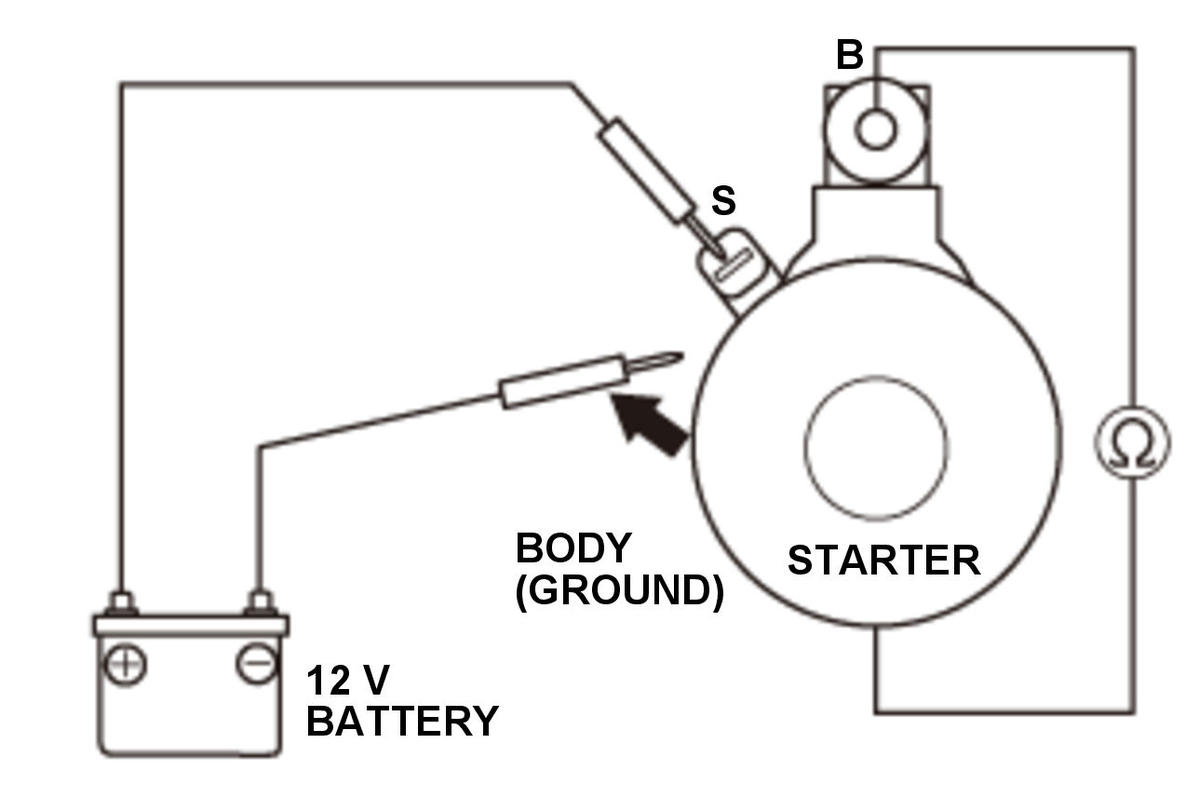

4. Disconnect the 12 volt battery from the starter body as shown, and check for continuity between the B terminal and the starter body. If there is no continuity, it is working properly.

Courtesy of HONDA, U.S.A., INC.

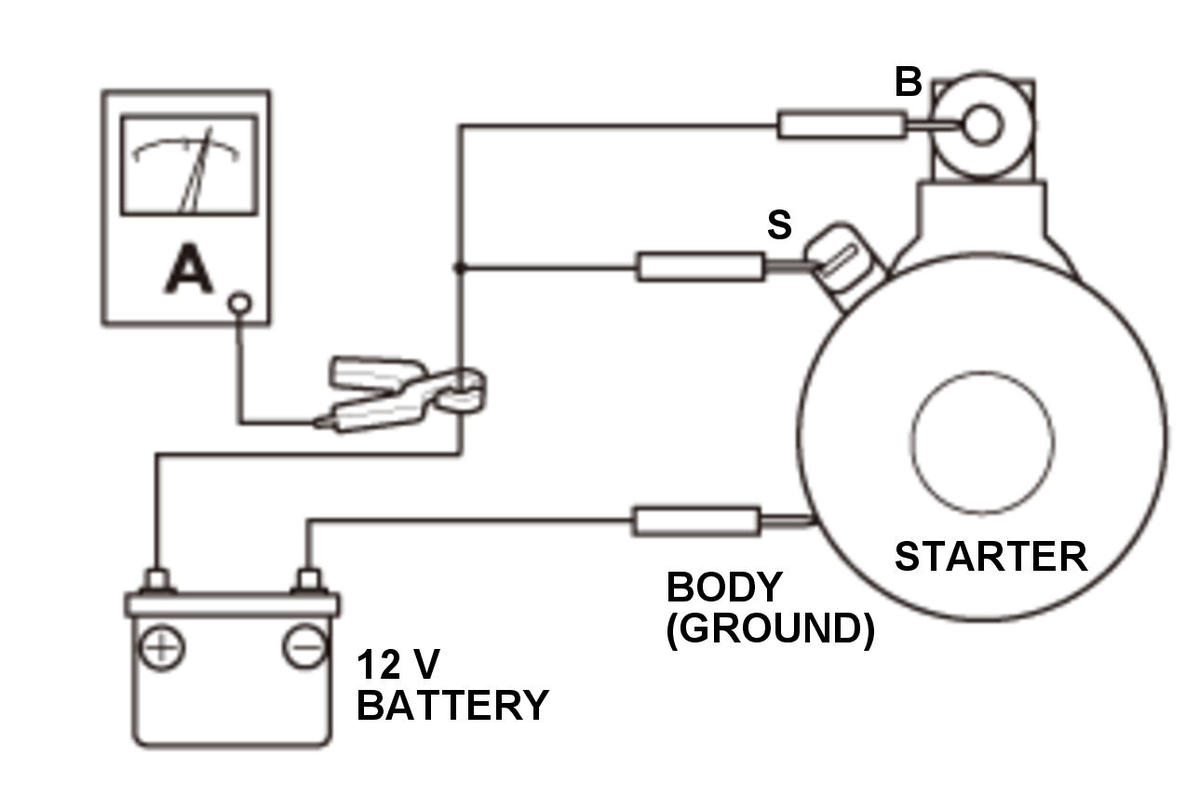

5. Connect the starter to the 12 volt battery as shown, and confirm that the motor runs.

6. If the electric current meets the specification when the 12 volt battery voltage is at 11.5 V, the starter is working properly.

Specification

Electric Current: 80 A or less
