Engine Mount Tightening Procedure (2.4 L Engine) (2017 2018 2019): Procedure
NOTE:
- How to read the torque specifications .
- Reinstall the mounting bolts and support nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.
- Jack - Remove
- Engine/Transmission Mount/Torque Rod - Tightening Procedure
NOTE: When installing the side engine mount, tighten the
-
bolts at first and temporarily tighten the
-
bolt while attaching the side engine mount bracket to the side engine mount, then tighten other remaining bolts and nuts as the corresponding procedures that can be seen on the following chart.

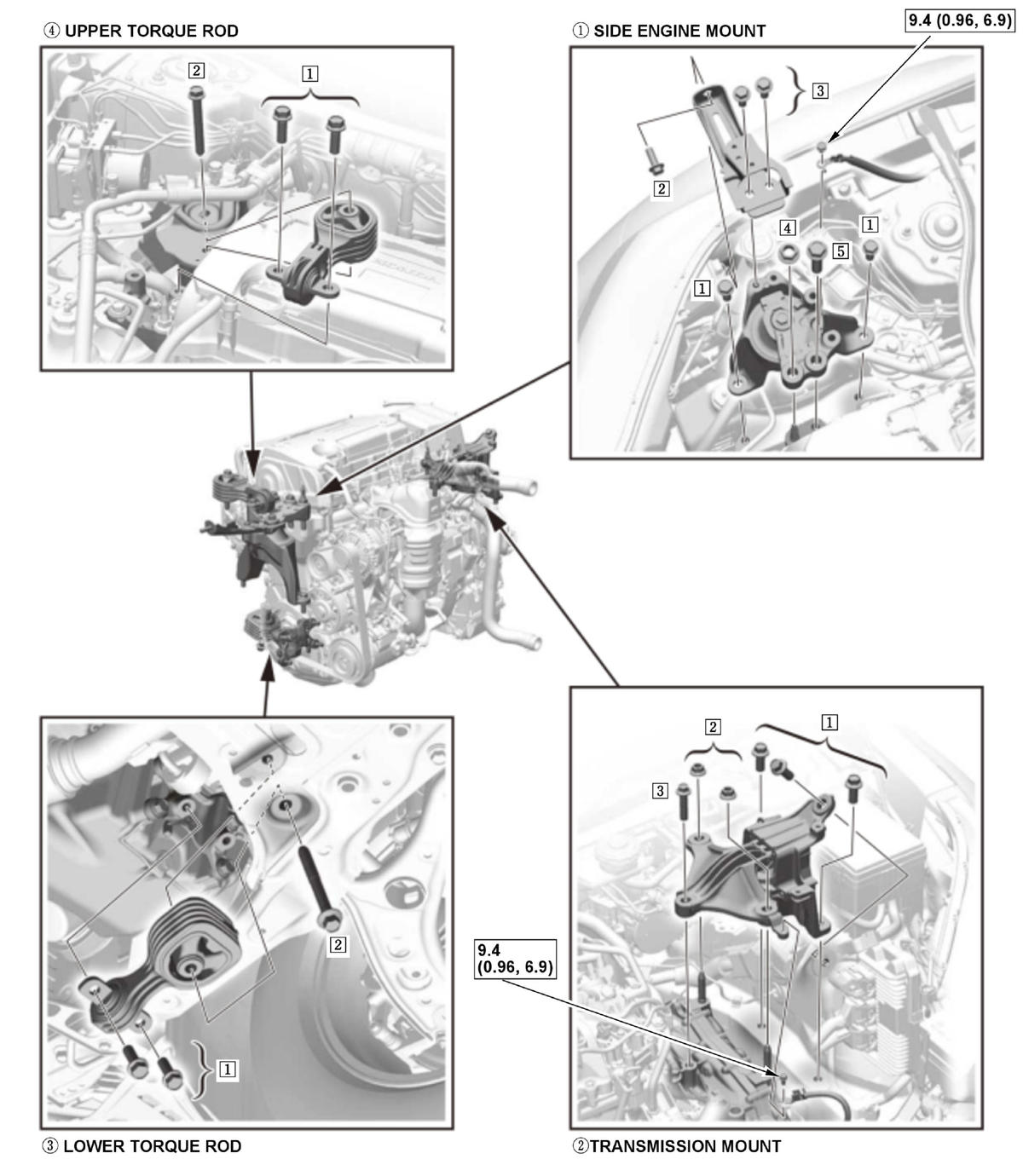

Tightening Sequence
Mount Removed Mount Tightening Sequence Side Engine Mount: ,
,
, and
Transmission Mount: ,
, and
Lower Torque Rod: and
Upper Torque Rod: Tightening Torque
Mount No. Mount Name Mount Bolt/Nut Tightening Sequence Side Engine Mount 49 N.m (5.0 kgf.m, 36 lbf.ft) Replace. 55 N.m (5.6 kgf.m, 41 lbf.ft) Replace. 55 N.m (5.6 kgf.m, 41 lbf.ft) Replace. 75 N.m (7.6 kgf.m, 55 lbf.ft) Replace. 75 N.m (7.6 kgf.m, 55 lbf.ft) Replace. Transmission Mount 75 N.m (7.6 kgf.m, 55 lbf.ft) Replace. 50 N.m(5.1 kgf.m, 37 lbf.ft) Replace. 50 N.m (5.1 kgf.m, 37 lbf.ft) Replace. Lower Torque Rod 45 N.m (4.6 kgf.m, 33 lbf.ft) Replace. 75 N.m (7.6 kgf.m, 55 lbf.ft) Replace. Upper Torque Rod 40 N.m (4.1 kgf.m, 30 lbf.ft) Replace. 40 N.m (4.1 kgf.m, 30 lbf.ft) Replace.
