Cylinder Head Cover Removal and Installation (2.4 L Engine) (2017 2018 2019): Removal

  1. 12 Volt Battery Terminal - Disconnect
  2. Ignition Coil - Remove
  3. Breather Hose and PCV Hose - Disconnect

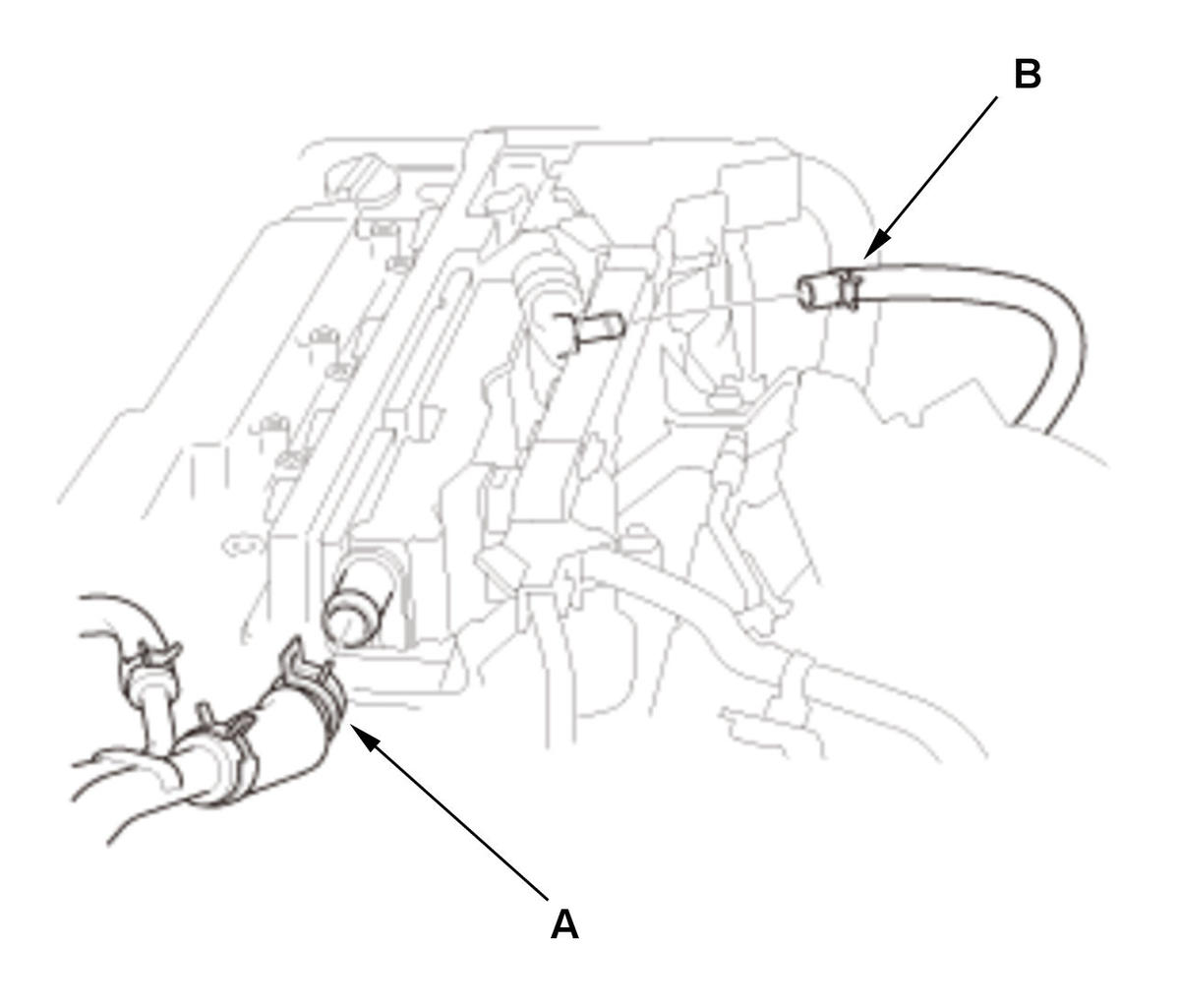

    GHH426753Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the breather hose (A) and the PCV hose (B).
  4. Harness Holder - Remove

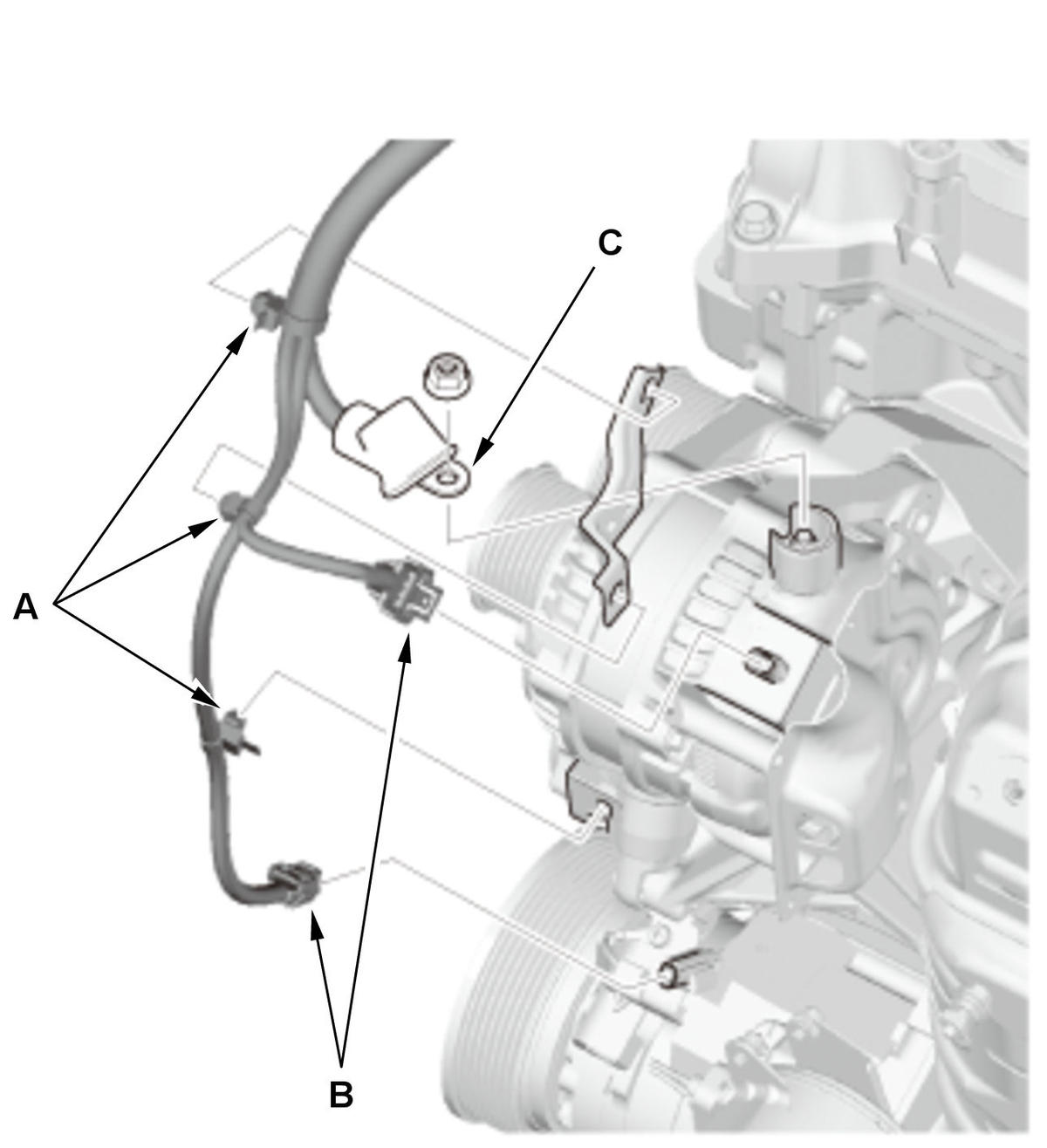

    GHH426754Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the harness clamps (A).

    2. Disconnect the connectors (B) and the positive alternator cable (C).

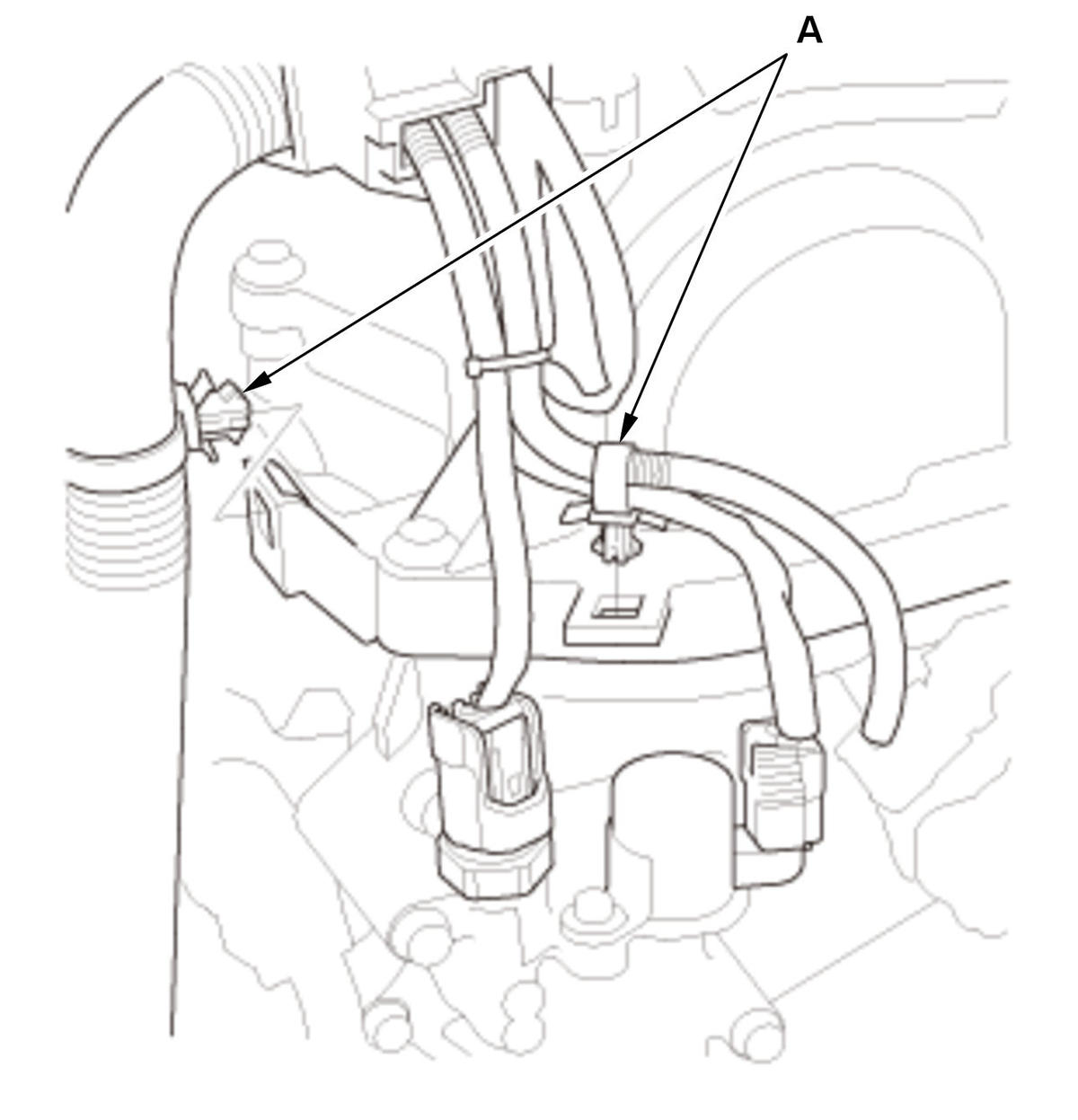

    GHH426755Courtesy of HONDA, U.S.A., INC.
    		 3. Remove the harness clamps (A).

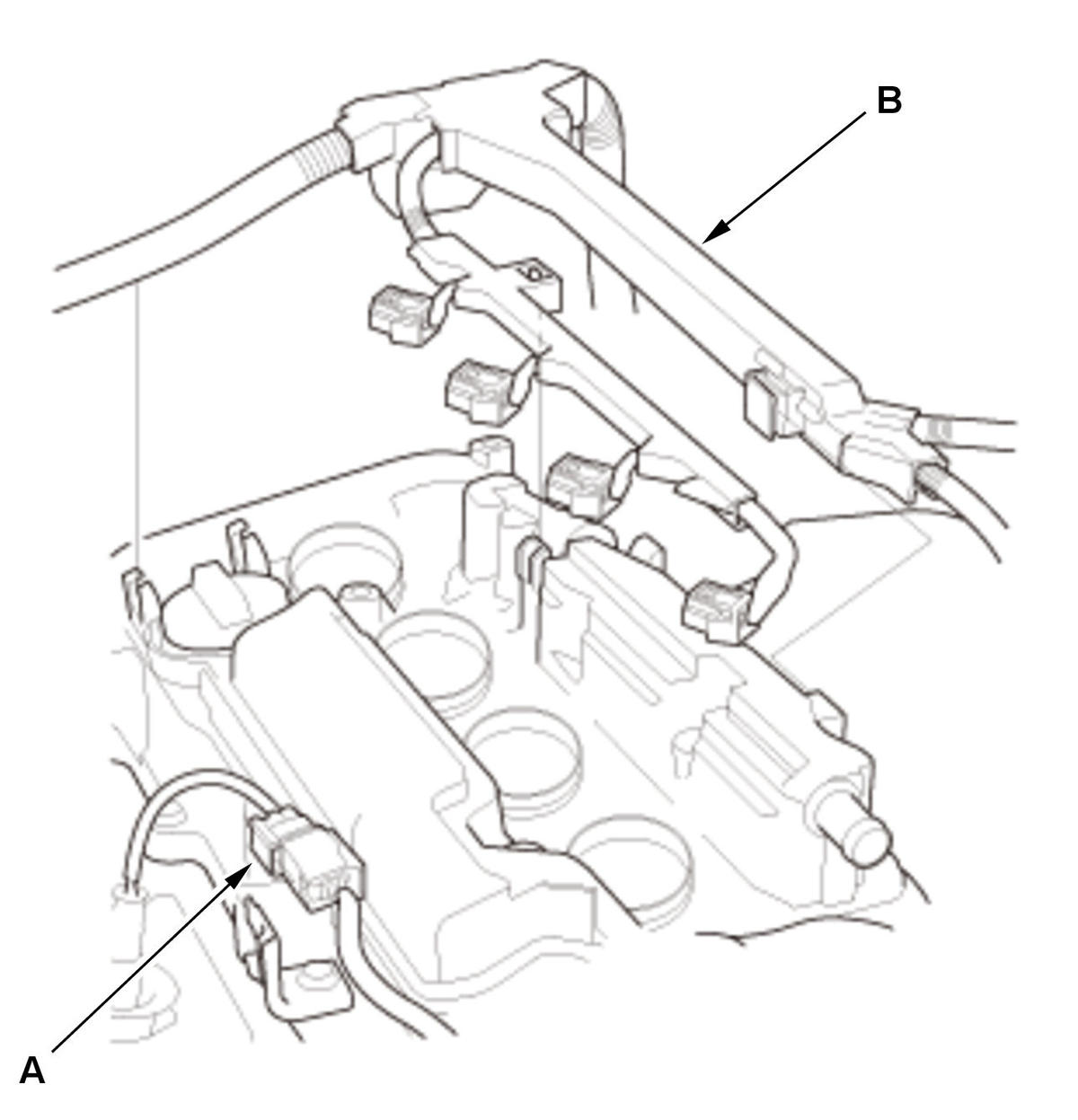

    GHH426756Courtesy of HONDA, U.S.A., INC.
    		 4. Remove the connector clamp (A) and the harness holder (B).
  5. High Pressure Fuel Pump Cover - Remove

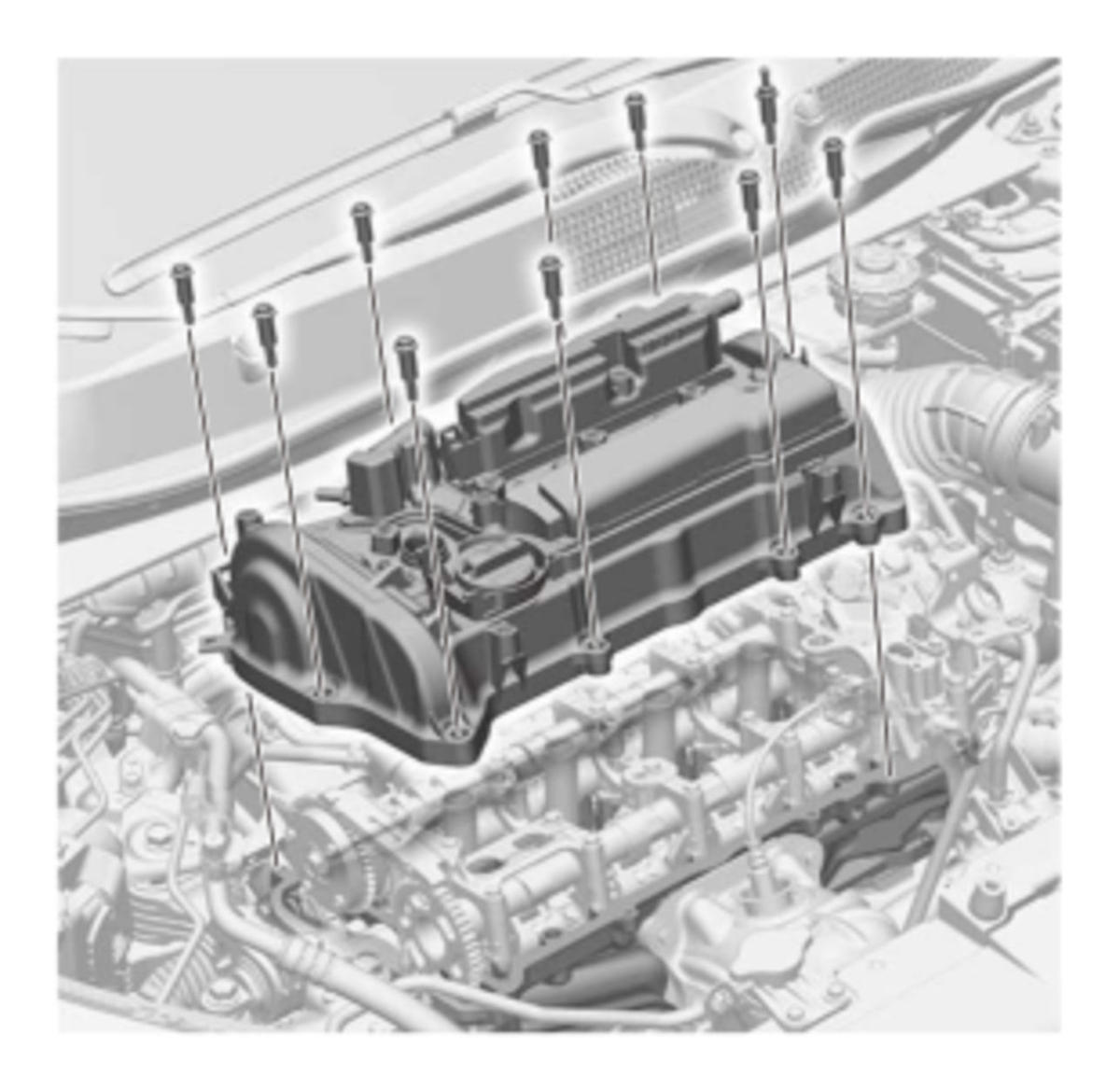

  6. Cylinder Head Cover - Remove
    GHH426757Courtesy of HONDA, U.S.A., INC.
