Cylinder Head Cover Removal and Installation (2.4 L Engine) (2017 2018 2019): Installation

NOTE: How to read the torque specifications .

Cylinder Head Cover - Install

Courtesy of HONDA, U.S.A., INC.

1. Check the spark plug seals for damage. If any seals are damaged, replace it.

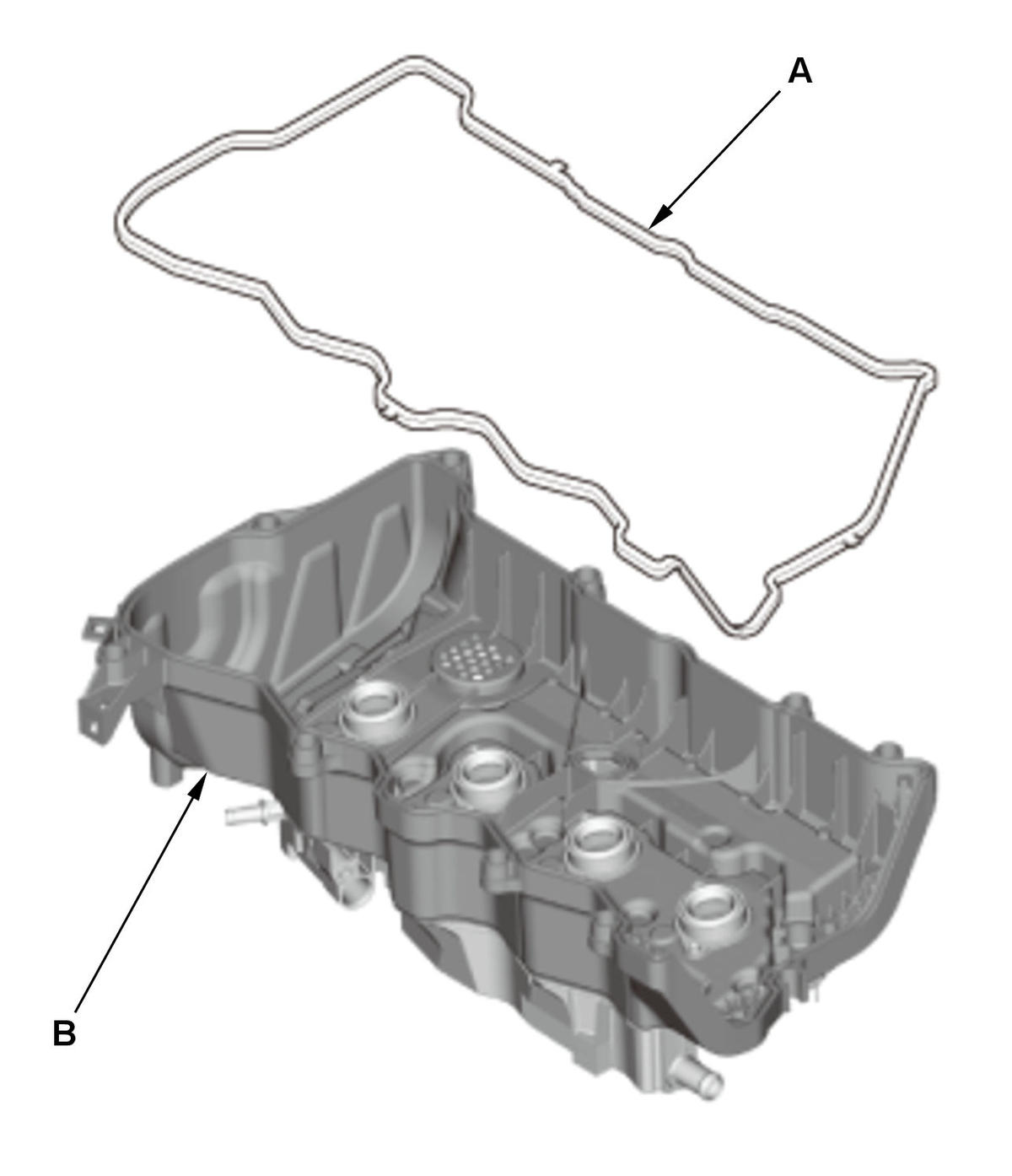

2. Thoroughly clean the head cover gasket (A) and the groove of the cylinder head cover (B).

NOTE:

Check and, if necessary, replace the head cover gasket.

3. Install the head cover gasket in the groove of the cylinder head cover. Make sure the head cover gasket is seated securely.

Courtesy of HONDA, U.S.A., INC.

4. Apply liquid gasket

, on the chain case and the high pressure fuel pump base or the side cover mating areas.

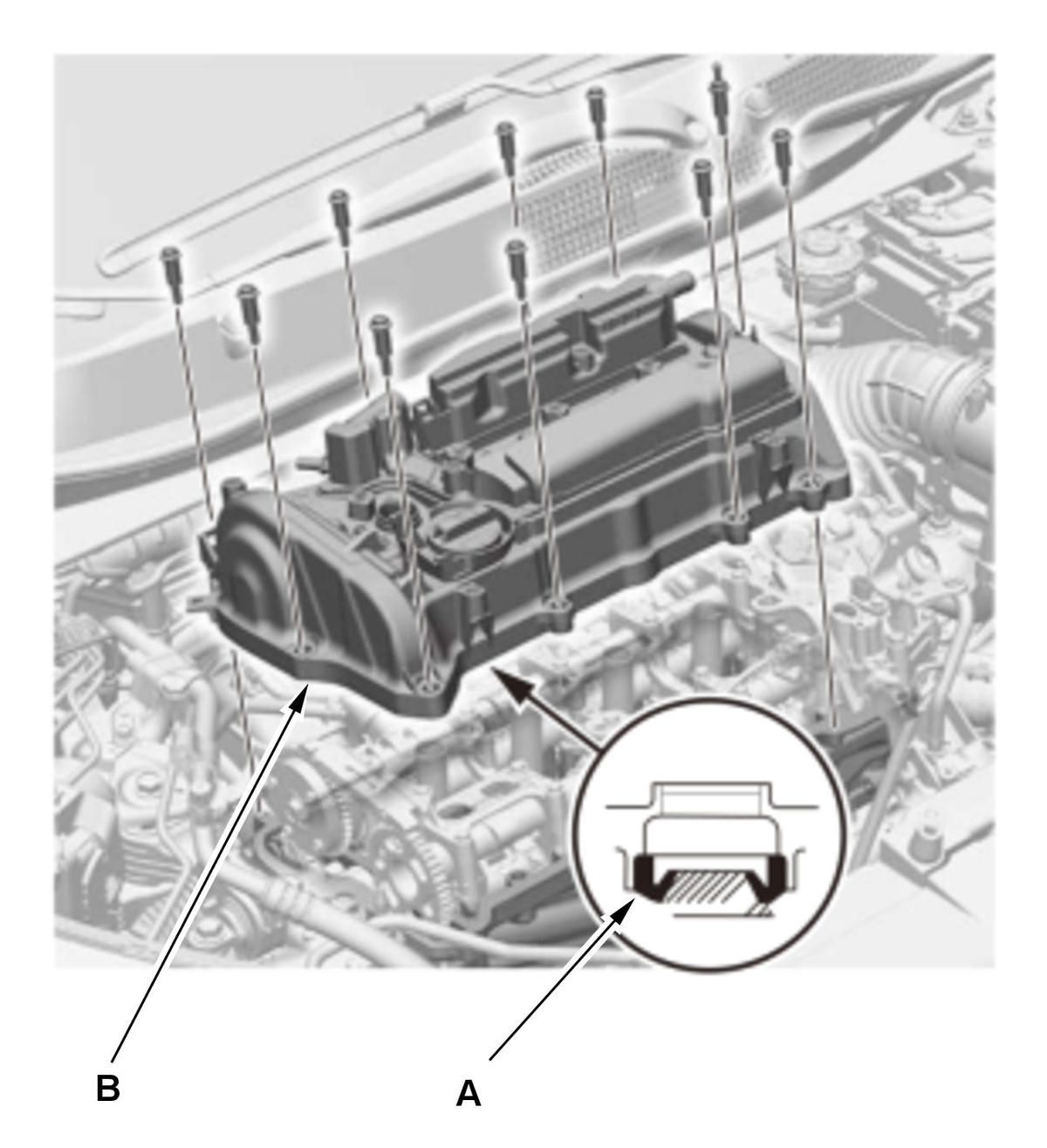

5. Set the spark plug seals (A) on the spark plug tubes. Place the cylinder head cover (B) on the cylinder head, then slide the cover slightly back and forth to seat the head cover gasket.

6. Inspect the spark plug seals for damage.

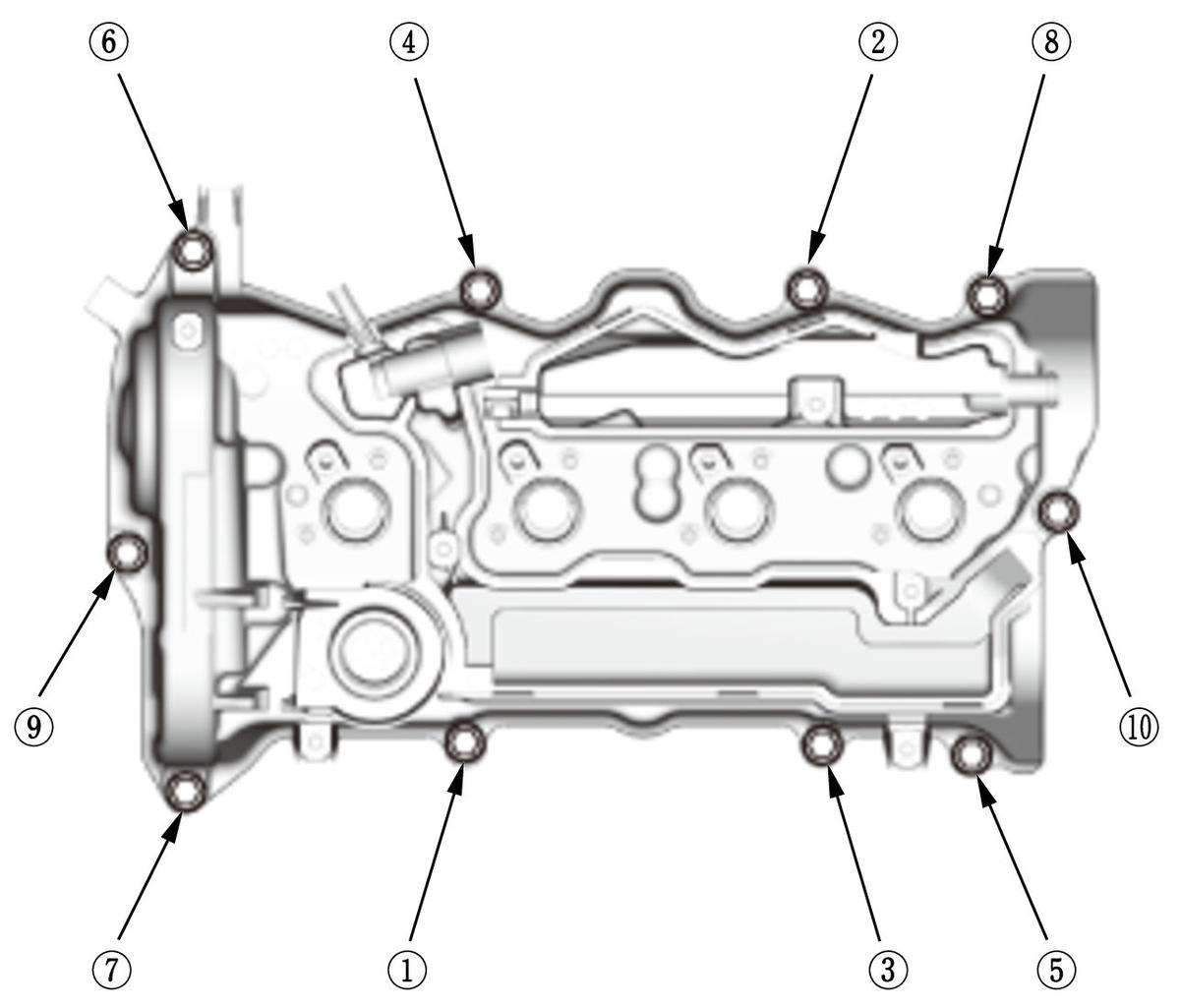

Fig 1: Tightening Cylinder Head Cover Bolts In Sequence

Courtesy of HONDA, U.S.A., INC.

7. Tighten the bolts in two steps. In the final step torque bolts, in sequence, to 7.0 N.m (0.71 kgf.m, 5.2 lbf.ft).NOTE:

Wait at least 30 minutes before filling the engine with oil.
Do not run the engine for at least 3 hours after installing the head cover.

High Pressure Fuel Pump Cover - Install

Harness Holder - Install

Courtesy of HONDA, U.S.A., INC.

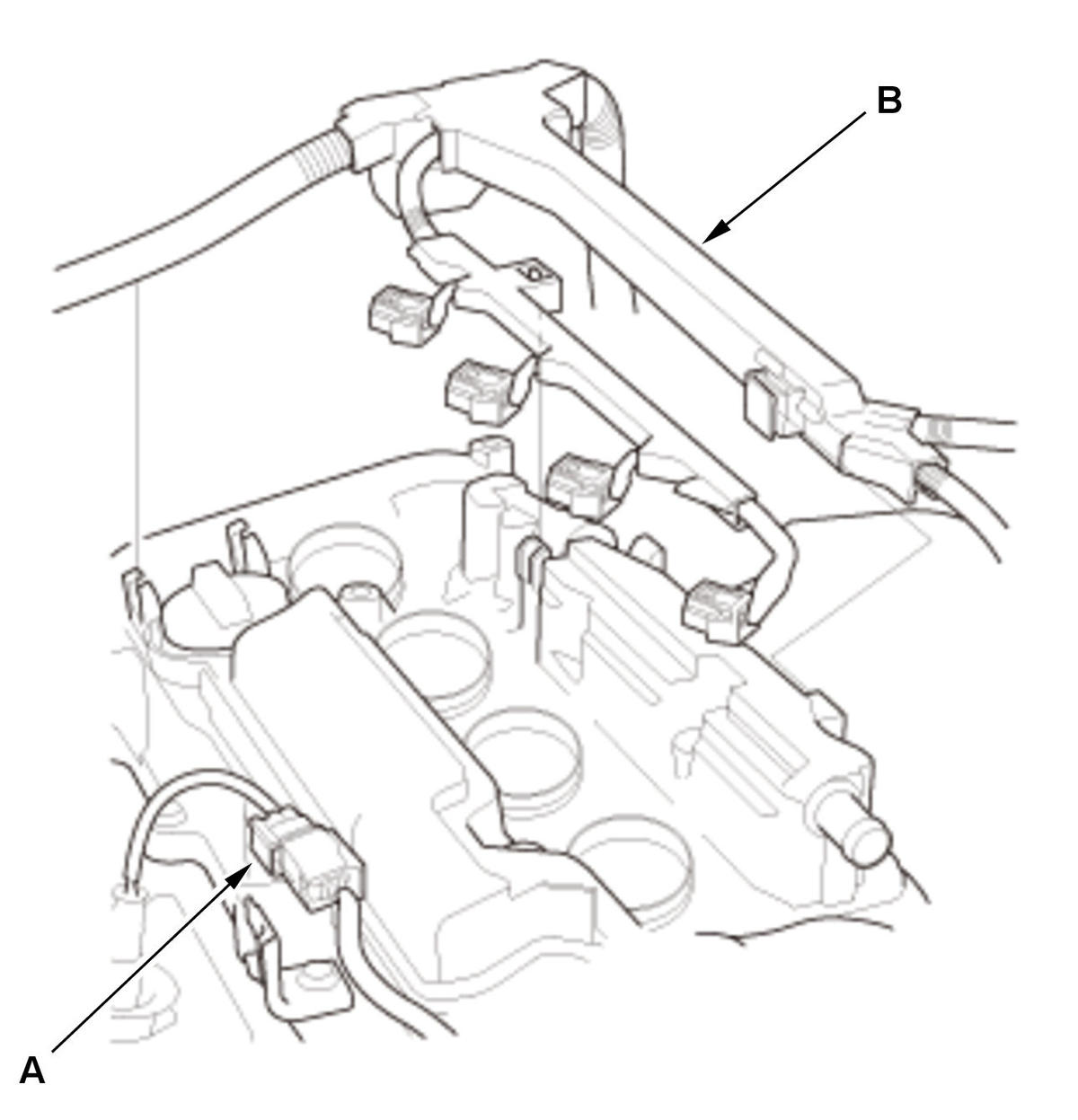

1. Install the connector clamp (A) and the harness holder (B).

Courtesy of HONDA, U.S.A., INC.

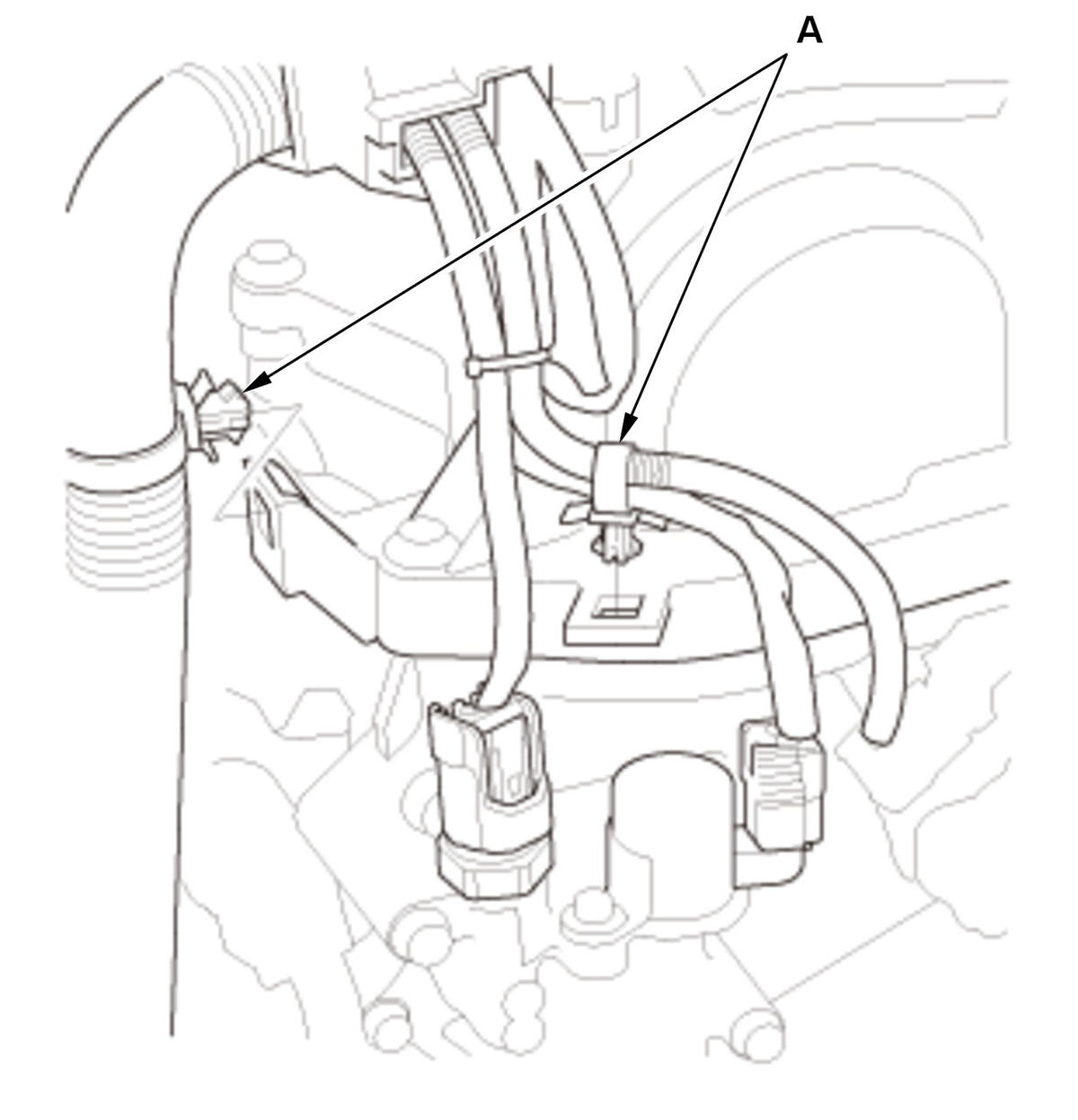

2. Install the harness clamps (A).

Courtesy of HONDA, U.S.A., INC.

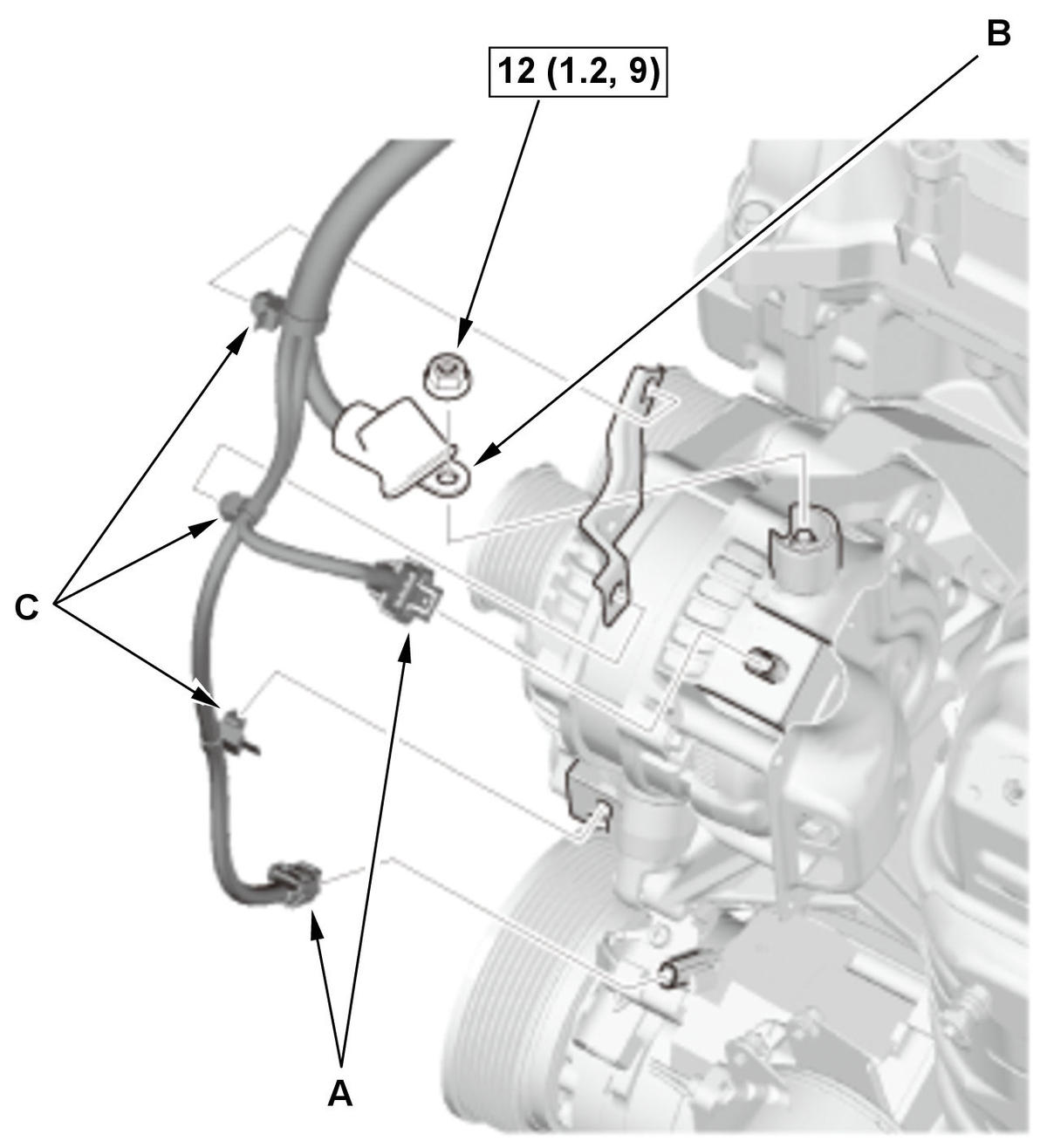

3. Connect the connectors (A) and the positive alternator cable (B). Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.

4. Install the harness clamps (C).

Breather Hose and PCV Hose - Connect

Courtesy of HONDA, U.S.A., INC.

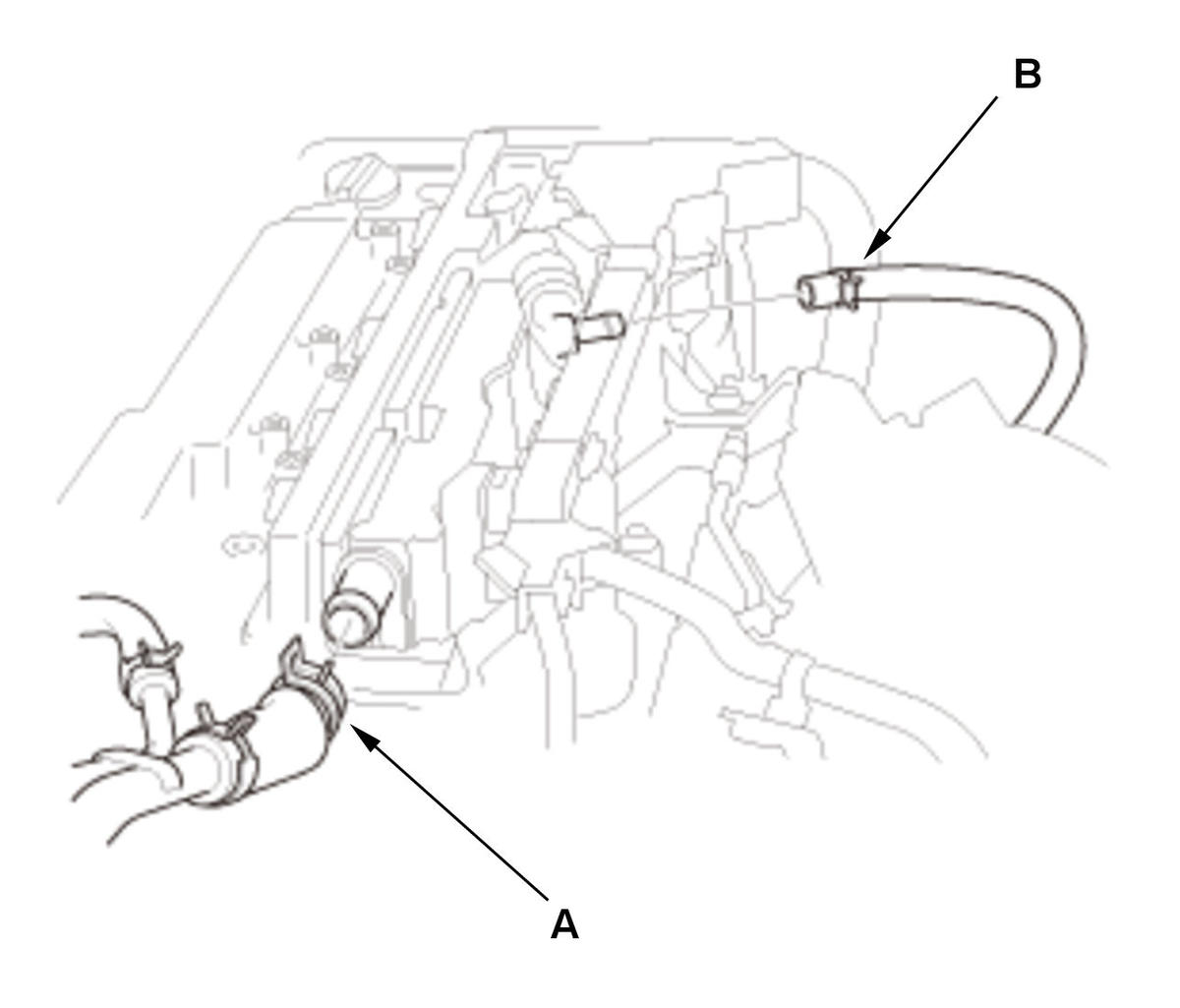

1. Connect the breather hose (A) and the PCV hose (B).

Ignition Coil - Install
12 Volt Battery Terminal - Connect
