Cylinder Head Cover Removal and Installation (1.5 L Engine): Removal

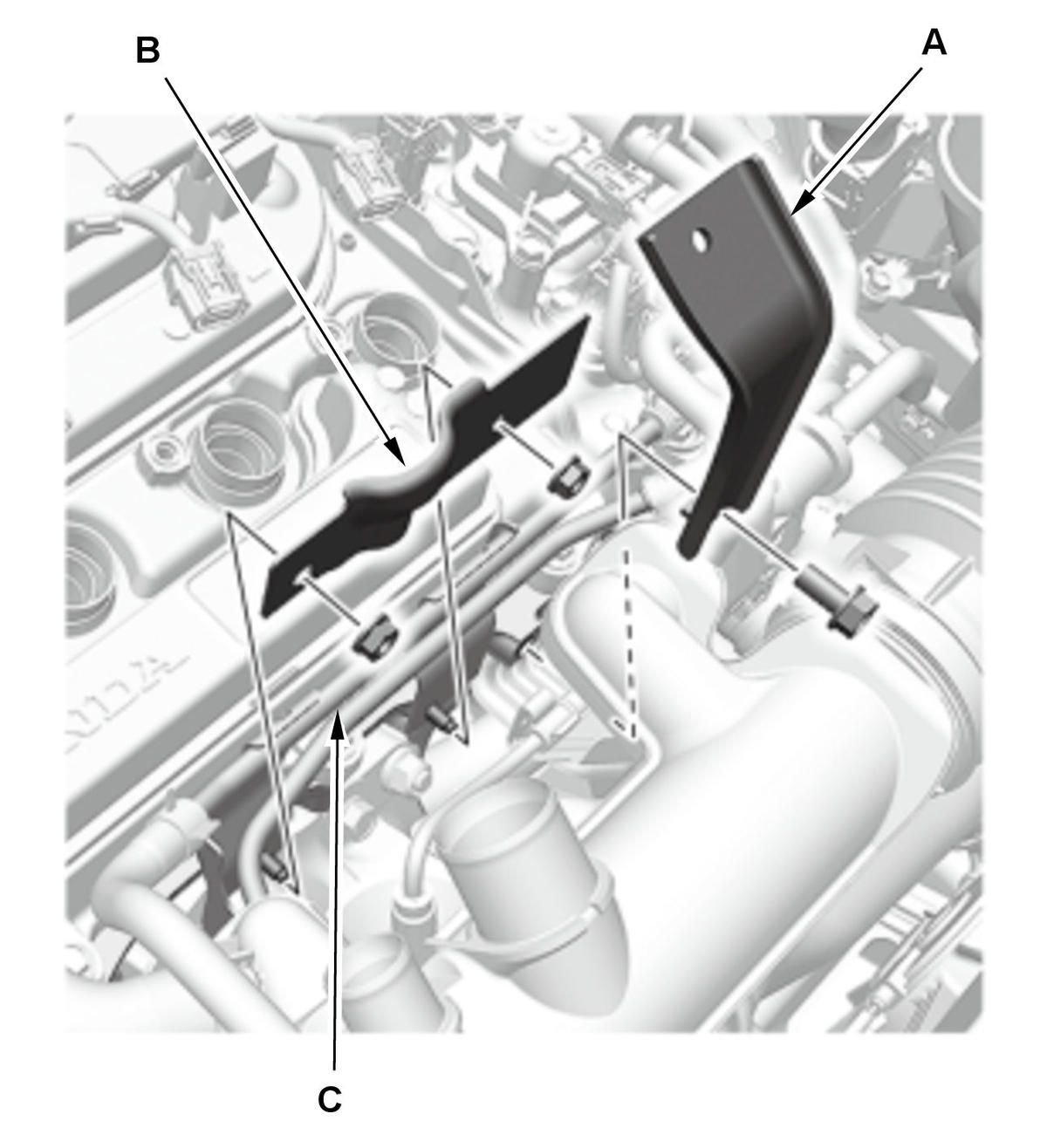

Turbocharger Water Return Pipe - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the resonator bracket (A).

2. Remove the cylinder head cover heat insulator (B) and the turbocharger water return pipe (C).

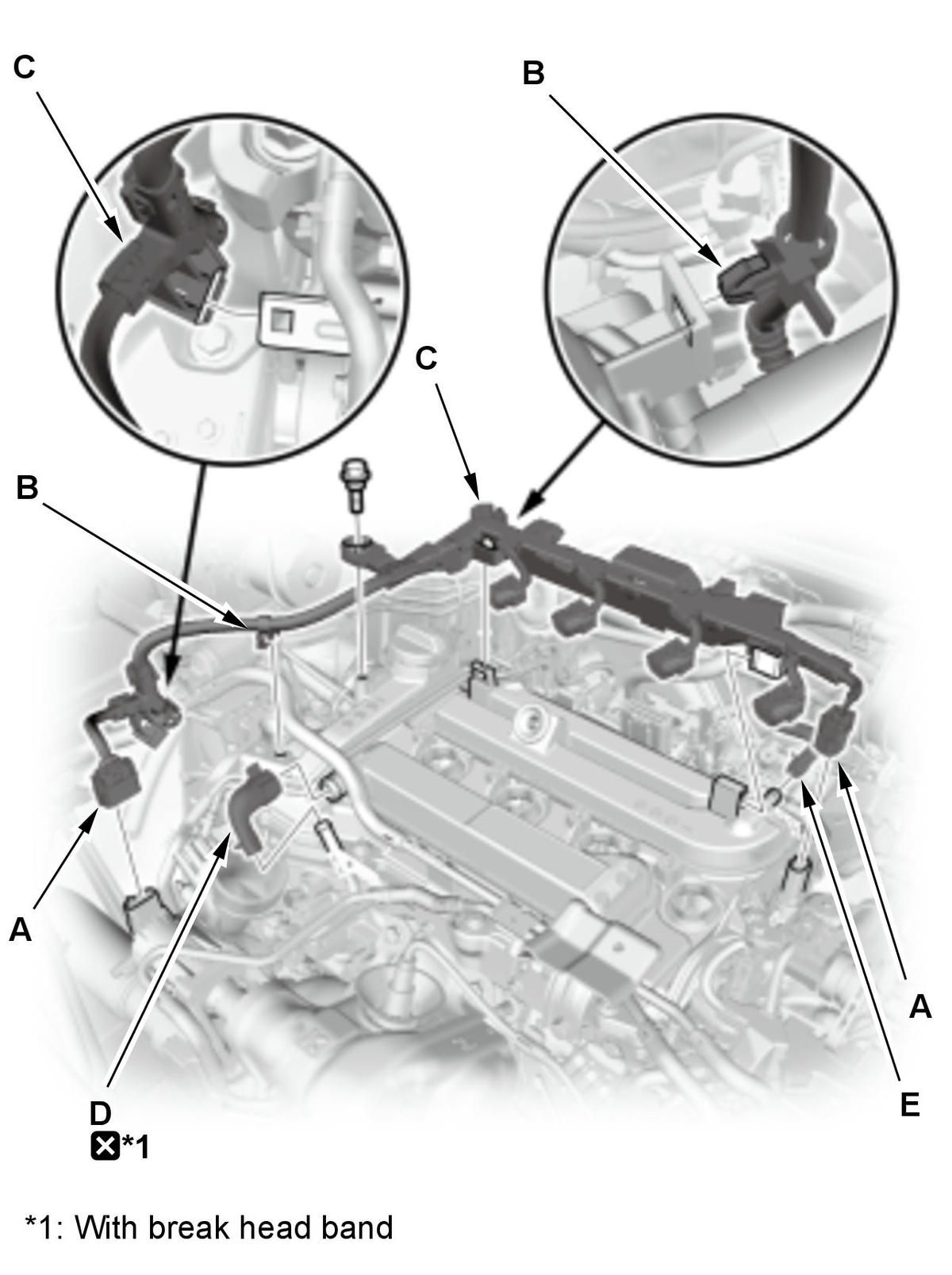

Breather Hose, PCV Hose, and Harness Holder - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connectors (A).

2. Remove the harness clips (B) and the harness holders (C).

3. Disconnect the breather hose (D) and the PCV hose (E).

NOTE:

(With break head band) Use commercially available cutting pliers as necessary to cut the band off the hose while avoiding damage to the hose.

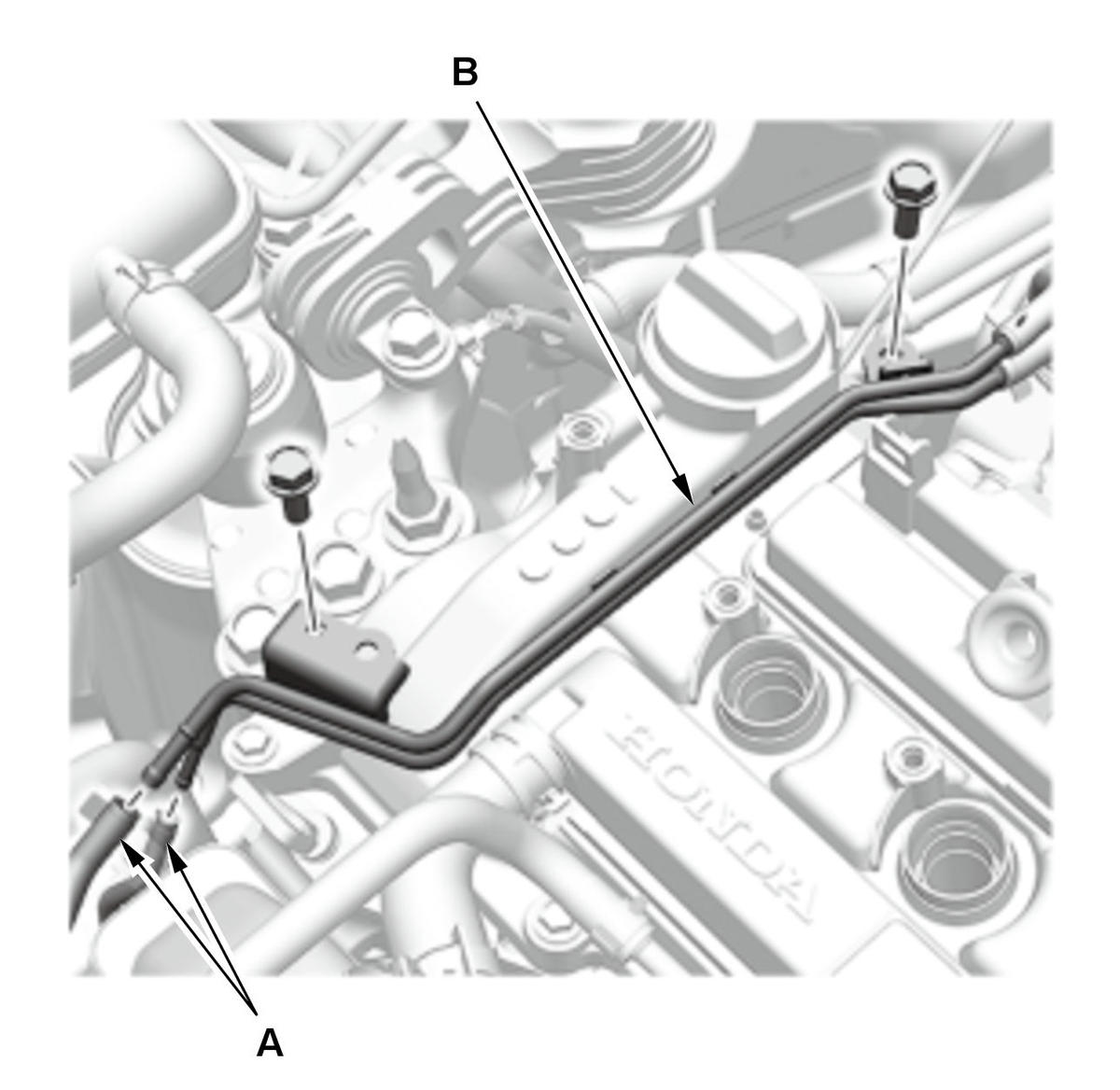

Turbocharger Bypass Control Valve Solenoid Pipe - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the hoses (A).

2. Remove the turbocharger bypass control valve solenoid pipe (B).

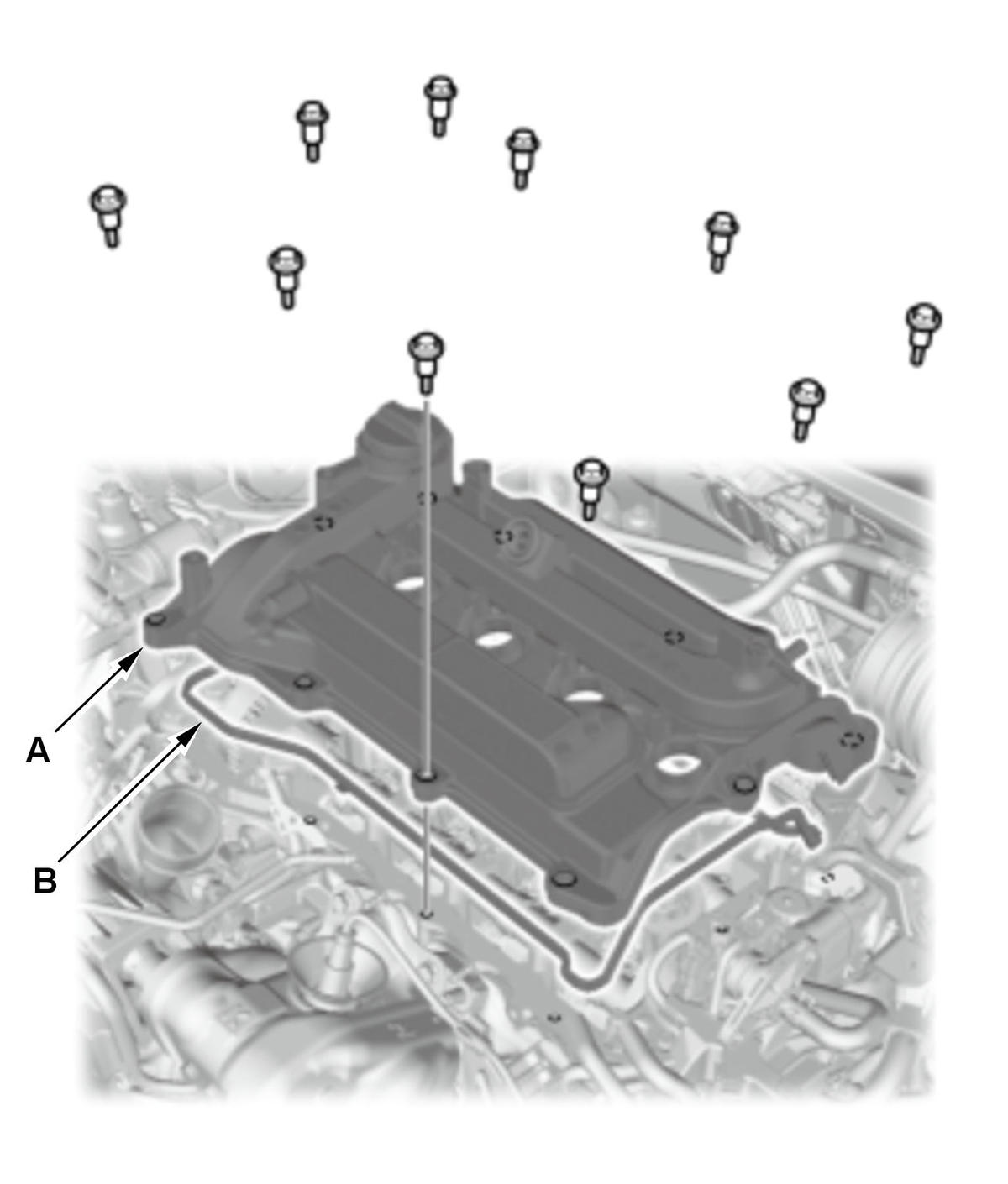

Cylinder Head Cover - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the cylinder head cover (A) and the head cover gasket (B).
