Engine Oil Pump Chain Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019): Removal

Cam Chain - Remove

Universal Lifting Eyelet - Attach

Courtesy of HONDA, U.S.A., INC.

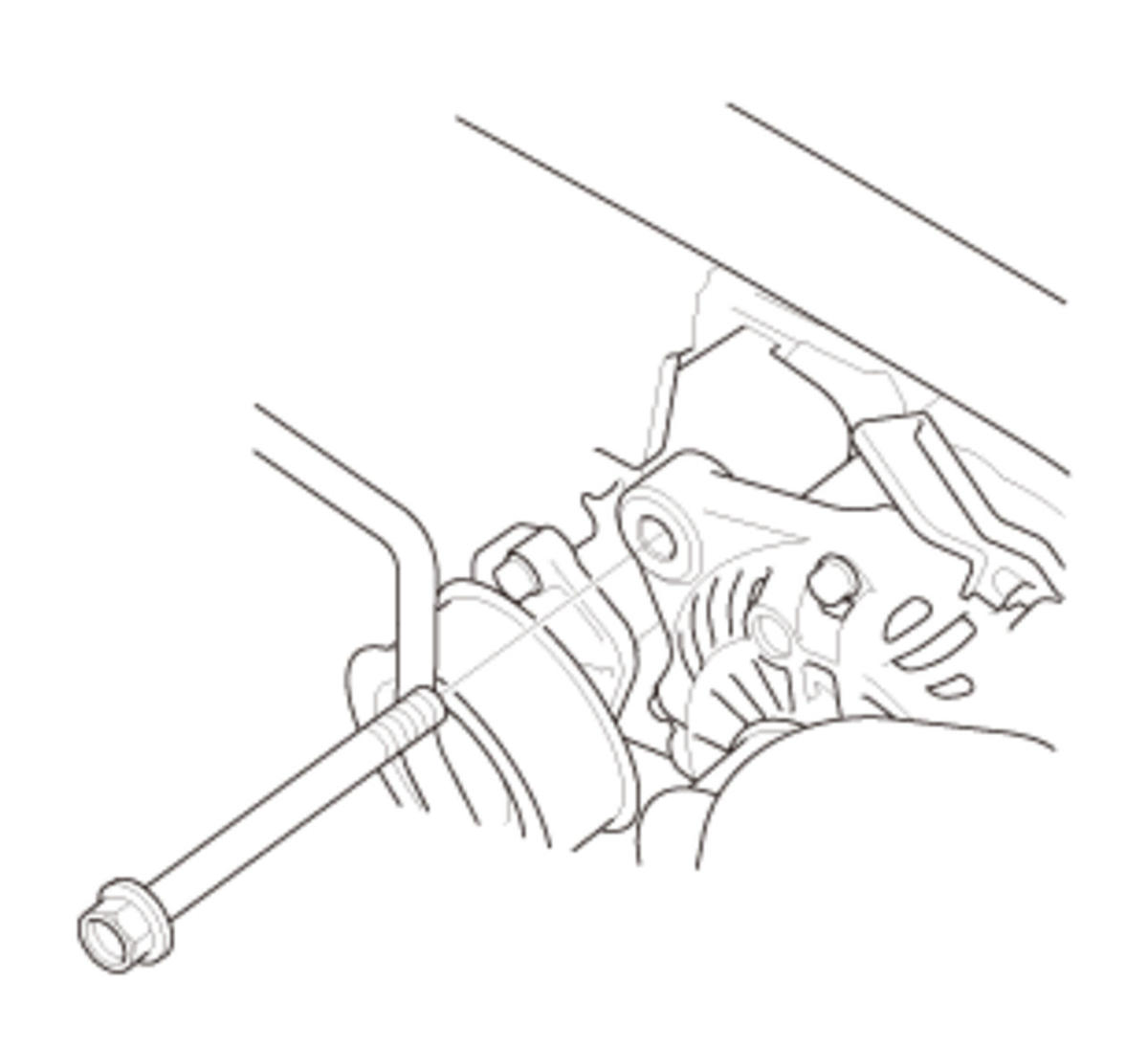

1. Remove the alternator mounting bolt.

Courtesy of HONDA, U.S.A., INC.

2. Attach the universal lifting eyelet to the alternator.

Center Cowl Cover - Remove
Front Bulkhead Cover - Remove
Radiator Cap Base - Move
NOTE: Do not disconnect the hose.
Engine Support Hanger - Install
1. Install the engine support hanger as shown.

Courtesy of HONDA, U.S.A., INC.

2. Attach the hook to the slotted hole in the universal lifting eyelet (A).

3. Tighten the wing nut (B) by hand, and lift and support the engine/transmission.

NOTE:
- Be careful when working around the windshield.
- Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.
Oil Pan - Remove

Oil Pump Chain Tensioner - Remove

Courtesy of HONDA, U.S.A., INC.

1. Loosely install the crankshaft pulley.

2. To hold the front balancer shaft, insert a 6 mm long pin punch (A) (Snap-on PPC108LA or equivalent) into the maintenance hole in the balancer shaft holder and through the front balancer shaft.

3. Turn the crankshaft counterclockwise to compress the oil pump chain.

4. Remove the crankshaft pulley.

Courtesy of HONDA, U.S.A., INC.

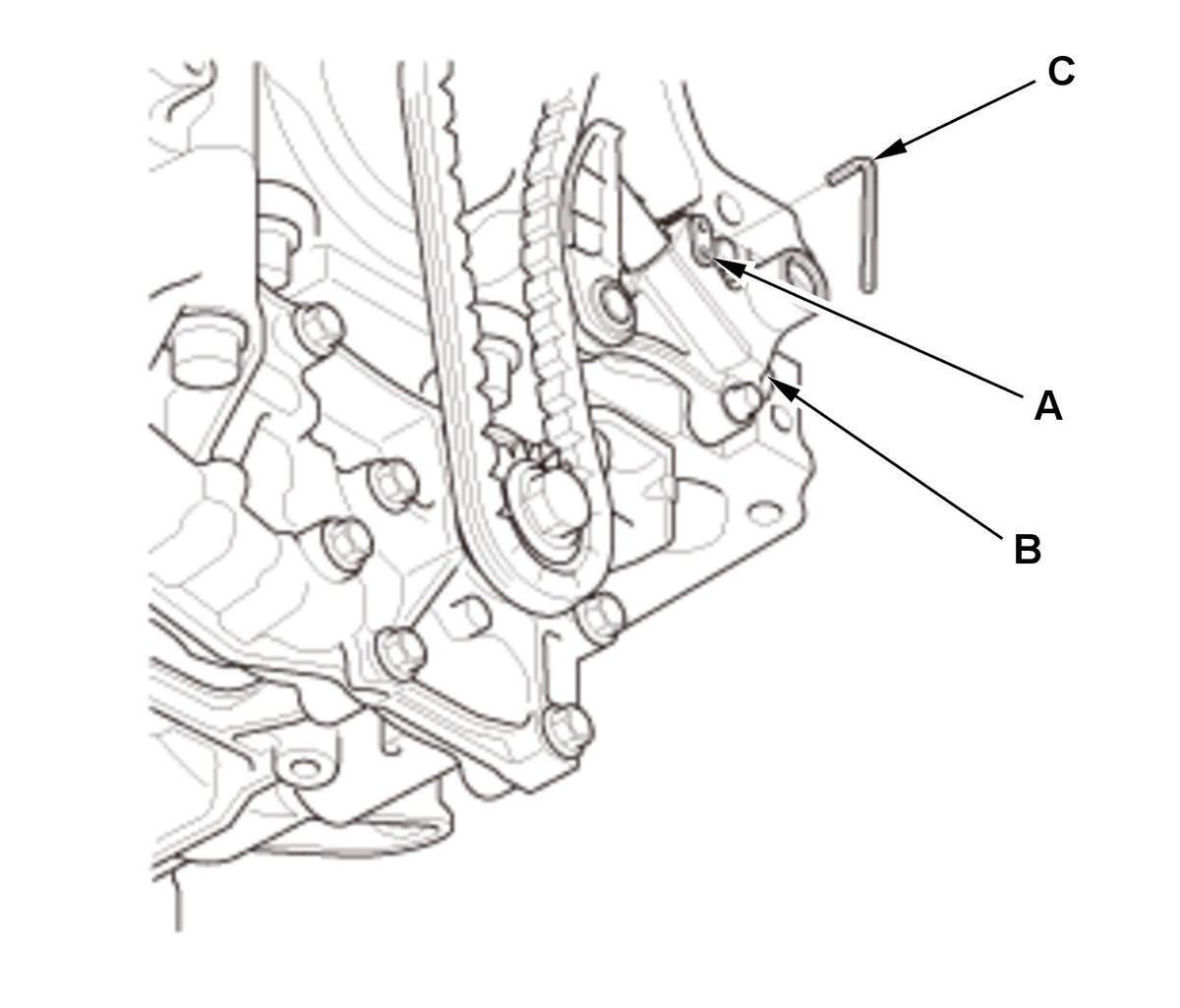

5. Align the holes on the lock (A) and the oil pump chain auto-tensioner (B), then insert a 2.0 mm (5/64 in) diameter pin (C) into the holes. Turn the crankshaft clockwise to secure the pin.

Courtesy of HONDA, U.S.A., INC.

6. Remove the oil pump chain auto-tensioner.

Oil Pump Chain - Remove

Courtesy of HONDA, U.S.A., INC.
