Engine Oil Pump Chain Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019): Inspection

Oil Pump Chain - Inspect

Courtesy of HONDA, U.S.A., INC.

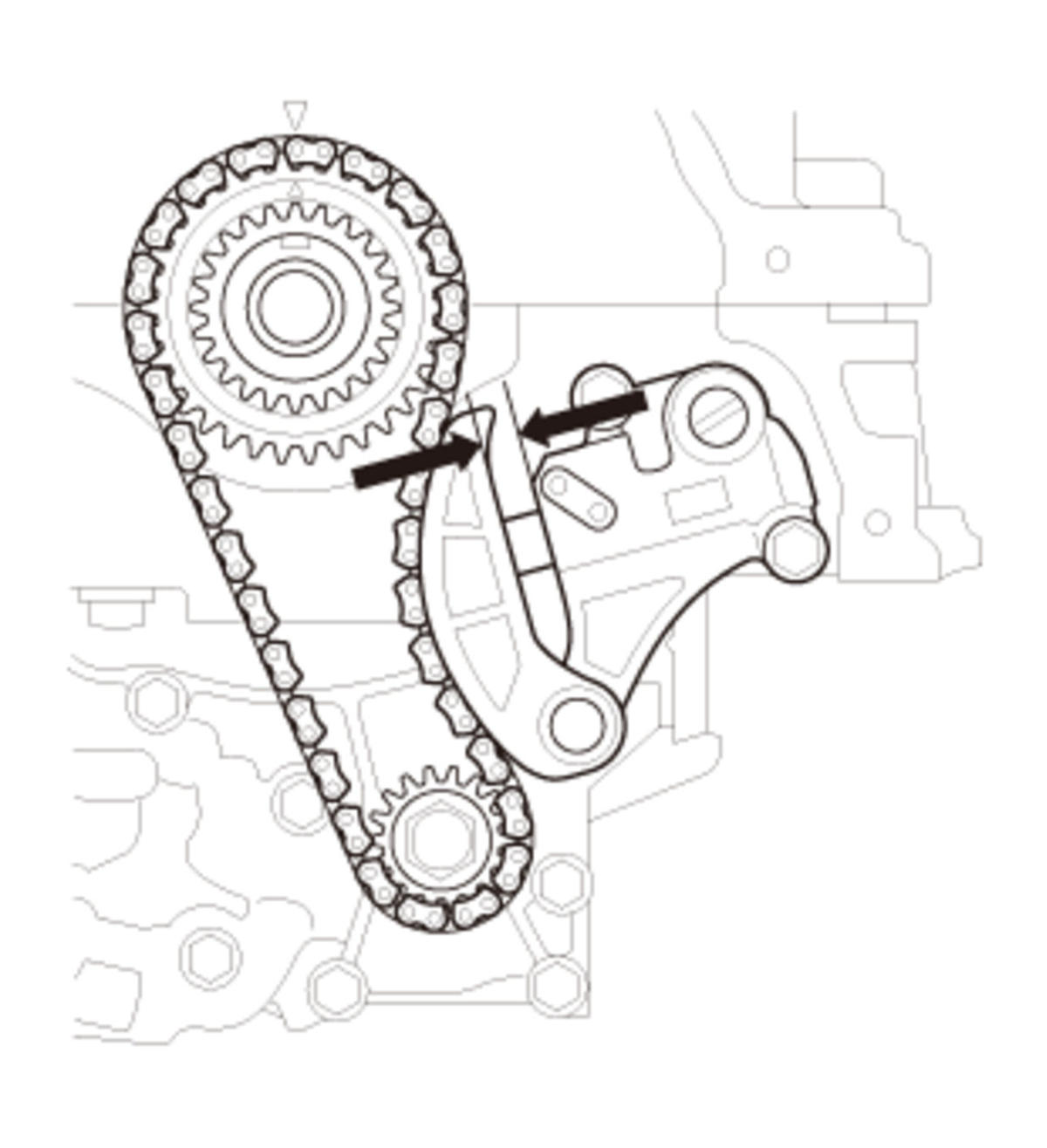

1. Measure the oil pump chain rod length. If the length is over the service limit, replace the oil pump chain.

Oil Pump Chain Auto-Tensioner Rod Length
Service Limit:	10.4 mm (0.409 in)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
