Removal and Installation

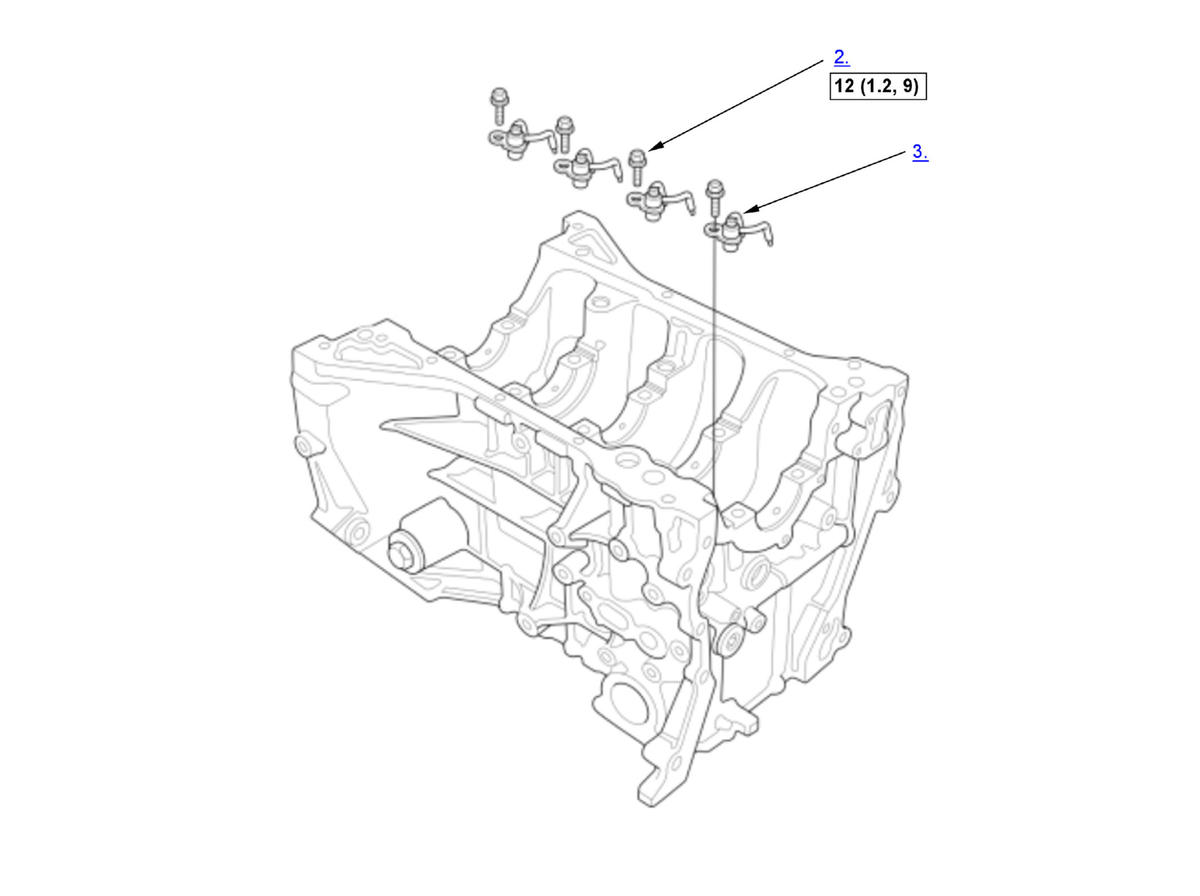

Fig 1: Engine Oil Jet Bolt With Torque Specifications
GHH429306Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Crankshaft - Remove
  2. Oil Jet Bolt - Remove
  3. Oil Jet - Remove
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
