Engine Lubrication System Description (2.4 L Engine) (2017 2018 2019)

Overview

The lubrication method is a pressurized circulation type and it employs the full-flow filtering system. In the full-flow filtering system, all the oil supplied to the engine by the oil pump normally passes through the oil filter. It has excellent cleaning action.

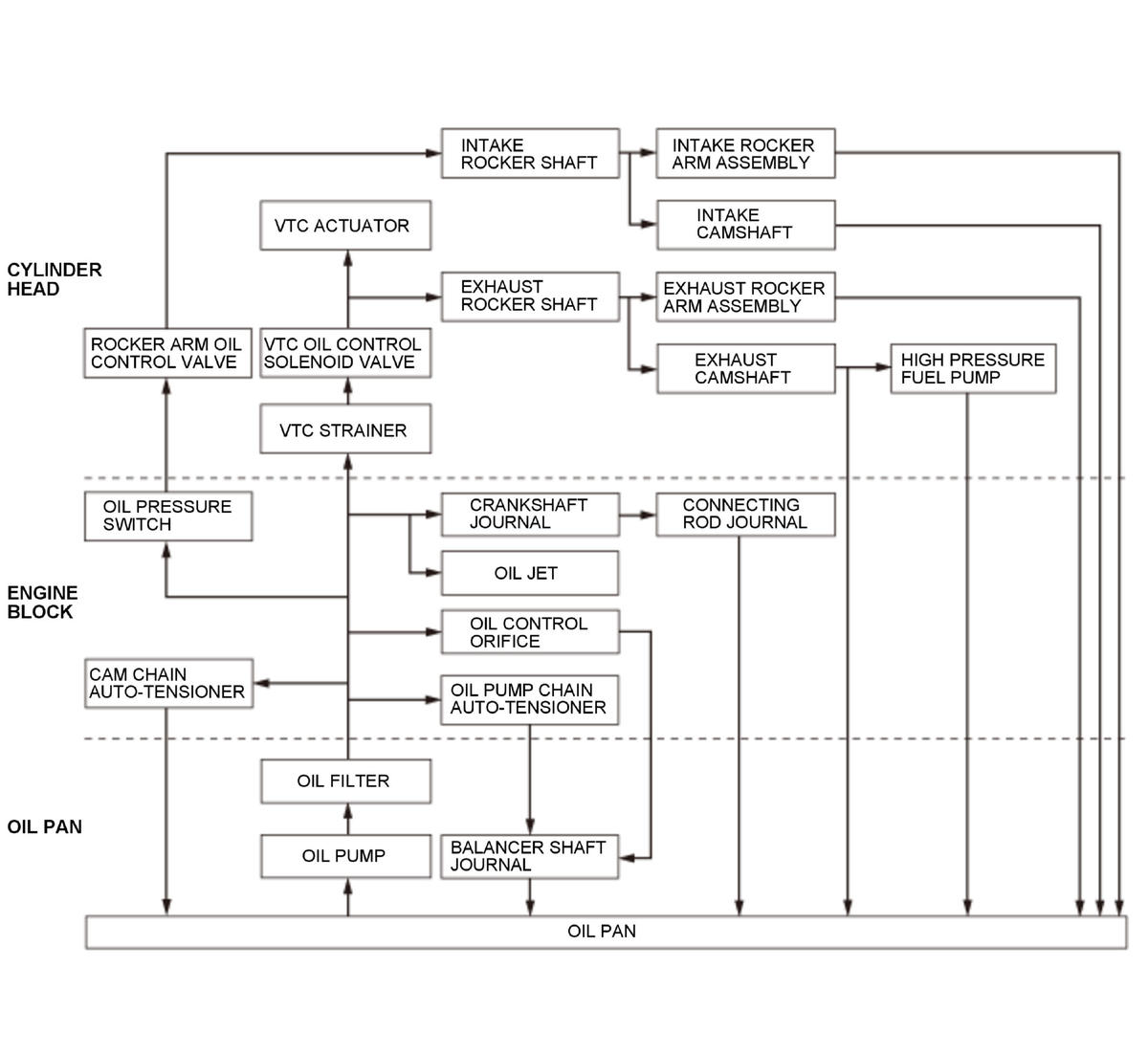

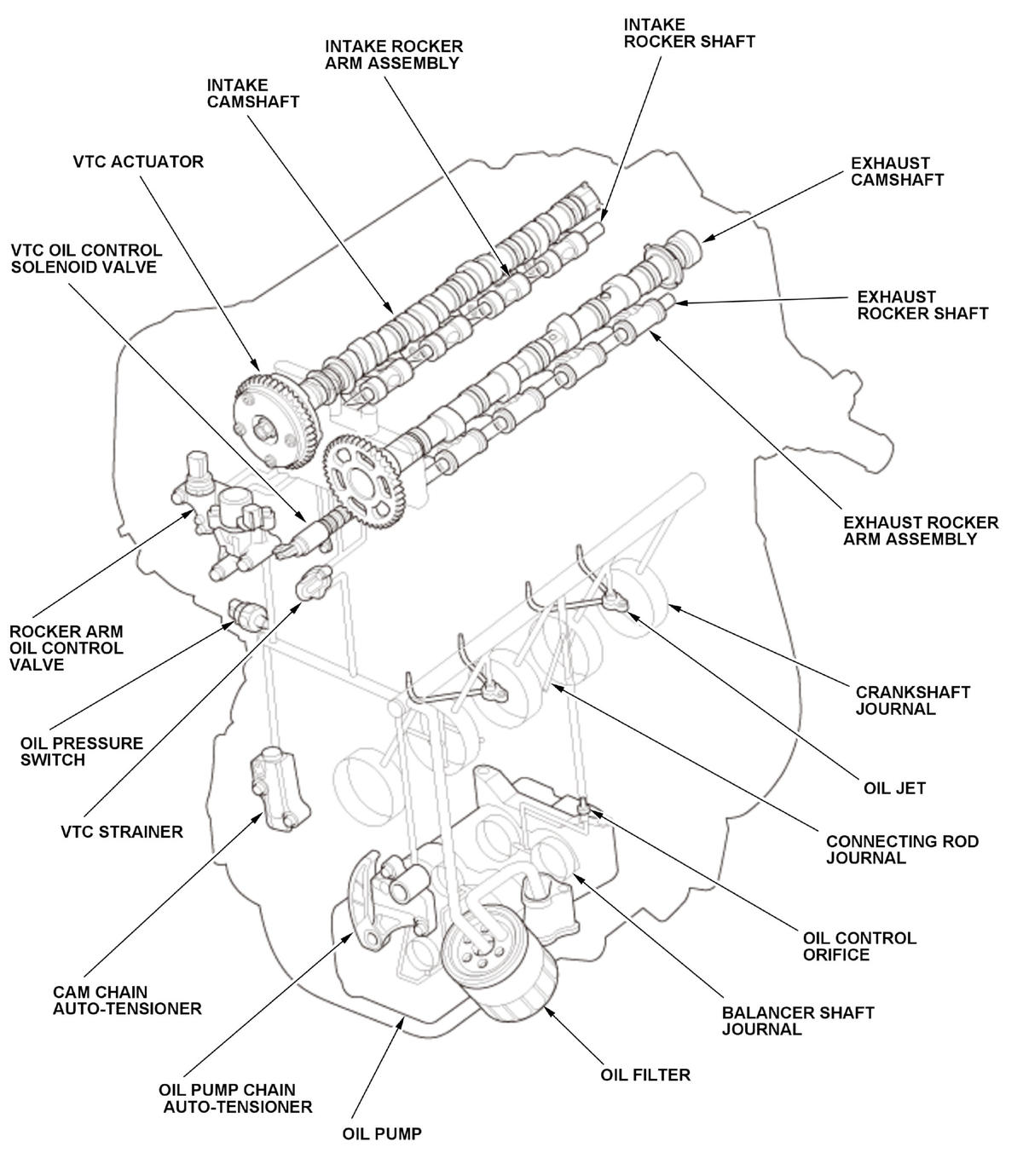

Hydraulic Circuit

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
