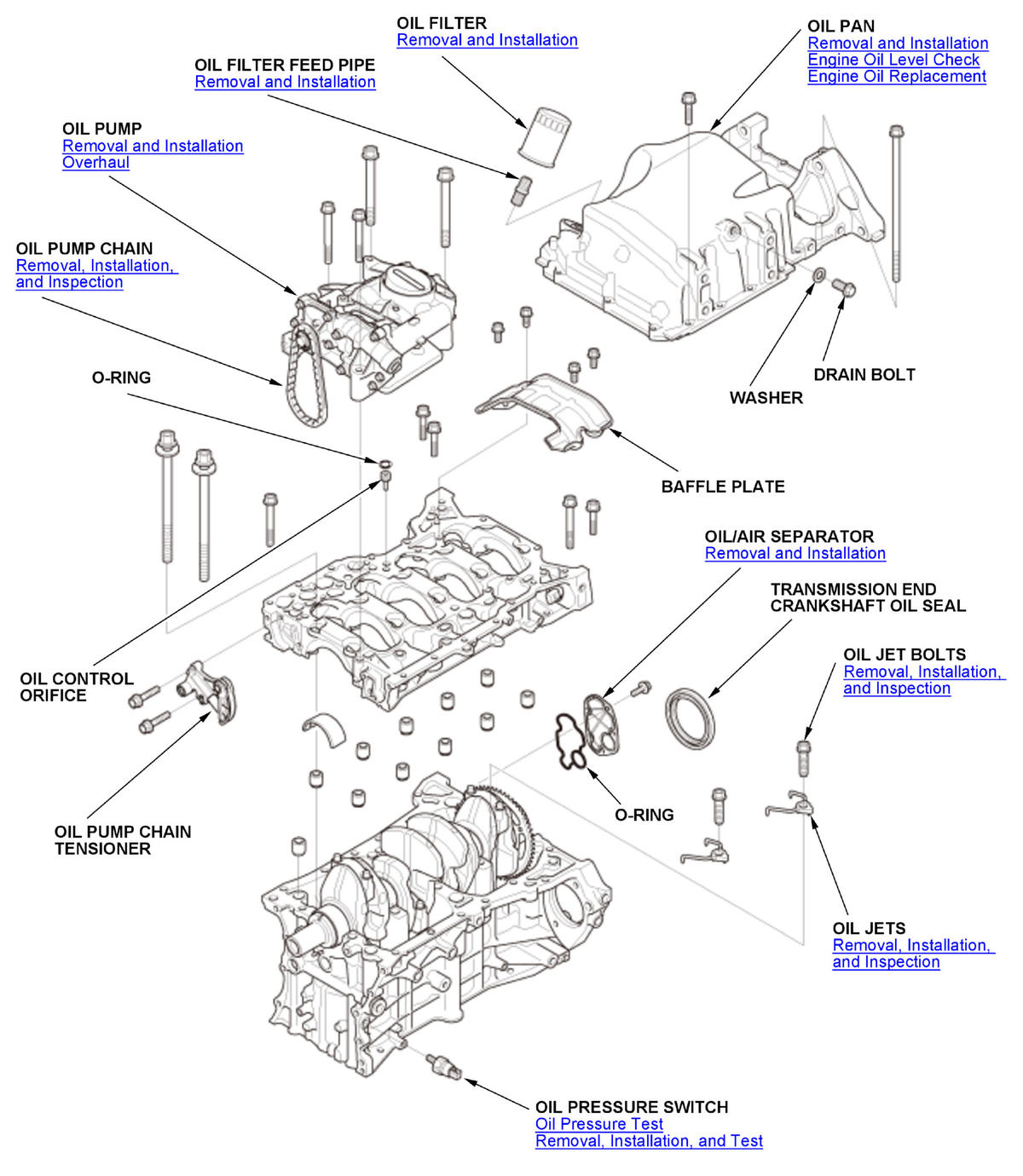

Engine Lubrication System Component Location Index (2.4 L Engine) (2017 2018 2019)

GHH429297

Courtesy of HONDA, U.S.A., INC.
