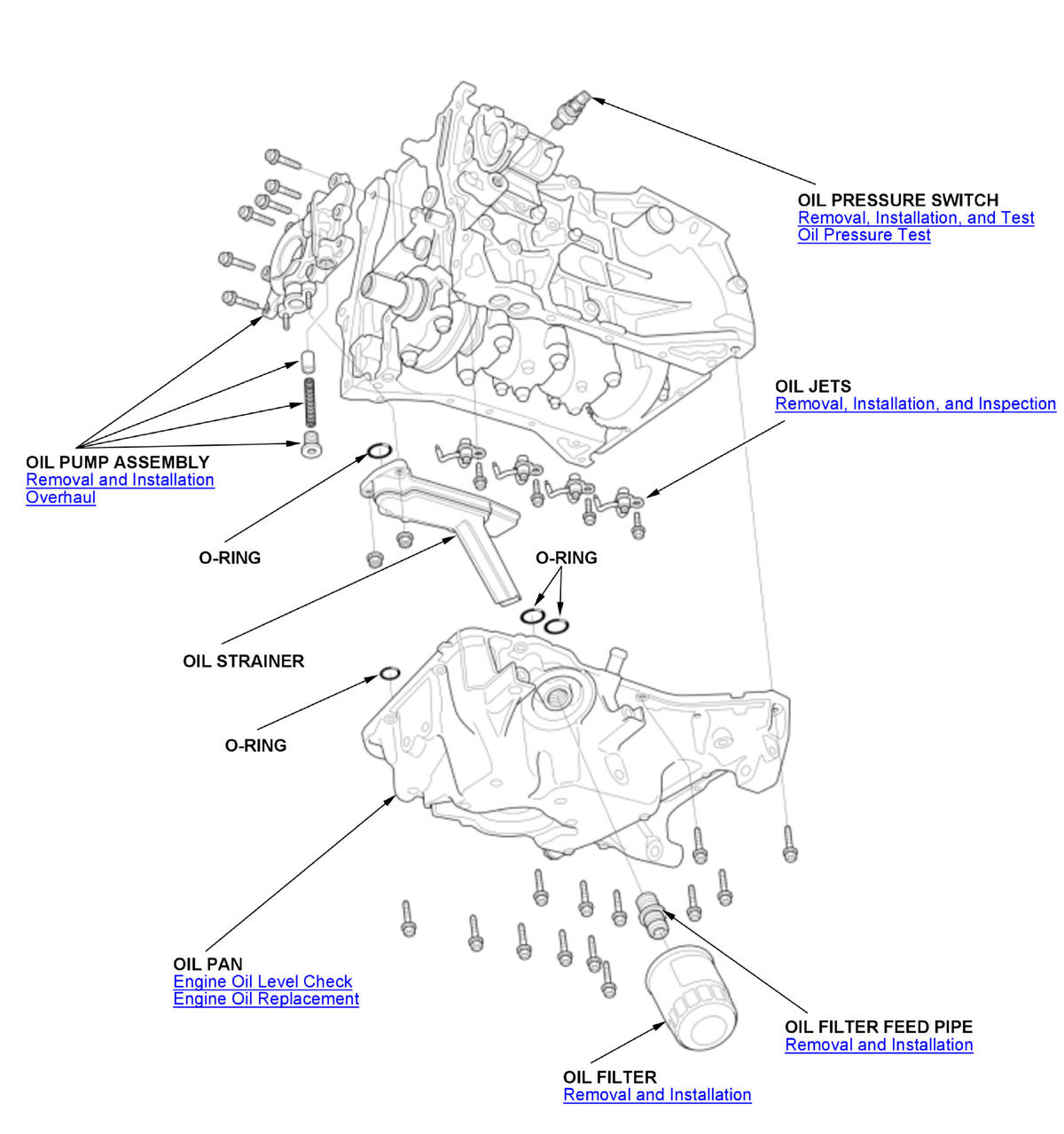

Engine Lubrication System Component Location Index (1.5 L Engine)

GHH429296

Courtesy of HONDA, U.S.A., INC.
