Engine Oil Pump Removal and Installation 2.4 L Engine) (2017 2018 2019): Removal

NOTE:  Where icon is shown, further information shown below.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Oil Pump Chain - Remove
2. Oil Pump Sprocket - Remove

   Courtesy of HONDA, U.S.A., INC.

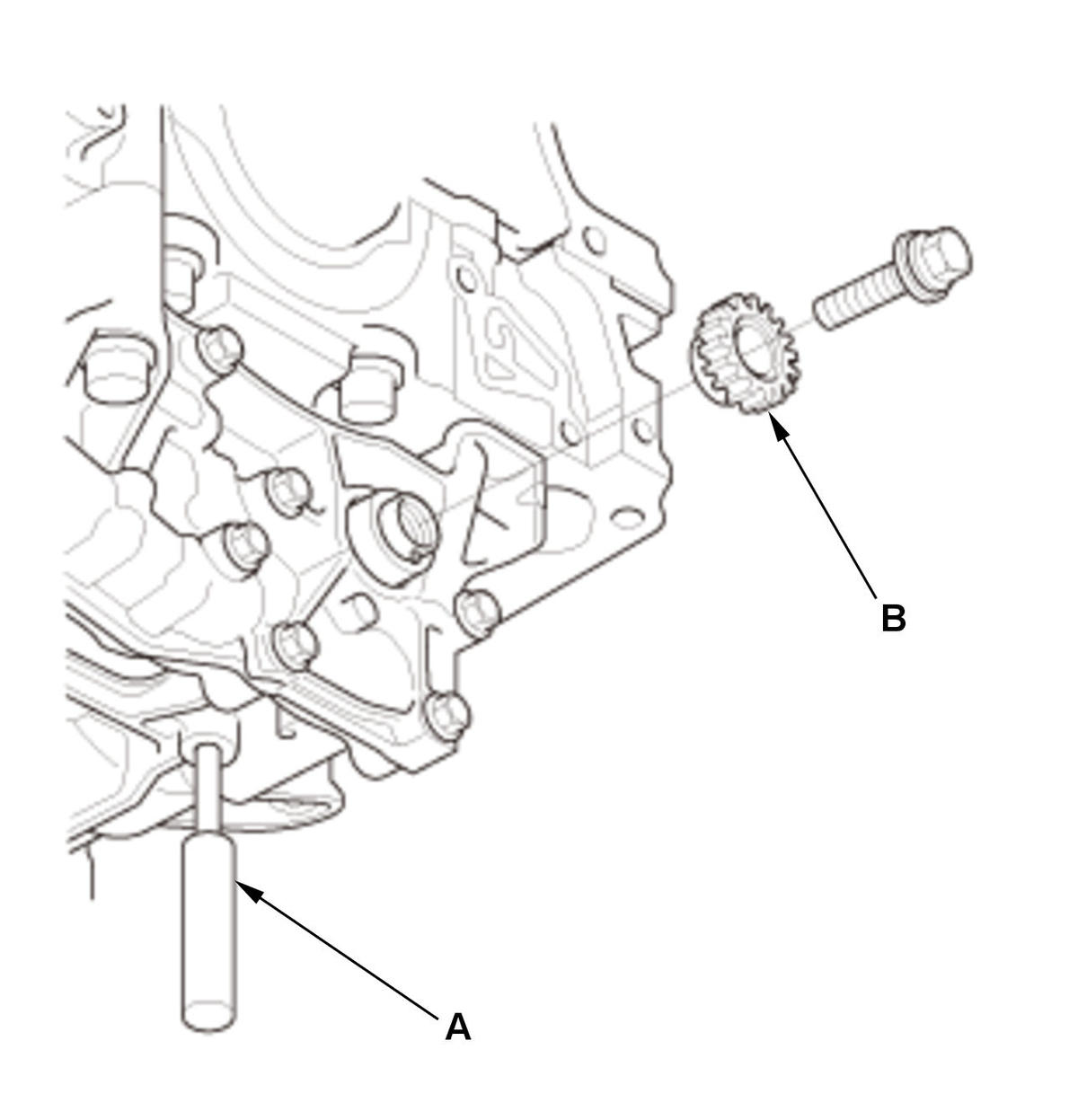

   1. To hold the front balancer shaft, insert a 6 mm long pin punch (A) (Snap-on PPC108LA or equivalent) into the maintenance hole in the balancer shaft holder and through the front balancer shaft. 2. Remove the oil pump sprocket (B).

3. Oil Pump - Remove
