Engine Oil Pump Removal and Installation 2.4 L Engine) (2017 2018 2019): Installation

NOTE: Where icon is shown, further information shown below.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	Apply new engine oil to the bolt threads.

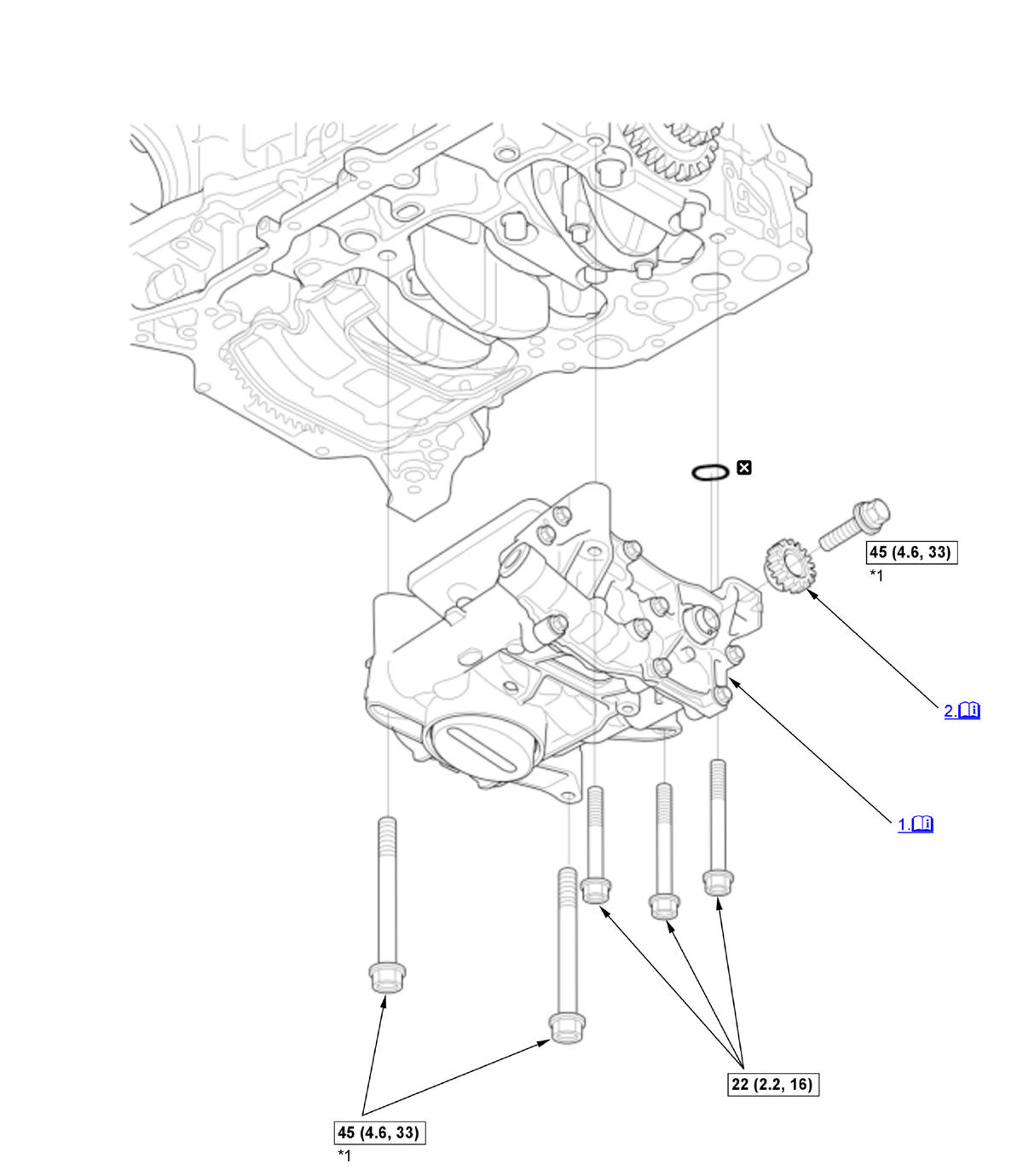

Oil Pump - Install

Courtesy of HONDA, U.S.A., INC.

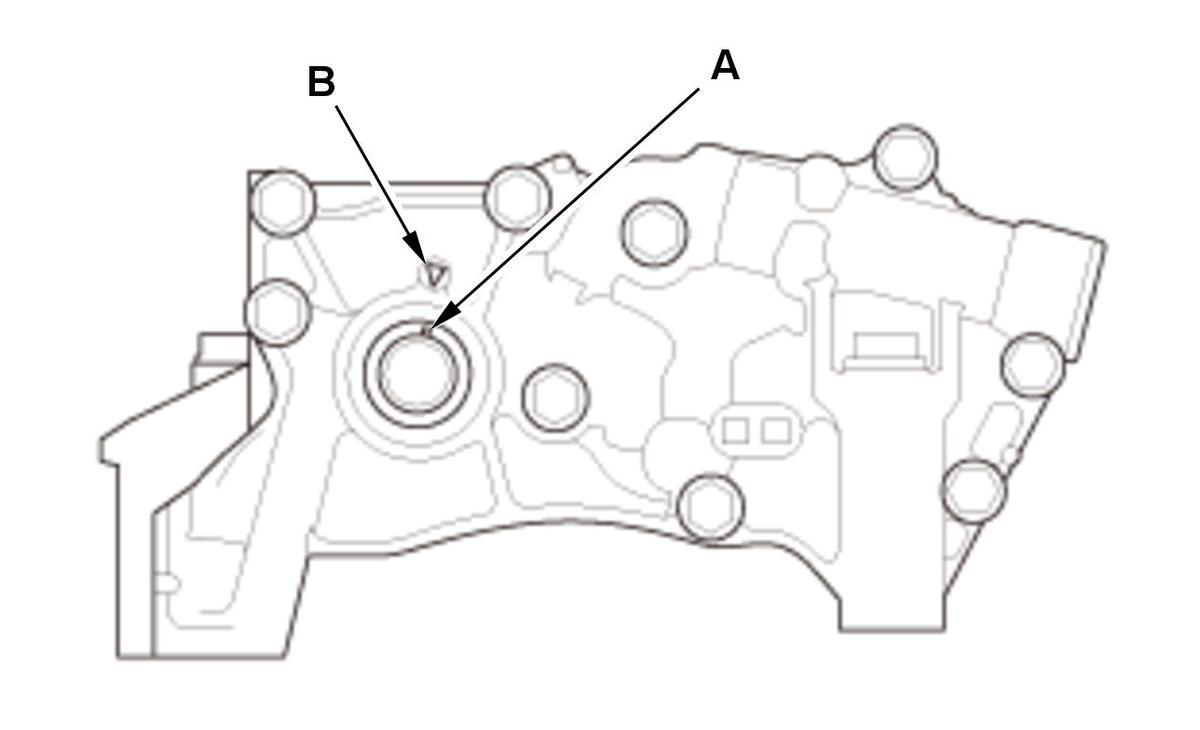

1. Align the dowel pin (A) on the rear balancer shaft with the mark (B) on the oil pump.

Courtesy of HONDA, U.S.A., INC.

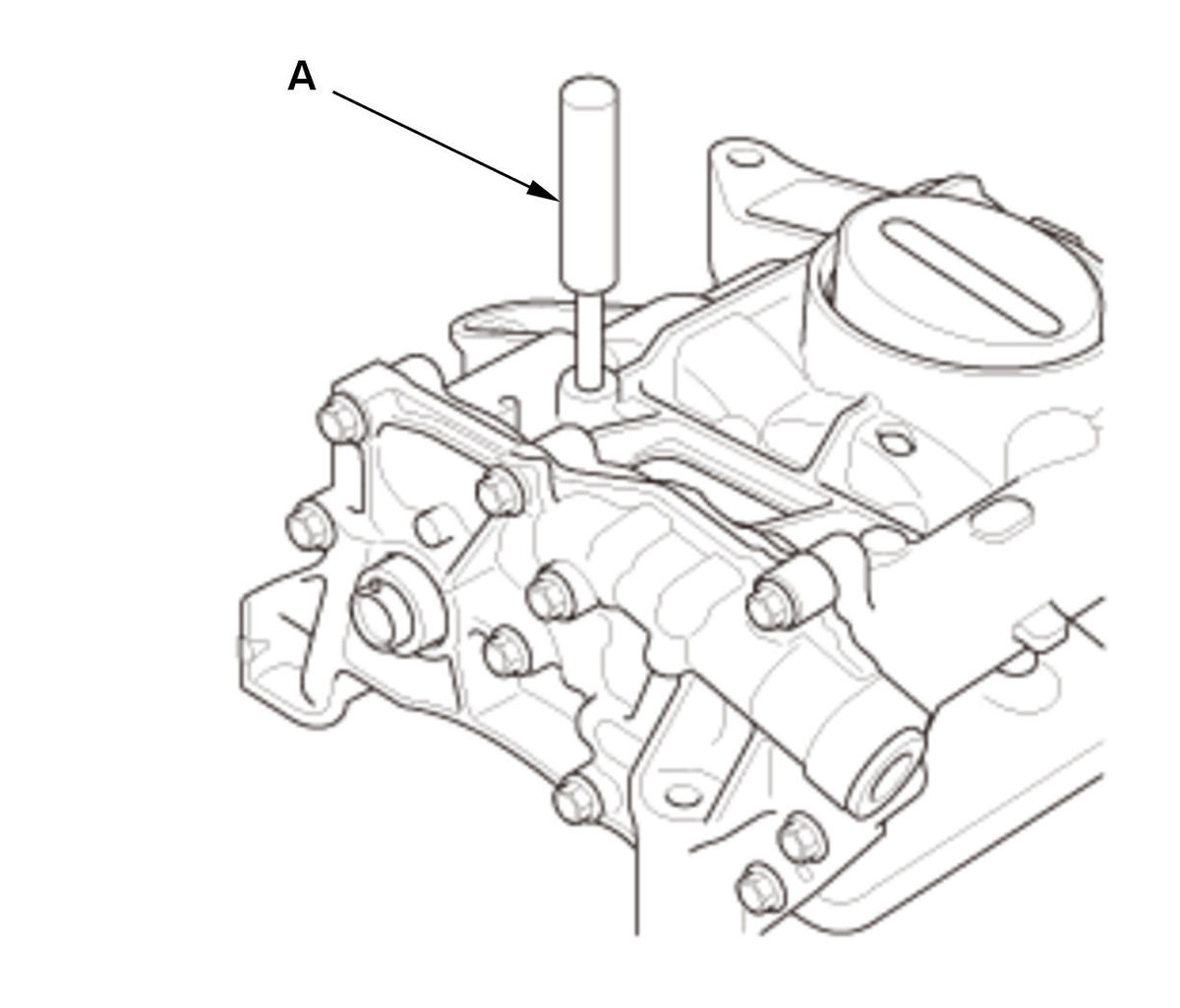

2. To hold the front balancer shaft, insert a 6 mm long pin punch (A) (Snap-on PPC108LA or equivalent) into the maintenance hole in the balancer shaft holder and through the front balancer shaft.

Courtesy of HONDA, U.S.A., INC.

3. Apply new engine oil to the threads of the oil pump mounting bolts (A), then loosely install the oil pump (B) with a new O-ring (C).

4. Tighten the oil pump mounting bolts.

Oil Pump Sprocket - Install

Courtesy of HONDA, U.S.A., INC.

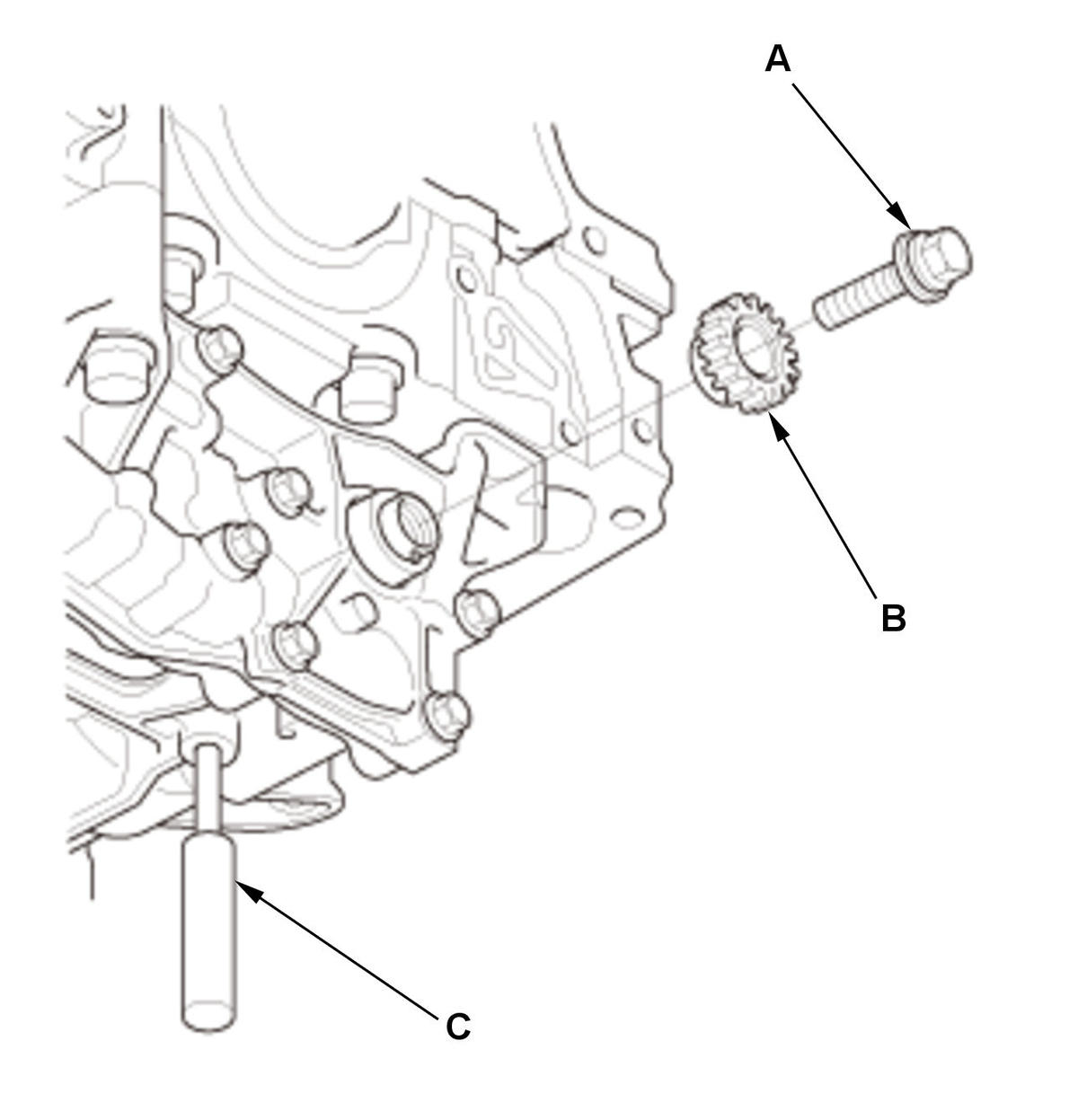

1. Apply new engine oil to the threads of the oil pump sprocket mounting bolt (A).

2. Install the oil pump sprocket (B).

3. Remove the 6 mm long pin punch (C).

Oil Pump Chain - Install
