Engine Oil Pressure Switch Removal, Installation, and Test (1.5 L Engine): Removal

NOTE:  Where icon is shown, further information shown below.

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. Right Front Wheel - Remove
2. Engine Undercover - Remove
3. Drive Belt - Remove
4. A/C Compressor - Move

   NOTE:

   • Do not disconnect the suction hose and the discharge hose.
   • Do not bend the suction hose and the discharge hose excessively.
   • Hang the A/C compressor with a wire tie.

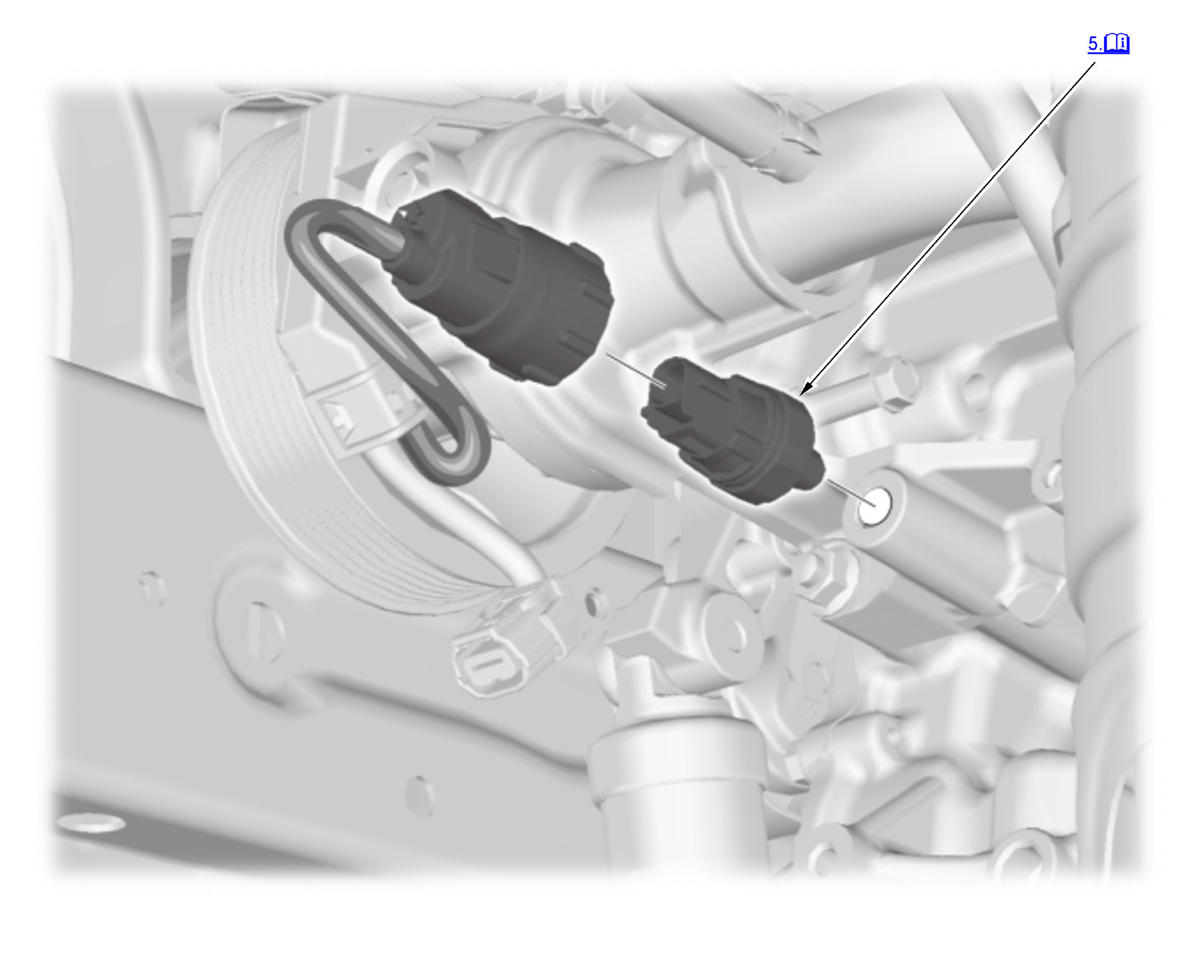

5. Oil Pressure Switch - Remove

   NOTE:  Remove any old liquid gasket from the oil pressure switch and the oil pressure switch mounting hole.
