Engine Oil Pressure Switch Removal, Installation, and Test (1.5 L Engine): Installation

NOTE: Where icon is shown, further information shown below.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions

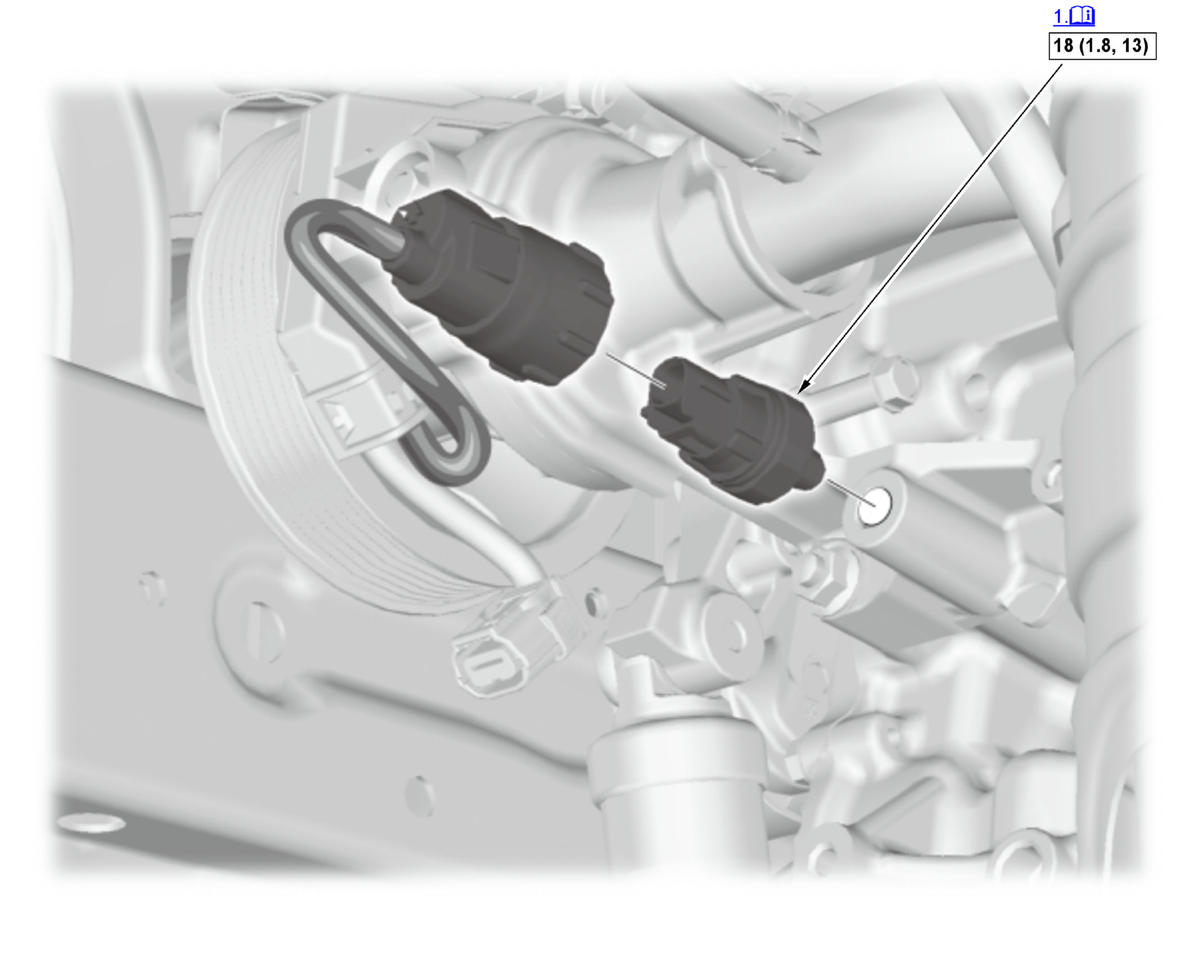

	Torque: N.m (kgf.m, lbf.ft)

Oil Pressure Switch - Install

1. Apply liquid gasket (P/N 08718-0003, 08718-0004, or 087180009) to the oil pressure switch threads. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the oil pressure switch.
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

2. Install the oil pressure switch.

A/C Compressor - Install
Drive Belt - Install
Engine Undercover - Install
Right Front Wheel - Install
